Bedook Background Suppression Photoelectric Sensor M18 10-100m DC4 Wire

The Bedook Background Suppression Photoelectric Sensor M18 10-100m DC4 Wire is a high-performance sensor. It has a sensing distance of 10 – 100m and uses background suppression detection.

The operating voltage is 10 – 30VDC. Its housing is made of PBT and brass (nickel-plated), ensuring durability. With IP66 ingress protection, it can work in various environments. The light type is infrared light at 624nm, and the response time is less than 2ms, enabling efficient object detection.

Product Features:

Bedook Background Suppression Photoelectric Sensor M18 10-100m DC4 Wire is a great choice for industrial sensing. With a sensing range of 10-100m, it’s suitable for medium – to – long – range applications. The background suppression type ensures accurate detection, making it reliable for industrial operations.

• Sensing Distance: A 10 – 100m sensing distance is ideal for medium – to – long – range detection, suitable for various industrial environments.
• Detection Method: The background suppression type provides highly accurate and reliable detection, reducing false positives.
• Housing Material: Made of PBT and brass (nickel – plated), it is sturdy and durable, withstanding harsh conditions.
• Ingress Protection: IP66 protection makes it suitable for dusty and wet environments.
• Light Type: Infrared light at 624nm ensures stable and precise sensing.
• Response Time: Less than 2ms response time allows for quick and efficient operation.

Product Parameters:

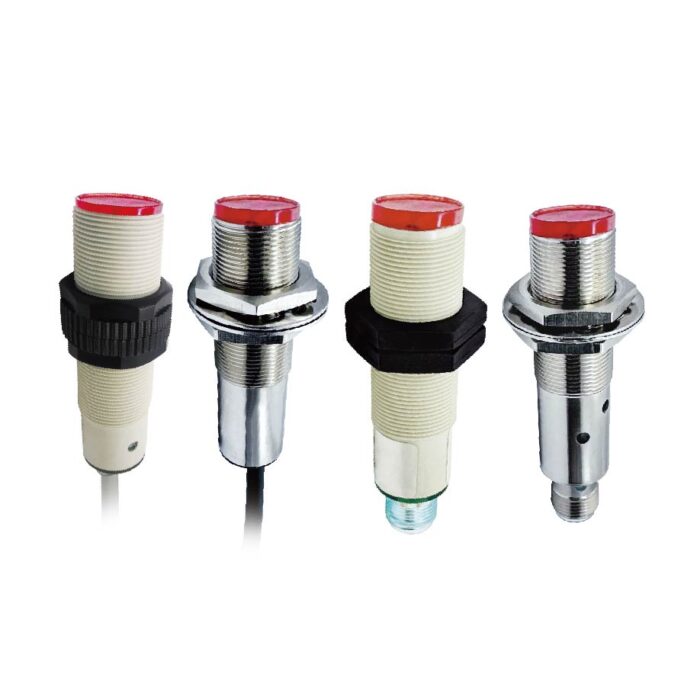

Appearance
Model	NPN Light/Dark-on	FM18-H01N-P31P2	FM18-H01N-C31P2	FM18-H01N-P31S12	FM18-H01N-C31S12
	PNP Light/Dark-on	FM18-H01P-P31P2	FM18-H01P-C31P2	FM18-H01P-P31S12	FM18-H01P-C31S12
Appearance Structure		M18*1mm
Sensing Distance		10…100m
Detection method		Background suppression type
Switching Frequency		1000Hz
Operating voltage		10…30VDC
Light type		Infrareed light 624nm
response time		<2ms
Power-up delay		≤200mA
Adjustment		<300ms
Blind area		<1cm
Light immunity		Single-turn protentiometer
Light resistance		<5000Lux.
Ambient temperature		-25…55℃
Ambient humidity		35…85%
Housing Material		PBT	Brass, nickel-plated	PBT	Brass, nickel-plated
Ingress protection		IP66
Lens material		PMMA
Operating indicator		Yellow
Connectors		2m PVC Cable, 4*0.25mm²		M12 Connector
Accessories		no		B12-4GV2/B12-4WV2

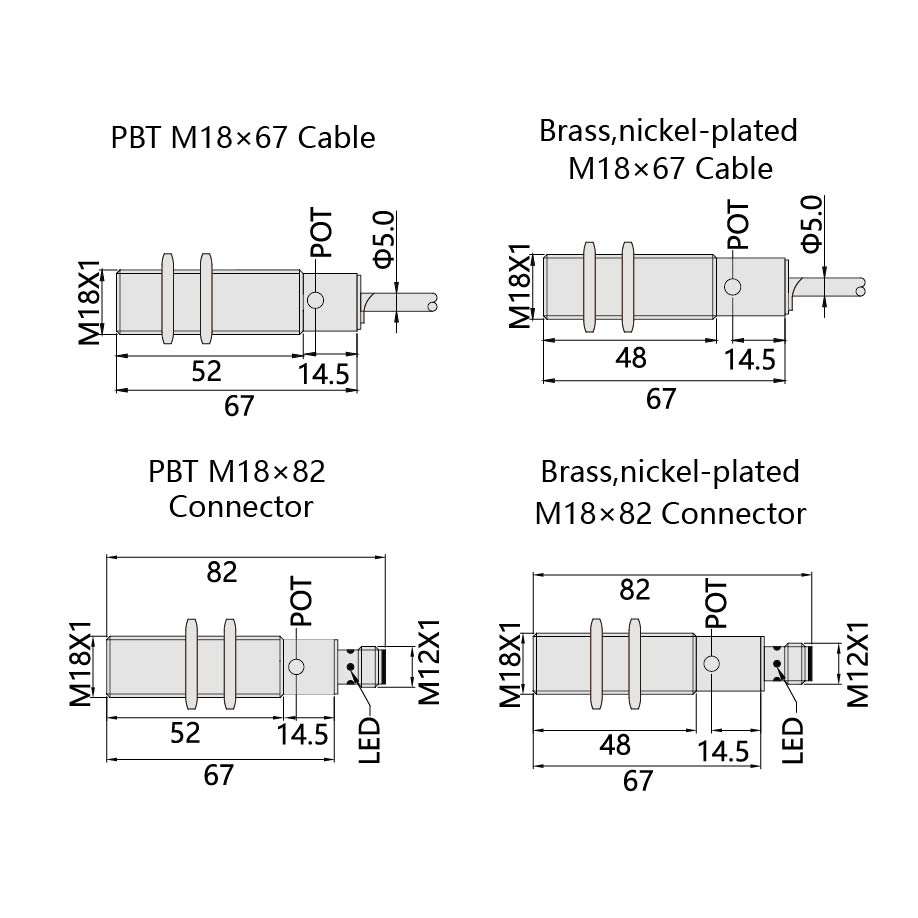

Product Size:

The Bedook Background Suppression Photoelectric Sensor M18 10-100m DC4 Wire is perfect for outdoor industrial areas or large-scale production facilities. For example, it can be used to monitor the movement of vehicles in a large industrial yard. Compared to similar products, the Bedook sensor offers better durability with its high-quality housing material and IP66 protection. Its long-range sensing and accurate background suppression detection make it stand out for industrial applications.
