Bedook Capacitive High Temperature Sensor

The Bedook Capacitive High Temperature Sensor is a remarkable device. Its probe, made of PTFE, can handle media temperatures up to 230°C. The sensor and amplifier are designed separately, allowing for easy probe fixation. It has an IP66 ingress protection, ensuring durability in harsh environments. With an operating voltage ranging from 18 – 30VDC for Sensor – I and 24VDC for Sensor – II, it is suitable for various power supply setups. The switching frequency is 10Hz for both, and the no – load current is ≤50mA.

Get A Free Quote Now

Description

The Bedook Capacitive High Temperature Sensor is a remarkable device. Its probe, made of PTFE, can handle media temperatures up to 230°C. The sensor and amplifier are designed separately, allowing for easy probe fixation. It has an IP66 ingress protection, ensuring durability in harsh environments. With an operating voltage ranging from 18 – 30VDC for Sensor – I and 24VDC for Sensor – II, it is suitable for various power supply setups. The switching frequency is 10Hz for both, and the no – load current is ≤50mA.

This high – temperature sensor by Bedook is engineered for precision. The PTFE – made probe is resistant to high – temperature and high – viscosity media. The split – design simplifies installation. Ingress protection is IP66. Sensor – I operates at 18 – 30VDC and Sensor – II at 24VDC. Both have a 10Hz switching frequency and ≤50mA no – load current. The maximum load current is 3A/30V DC, 3A/250V AC, making it suitable for a wide range of industrial applications.

Product Features:

The Bedook Capacitive High Temperature Sensor is a specialized device designed for detecting high – temperature and high – viscosity media. Its unique features make it stand out in the market.

This Bedook sensor offers great performance. It has operating voltages of 18 – 30VDC (Sensor – I) and 24VDC (Sensor – II), with a 10Hz switching frequency and low no – load current, suitable for various industrial uses.

High – Temperature Resistance: The probe made of PTFE can withstand media temperatures up to 230°C, far surpassing many competitors.
Split – Design: The sensor and amplifier are separated, allowing for easy and flexible probe installation.
Ingress Protection: With an IP66 rating, it is highly resistant to dust and water, suitable for harsh industrial environments.
Versatile Operating Voltage: Sensor – I operates at 18 – 30VDC, and Sensor – II at 24VDC, catering to different power supply requirements.
Low No – Load Current: The no – load current is ≤50mA for both sensors, ensuring energy – efficient operation.
High Maximum Load Current: It can handle a maximum load current of 3A/30V DC, 3A/250V AC, enabling it to be used in various industrial applications.

Product Parameters:

		BEDOOK Capacitive High Temperature Sensor-I	BEDOOK Capacitive High Temperature Sensor-II
Appearance
High temperature sensor	Model	CHN-H22-5/12	CHN-H22-5/12/65mm
	Sensor ambient temperature	-10…250 ℃	-10…250 ℃
	Cable ambient temperature	-10…200 ℃	-10…200 ℃
	Ingress protection	IP66	IP66
	Housing material	PTFE/V2A	PTFE/V2A
	Cable	1m PTFE Cable	1m PTFE Cable
	Connectors	M16 connector	M16 connector
Amplifier	Model	BCH75	BCH75-Y
	Operating voltage	18…30VDC	24VDC
	Switching frequency	10Hz	10Hz
	No-load current	≤50mA	≤50mA
	Output mode	SPDT Relay output	SPDT Relay output
	Maximum load current	3A/30V DC,3A/250V AC	3A/30V DC,3A/250V AC
	Ambient temperature	-25℃…+70℃	-25℃…+70℃
	Housing material	Plastic housing	Metal housing
	Cable connection	no	M12Connector, Cable length160mm

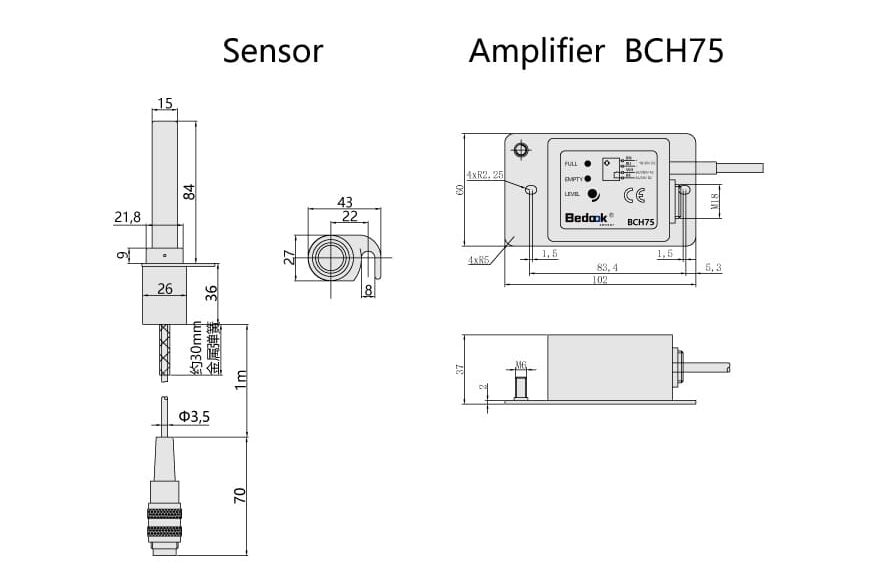

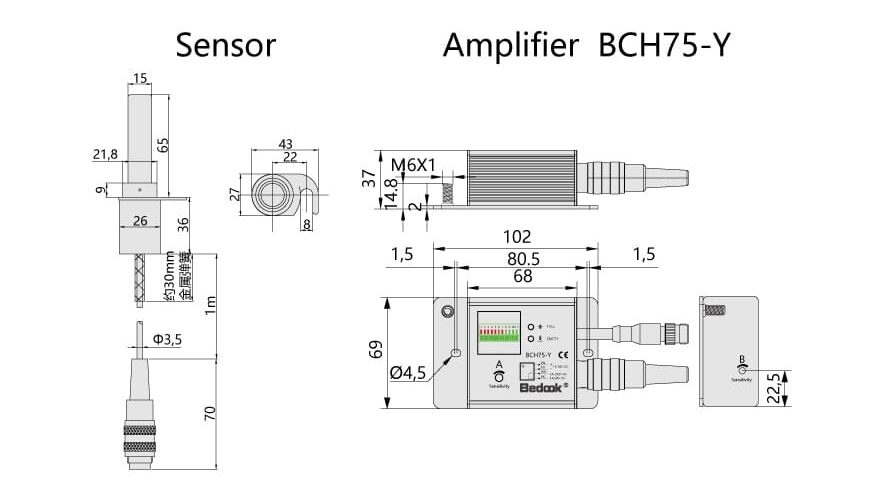

Size Chart:

Bedook Capacitive High Temperature Sensor is particularly advantageous in applications involving high – temperature adhesives, such as in the electronics or automotive industries. When compared to other sensors, its high – temperature resistance allows it to function reliably in environments where other sensors would fail. For example, in the production of electronic components that require high – temperature soldering or in the assembly of automotive engines where high – temperature sealants are used, this sensor can accurately detect the presence and amount of the adhesive, ensuring product quality. Its IP66 protection also makes it suitable for use in dusty or humid environments, providing consistent performance.
