Bedook Capacitive proximity sensor φ6.5 DC 3 Wire

The Bedook Capacitive Proximity Sensor φ6.5 DC 3 Wire is a highly reliable and versatile sensor designed for precise object detection in various industrial applications. With a compact 6.5mm diameter, it provides accurate sensing distances up to 2mm, available in both flush and non-flush mounting options. This sensor operates on a wide voltage range of 10…30VDC and is equipped with essential protections such as short circuit, polarity reversal, and power-on protection. The stainless steel housing ensures durability, while the IP67 ingress protection makes it suitable for harsh environments.

Product Features:

The Bedook Capacitive Proximity Sensor φ6.5 DC 3 Wire is engineered for precision in compact spaces, featuring a 6.5mm diameter and sensing ranges up to 2mm. It operates on 10…30VDC with robust protection mechanisms, including short circuit and polarity reversal. Encased in durable stainless steel with IP67 ingress protection, it excels in harsh environments, making it a reliable choice for automation and industrial applications.

• High Precision Detection: The sensor offers accurate sensing distances of 1mm for flush mounting and 2mm for non-flush mounting, ensuring reliable operation in tight spaces.
• Wide Operating Voltage Range: With a voltage range of 10…30VDC (±10%), the sensor is adaptable to various industrial power supplies, enhancing its versatility.
• Comprehensive Protection Mechanisms: Equipped with short circuit, polarity reversal, and power-on protections, the sensor is built to endure challenging operational conditions, minimizing downtime and maintenance.
• Durable Construction: The stainless steel housing combined with POM face material offers excellent resistance to corrosion and mechanical wear, prolonging the sensor’s lifespan.
• LED Indication for Easy Monitoring: The built-in LED indicator lights up during operation, providing clear visual confirmation of the sensor’s status, simplifying installation and troubleshooting.
• Robust Environmental Resistance: Rated with IP67 ingress protection and an operational temperature range of -25…70℃, the sensor is ideal for use in demanding environments, including those with exposure to dust and moisture.

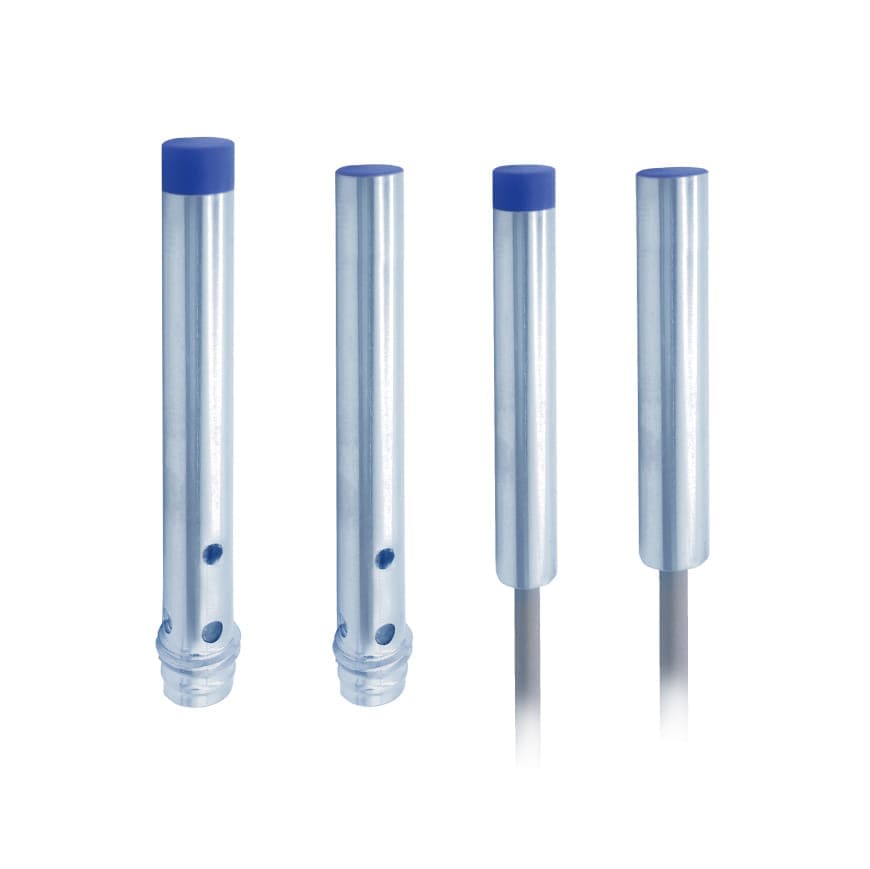

Appearance
Model	NPN N.O	CB-H6.501N-V11P2	CN-H6.502N-V11P2	CB-H6.501N-V11S8	CN-H6.502N-V11S8
	NPN N.C	CB-H6.501N-V21P2	CN-H6.502N-V21P2	CB-H6.501N-V21S8	CN-H6.502N-V21S8
	PNP N.O	CB-H6.501P-V11P2	CN-H6.502P-V11P2	CB-H6.501P-V11S8	CN-H6.502P-V11S8
	PNP N.C	CB-H6.501P-V21P2	CN-H6.502P-V21P2	CB-H6.501P-V21S8	CN-H6.502P-V21S8
Exterior Structure		φ6.5mm	φ6.5mm	φ6.5mm	φ6.5mm
Sensing Distance		1mm(flush mounting)	2mm(Non-flush)	1mm(flush mounting)	2mm(Non-flush)
Switching Frequency		100Hz
Operating voltage		10…30VDC(±10%)
Voltage drop		≤2.0V DC
Load current		100mA
No load current		≤10mA(24V)
Hysteresis		＜15%(Sr)
Repeatability		＜5.0%(Sr)
Switch protection		Short Circuit Protection, Polarity reversal Protection, Power-On Protection
Indication LED		With (Action: LED Indicator Lights Up)
Ambient temperature		-25…70℃
Ingress protection		IP67
Housing Material		Stainless Steel
Face material		POM
Connectors		2m PVC Cable, 3*0.18mm²		M8 connector
Accessories		None		B8-3GV2/B8-3WV2

Size Chart:

The Bedook Capacitive Proximity Sensor φ6.5 DC 3 Wire is ideal for a wide range of industrial applications, including:

• Automated Assembly Lines: Provides precise detection of components in high-speed manufacturing processes.
• Material Handling Systems: Ensures accurate object detection in conveyors and sorting equipment.
• Robotics: Used for position sensing in robotic arms and automated guided vehicles (AGVs).
• Packaging Machinery: Detects packaging materials with varying dielectric properties, enhancing machine efficiency.
• Pharmaceutical Equipment: Ensures non-contact detection in environments where hygiene and contamination control are critical.
• Precision Instrumentation: Offers reliable performance in sensitive equipment requiring high accuracy and repeatability.
