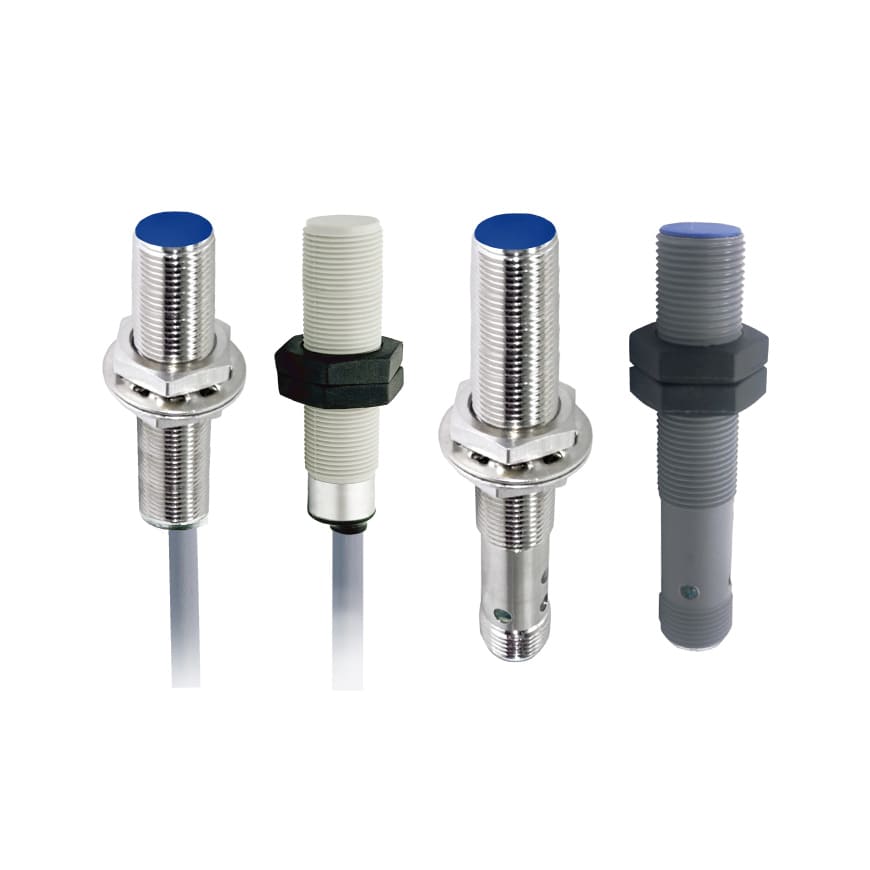

Bedook Capacitive proximity sensor M12 DC 3 Wire

The Bedook Capacitive proximity sensor M12 DC 3 Wire is a highly reliable and versatile sensing solution designed for precise detection in a wide range of industrial applications. Available in both flush and non-flush mounting options, this sensor is equipped with advanced protection features, ensuring robust performance in harsh environments.

With a sensing distance of up to 6mm and a high switching frequency of 100Hz, it is ideal for automation tasks where accuracy and consistency are paramount.

Product Features:

The Bedook M12 DC 3-Wire Capacitive Proximity Sensor offers precise detection with flush (3mm) and non-flush (6mm) mounting. Featuring IP67 protection, 10-30VDC operation, and robust construction, it’s ideal for diverse industrial applications. Enjoy high accuracy with advanced short-circuit and polarity protection.

• Versatile Mounting Options: The sensor comes in both flush (3mm) and non-flush (6mm) mounting variants, providing flexibility for different installation needs.
• High Precision Sensing: With a repeatability of less than 5.0% (Sr) and a hysteresis below 15% (Sr), this sensor delivers consistent and accurate detection, reducing false triggers.
• Wide Operating Voltage: Operating within a broad voltage range of 10 to 30VDC (±10%), it ensures stable performance even under varying power conditions.
• Robust Protection Features: Equipped with short circuit, polarity reversal, and power-on protection, the sensor is built to withstand electrical anomalies, enhancing its durability and safety.
• Durable Construction: The sensor housing is made from nickel-plated brass, ensuring high resistance to corrosion, while the PBT face material contributes to its longevity in industrial environments.
• IP67 Ingress Protection: Rated at IP67, the sensor is fully protected against dust ingress and temporary immersion in water, making it suitable for challenging environmental conditions.

Appearance
Model	NPN N.O	CB-M1203N-C11P2	CB-M1203N-P11P2	CB-M1203N-C11S12	CB-M1203N-P11S12
	NPN N.C	CB-M1203N-C21P2	CB-M1203N-P21P2	CB-M1203N-C21S12	CB-M1203N-P21S12
	PNP N.O	CB-M1203P-C11P2	CB-M1203P-P11P2	CB-M1203P-C11S12	CB-M1203P-P11S12
	PNP N.C	CB-M1203P-C21P2	CB-M1203P-P21P2	CB-M1203P-C21S12	CB-M1203P-P21S12
Exterior Structure		M12*1mm
Sensing Distance		3mm(flush mounting)
Switching Frequency		100Hz
Operating voltage		10…30VDC(±10%)
Voltage drop		≤2VDC
Load current		200mA
No load current		≤10mA(24V)
Hysteresis		＜15%(Sr)
Repeatability		＜5.0%(Sr)
Switch protection		Short Circuit Protection, Polarity reversal Protection, Power-On Protection
Indication LED		With (Action: LED Indicator Lights Up)
Ambient temperature		-25…70℃
Ingress protection		IP67
Housing Material		Brass, nickel-plated	PBT	Brass, nickel-plated	PBT
Face material		PBT
Connectors		2m PVC Cable, 3*0.35mm²		M12 connector
Accessories		None		B12-4GV2/B12-4WV2



Appearance
Model	NPN N.O	CN-M1206N-C11P2	CN-M1206N-P11P2	CN-M1206N-C11S12	CN-M1206N-P11S12
	NPN N.C	CN-M1206N-C21P2	CN-M1206N-P21P2	CN-M1206N-C21S12	CN-M1206N-P21S12
	PNP N.O	CN-M1206P-C11P2	CN-M1206P-P11P2	CN-M1206P-C11S12	CN-M1206P-P11S12
	PNP N.C	CN-M1206P-C21P2	CN-M1206P-P21P2	CN-M1206P-C21S12	CN-M1206P-P21S12
Exterior Structure		M12*1mm
Sensing Distance		6mm(Non-flush mounting)
Switching Frequency		100Hz
Operating voltage		10…30VDC(±10%)
Voltage drop		≤2VDC
Load current		200mA
No load current		≤10mA(24V)
Hysteresis		＜15%(Sr)
Repeatability		＜5.0%(Sr)
Switch protection		Short Circuit Protection, Polarity reversal Protection, Power-On Protection
Indication LED		With (Action: LED Indicator Lights Up)
Ambient temperature		-25…70℃
Ingress protection		IP67
Housing Material		Brass, nickel-plated	PBT	Brass, nickel-plated	PBT
Face material		PBT
Connectors		2m PVC Cable, 3*0.35mm²		M12 connector
Accessories		None		B12-4GV2/B12-4WV2

Size Chart:







The Bedook Capacitive proximity sensor M12 DC 3 Wire is perfect for a wide array of industrial applications, including automated manufacturing lines, material handling systems, and packaging equipment. Its precise detection capability makes it suitable for monitoring the presence or absence of objects, level detection of liquids and solids, and detecting non-metallic materials like plastics and wood. The sensor’s robust design ensures reliable performance in environments with moisture, dust, or mild corrosive elements.
