Bedook Capacitive Proximity Sensor M18 AC/DC 2 Wire

The Bedook Capacitive Proximity Sensor M18 AC/DC 2 Wire is a high-performance sensing solution engineered for reliable detection in various industrial environments.

This sensor is designed to operate efficiently within a wide voltage range of 20…250V AC or 20…250V AC/DC, making it versatile for applications that require both AC and DC power sources.

The sensor is housed in a robust M18*1mm brass, nickel-plated casing with PBT face material, ensuring durability and resistance to harsh conditions. With a sensing distance of 8mm for flush mounting and 15mm for non-flush mounting, this sensor is ideal for precise object detection in tight spaces.

Product Features:

The Bedook Capacitive Proximity Sensor M18 AC/DC 2 Wire offers dual power compatibility (20…250V AC/DC), reliable 8mm flush and 15mm non-flush sensing distances, and robust brass, nickel-plated housing. Designed for industrial automation, it features comprehensive protection and easy installation.

• Dual Power Compatibility: Operates on both 20…250V AC and 20…250V AC/DC, offering flexibility in installation across different power systems.
• Reliable Sensing Distance: Capable of detecting objects up to 8mm (flush) and 15mm (non-flush), ensuring accurate detection in various configurations.
• High Switching Frequency: With a switching frequency of 25Hz for AC and 40Hz for DC, it is suitable for fast-paced automation processes.
• Robust Construction: The brass, nickel-plated housing with PBT face material provides excellent resistance to environmental factors such as moisture, dust, and temperature fluctuations.
• Comprehensive Protection Features: Includes short circuit protection, polarity reversal protection, and power-on protection, enhancing safety and longevity.
• Easy Installation and Integration: Equipped with a 2m PVC cable or M12 connector for flexible wiring options, simplifying the installation process.

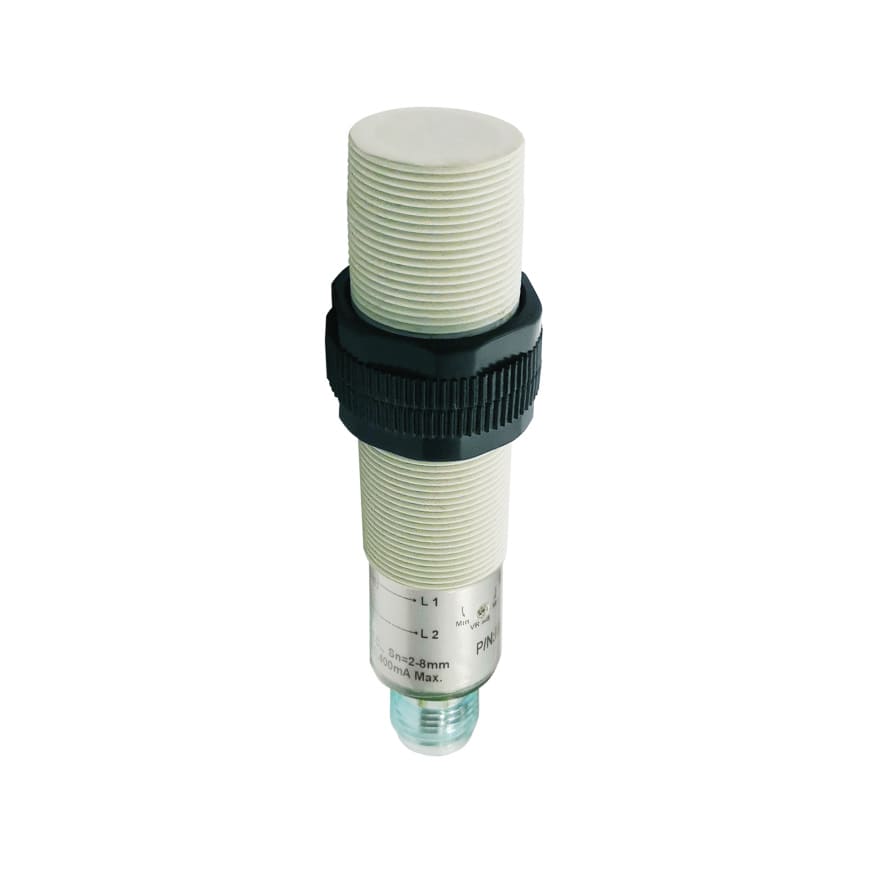

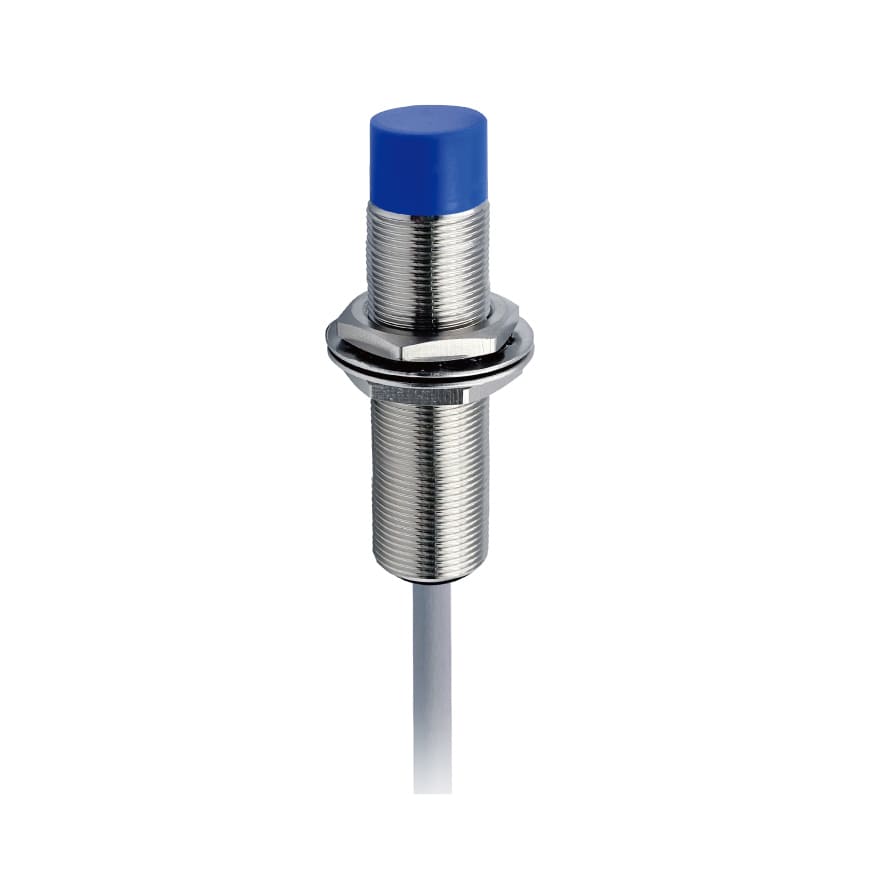

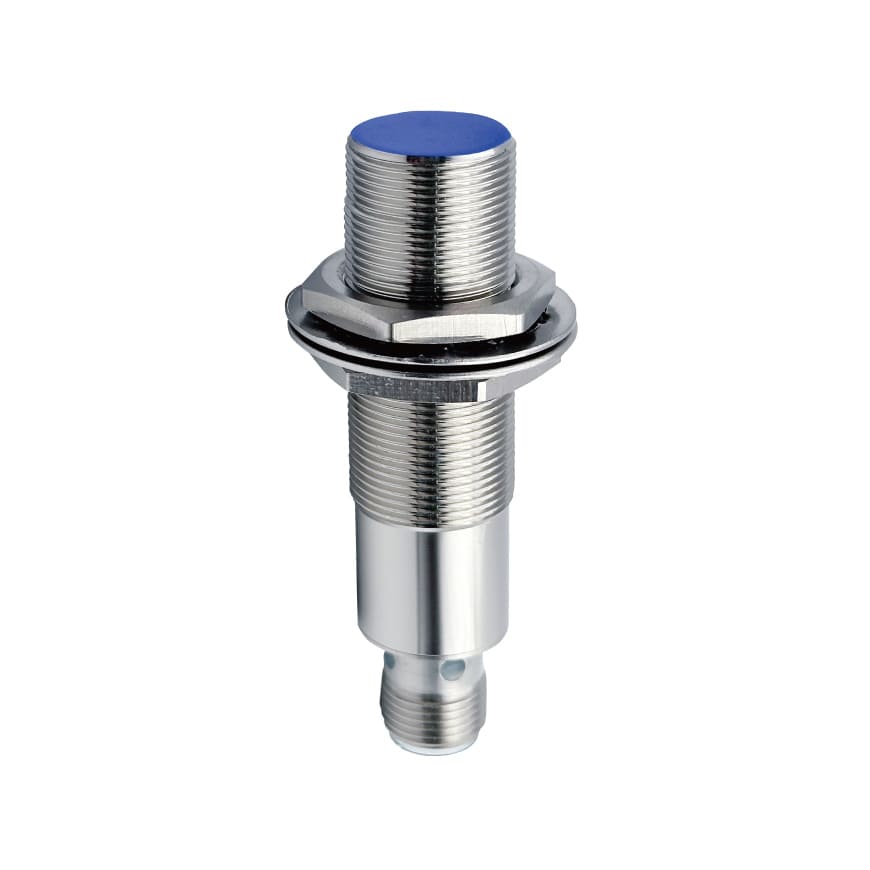

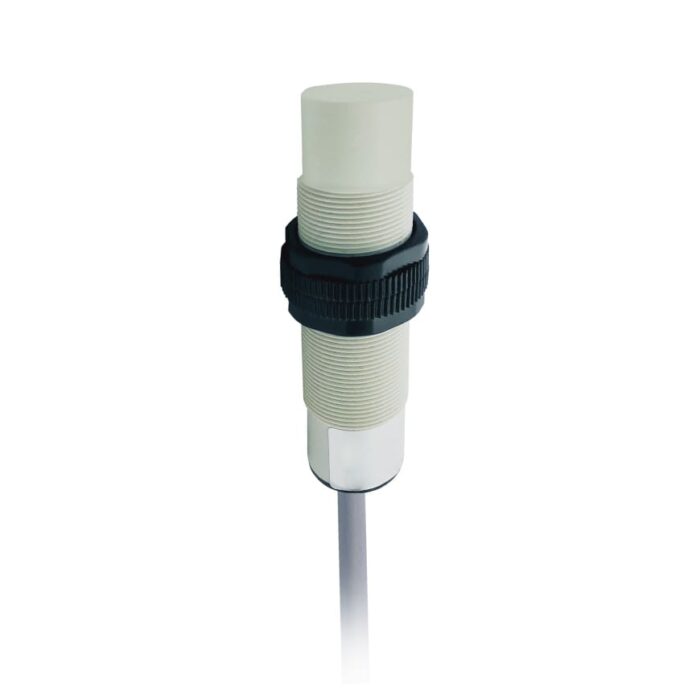

Appearance
Model	N.O	CB-M1808A-C14P2	CB-M1808A-P14P2	CB-M1808A-C14S12	CB-M1808A-P14S12
	N.C	CB-M1808A-C24P2	CB-M1808A-P24P2	CB-M1808A-C24S12	CB-M1808A-P24S12
	N.O	CB-M1808U-C15P2	CB-M1808U-P15P2	CB-M1808U-C15S12	CB-M1808U-P15S12
	N.C	CB-M1808U-C25P2	CB-M1808U-P25P2	CB-M1808U-C25S12	CB-M1808U-P25S12
Exterior Structure		M18*1mm
Sensing Distance		8mm(flush mounting)
Switching Frequency		25Hz/25Hz AC, 40Hz DC
Operating voltage		20…250V AC/20…250V AC/DC
Voltage drop		<9V AC(300mA)/<10V AC,<8V DC
Load current		Max.Load:300mA, Min Load:5mA
		Max.Load:200mA, Min Load:5mA
No load current		<2.5mA
Hysteresis		＜15%(Sr)
Repeatability		＜5.0%(Sr)
Switch protection		Short Circuit Protection, Polarity reversal Protection, Power-On Protection
Indication LED		With (Action: LED Indicator Lights Up)
Ambient temperature		-25…70℃
Ingress protection		IP67
Housing Material		Brass, nickel-plated	PBT	Brass, nickel-plated	PBT
Face material		PBT
Connectors		2m PVC Cable, 3*0.35mm²		M12 connector
Accessories		None		B12-4GV2/B12-4WV2



Appearance
Model	N.O	CB-M1815A-C14P2	CB-M1815A-P14P2	CB-M1815A-C14S12	CB-M1815A-P14S12
	N.C	CB-M1815A-C24P2	CB-M1815A-P24P2	CB-M1815A-C24S12	CB-M1815A-P24S12
	N.O	CB-M1815U-C15P2	CB-M1815U-P15P2	CB-M1815U-C15S12	CB-M1815U-P15S12
	N.C	CB-M1815U-C25P2	CB-M1815U-P25P2	CB-M1815U-C25S12	CB-M1815U-P25S12
Exterior Structure		M18*1mm
Sensing Distance		15mm(Non-flush mounting)
Switching Frequency		25Hz/25Hz AC, 40Hz DC
Operating voltage		20…250V AC/20…250V AC/DC
Voltage drop		<9V AC(300mA)/<10V AC,<8V DC
Load current		Max.Load:300mA, Min Load:5mA
		Max.Load:200mA, Min Load:5mA
No load current		<2.5mA
Hysteresis		＜15%(Sr)
Repeatability		＜5.0%(Sr)
Switch protection		Short Circuit Protection, Polarity reversal Protection, Power-On Protection
Indication LED		With (Action: LED Indicator Lights Up)
Ambient temperature		-25…70℃
Ingress protection		IP67
Housing Material		Brass, nickel-plated	PBT	Brass, nickel-plated	PBT
Face material		PBT
Connectors		2m PVC Cable, 3*0.35mm²		M12 connector
Accessories		None		B12-4GV2/B12-4WV2



Size Chart:





The Bedook Capacitive Proximity Sensor M18 AC/DC 2 Wire is ideal for a wide range of industrial automation applications.

It is particularly suitable for use in manufacturing lines, conveyor systems, and machinery where reliable object detection is crucial. The sensor’s dual power compatibility and robust design make it perfect for environments with varying power sources and harsh conditions, such as in automotive manufacturing, packaging, and material handling industries.
