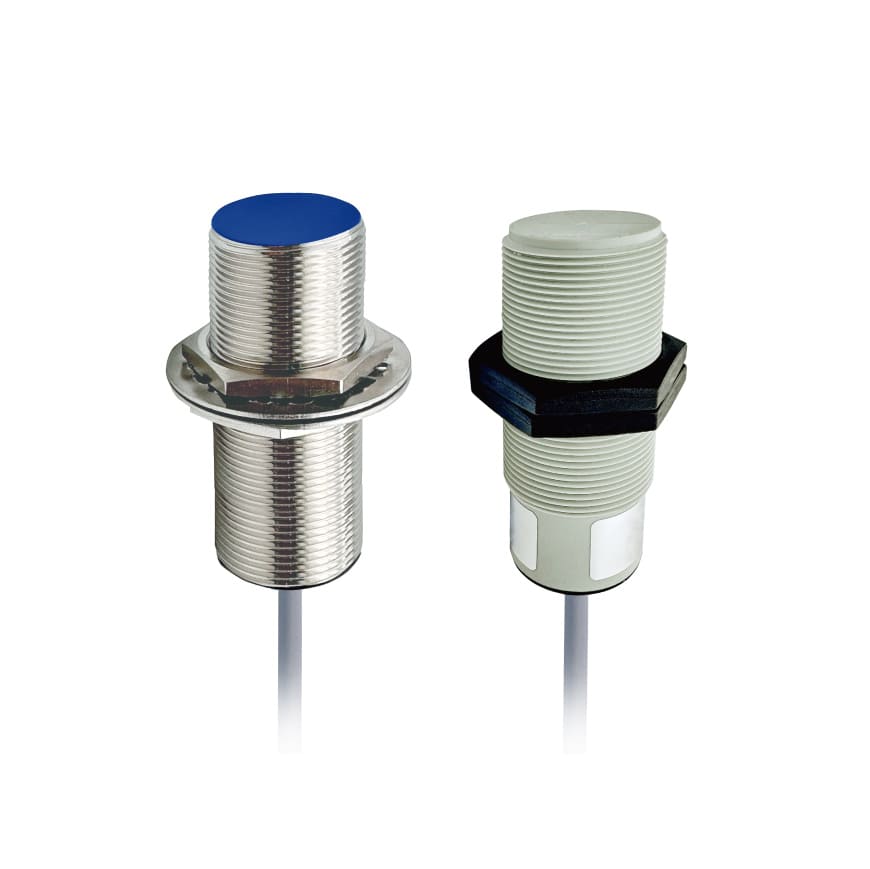

Bedook Capacitive Proximity Sensor M30 AC/DC 2 Wire

The Bedook Capacitive Proximity Sensor M30 AC/DC 2 Wire is a robust and versatile sensor designed to meet the demands of modern industrial applications.

Operating within a broad voltage range of 20…250V AC or 20…250V AC/DC, this sensor offers flexibility and reliability across different power environments.

The sensor features a durable M30*1.5mm brass, nickel-plated housing with a PBT face, ensuring long-lasting performance even in harsh conditions.

It delivers a precise sensing distance of 20mm for flush mounting, making it ideal for applications requiring accurate and consistent detection of objects.

Product Features:

The Bedook Capacitive Proximity Sensor M30 AC/DC 2 Wire offers dual power compatibility (20…250V AC/DC), a reliable 20mm flush sensing distance, and a durable brass, nickel-plated housing. Ideal for industrial automation, it features comprehensive protection and flexible installation options.

• Versatile Power Options: Supports both AC (20…250V) and AC/DC (20…250V) power, providing flexibility in various industrial settings.
• Enhanced Sensing Capability: Offers a 20mm flush sensing distance, ensuring reliable object detection in challenging environments.
• High Switching Frequency: With a switching frequency of 25Hz for AC and 40Hz for DC, the sensor is suitable for high-speed industrial processes.
• Durable Construction: The brass, nickel-plated housing combined with a PBT face material provides excellent resistance to wear, corrosion, and extreme temperatures.
• Comprehensive Protection: Features short circuit protection, polarity reversal protection, and power-on protection, safeguarding the sensor and connected systems from potential damage.

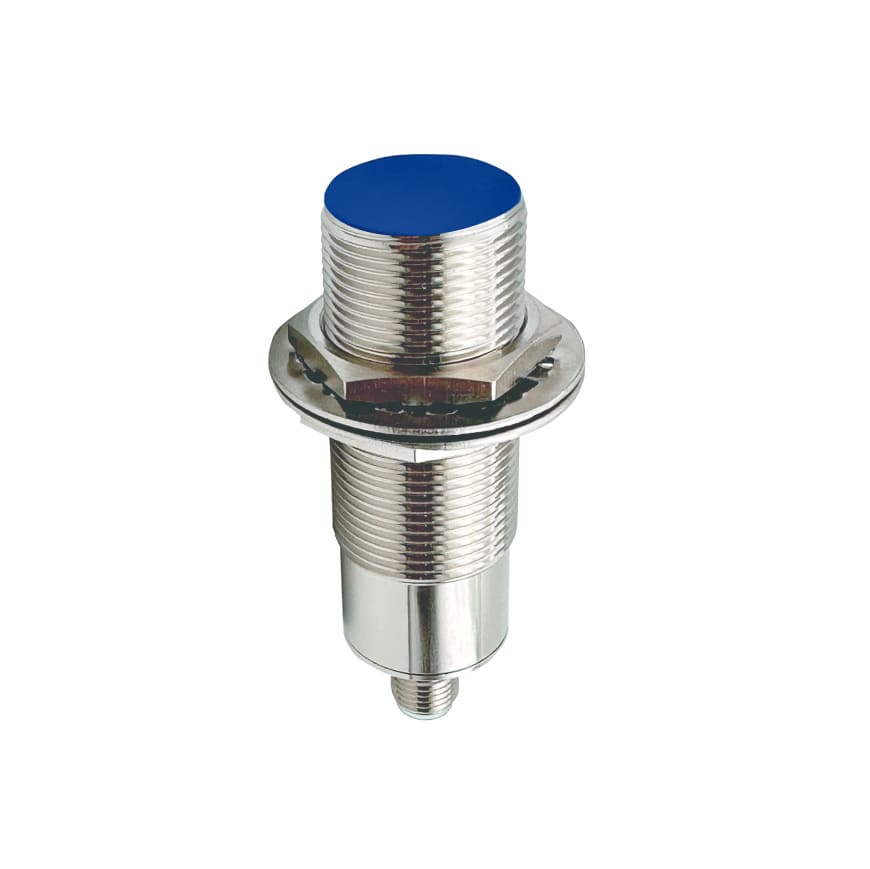

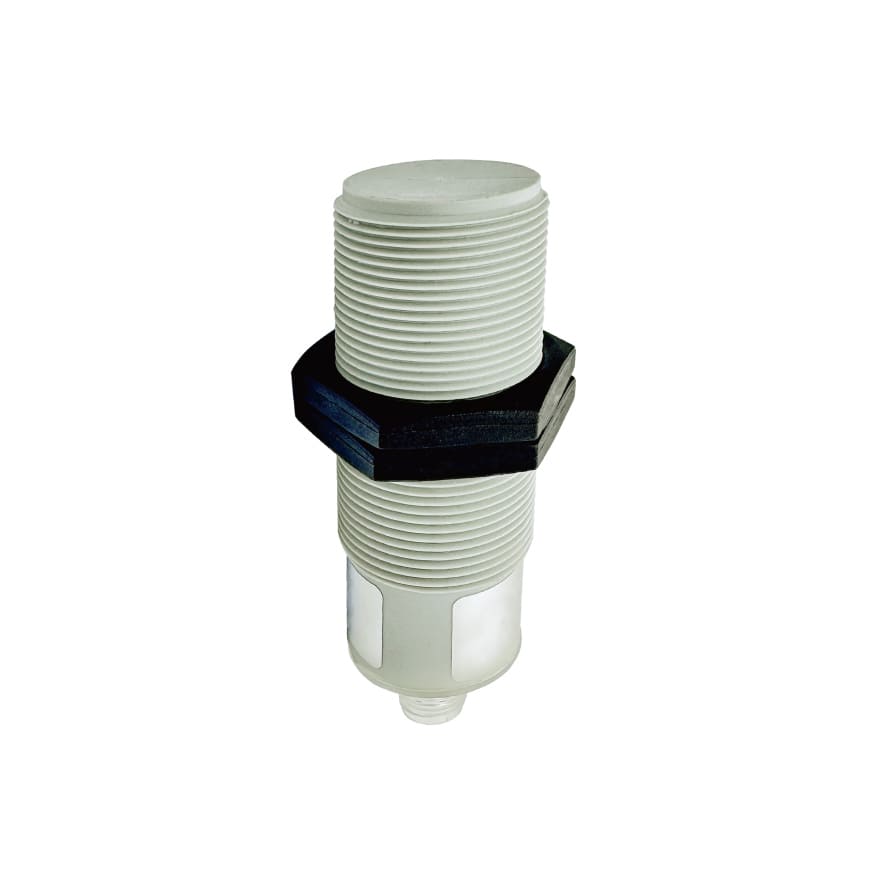

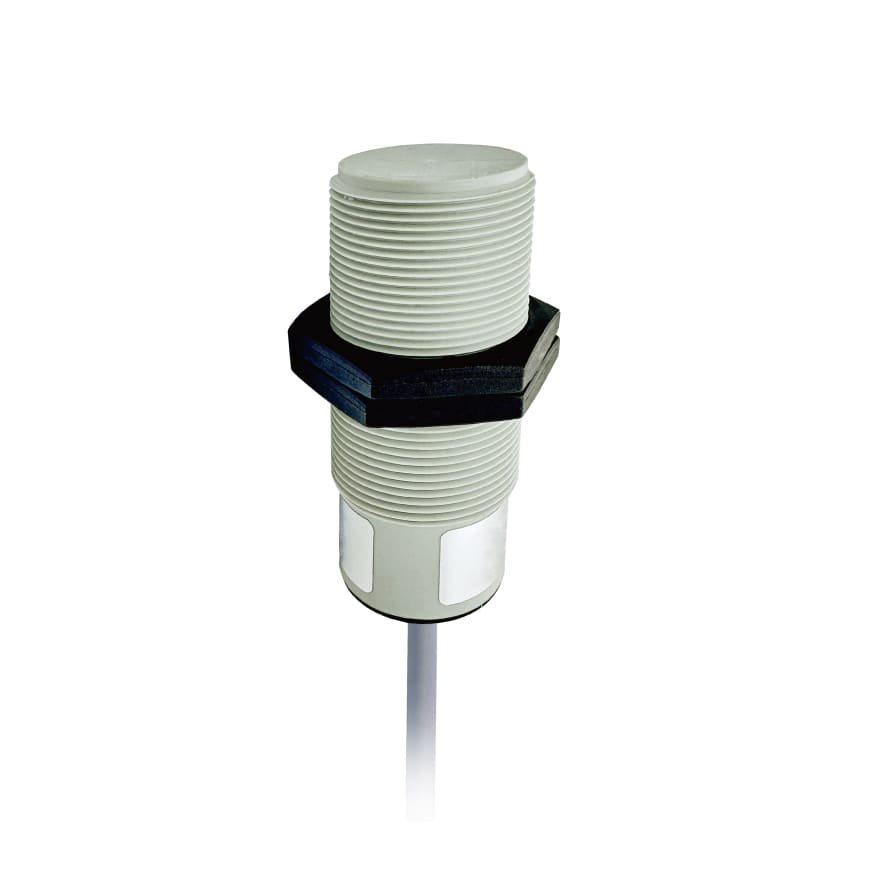

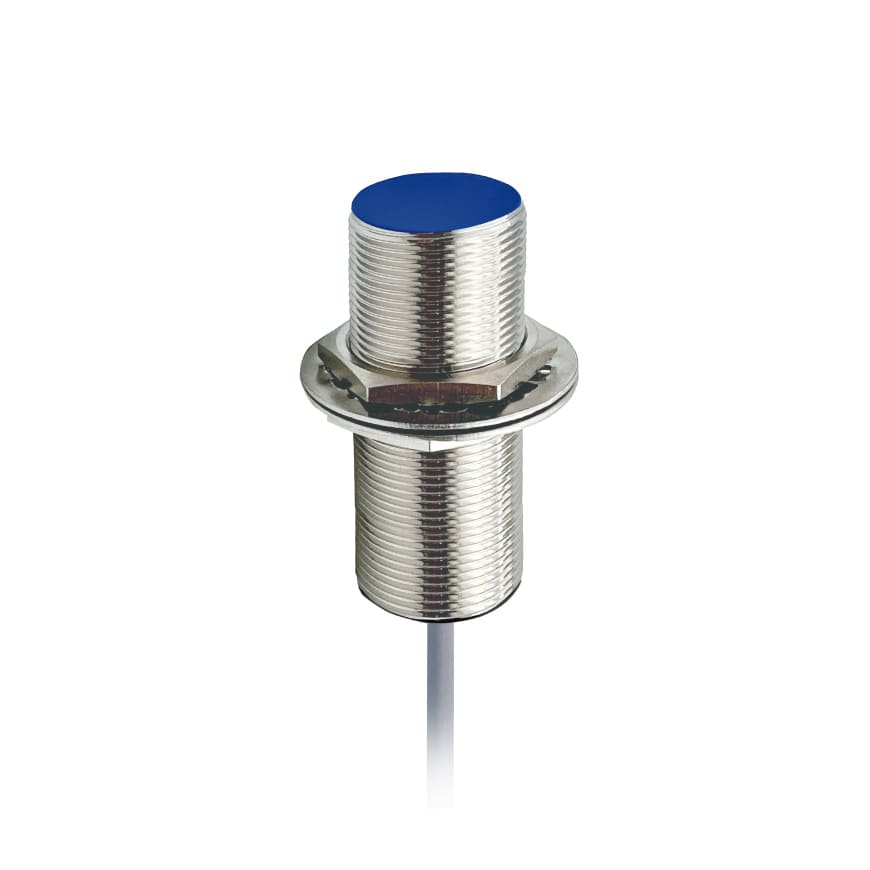

• User-Friendly Integration: Available with 2m PVC cable or M12 connector options, making installation simple and adaptable to different configurations.



Appearance
Model	N.O	CB-M3020A-C14P2	CB-M3020A-P14P2	CB-M3020A-C14P2	CB-M3020A-P14P2	CB-M3020A-C14S12	CB-M3020A-P14S12
	N.C	CB-M3020A-C24P2	CB-M3020A-P24P2	CB-M3020A-C24P2	CB-M3020A-P24P2	CB-M3020A-C24S12	CB-M3020A-P24S12
	N.O	CB-M3020U-C15P2	CB-M3020U-P15P2	CB-M3020U-C15P2	CB-M3020U-P15P2	CB-M3020U-C15S12	CB-M3020U-P15S12
	N.C	CB-M3020U-C25P2	CB-M3020U-P25P2	CB-M3020U-C25P2	CB-M3020U-P25P2	CB-M3020U-C25S12	CB-M3020U-P25S12
Exterior Structure		M30*1.5mm
Sensing Distance		20mm(flush mounting)
Switching Frequency		25Hz/25Hz AC, 40Hz DC
Operating voltage		20…250V AC/20…250V AC/DC
Voltage drop		<9V AC(300mA)/<10V AC,<8V DC
Load current		Max.Load:300mA, Min Load:5mA
		Max.Load:200mA, Min Load:5mA
No load current		<2.5mA
Hysteresis		＜15%(Sr)
Repeatability		＜5.0%(Sr)
Switch protection		Short Circuit Protection, Polarity reversal Protection, Power-On Protection
Indication LED		With (Action: LED Indicator Lights Up)
Ambient temperature		-25…70℃
Ingress protection		IP67
Housing Material		Brass, nickel-plated		PBT		Brass, nickel-plated	PBT
Face material		PBT
Connectors		2m PVC Cable, 2*0.5mm²/3*0.35mm²				M12 connector
Accessories		None				B12-4GV2/B12-4WV2



Appearance
Model	N.O	CN-M3030A-C14P2	CN-M3030A-P14P2	CN-M3030A-C14S12	CN-M3030A-P14S12
	N.C	CN-M3030A-C24P2	CN-M3030A-P24P2	CN-M3030A-C24S12	CN-M3030A-P24S12
	N.O	CN-M3030U-C15P2	CN-M3030U-P15P2	CN-M3030U-C15S12	CN-M3030U-P15S12
	N.C	CN-M3030U-C25P2	CN-M3030U-P25P2	CN-M3030U-C25S12	CN-M3030U-P25S12
Exterior Structure		M18*1mm
Sensing Distance		30mm(Non-flush mounting)
Switching Frequency		25Hz/25Hz AC, 40Hz DC
Operating voltage		20…250V AC/20…250V AC/DC
Voltage drop		<9V AC(300mA)/<10V AC,<8V DC
Load current		Max.Load:300mA, Min Load:5mA
		Max.Load:200mA, Min Load:5mA
No load current		<2.5mA
Hysteresis		＜15%(Sr)
Repeatability		＜5.0%(Sr)
Switch protection		Short Circuit Protection, Polarity reversal Protection, Power-On Protection
Indication LED		With (Action: LED Indicator Lights Up)
Ambient temperature		-25…70℃
Ingress protection		IP67
Housing Material		Brass, nickel-plated	PBT	Brass, nickel-plated	PBT
Face material		PBT
Connectors		2m PVC Cable, 2*0.5mm²/3*0.35mm²		M12 connector
Accessories		None		B12-4GV2/B12-4WV2

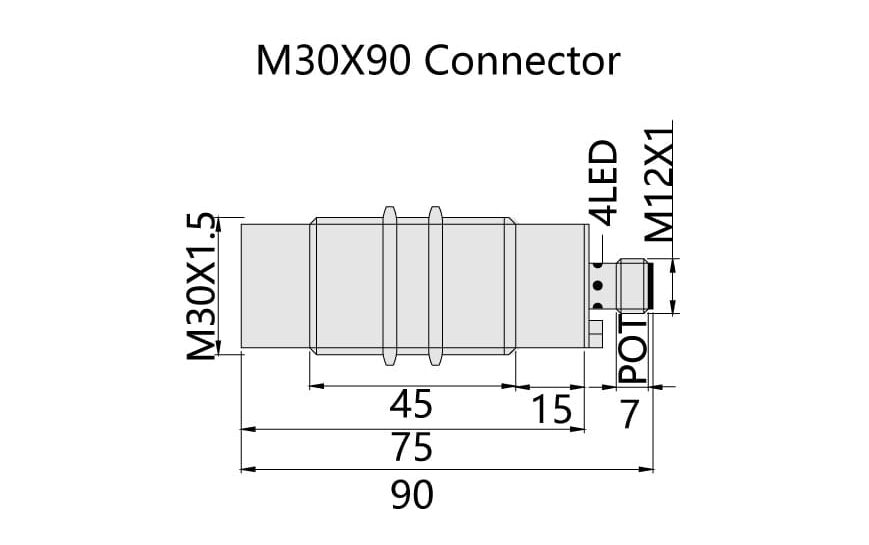

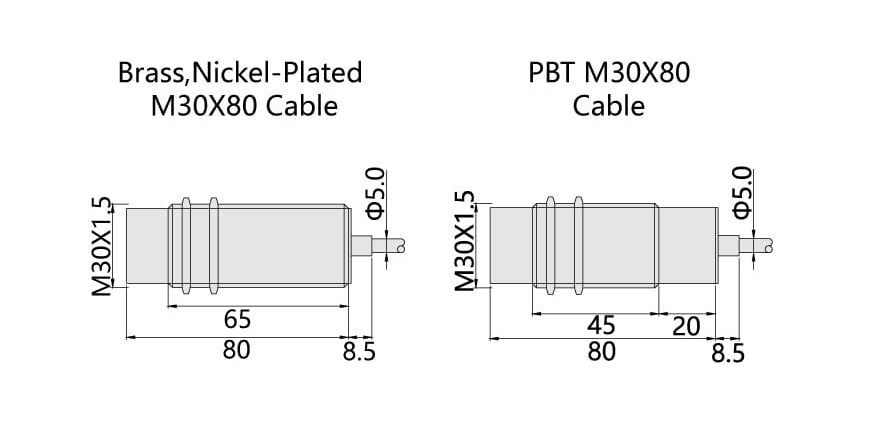

Size Chart:



The Bedook Capacitive Proximity Sensor M30 AC/DC 2 Wire is designed for a wide range of industrial applications where reliability and precision are paramount.

It is ideal for use in automation systems, conveyor belts, material handling, and machinery that require dependable object detection.

The sensor’s robust construction and flexible power compatibility make it particularly suitable for use in harsh environments such as manufacturing plants, packaging facilities, and automotive industries.
