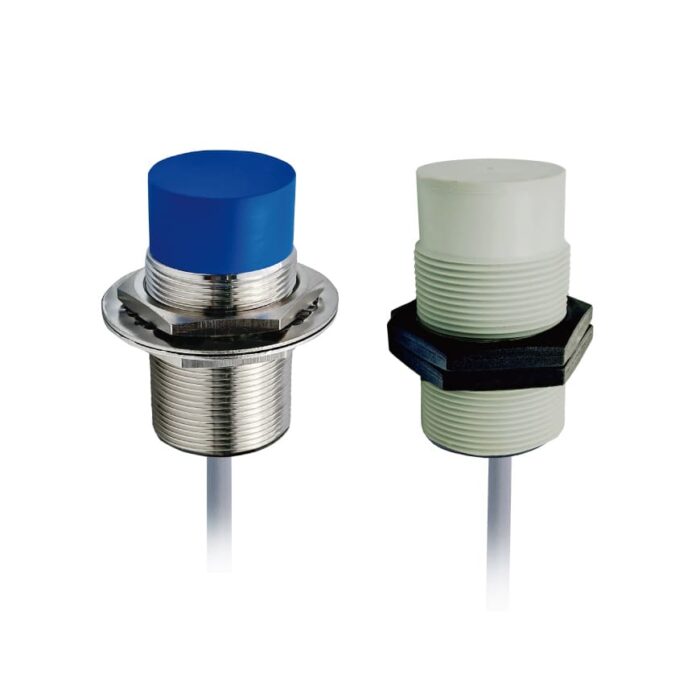

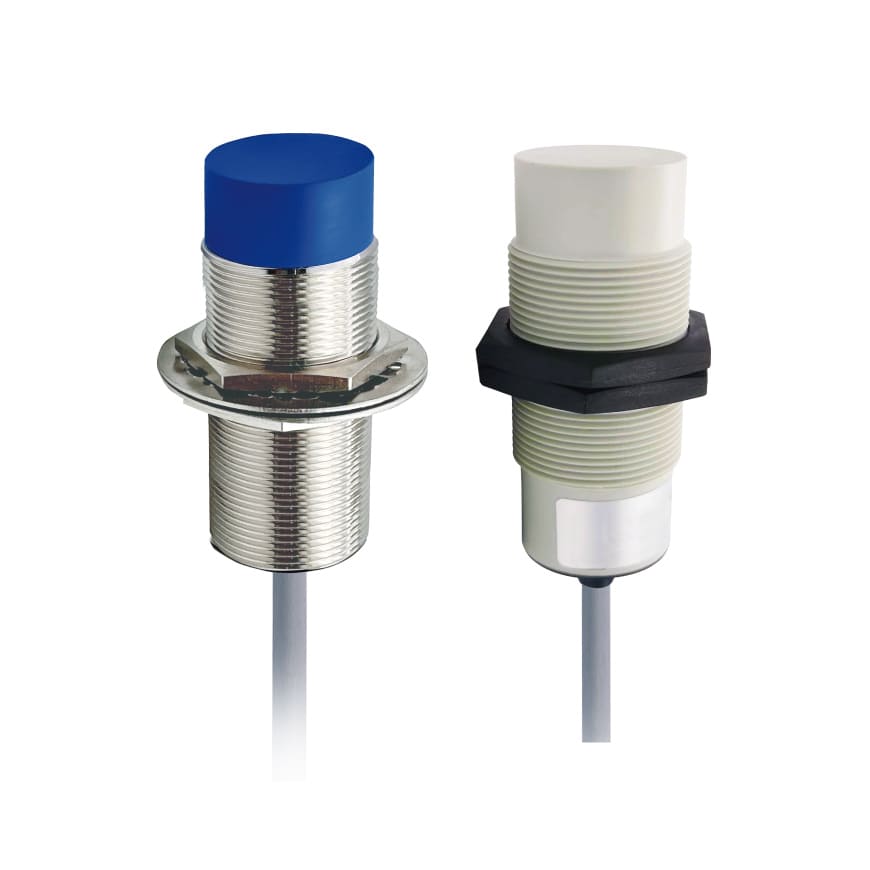

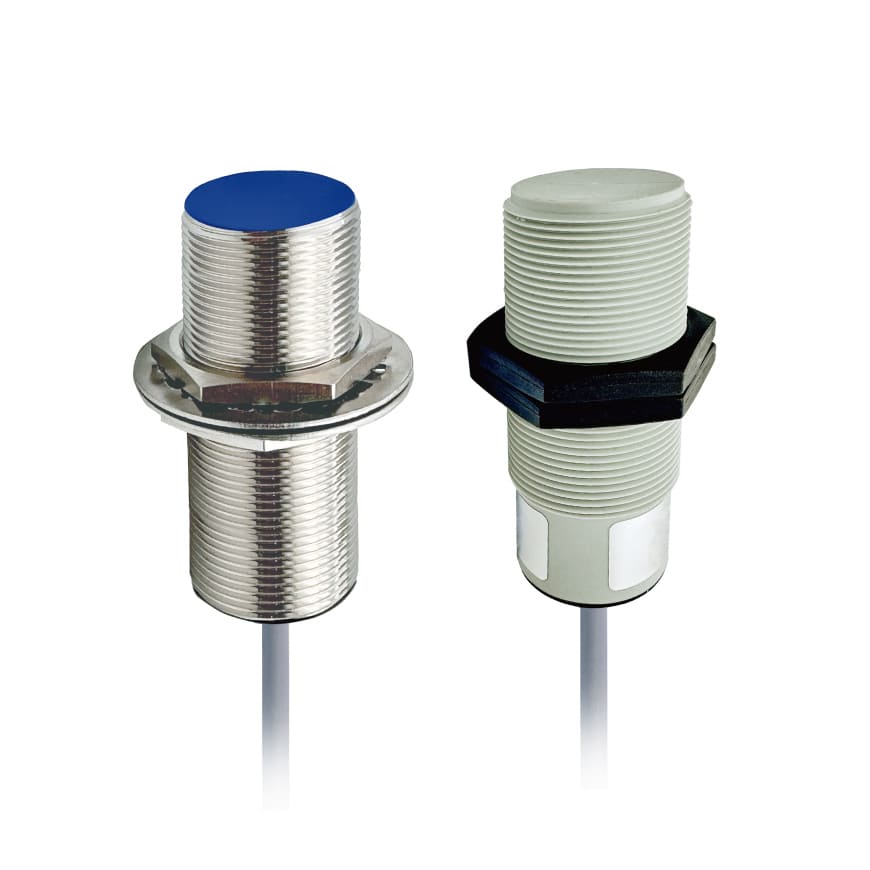

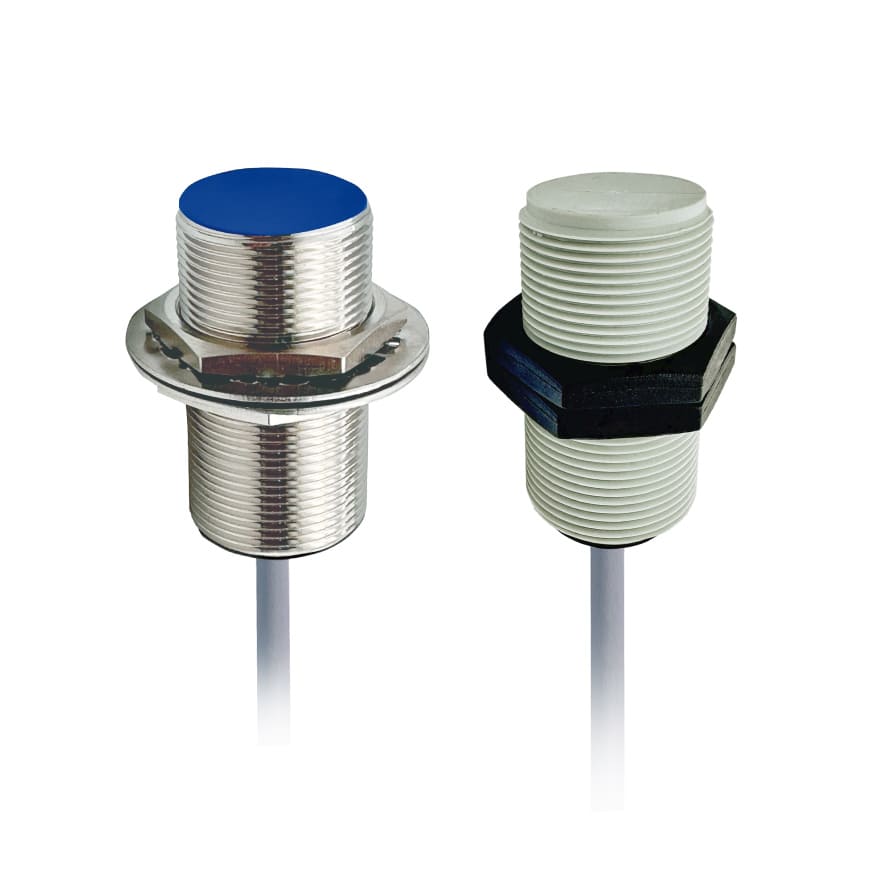

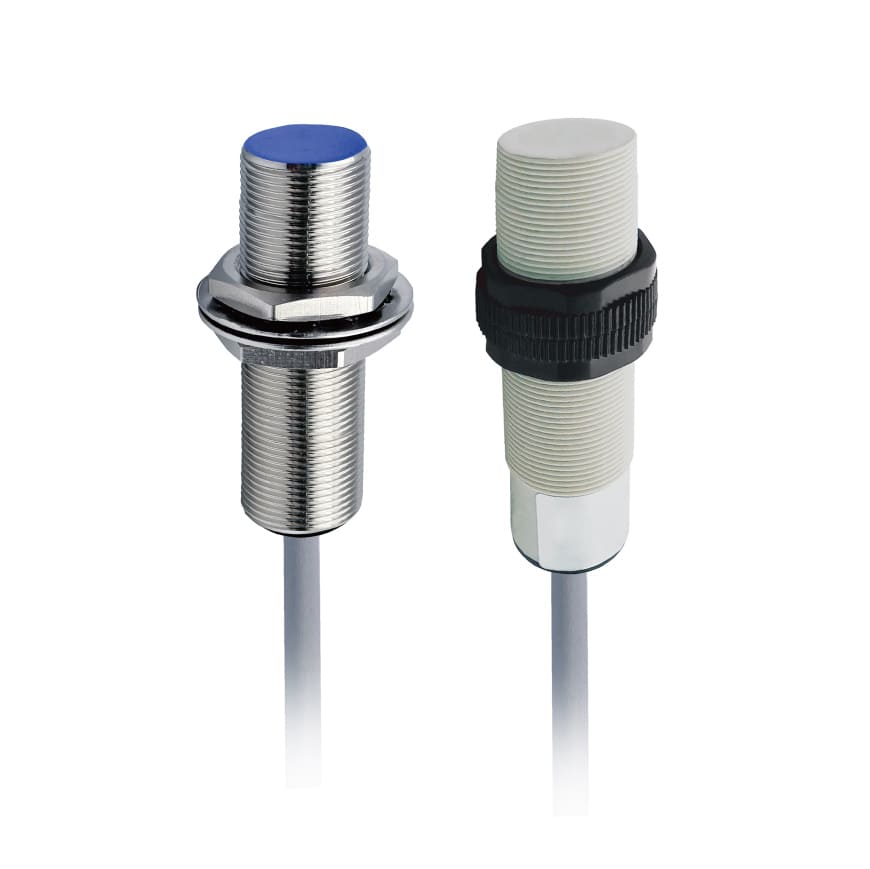

Bedook Capacitive proximity sensor M30 DC 3 Wire

The Bedook Capacitive Proximity Sensor M30 DC 3 Wire is a high-performance, industrial-grade sensor designed for accurate and reliable detection of objects within a specified range.

Featuring a robust M30*1.5mm exterior and available in both flush and non-flush mounting options, this sensor is optimized for use in challenging environments.

Its support for NPN/PNP and NO/NC configurations provides versatility across various applications, ensuring dependable operation in diverse industrial processes.

Product Features:

The Bedook Capacitive Proximity Sensor M30 DC 3 Wire offers robust detection with 10-30mm sensing distances, suited for both flush and non-flush mounting.

Operating at 10…30VDC with a 100Hz switching frequency, it ensures consistent performance.

The IP67 rating, along with comprehensive protection features, ensures reliability in harsh industrial environments, making it ideal for automation and material handling applications.

• Flexible Sensing Distances: Available in multiple sensing distances (10mm, 20mm, and 30mm), this sensor offers flexibility in both flush and non-flush mounting scenarios, making it adaptable to different application requirements.
• Consistent High-Frequency Operation: With a 100Hz switching frequency, the sensor ensures timely and accurate responses, even in high-speed industrial applications, maintaining consistent performance.
• Durable Construction: The M30 housing, constructed from brass with nickel plating, provides enhanced durability, while the PBT face material ensures resistance to wear and tear in harsh environments.
• Comprehensive Protection Mechanisms: Equipped with short circuit protection, polarity reversal protection, and power-on protection, this sensor is engineered to prevent damage and extend its operational life, even in demanding conditions.
• Wide Operating Voltage Range: Supporting an operating voltage of 10…30VDC (±10%), the sensor is compatible with various power supply standards, ensuring broad applicability across different systems.
• Enhanced Environmental Resistance: The IP67-rated ingress protection makes the sensor highly resistant to dust and water, allowing it to function effectively in challenging environmental conditions such as exposure to moisture, dirt, and other contaminants.



Appearance
Model	NPN N.O	CB-M3010N-C11P2	CB-M3010N-P11P2	CN-M3015N-C11P2	CN-M3015N-P11P2
	NPN N.C	CB-M3010N-C21P2	CB-M3010N-P21P2	CN-M3015N-C21P2	CN-M3015N-P21P2
	PNP N.O	CB-M3010P-C11P2	CB-M3010P-P11P2	CN-M3015P-C11P2	CN-M3015P-P11P2
	PNP N.C	CB-M3010P-C21P2	CB-M3010P-P21P2	CN-M3015P-C21P2	CN-M3015P-P21P2
Exterior Structure		M30*1.5mm		M30*1.5mm
Sensing Distance		10mm(flush mounting)		15mm(Non-flush mounting)
Switching Frequency		100Hz
Operating voltage		10…30VDC(±10%)
Voltage drop		≤2VDC
Load current		200mA
No load current		≤10mA(24V)
Hysteresis		＜15%(Sr)
Repeatability		＜5.0%(Sr)
Switch protection		Short Circuit Protection, Polarity reversal Protection, Power-On Protection
Indication LED		With (Action: LED Indicator Lights Up)
Ambient temperature		-25…70℃
Ingress protection		IP67
Housing Material		Brass, nickel-plated	PBT	Brass, nickel-plated	PBT
Face material		PBT
Connectors		2m PVC Cable, 3*0.35mm²
Accessories		None



Appearance
Model	NPN N.O	CB-M3020N-C11P2	CB-M3020N-P11P2	CB-M3020N-C11S12	CB-M3020N-P11S12
	NPN N.C	CB-M3020N-C21P2	CB-M3020N-P21P2	CB-M3020N-C21S12	CB-M3020N-P21S12
	PNP N.O	CB-M3020P-C11P2	CB-M3020P-P11P2	CB-M3020P-C11S12	CB-M3020P-P11S12
	PNP N.C	CB-M3020P-C21P2	CB-M3020P-P21P2	CB-M3020P-C21S12	CB-M3020P-P21S12
Exterior Structure		M30*1.5mm
Sensing Distance		20mm(flush mounting)
Switching Frequency		100Hz
Operating voltage		10…30VDC(±10%)
Voltage drop		≤2VDC
Load current		100mA
No load current		≤10mA(24V)
Hysteresis		＜15%(Sr)
Repeatability		＜5.0%(Sr)
Switch protection		Short Circuit Protection, Polarity reversal Protection, Power-On Protection
Indication LED		With (Action: LED Indicator Lights Up)
Ambient temperature		-25…70℃
Ingress protection		IP67
Housing Material		Brass, nickel-plated	PBT	Brass, nickel-plated	PBT
Face material		PBT
Connectors		2m PVC Cable, 3*0.35mm²		M12 connector
Accessories		None		B12-4GV2/B12-4WV2



Appearance
Model	NPN N.O	CN-M3030N-C11P2	CN-M3030N-P11P2	CN-M3030N-C11S12	CN-M3030N-P11S12
	NPN N.C	CN-M3030N-C21P2	CN-M3030N-P21P2	CN-M3030N-C21S12	CN-M3030N-P21S12
	PNP N.O	CN-M3030P-C11P2	CN-M3030P-P11P2	CN-M3030P-C11S12	CN-M3030P-P11S12
	PNP N.C	CN-M3030P-C21P2	CN-M3030P-P21P2	CN-M3030P-C21S12	CN-M3030P-P21S12
Exterior Structure		M30*1.5mm
Sensing Distance		30mm(Non-flush mounting)
Switching Frequency		100Hz
Operating voltage		10…30VDC(±10%)
Voltage drop		≤2VDC
Load current		200mA
No load current		≤10mA(24V)
Hysteresis		＜15%(Sr)
Repeatability		＜5.0%(Sr)
Switch protection		Short Circuit Protection, Polarity reversal Protection, Power-On Protection
Indication LED		With (Action: LED Indicator Lights Up)
Ambient temperature		-25…70℃
Ingress protection		IP67
Housing Material		Brass, nickel-plated	PBT	Brass, nickel-plated	PBT
Face material		PBT
Connectors		2m PVC Cable, 3*0.35mm²		M12 connector
Accessories		None		B12-4GV2/B12-4WV2

Size Chart:





The Bedook Capacitive Proximity Sensor M30 DC 3 Wire is ideal for use in automated systems, conveyor belts, and production lines where precision detection is crucial. Its adaptability to both flush and non-flush mounting, combined with its robust protection features, makes it suitable for industries such as automotive manufacturing, packaging, and material handling.
