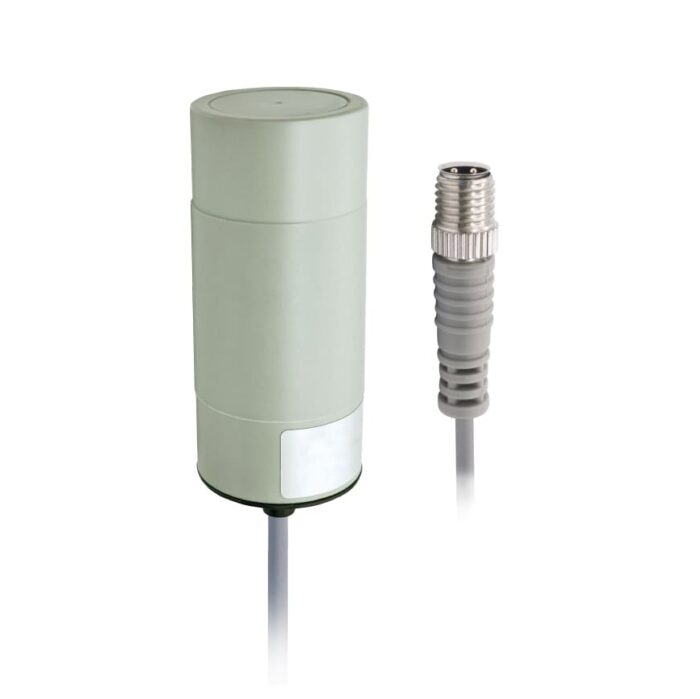

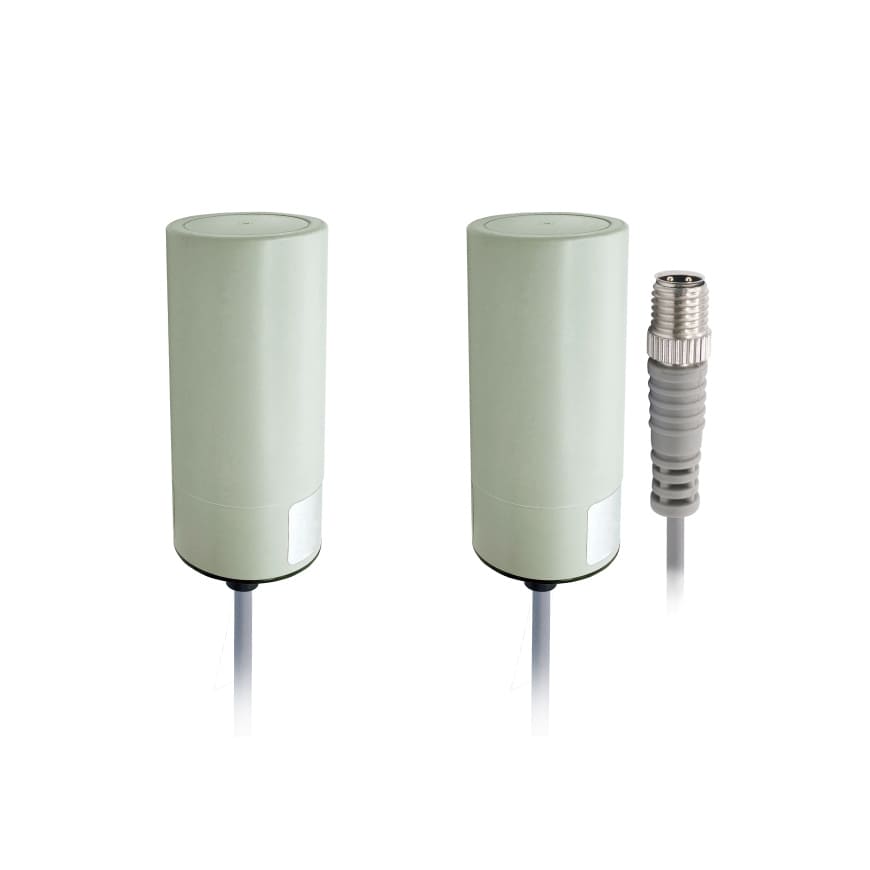

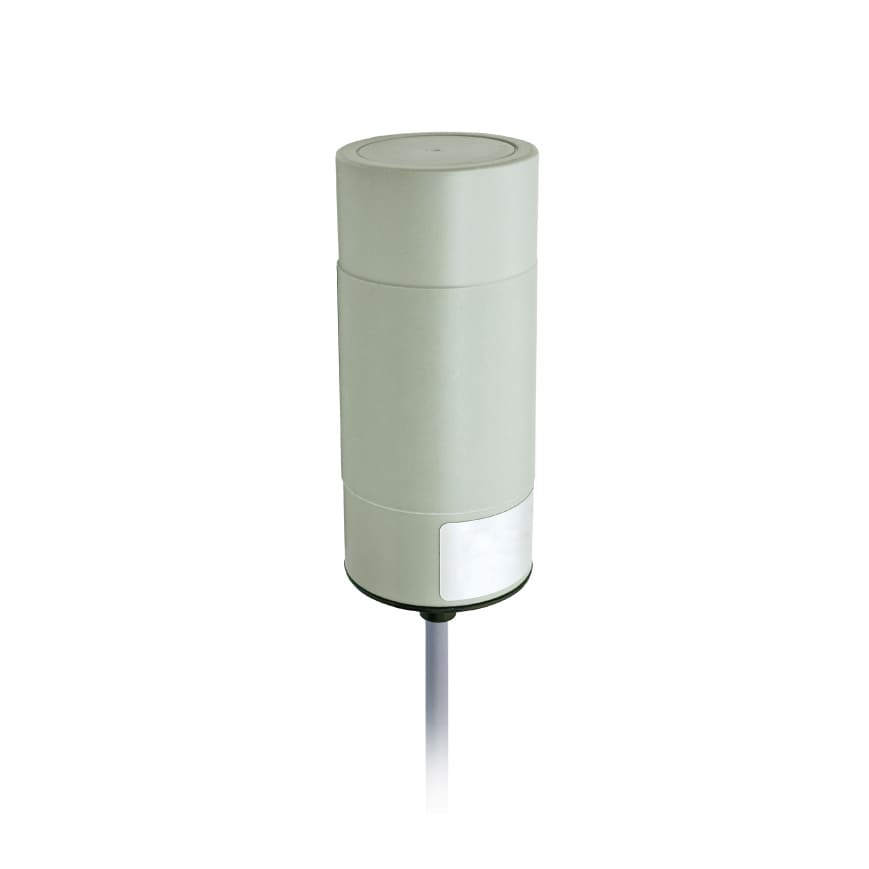

Bedook Capacitive Proximity Sensor M34 AC/DC 2

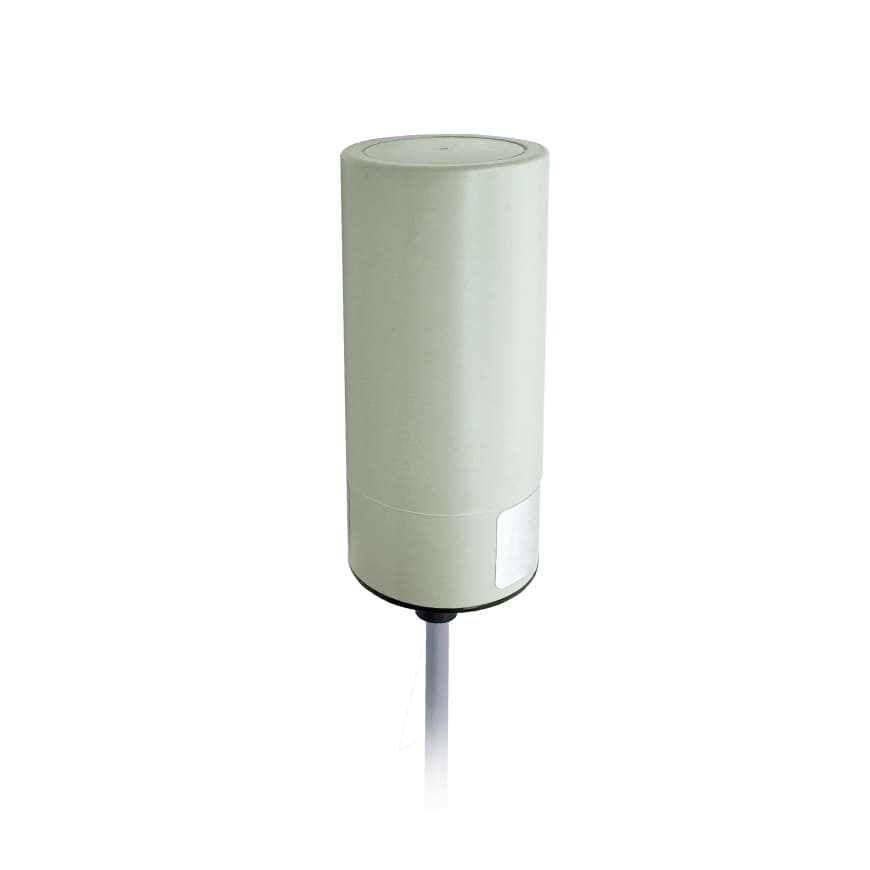

Bedook Capacitive Proximity Sensor M34 AC/DC 2 Wire-01

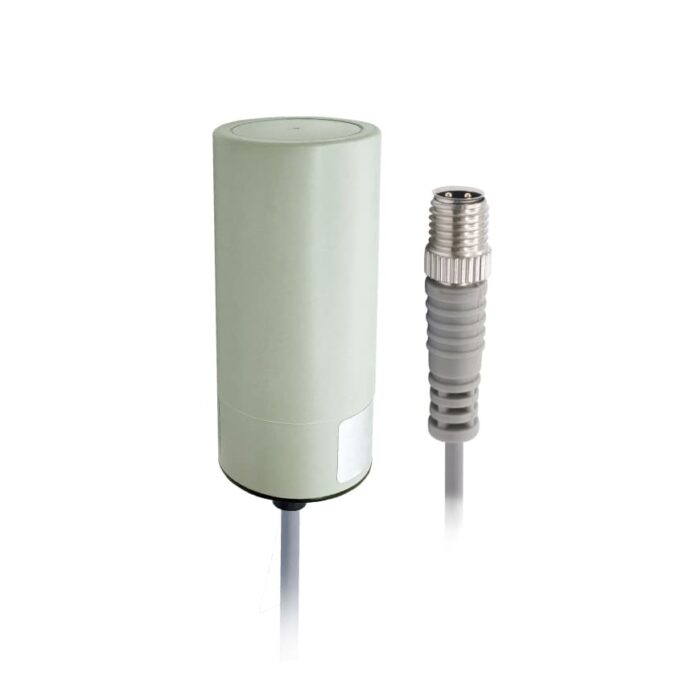

Bedook Capacitive Proximity Sensor M34 AC/DC 2 Wire-02

Bedook Capacitive Proximity Sensor M34 AC/DC 2 Wire

The Bedook Capacitive Proximity Sensor M34 AC/DC 2 Wire is a high – quality sensor. It has a sensing distance of up to 35mm (non – flush mounting) and an operating voltage range of 20 – 250V AC/DC. The switching frequency is 25Hz/25Hz AC, 40 Hz DC. With a maximum load current of 300mA (AC) and 200mA (DC) and a minimum load current of 5mA, it can handle various electrical loads. The ingress protection is IP67, ensuring durability in harsh environments. Its housing and face material are made of PBT, providing sturdy construction.

Get A Free Quote Now

Description

The Bedook Capacitive Proximity Sensor M34 AC/DC 2 Wire is a remarkable sensor in the industrial automation field. Its sensing distance is a key feature. With a non – flush mounting sensing distance of up to 35mm, it provides accurate and reliable object detection. This is highly beneficial for applications where precise sensing is crucial, such as in assembly lines or material handling systems.

The operating voltage range of 20 – 250V AC/DC is another significant advantage. It allows the sensor to be compatible with a wide variety of power supplies, eliminating the need for additional voltage regulators or converters. This flexibility gives it an edge over competitors that may have narrower voltage compatibility.

Product Features:

The Bedook Capacitive Proximity Sensor M34 AC/DC 2 Wire is designed to offer top – notch performance. Its switching frequency of 25Hz/25Hz AC and 40 Hz DC ensures quick and precise response times. In comparison to similar sensors in the market, this enables faster decision – making in automated processes, reducing production cycle times.

The load current capabilities are also impressive. It can handle a maximum load current of 300mA (AC) and 200mA (DC) with a minimum load current of 5mA. This wide range makes it suitable for connecting to a broad range of load devices, from small – scale control circuits to more power – hungry industrial equipment.

Sensing Distance: The 35mm (non – flush mounting) sensing distance is highly competitive. It enables the sensor to detect objects from a relatively long range, giving it an advantage in applications where objects may not be in close proximity.
Operating Voltage: The 20 – 250V AC/DC operating voltage range surpasses many competitors. It can be easily integrated into existing systems with different power supply voltages, saving costs on power – related modifications.
Switching Frequency: The 25Hz/25Hz AC and 40 Hz DC switching frequencies are faster than many comparable sensors. This leads to more efficient operation and quicker reaction to changes in the sensing environment.
Load Current: Its ability to handle a wide range of load currents (Max Load: 300mA AC/200mA DC, Min Load: 5mA) makes it more versatile. It can be used with various electrical components, providing a one – size – fits – many solution compared to sensors with more limited load current ranges.
Ingress Protection: With an IP67 rating, it is dust – proof and can withstand water immersion, which is better than many sensors with lower ingress protection levels. It can operate reliably in harsh and dirty industrial conditions.
Housing Material: The PBT housing material offers excellent durability, chemical resistance, and mechanical stability. This ensures the sensor has a long service life, outperforming sensors made with less robust materials.

Product parameters:

Appearance
Model	N.O	CB-H3425A-P14P2	CB-H3425A-P14Z12	CN-H3435A-P14P2	CN-H3435A-P14Z12
	N.C	CB-H3425A-P24P2	CB-H3425A-P24Z12	CN-H3435A-P24P2	CN-H3435A-P24Z12
	N.O	CB-H3425U-P15P2	CB-H3425U-P15Z12	CN-H3435U-P15P2	CN-H3435U-P15Z12
	N.C	CB-H3425U-P25P2	CB-H3425U-P25Z12	CN-H3435U-P25P2	CN-H3435U-P25Z12
Exterior Structure		φ34mm		φ34mm
Sensing Distance		25mm(flush mounting)		35mm(Non-flush mounting)
Switching Frequency		25Hz/25Hz AC, 40Hz DC
Operating voltage		20…250V AC/20…250V AC/DC
Voltage drop		<9V AC(300mA)/<10V AC,<8V DC
Load current		Max.Load:300mA, Min Load:5mA
		Max.Load:200mA, Min Load:5mA
No load current		<2.5mA
Hysteresis		＜15%(Sr)
Repeatability		＜5.0%(Sr)
Switch protection		Short Circuit Protection, Polarity reversal Protection, Power-On Protection
Indication LED		With (Action: LED Indicator Lights Up)
Ambient temperature		-25…70℃
Ingress protection		IP67
Housing Material		PBT
Face material		PBT
Connectors		2m PVC Cable, 2*0.5mm²	0.3m, M12 cable with connector	2m PVC Cable, 2*0.5mm²	0.3m, M12 cable with connector
Accessories		None	B12-4GV2/B12-4WV2	None	B12-4GV2/B12-4WV2

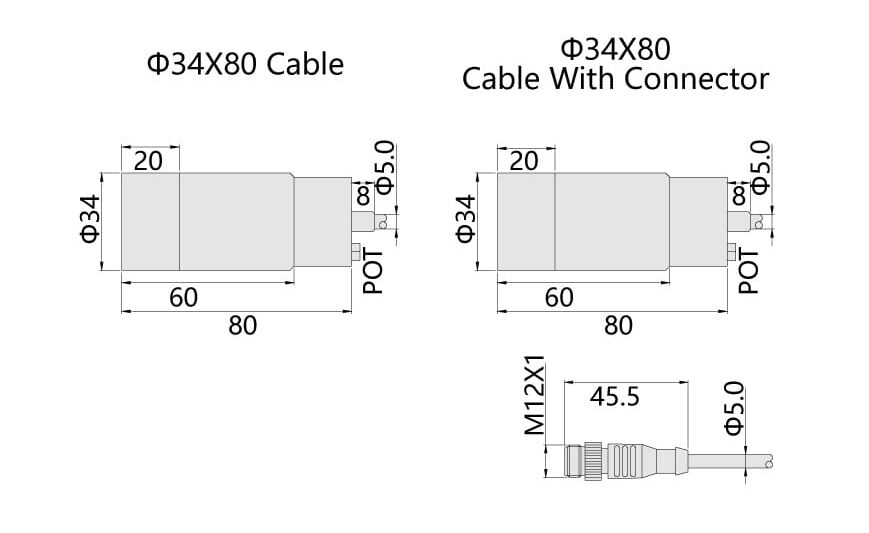

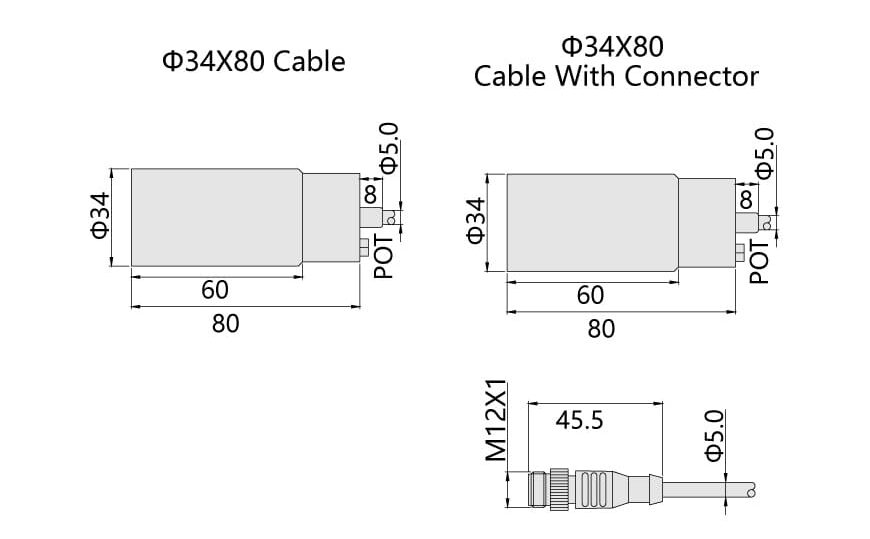

Size Chart:

The Bedook Capacitive Proximity Sensor M34 AC/DC 2 Wire has diverse application scenarios. It is ideal for use in automated production lines to detect the presence of workpieces. In packaging machinery, it can sense the position of products for accurate packaging. Additionally, it is suitable for liquid – level detection in tanks, ensuring proper inventory control in industrial settings.
