Bedook Capacitive proximity sensor M8 DC 3 Wire

The Bedook Capacitive Proximity Sensor M8 DC 3 Wire is a compact, high-performance sensor designed for precise object detection in a variety of industrial environments. With an M8 exterior and sensing distances of 1mm (flush mounting) or 2mm (quasi-flush mounting), this sensor offers reliable detection capabilities.

It operates within a broad voltage range of 10…30VDC and is equipped with multiple protective features, ensuring durability and longevity even in challenging conditions. The nickel-plated brass housing provides superior resistance to environmental factors, while the IP67 rating guarantees protection against dust and moisture.

Product Features:

The Bedook Capacitive Proximity Sensor M8 DC 3 Wire is engineered for high precision in compact spaces. Available in flush and quasi-flush mounting, with sensing distances of 1mm and 2mm respectively, this sensor operates on 10…30VDC and features short circuit, polarity reversal, and power-on protections. The durable nickel-plated brass housing and IP67 rating make it a reliable choice for industrial applications.

• Versatile Mounting Options: Available in both flush (1mm sensing distance) and quasi-flush (2mm sensing distance) mounting configurations, providing flexibility for different applications.
• Robust Protective Features: Integrated short circuit protection, polarity reversal protection, and power-on protection ensure the sensor’s reliability and safety in demanding industrial settings.
• Durable Construction: The nickel-plated brass housing offers enhanced resistance to corrosion and mechanical wear, making it suitable for harsh environments.
• High Accuracy and Repeatability: With a hysteresis of less than 15% and repeatability within 5.0% (Sr), the sensor ensures precise and consistent performance.
• Wide Operating Voltage: The sensor operates on a wide voltage range of 10…30VDC (±10%), accommodating various power supply requirements in industrial applications.
• Convenient Connectivity: Available with multiple connector options including M8, M12, and a 2m PVC cable with 3*0.18mm², ensuring compatibility with different installation setups.

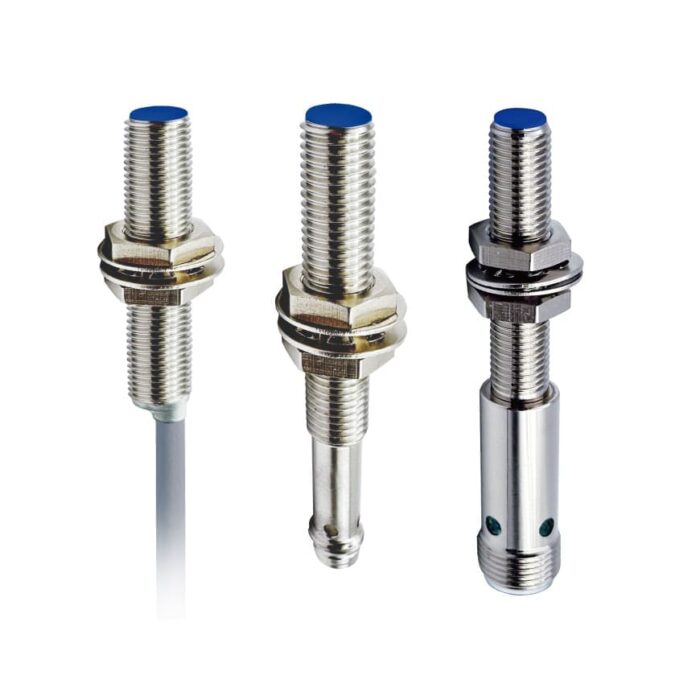

Appearance
Model	NPN N.O	CB-M801N-C11P2	CB-M801N-C11S8	CB-M801N-C11S12
	NPN N.C	CB-M801N-C21P2	CB-M801N-C21S8	CB-M801N-C21S12
	PNP N.O	CB-M801P-C11P2	CB-M801P-C11S8	CB-M801P-C11S12
	PNP N.C	CB-M801P-C21P2	CB-M801P-C21S8	CB-M801P-C21S12
Exterior Structure		M8*1mm
Sensing Distance		1mm(Flush mounting)
Switching Frequency		100Hz
Operating voltage		10…30VDC(±10%)
Voltage drop		≤2VDC
Load current		100mA
No load current		≤10mA(24V)
Hysteresis		＜15%(Sr)
Repeatability		＜5.0%(Sr)
Switch protection		Short Circuit Protection, Polarity reversal Protection, Power-On Protection
Indication LED		With (Action: LED Indicator Lights Up)
Ambient temperature		-25…70℃
Ingress protection		IP67
Housing Material		Brass, nickel-plated
Face material		POM
Connectors		2m PVC Cable, 3*0.18mm²	M8 connector	M12 connector
Accessories		None	B8-3GV2/B8-3WV2	B12-4GV2/B12-4WV2



Appearance
Model	NPN N.O	CN-M802N-C11P2	CN-M802N-C11S8	CN-M802N-C11S12
	NPN N.C	CN-M802N-C21P2	CN-M802N-C21S8	CN-M802N-C21S12
	PNP N.O	CN-M802P-C11P2	CN-M802P-C11S8	CN-M802P-C11S12
	PNP N.C	CN-M802P-C21P2	CN-M802P-C21S8	CN-M802P-C21S12
Exterior Structure		M8*1mm
Sensing Distance		2mm(Quasi-flush mounting)
Switching Frequency		100Hz
Operating voltage		10…30VDC(±10%)
Voltage drop		≤2VDC
Load current		100mA
No load current		≤10mA(24V)
Hysteresis		＜15%(Sr)
Repeatability		＜5.0%(Sr)
Switch protection		Short Circuit Protection, Polarity reversal Protection, Power-On Protection
Indication LED		With (Action: LED Indicator Lights Up)
Ambient temperature		-25…70℃
Ingress protection		IP67
Housing Material		Brass, nickel-plated
Face material		POM
Connectors		2m PVC Cable, 3*0.18mm²	M8 connector	M12 connector
Accessories		None	B8-3GV2/B8-3WV2	B12-4GV2/B12-4WV2

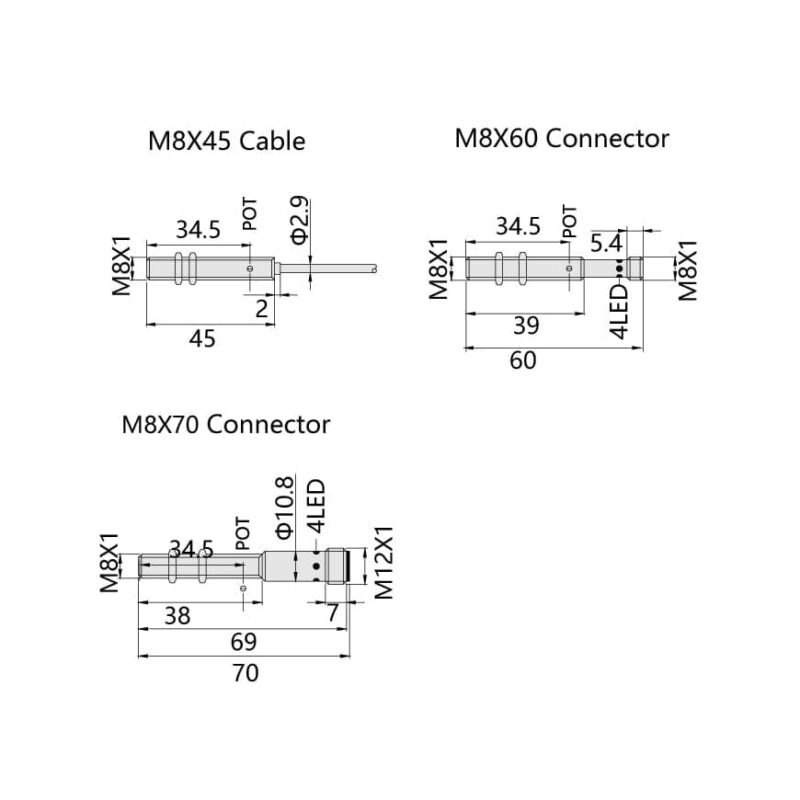

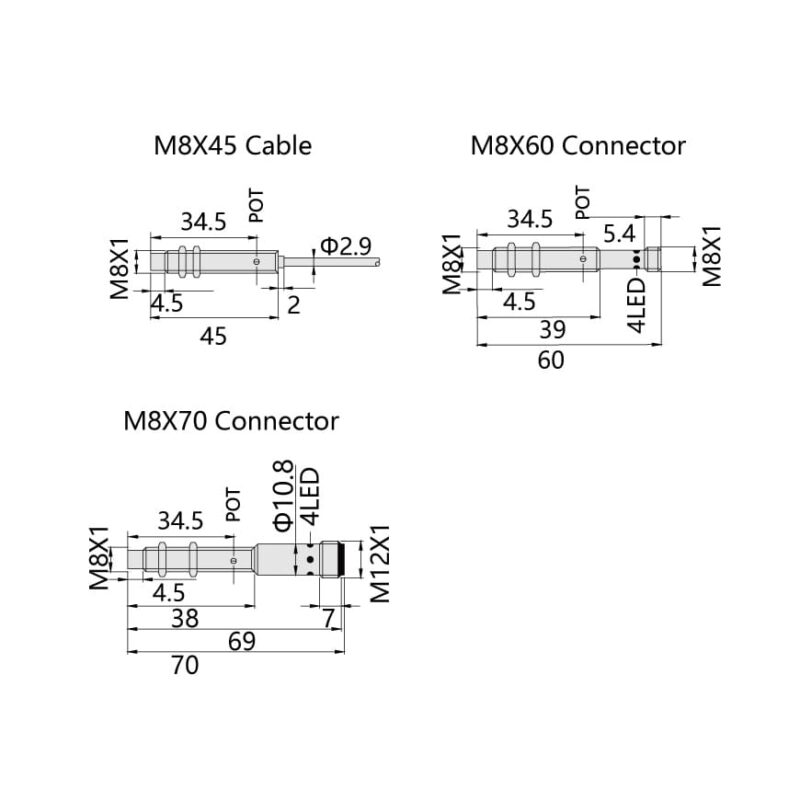

Size Chart:



The Bedook Capacitive Proximity Sensor M8 DC 3 Wire is ideally suited for:

• Automated Manufacturing: Provides reliable detection of metal and non-metal objects in automated assembly lines.
• Packaging Industry: Accurately detects the presence of materials in packaging processes, ensuring consistent operation.
• Material Handling: Facilitates precise detection in conveyor systems, enhancing operational efficiency.
• Robotics: Used in robotic systems for position sensing and object detection, improving accuracy and performance.
• Pharmaceutical Equipment: Ideal for non-contact detection in clean and controlled environments where contamination must be minimized.
• Quality Control Systems: Ensures high-precision detection in inspection and quality assurance processes, improving product quality.
