Bedook Capacitive Proximity Switch Cubic 3/10mm DC 3 Wire

The Bedook Capacitive Proximity Switch Cubic 3/10mm DC 3 Wire offers reliable performance. It has different sensing distances depending on the model, ranging from 3mm (suitable for certain pipe sizes with flush mounting) to 10mm (non – flush mounting).

The operating voltage is 10 – 30VDC(±10%). With a switching frequency of 100Hz, it provides quick response. The maximum load current is ≤200mA, and it has an ingress protection of IP67, ensuring durability in various environments.

Product Features:

The Bedook Capacitive Proximity Switch Cubic 3/10mm DC 3 Wire has a maximum load current of ≤200mA and a switching frequency of 100Hz. The ABS housing material provides durability. Its adjustable sensing distance gives it an edge in various applications.

The Capacitive Proximity Switch Cubic 3/10mm DC 3 Wire is an excellent choice for many industrial applications. Its adjustable sensing distance makes it suitable for different detection needs. For example, in a manufacturing plant, it can accurately detect the presence of small components with its precise sensing capabilities.

• Sensing Distance: Varies from 3mm (for specific pipe flush mounting) to 10mm (non – flush), enabling precise object detection.
• Operating Voltage: 10 – 30VDC(±10%) offers flexibility for different electrical systems.
• Switching Frequency: 100Hz ensures rapid and accurate operation.
• Load Current: Maximum load current of ≤200mA is suitable for a variety of loads.
• Ingress Protection: IP67 rating makes it resistant to dust and water, ideal for harsh environments.
• Housing Material: ABS provides durability and protection.

Product Parameters:

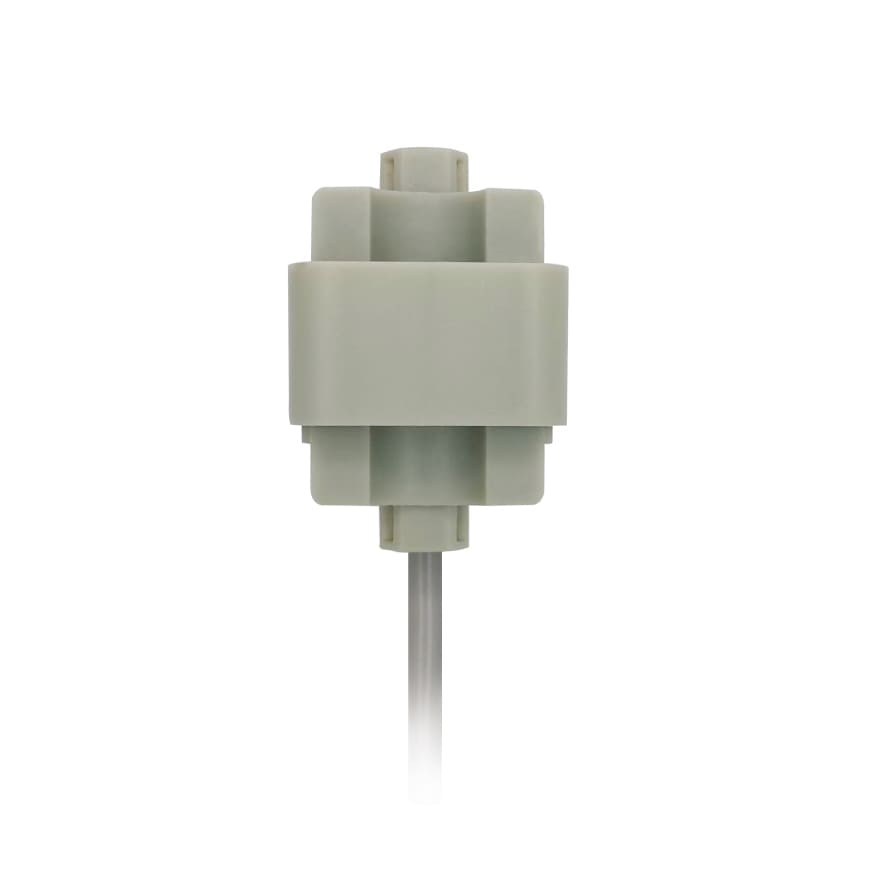

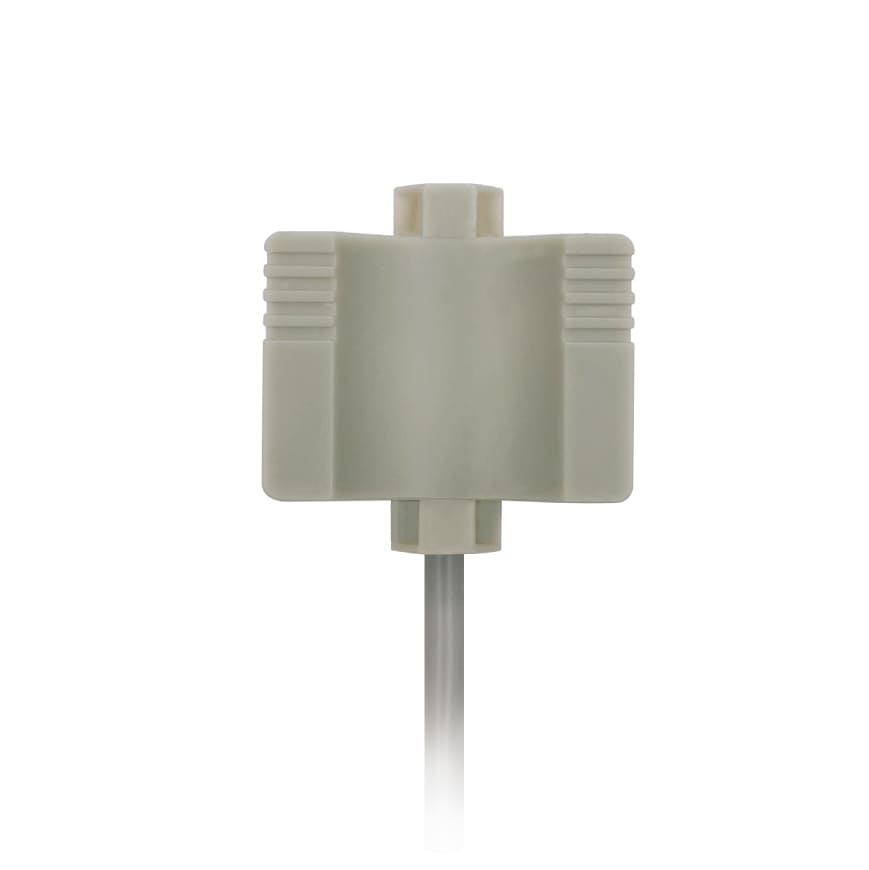

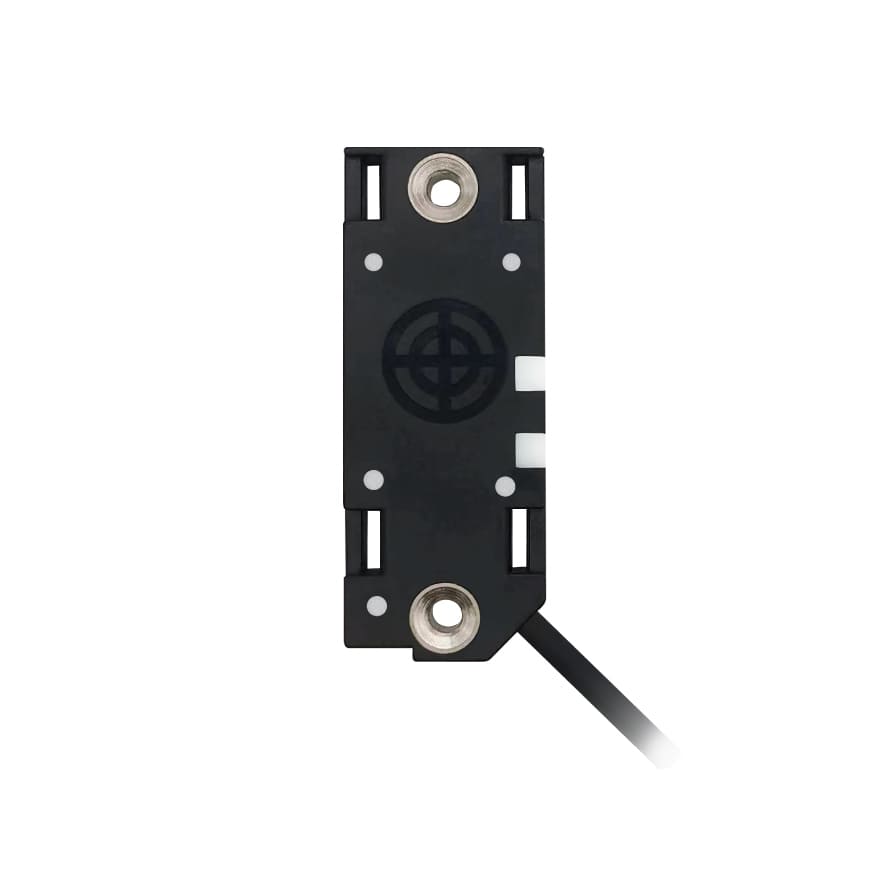

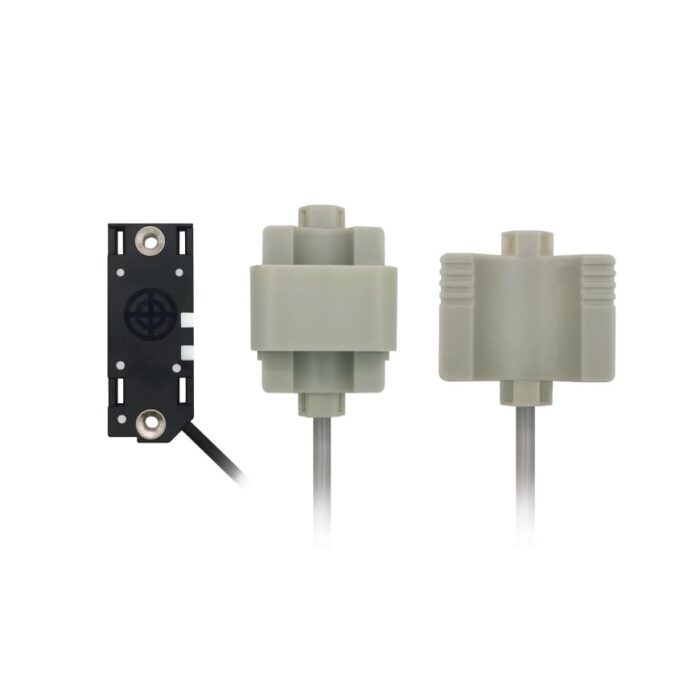

Appearance
Model	NPN N.O	CN-Q2010N-P11P2	CB-Q2503N-P11P2	CB-Q3303N-P11P2
	NPN N.C	CN-Q2010N-P21P2	CB-Q2503N-P21P2	CB-Q3303N-P21P2
	PNP N.O	CN-Q2010P-P11P2	CB-Q2503P-P11P2	CB-Q3303P-P11P2
	PNP N.C	CN-Q2010P-P21P2	CB-Q2503P-P21P2	CB-Q3303P-P21P2
Exterior Structure		50.5*20*5.5mm	43.4*24*21.8mm	33*24*20mm
Sensing Distance		10mm(Non-flush mounting)	3mm(Suitable for  φ8…11mm pipe)(flush)	3mm(Suitable for φ12…26mm pipe)(flush)
Switching Frequency		100Hz	100Hz
Operating voltage		10…30VDC(±10%)	10…30VDC(±10%)
Voltage drop		≤2.0V DC	≤1V DC
Load current		≤200mA	≤200mA
No load current		≤20mA(24V)	≤12mA(24V)
Hysteresis		＜15%(Sr)	＜15%(Sr)
Repeatability		＜5.0%(Sr)	＜5.0%(Sr)
Switch protection		Short Circuit Protection, Polarity reversal Protection, Power-On Protection	Polarity reversal Protection, Power-On Protection
Indication LED		With (Action: LED Indicator Lights Up)	With (Action: LED Indicator Lights Up)
Ambient temperature		-25…70℃	-25…70℃
Ingress protection		IP67	IP67
Housing Material		ABS	ABS
Face material		ABS	ABS
Connectors		2m PVC Cable, 3*0.25mm²	2m PVC Cable, 3*0.25mm²
Accessories		None	None

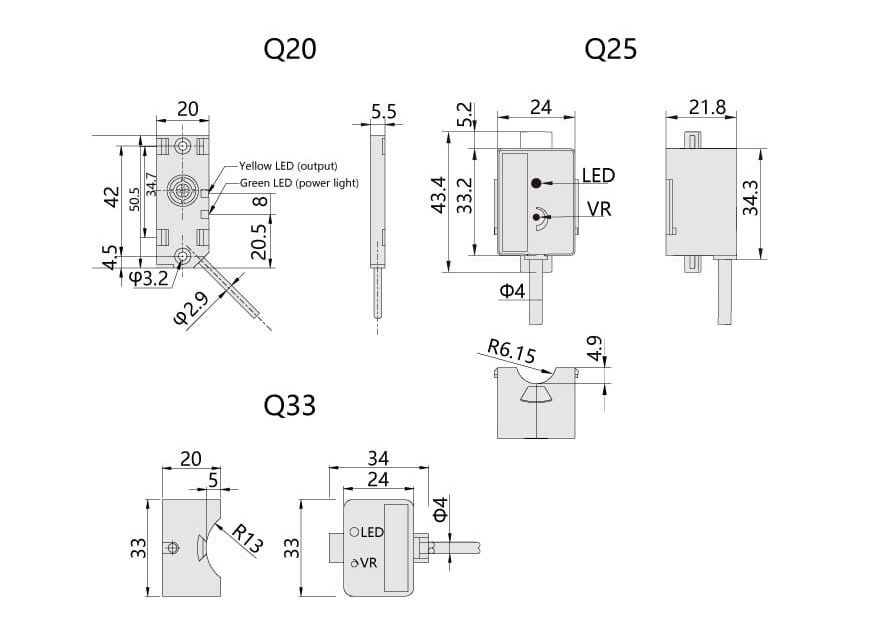

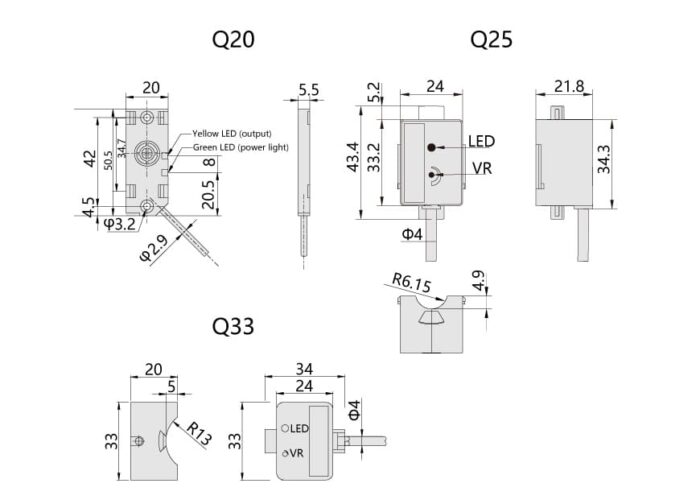

Size Chart:

The Bedook Capacitive Proximity Switch Cubic 3/10mm DC 3 Wire is particularly advantageous in assembly line applications. Its precise sensing distance allows for accurate detection of small parts, reducing errors in the production process. Compared to some competitors, its wider operating voltage range means it can be used in more diverse power supply environments without the need for additional voltage regulators. The IP67 protection makes it more durable in dusty or wet production areas, outperforming switches with lower protection levels.
