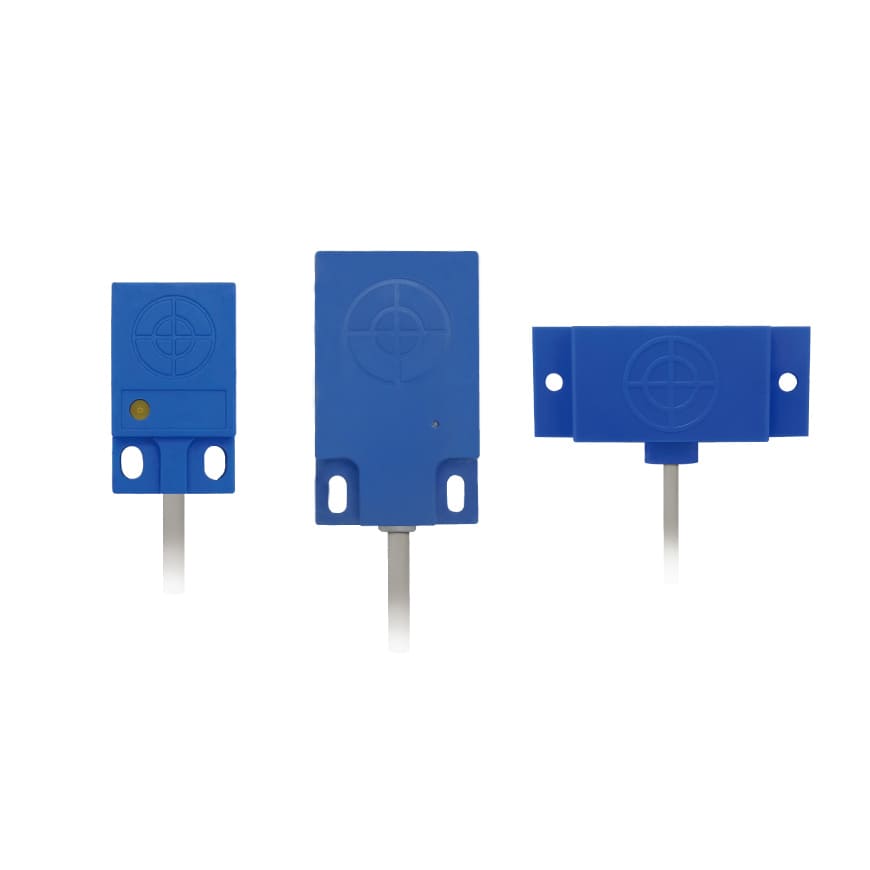

Bedook Capacitive Proximity Switch Cubic 4/6/10mm DC 3 Wire

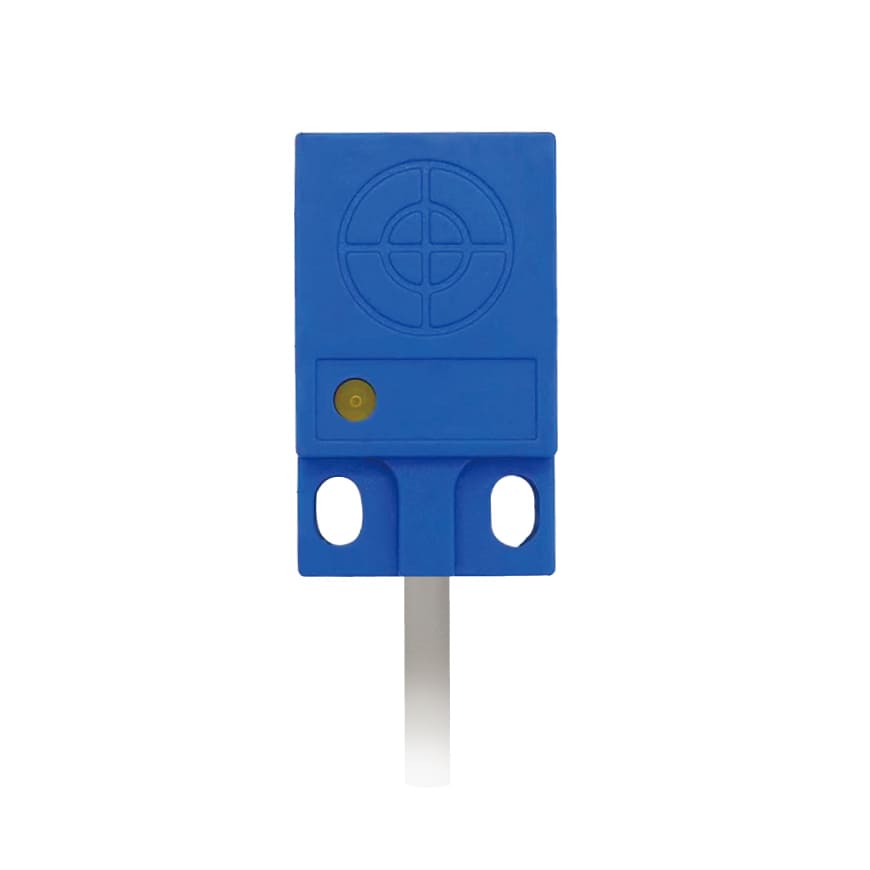

Bedook Capacitive Proximity Switch Cubic 4/6/10mm DC 3 Wire-01

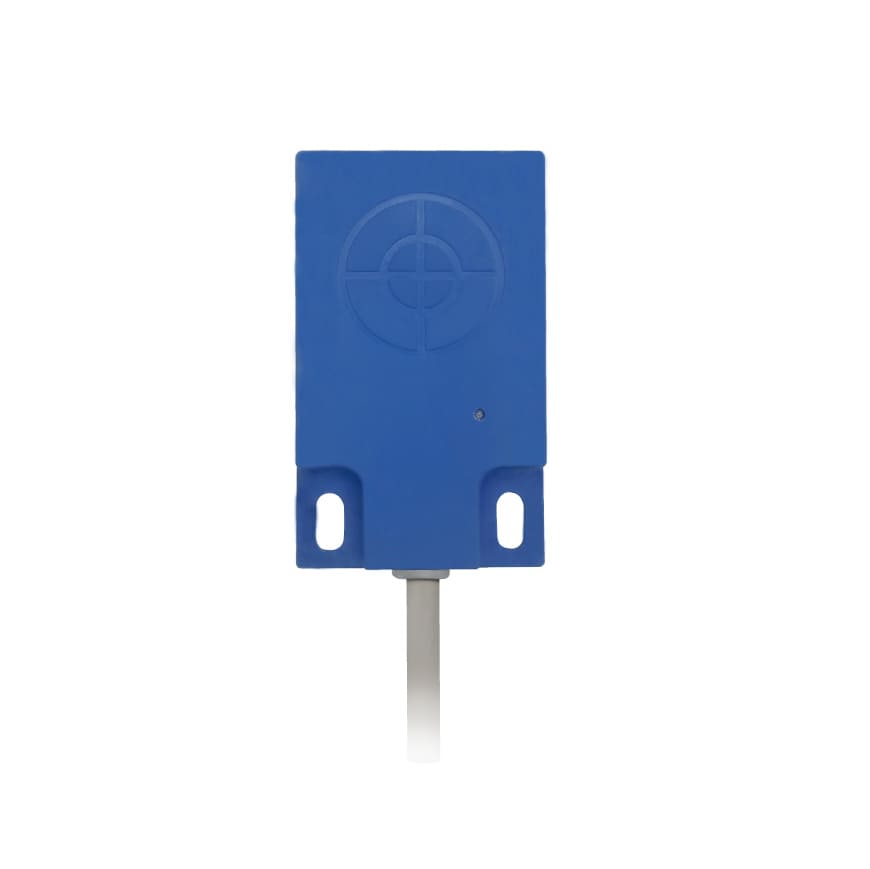

Bedook Capacitive Proximity Switch Cubic 4/6/10mm DC 3 Wire-02

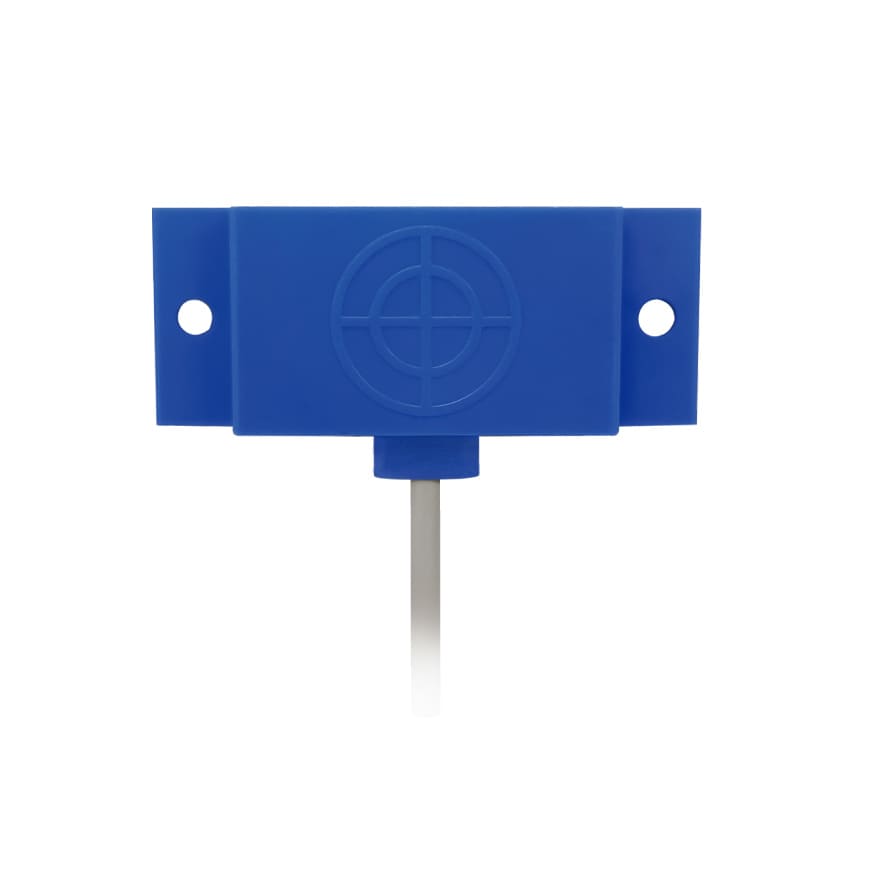

Bedook Capacitive Proximity Switch Cubic 4/6/10mm DC 3 Wire

The Bedook Capacitive Proximity Switch Cubic 4/6/10mm DC 3 Wire is a high – performance sensor. It offers three different sensing distances: 4mm (non – flush), 6mm (flush), and 10mm (non – flush). The operating voltage is 10 – 30VDC(±10%). It has a switching frequency of 100Hz. The load current is ≤200mA. With an IP65 ingress protection, it is suitable for various environments.

Get A Free Quote Now

Description

The Bedook Capacitive Proximity Switch Cubic 4/6/10mm DC 3 Wire is an outstanding product of the Bedook brand. Its multiple sensing distances make it highly versatile. In a warehouse automation system, it can detect objects at different distances, improving the efficiency of material handling.

This proximity switch from Bedook is designed with precision. The ABS or PBT housing materials ensure durability. Its wide operating voltage range allows it to be integrated into different power supply systems. In manufacturing plants, it can provide reliable sensing for production lines.

Product Features:

The Bedook Capacitive Proximity Switch Cubic 4/6/10mm DC 3 Wire has sensing distances of 4/6/10mm. Its operating voltage is 10 – 30VDC(±10%), suitable for industrial use.

This Bedook proximity switch features a switching frequency of 100Hz and a load current of ≤200mA. The ABS/PBT housing ensures durability in different environments.

Sensing Distances: With options of 4mm (non – flush), 6mm (flush), and 10mm (non – flush), it can meet various detection requirements precisely.
Operating Voltage: The 10 – 30VDC(±10%) range provides flexibility for different electrical setups.
Switching Frequency: A 100Hz switching frequency ensures quick and accurate operation.
Load Current: The ≤200mA load current is suitable for a wide range of loads.
Ingress Protection: An IP65 rating offers good protection against dust and water, making it suitable for industrial environments.
Housing Materials: Made of ABS or PBT, providing excellent durability and resistance to environmental factors.

Product Parameters:

Appearance
Model	NPN N.O	CN-Q18C04N-P11P2	CB-Q3006N-P11P2	CN-Q3010N-C11S12	CN-Q3410N-P11S12
	NPN N.C	CN-Q18C04N-P21P2	CB-Q3006N-P21P2	CN-Q3010N-C21S12	CN-Q3410N-P21S12
	PNP N.O	CN-Q18C04P-P11P2	CB-Q3006P-P11P2	CN-Q3010P-C11S12	CN-Q3410P-P11S12
	PNP N.C	CN-Q18C04P-P21P2	CB-Q3006P-P21P2	CN-Q3010P-C21S12	CN-Q3410P-P21S12
Exterior Structure		301810mm	50307mm	50307mm	502010.2mm
Sensing Distance		4mm(Non-flush mounting)	6mm(Flush mounting)	10mm(Non-flush mounting)	10mm(Non-flush mounting)
Switching Frequency		100Hz
Operating voltage		10…30VDC(±10%)
Voltage drop		≤2.5VDC	≤2VDC
Load current		≤200mA			≤100mA
No load current		≤10mA(24V)
Hysteresis		＜15%(Sr)
Repeatability		＜5.0%(Sr)
Adjustment		Multi-turn protentiometer
Switch protection		Short Circuit Protection, Polarity reversal Protection, Power-On Protection
Indication LED		With (Action: LED Indicator Lights Up)
Ambient temperature		-25…70℃
Ingress protection		IP65
Housing Material		ABS	PBT		ABS
Face material		ABS	PBT		ABS
Connectors		2m PVC Cable, 3*0.25mm²
Accessories		None

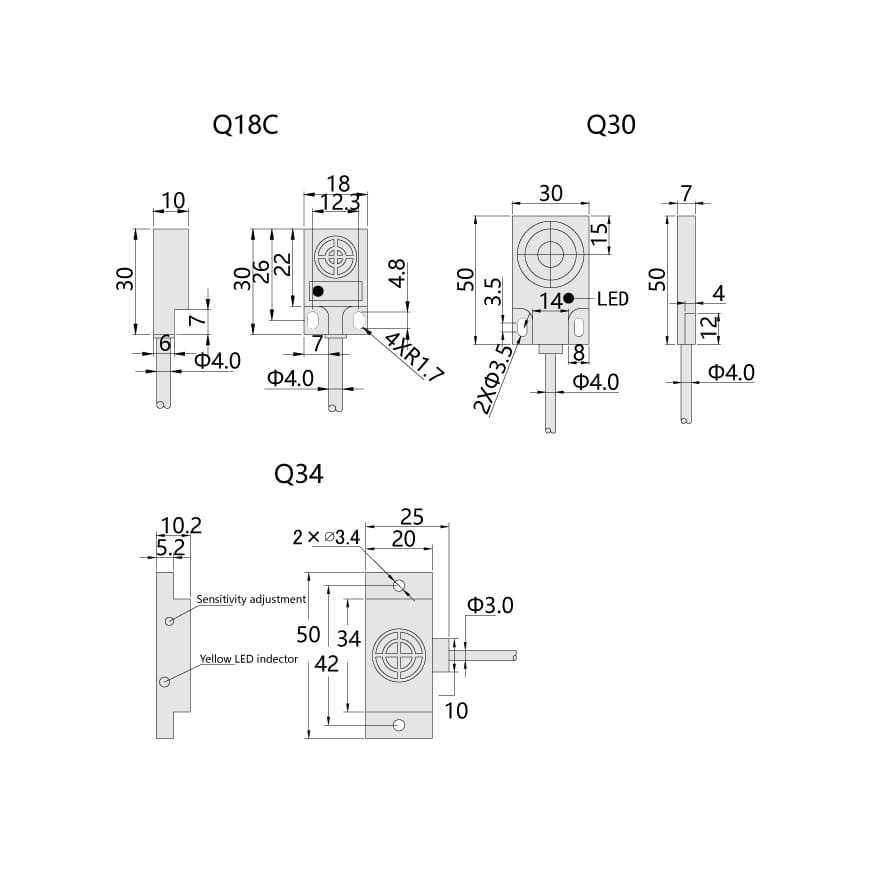

Size Chart:

Bedook Capacitive Proximity Switch Cubic 4/6/10mm DC 3 Wire is highly advantageous in automated production environments. Compared to competitors, its multiple sensing distances allow for more precise object detection. The IP65 protection makes it reliable in dusty or slightly wet conditions, outperforming switches with lower protection levels. The Bedook brand is known for quality, ensuring customer trust.
