Description
Introducing the Double Sheet Sensor Metal Detection, a high-precision sensor designed to detect single and double metal sheets.
This sensor operates on a separation type testing method and offers a sensing range of 30mm to 60mm, making it ideal for various industrial applications such as PCB, metal packaging, and automotive production.
Product Features:
The Ultrasonic Double Sheet Sensor Metal Detection provides precise detection of metal sheets with thicknesses ranging from 0.1mm to 3.5mm.
Its robust design and advanced features ensure reliable performance in demanding environments, protecting equipment and reducing material waste.
- Wide Sensing Range: Capable of detecting metal sheets with thicknesses from 0.1mm to 3.5mm, including iron, aluminum, copper, and stainless steel.
- Separation Type Testing: Ensures accurate detection of single and double sheets, preventing multiple layers from entering the next processing stage.
- Adjustable Sensitivity: Features a knob for easy sensitivity adjustment, allowing for precise control based on the material being tested.
- High Stability: Operating voltage of 110V/220VAC±10% with a switching frequency of 50/60Hz, and response time of <50ms for consistent performance.
- Durable Construction: The sensor body is made of brass and nickel-plated, with an IEC IP67 protection grade, ensuring robust protection in various environments.
- User-Friendly Design: Equipped with a red LED action indicator light and comes with accessories like a screwdriver and nut for easy installation.
| Appearance |  |
|
| Model | Hosts model NPN N.O+N.C | BAL050N |
| sensing detector | BB-M1805-CP5 | |
| Working voltage | 110V/220VAC±10% | |
| Switching frequency | 50/60Hz | |
| Testing way | Separation type | |
| Output state | NPN 100mA/<24VDC,250VAC/3A | |
| The response time | <50ms | |
| Sensitivity adjustment | Knob to adjust | |
| Action indicator light | Red LED indicator light | |
| Protection grade | IEC IP20 | |
| Ambient temperature/humidity | 0…55℃ (Non-freezing state)/RH35…85% | |
| Host model | BB-M1805-CP5 | |
| Sensing range | 30…60MM | |
| Test thickness | Iron:0.1…3.5mm; aluminum:0.1…3.5mm; copper:0.1…3.5mm; stainlesss steel:0.3…3.5mm |
|
| standard test | 200*200*1mm Iron plate | |
| Protection grade | IEC IP67 | |
| Ambient temperature/humidity | +5℃…70℃(Non-freezing state)/RH35…80% | |
| Material | Body:Brass, nickel-plated/Sensor:PBT | |
| cable | PVC cable/5m(2*0.35mm²);PVC shielded wire(2*0.35mm²) | |
| accessories | A screwdriver,nut | |

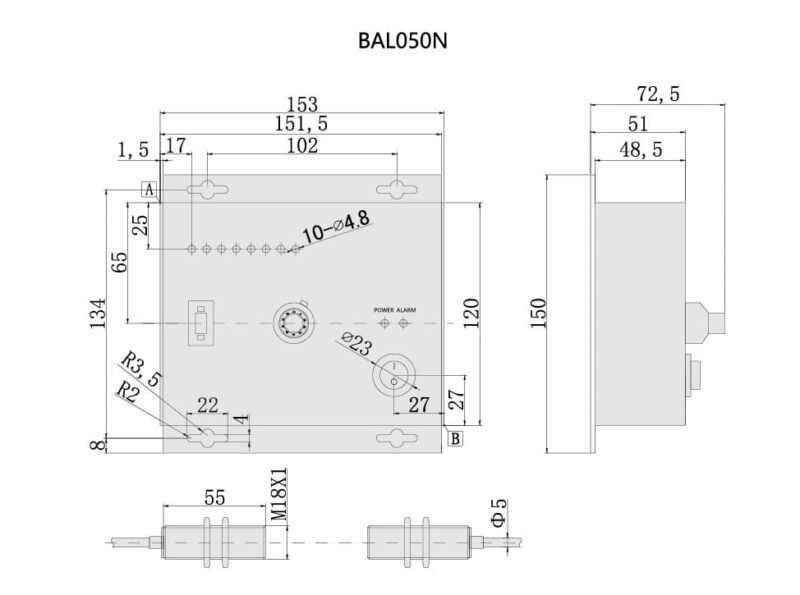

Size Chart:
Bedook Double Sheet Sensor (Metal Detection)-Size
The Ultrasonic Double Sheet Sensor Metal Detection has passed multiple international certifications such as CE, UKCA, and ROHS, ensuring compliance with global standards. This makes it an excellent choice for high-precision detection scenarios in industries like PCB manufacturing, metal packaging, home appliance production, and automotive manufacturing.
