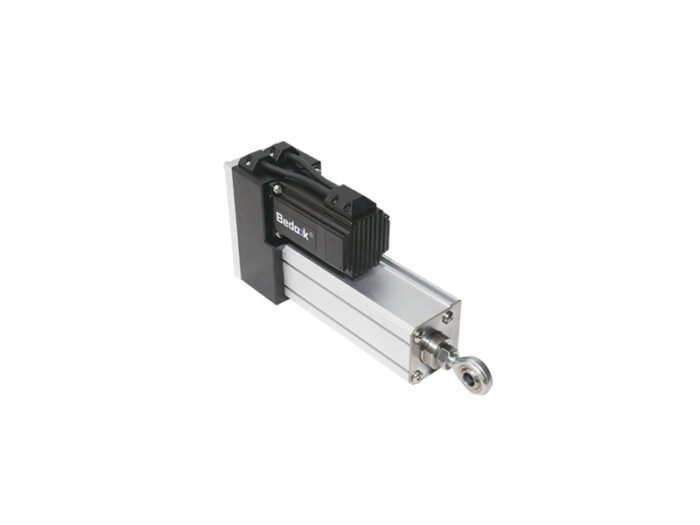

BEDOOK EWD-U300 N Type Web Guiding Actuator

The EWD-U300 N Type Web Guiding Actuator from BEDOOK is a high-performance deviation rectifying actuator designed to deliver precise web alignment in industrial automation.

Engineered with a robust stepper motor and built-in positioning board, this actuator offers real-time feedback for dynamic web guiding, making it an ideal choice for high-speed production lines.

As part of BEDOOK’s advanced web guiding portfolio, the EWD-U300 N Type combines reliability with scalability, ensuring seamless integration with BEDOOK’s controllers and sensors for optimal web handling efficiency.

Product Features (BEDOOK EWD-U300 N Type Web Guiding Actuator)

Designed for versatility, the EWD-U300 N Type Web Guiding Actuator stands out for its ability to handle web materials up to 300kg with precision.

BEDOOK’s expertise in motion control is evident in its 0.02mm positioning accuracy and multiple stroke options (±30mm to ±100mm), catering to both narrow and wide web applications. Whether used in packaging, textiles, or paper processing, this deviation rectifying actuator simplifies web guiding with its plug-and-play design and CAN-Bus compatibility, reducing setup time and enhancing production consistency.

• Stepper Motor Precision: The EWD-U300 N Type utilizes a high-torque stepper motor to deliver smooth, precise movements with 0.02mm positioning accuracy, outperforming pneumatic actuators that often suffer from lag or drift. For example, in high-speed label printing, where even minor deviations can cause misregistration, the EWD-U300’s precision ensures consistent label alignment, reducing waste compared to less accurate actuators.
• Real-Time Position Feedback: The built-in positioning board provides instant feedback on the actuator’s stroke position, enabling closed-loop control via BEDOOK’s XPC/MPC controllers. This real-time data ensures rapid correction of web deviations, a critical advantage over actuators without feedback, which may overshoot or undershoot target positions.
• Multiple Stroke Options: With stroke lengths ranging from ±30mm to ±100mm, the EWD-U300 N Type adapts to diverse web widths and deviation requirements. Narrow-stroke models (±30mm) excel in compact machines like medical device packaging, while longer strokes (±100mm) suit wide-format applications like corrugated board production, offering flexibility unmatched by single-stroke competitors.
• Heavy-Duty Load Capacity: Capable of 300kg pushing force, this deviation rectifying actuator handles heavy webs such as industrial fabrics, metal sheets, or multi-layer laminates. Competitors’ actuators with lower thrust often struggle with high-tension materials, leading to slow response times or mechanical failure, but the EWD-U300 maintains performance under load.
• CAN-Bus Integration: Seamless compatibility with BEDOOK’s CAN2.0 controllers (e.g., XPC-100M) enables real-time communication at up to 100 Mbps, reducing latency and ensuring synchronized operation with sensors and HMIs. This integration eliminates the need for custom protocols, a common challenge with third-party actuators.
• Rugged Industrial Design: The IP50-rated housing protects against dust and light splashes, while over-current/thermal protection safeguards against motor burnout in demanding environments. Unlike unprotected actuators, the EWD-U300 operates reliably in harsh conditions like printing presses or outdoor manufacturing setups, minimizing downtime.

Product Parameters

Product Applications

• Packaging Industry: Corrects web deviations in high-speed bag-making machines, ensuring precise sealing and cutting of plastic films or paper sacks.
• Textile Manufacturing: Guides heavy woven fabrics in loom setups, maintaining tension consistency during weaving or dyeing processes.
• Paper & Pulp: Aligns large paper rolls in converting lines, preventing edge wrinkles in newsprint or cardboard production.
• Plastics Extrusion: Controls web alignment during PVC sheet extrusion, ensuring uniform thickness and edge quality for construction materials.
• Automotive Interiors: Positions fabric or leather webs in seat upholstery production, enabling precise cutting and stitching of complex shapes.

Product Summary

The EWD-U300 N Type Web Guiding Actuator delivers 0.02mm accuracy and 300kg thrust, ideal for heavy-web applications like packaging and textiles. Its stepper motor drive and real-time feedback ensure rapid, precise deviation rectification in high-speed lines.

With multiple stroke options and CAN-Bus integration, this deviation rectifying actuator adapts to diverse setups while offering IP50 protection for industrial resilience. BEDOOK’s design prioritizes ease of use and reliability, making the EWD-U300 N Type a top choice for manufacturers seeking consistent web alignment across multiple applications.
