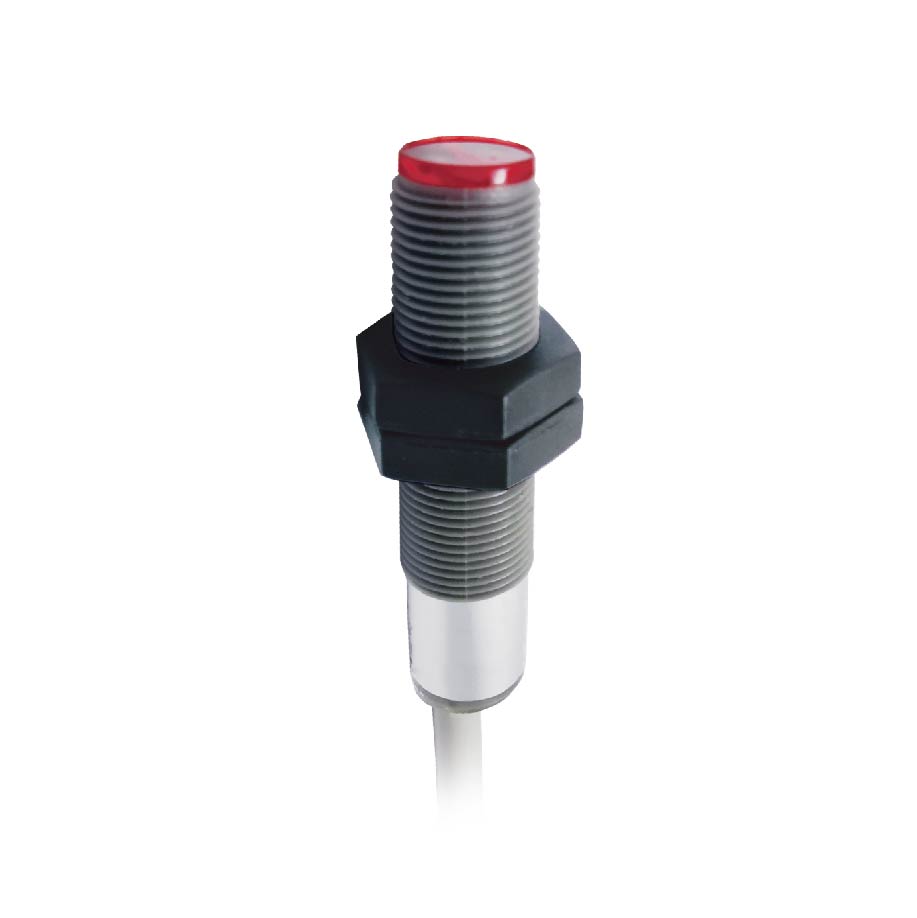

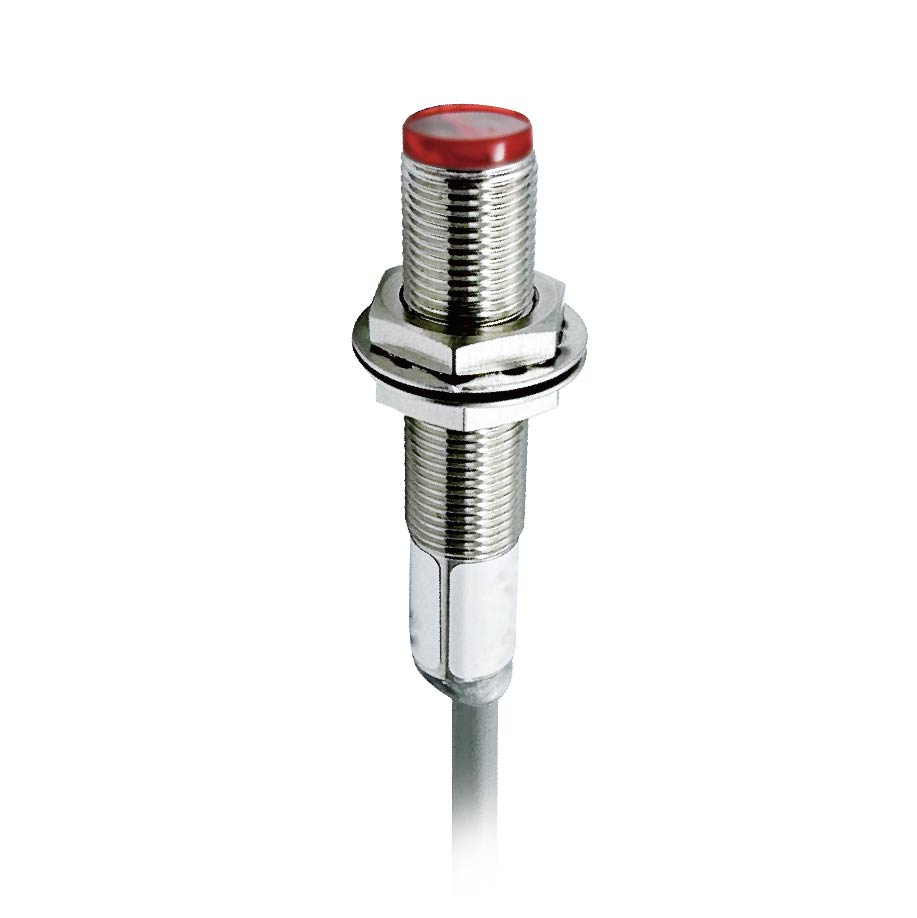

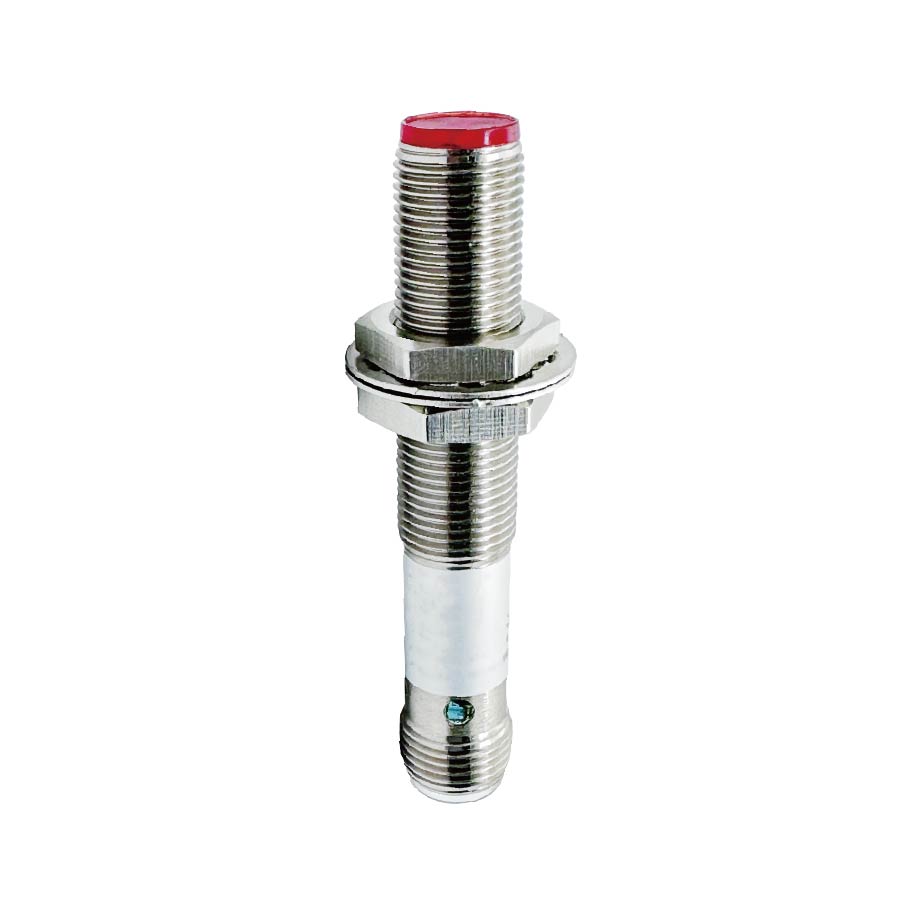

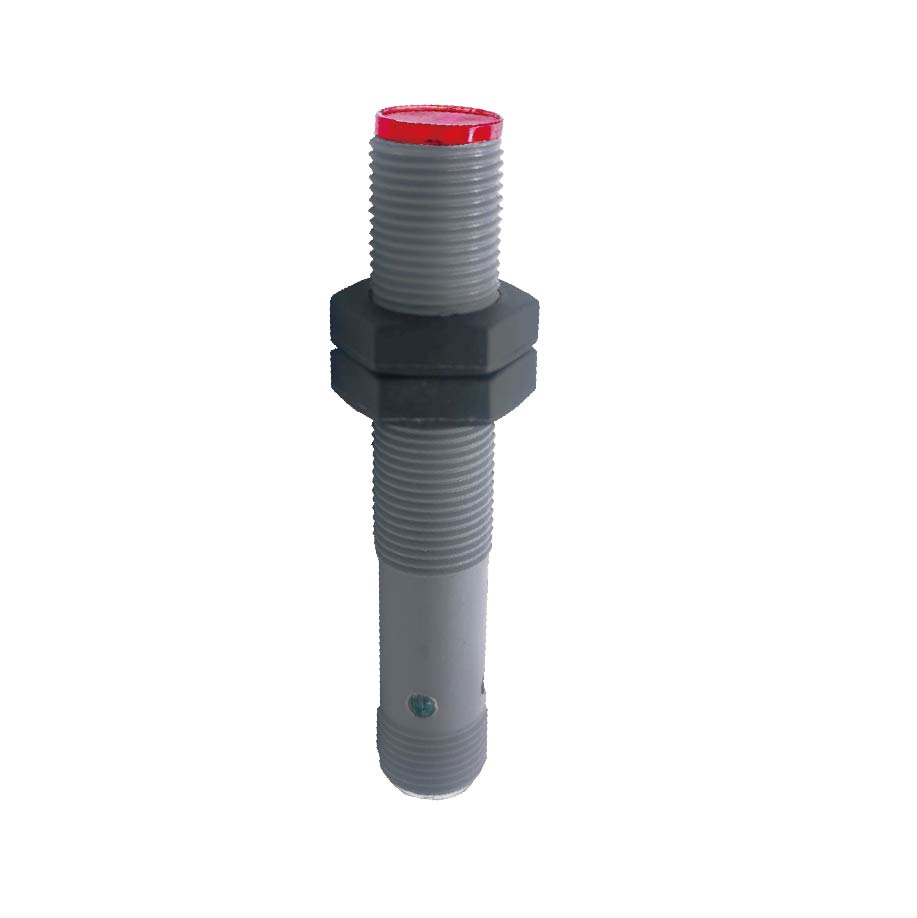

Bedook FM12 Diffuse Photoelectric Sensor 200mm, M12, Infrared, IP66

The Bedook FM12 Diffuse Photoelectric Sensor 200mm is engineered for high-precision detection with a 200mm sensing range. Its infrared 880nm light provides reliable performance in industrial settings. The sensor’s M12 structure and IP66-rated housing ensure durability and resistance to harsh environments. With a fast response time of less than 2ms and a switching frequency of 500Hz, this sensor is ideal for applications requiring quick and accurate detection.

Product Features:

Introducing the Bedook FM12 Diffuse Photoelectric Sensor, a versatile and durable sensor with a 200mm sensing distance. Designed for industrial use, it features an IP66-rated PBT/Brass housing and PMMA lens, ensuring resistance to dust and water. The sensor operates at 10 to 30VDC and is equipped with a multi-turn potentiometer for light immunity adjustment, making it adaptable to various lighting conditions.

• Reliable Sensing Distance: 200mm detection range, suitable for a variety of industrial applications.
• Fast Response Time: Response time of less than 2ms, ensuring rapid and accurate detection.
• Durable Construction: IP66-rated housing made of PBT/Brass with nickel-plating for enhanced durability in harsh environments.
• Infrared Light Source: 880nm infrared light ensures precise object detection, even in challenging conditions.
• Adjustable Light Immunity: Multi-turn potentiometer allows for customization of light resistance, up to 5000 Lux.
• Global Certifications: CE, UKCA, and ROHS certifications guarantee compliance with international standards.

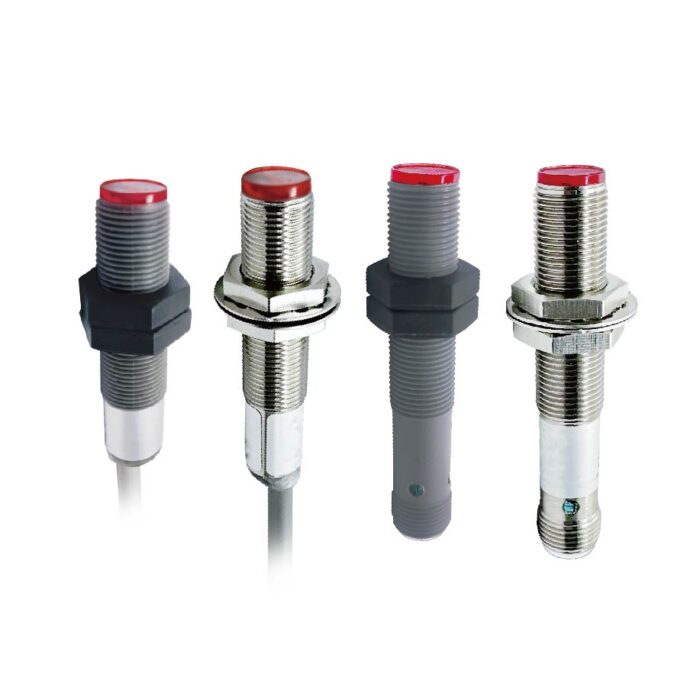

Appearance
Model	NPN Light/Dark-on	FM12-T02N-P31P2	FM12-T02N-C31P2	FM12-T02N-P31S12	FM12-T02N-C31S12
	PNP Light/Dark-on	FM12-T02P-P31P2	FM12-T02P-C31P2	FM12-T02P-P31S12	FM12-T02P-C31S12
Appearance Structure		M12*1mm
Sensing Distance		200mm
Detection method		Diffuse type
Switching Frequency		500Hz
Operating voltage		10…30VDC
Light type		Infrareed light 880nm
response time		<2ms
Power-up delay		≤150mA
Adjustment		<300ms
Light immunity		Multi-turn protentiometer
Light resistance		<5000Lux.
Ambient temperature		-25…55℃
Ambient humidity		35…85%
Housing Material		PBT	Brass, nickel-plated	PBT	Brass, nickel-plated
Ingress protection		IP66
Lens material		PMMA
Operating indicator		Yellow
Connectors		2m PVC Cable, 4*0.25mm²		M12 Connector
Accessories		NO		B12-4GV2/B12-4WV2

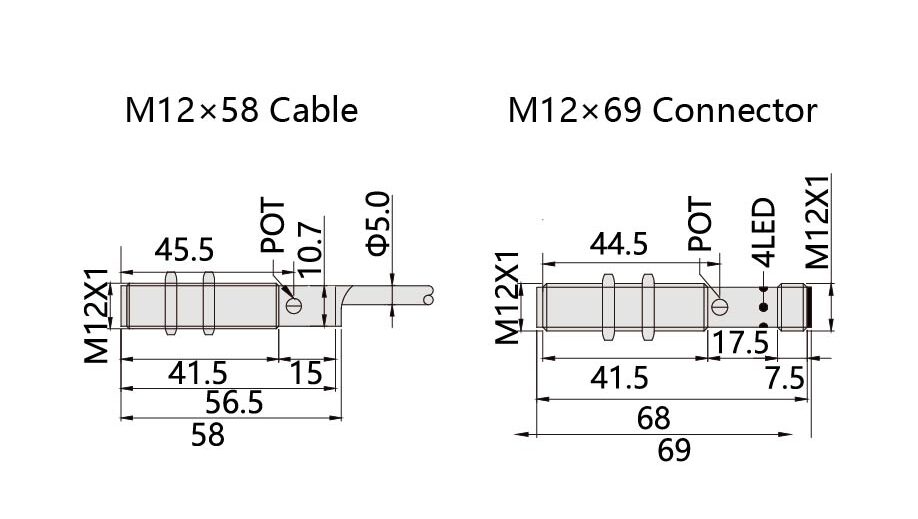

Size Chart:

The Bedook FM12 Diffuse Sensor provides a precise 200mm detection range with an IP66-rated housing, ideal for industrial environments.

High-performing and adaptable, the Bedook FM12 Diffuse Sensor features a 200mm range, adjustable light immunity, and international certifications.

With a response time of less than 2ms and robust IP66 protection, the Bedook FM12 ensures quick and reliable operation in industrial settings.

The Bedook FM12 Diffuse Sensor, with its 2m PVC cable and M12 connector, is designed for easy installation and durability in demanding environments.
