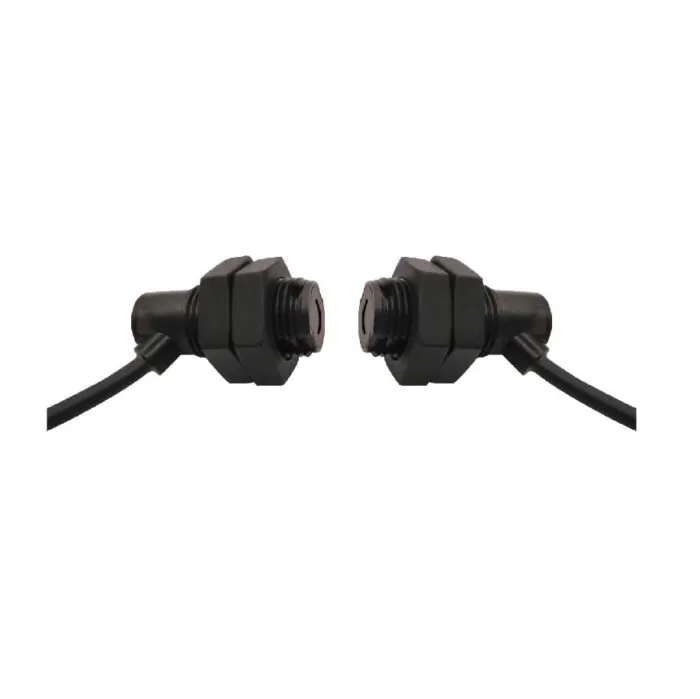

Bedook FM12 Through-beam Photoelectric Sensor 3m

The Bedook FM12 Through-beam Photoelectric Sensor 3m offers reliable detection with a 3m sensing distance. This sensor is designed for industrial applications, featuring an M12 structure, IP66 protection, and the ability to withstand harsh environments. The sensor operates with 850nm infrared light and has a quick response time of less than 2ms. Certified by CE, UKCA, and ROHS, this product meets high international standards.

Product Features:

Introducing the Bedook FM12 Through-beam Photoelectric Sensor, engineered for precision and durability. With a 3m sensing range, it ensures accurate object detection even in challenging conditions. The sensor operates on 10 to 24VDC, has a robust PC housing, and provides short-circuit protection for enhanced safety. Its IP66 rating and multiple international certifications make it ideal for demanding industrial applications.

• Precise Sensing Distance: 3m detection range with infrared 850nm light, suitable for various industrial applications.
• Quick Response: Response time of less than 2ms ensures rapid detection and switching at 500Hz frequency.
• Durable Design: IP66-rated PC housing offers excellent protection in harsh environments.
• High Safety Standards: Includes short-circuit protection and pressure resistance of AC 1,000V for 1 minute.
• Global Certifications: Certified by CE, UKCA, and ROHS, meeting international safety and quality standards.
• Versatile Connectivity: Equipped with a 2m PVC Cable, ensuring easy installation and reliable performance.

Appearance
Model	Transmitter	FM12-L3D-P51P2-S
	NPN Dark-on	FM12-L3N-P11P2-S
	NPN Light-on	FM12-L3N-P21P2-S
Appearance Structure		M12*1mm
Sensing Distance		3m
Detection method		Through-beam type
Operating voltage		10…24VDC(±10%)
Switching Frequency		500Hz
Light type		Infrareed light 850nm
response time		<2ms
Load current		≤100mA
Consumption current		Transmitter below 25mA,receiver below 15mA
Short circuit protection		Yes
Type of display		Green: power supply, Yellow:output
output function		NPN N.O/N.C
Pressure reesistance		AC1, 000V for 1minute(between power cord and casee)
Ambient temperature		-25…55℃
Ambient humidity		35…85%
Environmental pollution level		3(industrial environment)
Ingress protection		IP66(IEC)
Housing Material		PC
Lens material		PMMA
Insulation resistance		DC 250V high resistance meter above 20MΩ
Connectors		2m PVC Cable,3*0.35mm² 2*0.5mm²
Accessories		NO

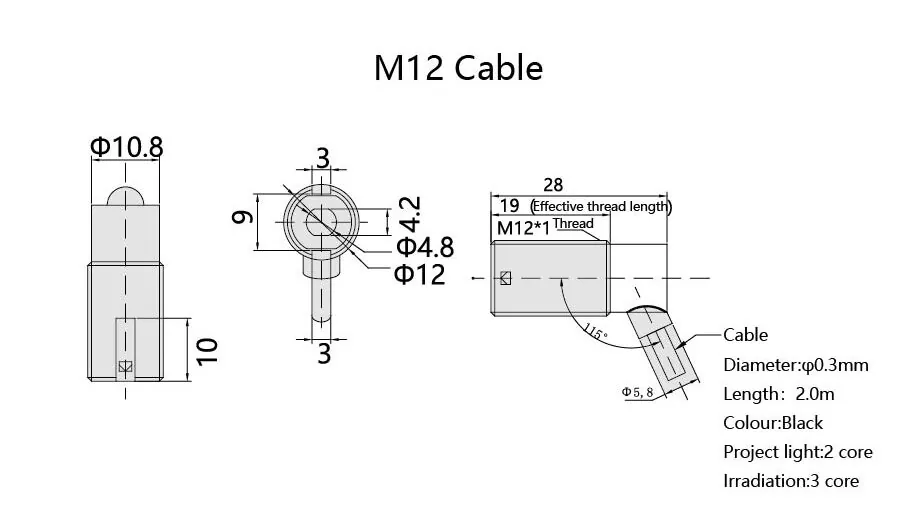

Size Chart:

The Bedook FM12 Sensor provides a reliable 3m detection range with an IP66-rated housing, perfect for challenging industrial environments.

High-performance and safe, the Bedook FM12 Through-beam Sensor features 500Hz switching, short-circuit protection, and global certifications.

With a response time of less than 2ms and an IP66 rating, the Bedook FM12 ensures quick and reliable operation in industrial settings.

The Bedook FM12 is designed for easy installation with its 2m PVC cable and robust PC housing, making it ideal for tough industrial applications.
