Bedook FM12 Through-beam Photoelectric Sensor 5.2m

The Bedook FM12 Through-beam Photoelectric Sensor offers exceptional sensing performance with a 5.2m range and IP66 protection. Designed for demanding industrial environments, this sensor utilizes infrared 880nm light and operates efficiently at a switching frequency of 500Hz. The sensor’s robust design includes an M12 connector and a durable PBT/Brass housing, ensuring reliability and long-lasting performance.

Product Features:

Introducing the Bedook FM12 Through-beam Photoelectric Sensor, a highly precise sensor engineered for tough conditions. With a 5.2m sensing distance, it offers fast response times and robust resistance to ambient light, ensuring accuracy in a wide range of applications. The sensor’s compact M12 structure and IP66 rating make it ideal for industrial use, backed by international certifications including CE, UKCA, and ROHS.

• Long Sensing Distance: Offers a reliable 5.2m detection range, suitable for various industrial applications.
• High Switching Frequency: Operates at 500Hz, providing quick and accurate detection.
• Robust Design: IP66-rated housing made of PBT/Brass, nickel-plated, ensures protection against harsh environments.
• Infrared Light Source: Utilizes 880nm infrared light for precise object detection even in challenging conditions.
• International Certifications: Certified by CE, UKCA, and ROHS, ensuring compliance with global standards.
• Versatile Connectivity: Equipped with a 2m PVC Cable or M12 connector, facilitating easy installation and integration.

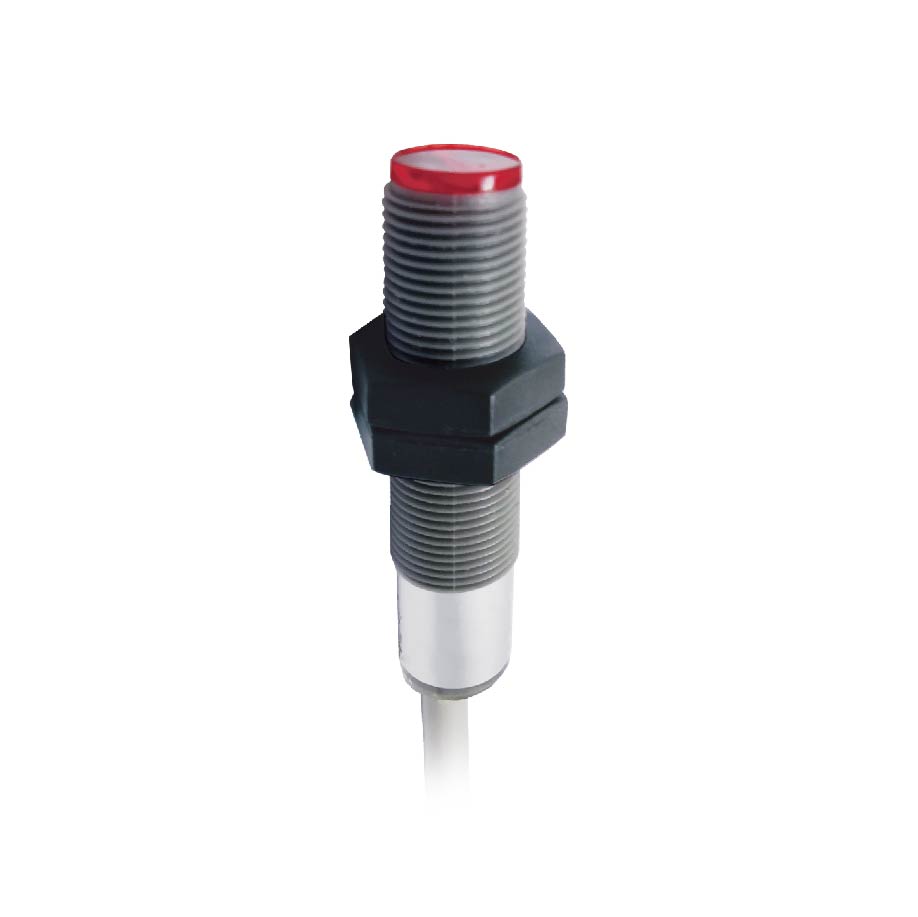

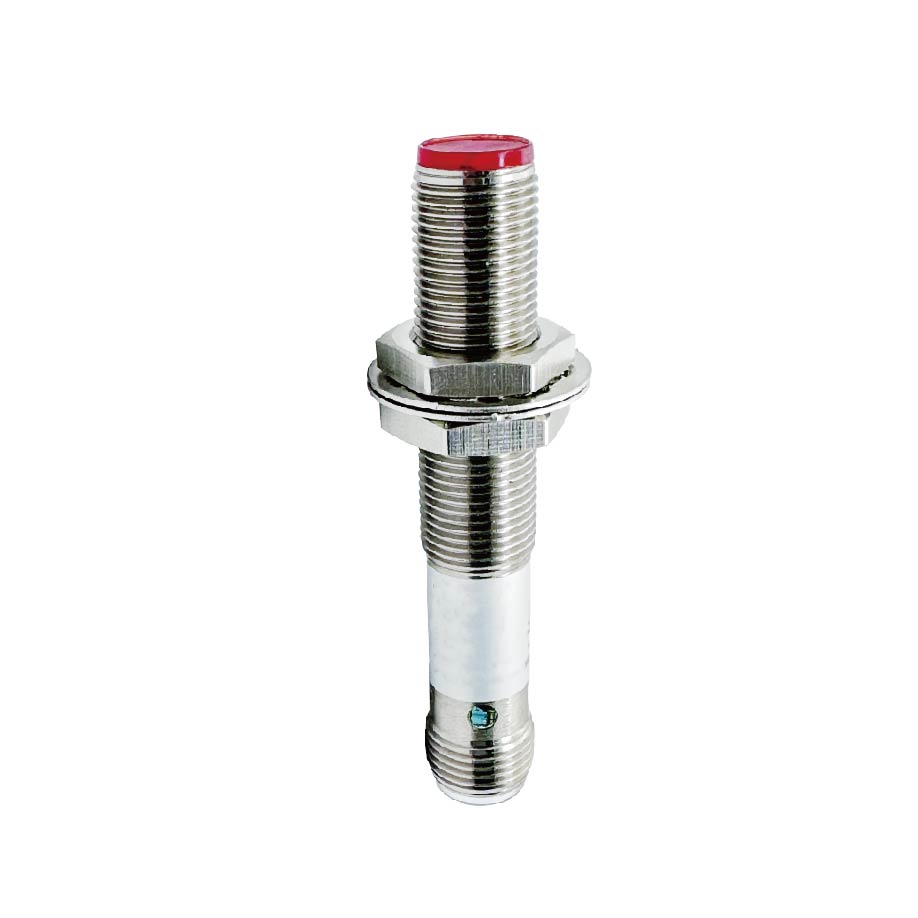

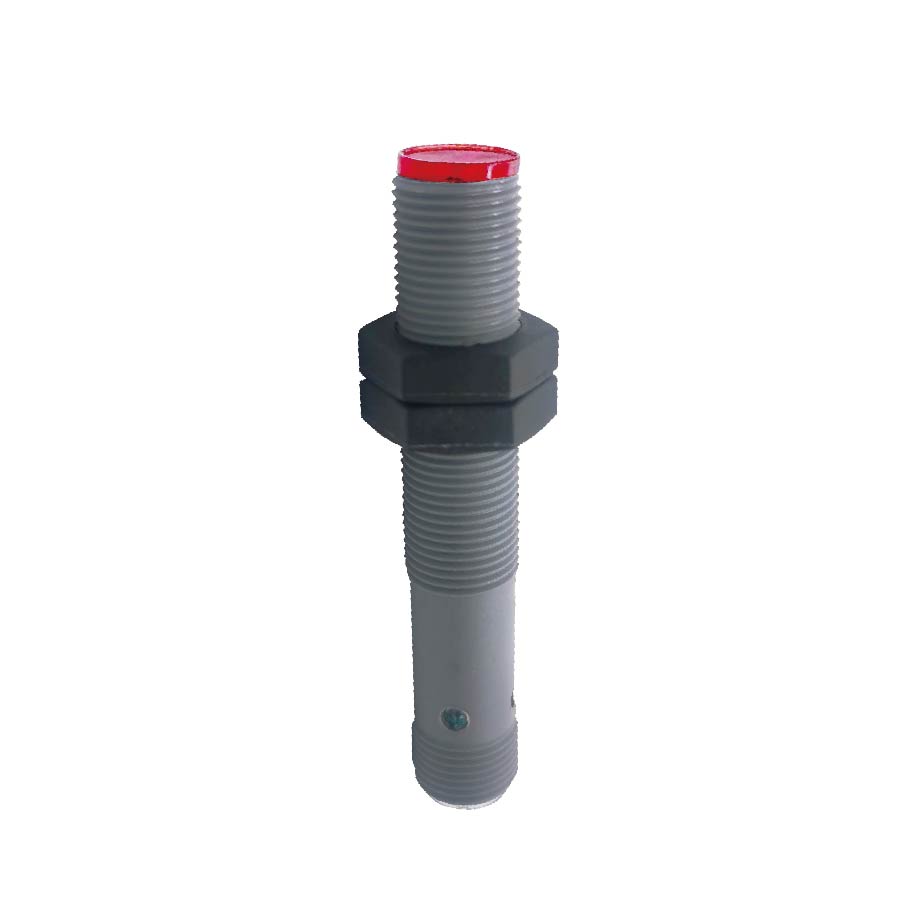

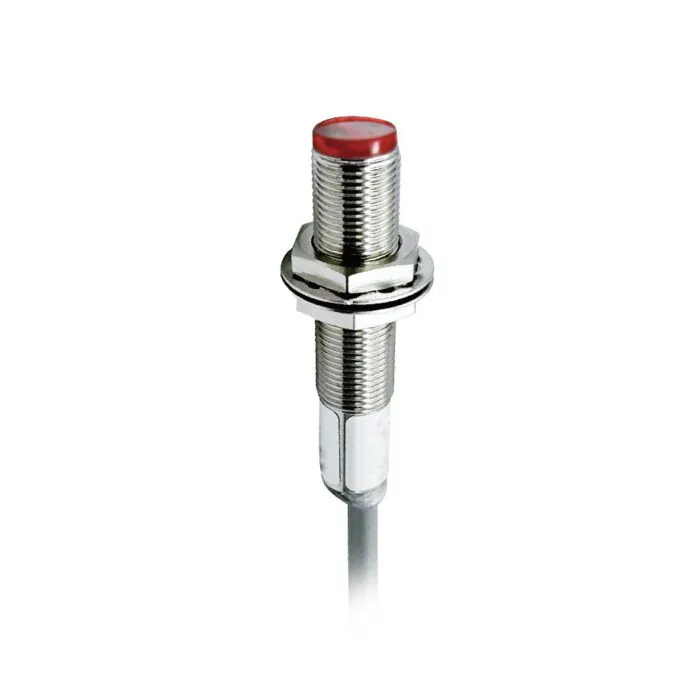

Appearance
Model	Transmitter	FM12-L52D-P51P2	FM12-L52D-C51P2	FM12-L52D-P51S12	FM12-L52D-C51S12
	NPN Dark-on	FM12-L52N-P11P2	FM12-L52N-C11P2	FM12-L52N-P11S12	FM12-L52N-C11S12
	NPN Light-on	FM12-L52N-P21P2	FM12-L52N-C21P2	FM12-L52N-P21S12	FM12-L52N-C21S12
	PNP Dark-on	FM12-L52P-P11P2	FM12-L52P-C11P2	FM12-L52P-P11S12	FM12-L52P-C11S12
	PNP Light-on	FM12-L52P-P21P2	FM12-L52P-C21P2	FM12-L52P-P21S12	FM12-L52P-C21S12
Appearance Structure		M12*1mm
Sensing Distance		5.2M
Detection method		Feed-throught type
Switching Frequency		500Hz
Operating voltage		10…30VDC
Light type		Infrareed light 880nm
response time		<2ms
Power-up delay		≤150mA
Adjustment		<300ms
Light immunity		Multi-turn protentiometer
Light resistance		<5000Lux.
Ambient temperature		-25…55℃
Ambient humidity		35…85%
Ingress protection		IP66
Housing Material		PBT	Brass, nickel-plated	PBT	Brass, nickel-plated
Lens material		PMMA
Operating indicator		Yellow
Connectors		2m PVC Cable, 3*0.35mm², 2*0.5mm²		M12 Connector
Accessories		NO		B12-4GV2/B12-4WV2

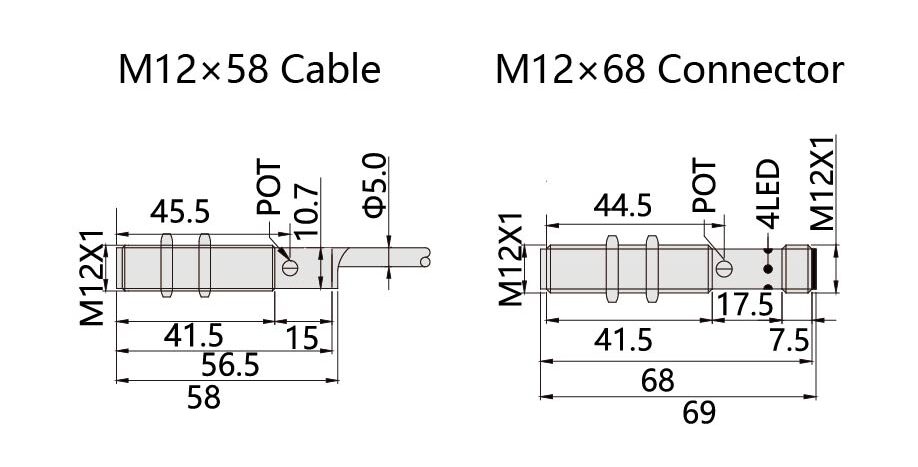

Size Chart:

The Bedook FM12 sensor provides a 5.2m detection range with robust IP66-rated housing, perfect for tough industrial applications.

Reliable and high-performing, the Bedook FM12 Through-beam Sensor features a 500Hz switching frequency and comes with CE, UKCA, and ROHS certifications.

Engineered with advanced light immunity and a response time of less than 2ms, the Bedook FM12 ensures precise and rapid detection.

With a versatile M12 connector and a compact design, the Bedook FM12 is easy to install and integrate into various industrial systems.
