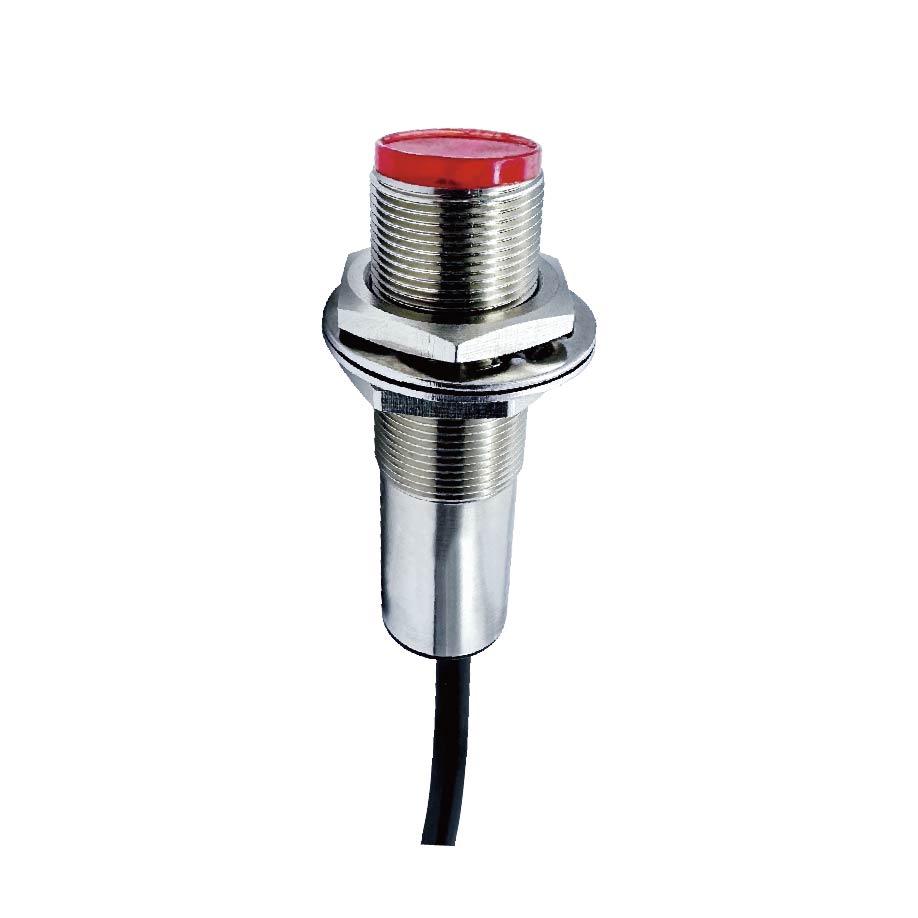

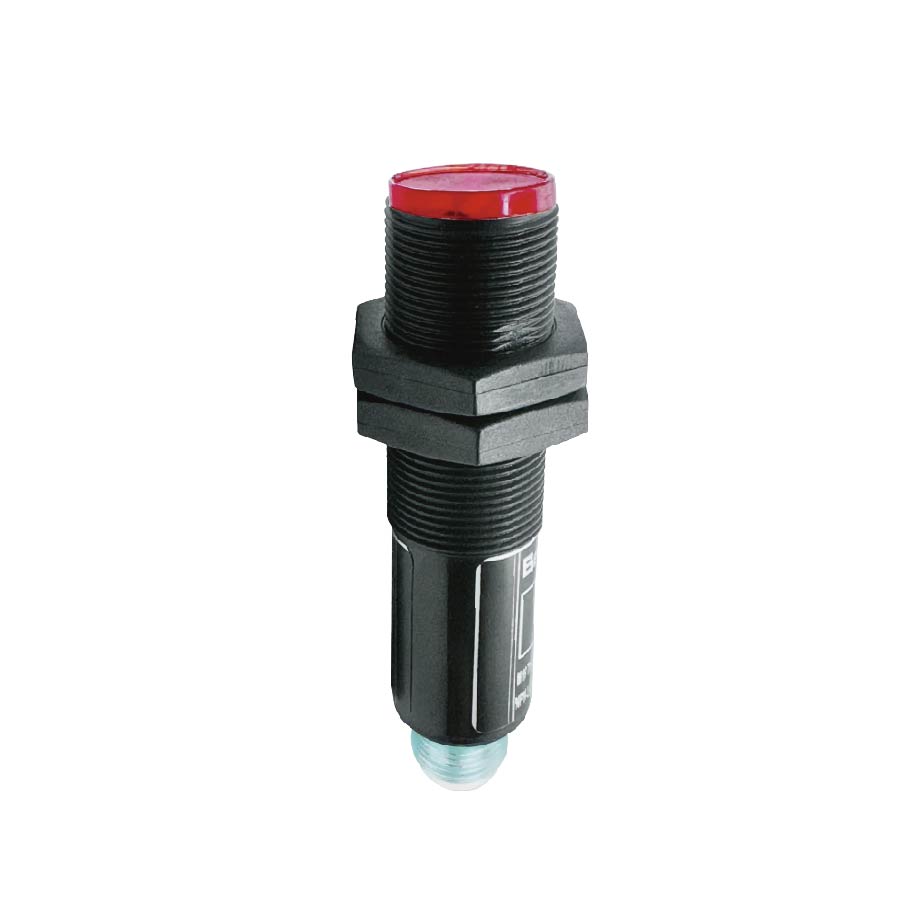

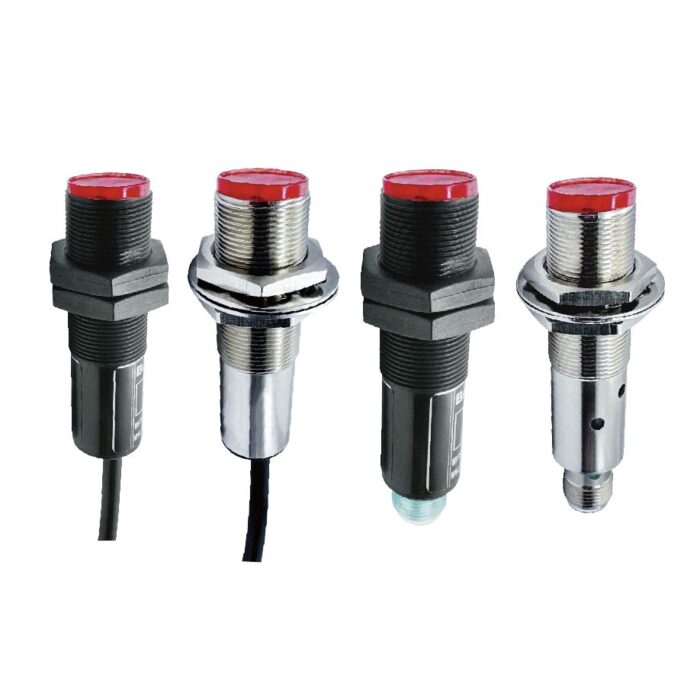

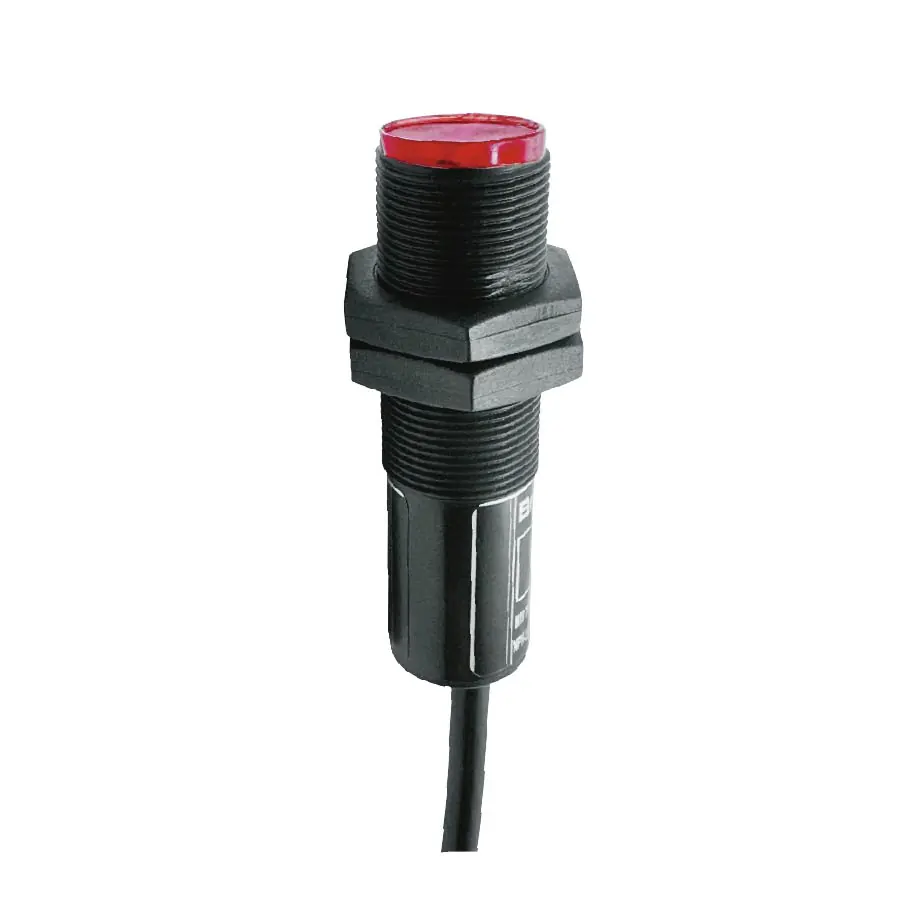

Bedook FM18 Diffuse Photoelectric Sensor 150mm/500mm

The Bedook FM18 Diffuse Photoelectric Sensor 150mm/500mm is engineered to provide precise object detection with flexible sensing distances of 150mm and 500mm. Its M18 structure and IP66 rating ensure durability in harsh industrial environments. The sensor’s infrared 880nm light source delivers fast and accurate detection, operating at a 500Hz switching frequency with a response time of less than 2ms. Built to last, this sensor features a PBT housing with nickel-plated brass, offering resistance to environmental factors.

Product Features:

Introducing the Bedook FM18 Diffuse Photoelectric Sensor 150mm/500mm, designed for reliability and versatility in industrial applications. With the ability to detect objects at 150mm or 500mm, this sensor uses infrared 880nm light to deliver quick response times and accurate switching at 500Hz. The robust PBT housing and IP66 protection ensure the sensor performs well in demanding environments. A single-turn potentiometer allows for easy adjustment of light immunity, making this sensor adaptable to various lighting conditions.

• Dual Sensing Distances: Provides two detection ranges of 150mm and 500mm, allowing flexibility for different applications.
• Fast Response: Less than 2ms response time ensures quick and accurate object detection.
• Durable Construction: IP66-rated PBT housing with nickel-plated brass for enhanced durability in harsh environments.
• Infrared Light Source: Operates with 880nm infrared light for reliable detection even under challenging conditions.
• Adjustable Light Immunity: Equipped with a single-turn potentiometer for easy adjustment to light resistance, up to 5000 Lux.
• Robust Connectivity: Comes with a 2m PVC cable, ensuring secure and reliable installation in industrial settings.



Appearance
Model	NPN Light/dark-on	FM18-T015N-P31P2-E	FM18-T05N-C31P2-E	FM18-T015N-P31P2-E	FM18-T05N-C31P2-E
	PNP Light/dark-on	FM18-T015P-P31P2-E	FM18-T05P-C31P2-E	FM18-T015P-P31P2-E	FM18-T05P-C31P2-E
Appearance Structure		M18*1mm
Sensing Distance		150mm	500mm	150mm	500mm
Detection method		Diffuse type
Switching Frequency		500Hz
Operating voltage		10…30VDC
Light type		Infrareed light 880nm
response time		<2ms
Power-up delay		≤200mA
Adjustment		<300ms
Light immunity		Single-turn protentiometer
Light resistance		<5000Lux.
Ambient temperature		-25…55℃
Ambient humidity		35…85%
Housing Material		PBT		Brass, nickel-plated
Ingress protection		IP66
Lens material		PMMA
Operating indicator		Yellow
Connectors		2m PVC Cable, 4*0.25mm²
Accessories		NO



Appearance
Model	NPN Light/dark-on	FM18-T015N-P31S12-E	FM18-T05N-C31S12-E	FM18-T015N-P31S12-E	FM18-T05N-C31S12-E
	PNP Light/dark-on	FM18-T015P-P31S12-E	FM18-T05P-C31S12-E	FM18-T015P-P31S12-E	FM18-T05P-C31S12-E
Appearance Structure		M18*1mm
Sensing Distance		150mm	500mm	150mm	500mm
Detection method		Diffuse type
Switching Frequency		500Hz
Operating voltage		10…30VDC
Light type		Infrareed light 880nm
response time		<2ms
Power-up delay		≤200mA
Adjustment		<300ms
Light immunity		Single-turn protentiometer
Light resistance		<5000Lux.
Ambient temperature		-25…55℃
Ambient humidity		35…85%
Housing Material		PBT		Brass, nickel-plated
Ingress protection		IP66
Lens material		PMMA
Operating indicator		Yellow
Connectors		M12 Connector
Accessories		B12-4GV2/B12-4WV2

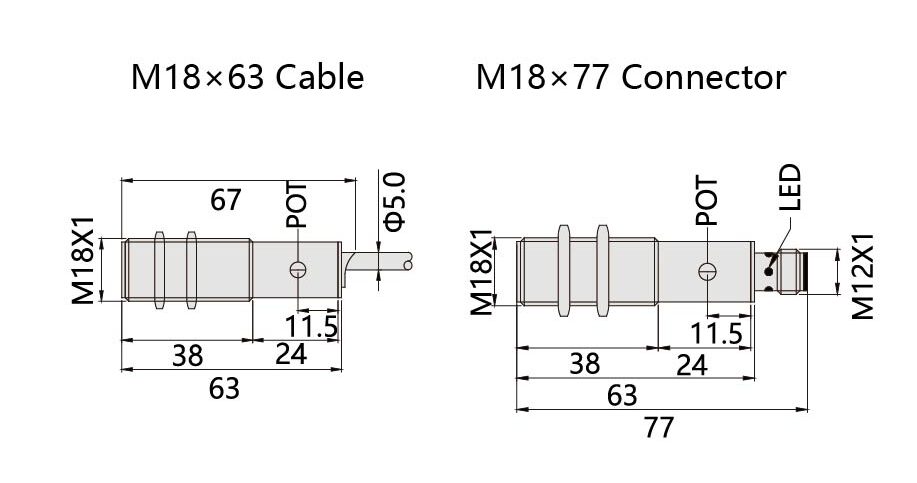

Size Chart:

The Bedook FM18 Sensor offers dual sensing distances of 150mm/500mm with an IP66-rated housing, ideal for industrial environments.

High-performing and adaptable, the Bedook FM18 Diffuse Sensor features fast response times, durable construction, and international certifications.

With response times under 2ms and robust IP66 protection, the Bedook FM18 ensures quick and reliable operation in demanding industrial settings.

The Bedook FM18 Diffuse Sensor features a 2m PVC cable and M18 structure, providing easy installation and durability in challenging environments.
