Bedook Fork Photoelectric Sensor FG15 6mm DC4 Wire

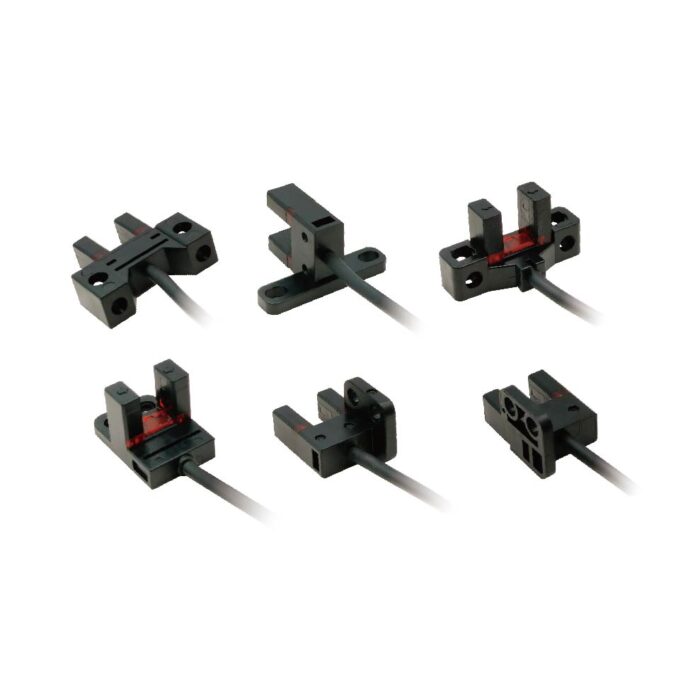

Bedook Fork Photoelectric Sensor FG15 6mm DC4 Wire is a through-beam photoelectric sensor designed for precision detection tasks. Its unique fork-shaped design allows for easy integration into various industrial and automation setups. This sensor is built to meet the highest standards of quality and performance, making it a reliable choice for professionals worldwide.

Product Features (Bedook Fork Photoelectric Sensor FG15 6mm DC4 Wire)

Bedook’s Fork Photoelectric Sensor FG15 6mm DC4 Wire is a remarkable product in the field of photoelectric sensing. It combines advanced technology with a user-friendly design. The 4-wire DC connection ensures stable and reliable power supply and signal transmission, enabling accurate and consistent detection results.

• Precise Sensing: With a sensing distance of 6mm and the ability to detect small opaque objects of 0.8mm×1.2mm, this sensor provides highly accurate detection. Whether it’s in the assembly line for small parts or in quality control for precise positioning, the FG15 6mm DC4 Wire sensor can meet the requirements.
• Wide Operating Voltage Range: Operating from 5V DC to 24V DC ±10%, it can adapt to different power supply systems in various industrial applications. This flexibility makes it suitable for a wide range of projects, from small – scale automation to large – scale industrial production lines.
• Low Current Consumption: Consuming less than 15mA, it is energy – efficient. This not only helps in reducing power costs but also minimizes heat generation, ensuring long – term stable operation of the sensor and other connected components.
• Dual Output Functions: The sensor offers two output functions: Light – on ON and Light – shade ON. This gives users the flexibility to choose the most suitable mode according to their specific application scenarios, enhancing the adaptability of the sensor.
• High Ingress Protection: With an IP66 ingress protection rating, the sensor is dust-tight and can withstand powerful water jets. It can be used in harsh environments such as outdoor installations, factories with high dust levels, or areas prone to water splashes, ensuring reliable performance in adverse conditions.
• Excellent Repeatability: The repeatability accuracy of less than 0.01mm ensures that the sensor can provide consistent and reliable detection results over time. This is crucial for applications that require high-precision and repetitive operations, such as in the semiconductor manufacturing industry.

Product Parameters

Appearance
Model No	NPN	Incoming light indicator ON	FG15NK	FG15NT	FG15NL	FG15NY	FG15NF	FG15NR
		Incoming light indicator OFF	FG25NK	FG25NT	FG25NL	FG25NY	FG25NF	FG25NR
	PNP	Incoming light indicator ON	FG15PK	FG15PT	FG15PL	FG15PY	FG15PF	FG15PR
		Incoming light indicator OFF	FG25PK	FG25PT	FG25PL	FG25PY	FG25PF	FG25PR
Compliant with CE – marking directive			EMC directive, RoHS directive
Sensing Distance			6mm fixed
Minimum Detection Object			0.8mm×1.2mm opaque objects
Hysteresis			<0.05mm
Repeatability Accuracy			<0.01mm
Operating Voltage			5V DC – 24V DC±10%, Ripple P – P <10%
Current Consumption			<15mA
Output (NPN open – circuit collector transistor)			External voltage: Below 30V DC (between output and 0V)
Output (PNP open – circuit collector transistor)			External voltage: Below 30V DC (between output and +V)
Max. Input Current			50mA
Voltage Drop			<2V
Output Action			Light – on ON / Light – shade ON 2 output functions
Short – circuit Protection			NPN (protected), PNP (not protected)
Response Time			Light – on: <20μs, Light – shade: <80μs (Max. Frequency is 3000Hz)
LED Indicator			Red LED
Ingress Protection			IP66
Ambient Temperature			Operating: -25℃ – +55℃ (no dew formation and frozen ice), Storage: -30℃ – +80℃
Ambient Humidity			Operating: 5%RH – 85%RH, Storage: 5%RH – 95%RH
Light Immunity			Fluorescent lighting: Illumination of the light receiving surface is <1000 lux
Withstanding Voltage			AC1000V 1 minute between all power connection terminals and the housing
Insulation Resistance			>20MΩ between all power connection terminals and the housing based on DC250V high – resistance – meter
Vibration			Frequency 10Hz – 55Hz, Amplitude 1mm, X, Y, Z 30 minutes in each direction
Impact			Acceleration 300m/s² (30G), X, Y, Z six times in each direction
Light Source			Infrared LED (peak wavelength: 940nm, non – modulated)
Material			Housing: PC + PBT, Display mask: ABS
Standard Cable			1m PVC cable, 0.09mm² 4 – core with rubber insulation
Extension Cable			Cable diameter >0.3mm, The length can be extended to 100M
Weight			N.W.: about 10g, G.W.: about 15g

Product Applications

The Fork Photoelectric Sensor FG15 6mm DC4 Wire by Bedook is particularly well – suited for the electronics manufacturing industry. In the production of circuit boards, it can be used to detect the presence and position of small components during the pick – and – place process. Its high precision and reliable performance can significantly improve the production efficiency and quality.

In the packaging industry, this sensor can be used to detect the presence of products in packaging lines. The dual output functions allow for different detection logics, such as detecting when a product blocks the light beam (Light – shade ON) or when the light beam is unobstructed (Light – on ON). The wide operating voltage range and low current consumption also make it an ideal choice for battery – powered or low – power packaging equipment.

The Bedook Fork Photoelectric Sensor FG15 6mm DC4 Wire is a top – notch small through – beam sensor. Its 6mm sensing distance and ability to detect tiny 0.8mm×1.2mm opaque objects make it stand out in the market. The dual output functions offer great flexibility for different applications. With a wide operating voltage range and low current consumption, it is both adaptable and energy – efficient. The IP66 ingress protection ensures its reliability in various harsh conditions, making it a preferred choice for industrial and automation applications.
