Bedook Fork Photoelectric Sensor FG15-S 6mm DC4 Wire

The Bedook Fork Photoelectric Sensor FG15-S 6mm DC4 Wire is a remarkable innovation in the realm of photoelectric sensing. Engineered by Bedook, a brand renowned for its quality and reliability, this small through-beam sensor is designed to meet the demanding needs of modern industrial and automation applications.

Its distinctive fork-shaped (or slot-shaped) design not only makes it easy to install but also allows for seamless integration into various mechanical setups. The 4-wire DC configuration ensures stable power supply and signal transmission, laying a solid foundation for accurate and consistent object detection. Whether you are in the manufacturing of electronics, automotive parts, or any other precision-oriented industry, the Bedook Fork Photoelectric Sensor FG15 – S 6mm DC4 Wire can be a valuable asset.

Product Features (Bedook Fork Photoelectric Sensor FG15-S 6mm DC4 Wire)

Introducing the Bedook Fork Photoelectric Sensor FG15-S 6mm DC4 Wire, a state-of-the-art solution for precise object detection. This sensor combines advanced technology with a user-centric design. Its 6mm fixed detection distance strikes a balance between sensitivity and practicality, enabling it to detect small objects with great accuracy while being suitable for a wide range of installation distances.

The sensor’s ability to operate within a broad voltage range and low current consumption makes it an ideal choice for both energy-conscious and power-diverse applications. Bedook’s commitment to quality is evident in every aspect of this product, from its robust construction materials like PC + PBT for the housing and ABS for the display mask to its compliance with EMC and RoHS directives, ensuring safety and environmental friendliness.

Accurate Detection Capability: With a 6mm fixed detection distance and the ability to sense minimum 0.8mm×1.2mm opaque objects, the Bedook Fork Photoelectric Sensor FG15 – S 6mm DC4 Wire offers high-precision detection. In comparison to some similar products that may have larger minimum detectable object sizes or less consistent detection distances, this sensor stands out. For example, in the assembly of miniature electronic components, where the size of parts is often in the millimeter – range, its accurate detection can significantly reduce errors and improve production efficiency.

Wide Operating Voltage Range: Operating from 5V DC to 24V DC ±10%, it can adapt to different power sources in various industrial scenarios. This flexibility is a major advantage over many competing sensors that have a more restricted voltage range. Whether it’s a small – scale production line with a 5V power supply or a large – scale industrial plant using 24V, the Bedook sensor can operate without the need for complex voltage – conversion setups, saving both time and cost in installation and maintenance.

Low Current Consumption: Consuming less than 15mA, the sensor is highly energy-efficient. In large-scale industrial operations where numerous sensors are deployed, this low power consumption can lead to substantial energy savings over time. Moreover, lower power consumption also means less heat generation, which helps maintain the stability of the sensor and the overall system, reducing the risk of overheating-related failures and extending the lifespan of the equipment.

Dual Output Functions: The availability of Light-on ON and Light-shade ON output functions provides users with the flexibility to customize the sensor’s operation according to their specific application requirements. For instance, in a packaging line, the Light – shade ON function can be used to detect when a product passes through the sensor’s beam, while the Light-on ON function can be utilized for other types of detection tasks such as ensuring the proper alignment of components. This dual-function feature is not always present in competing products, giving the Bedook Fork Photoelectric Sensor FG15 – S 6mm DC4 Wire an edge in adaptability.

High-Quality Ingress Protection: Boasting an IP66 ingress protection rating, the sensor is dust-tight and can withstand powerful water jets. This makes it suitable for use in harsh environments, such as outdoor manufacturing facilities, factories with high dust levels, or areas prone to water splashes. In contrast, many similar sensors may have lower protection ratings, limiting their application in such demanding conditions. The Bedook sensor’s robust protection ensures reliable performance even in adverse environmental conditions, reducing the need for frequent replacements or maintenance.

Excellent Repeatability and Response Time: With a repeatability accuracy of <0.01mm and a fast response time (light-on <20μs, light-shade <80μs) along with a maximum frequency of 3000Hz, the sensor provides consistent and rapid detection results. In applications that require high-speed and repetitive operations, such as in the production of high-volume consumer goods, this level of performance is crucial. It enables real-time monitoring and control, enhancing the overall productivity and quality of the production process.

Product Parameters

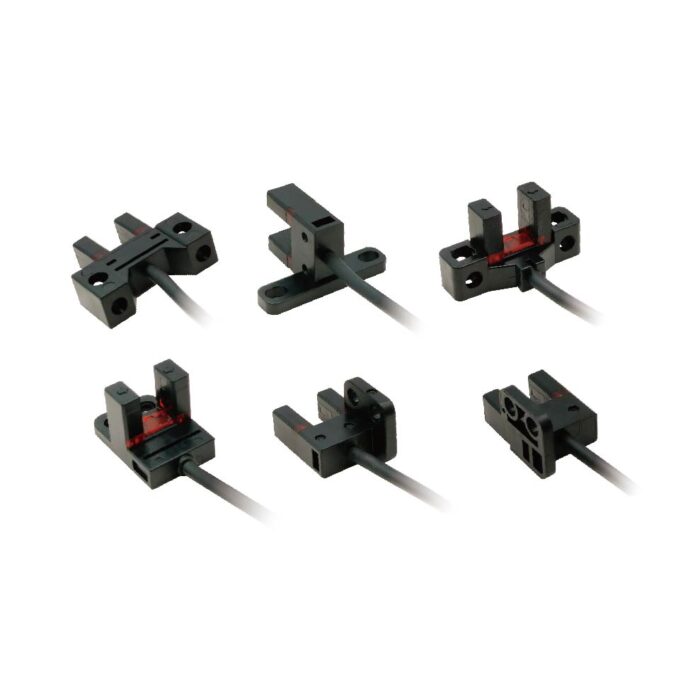

Appearance
Model No	NPN	Incoming light indicator ON	FG15NK-S	FG15NT-S	FG15NL-S	FG15NY-S	FG15NF-S	FG15NR-S
		Incoming light indicator OFF	FG25NK-S	FG25NT-S	FG25NL-S	FG25NY-S	FG25NF-S	FG25NR-S
	PNP	Incoming light indicator ON	FG15PK-S	FG15PT-S	FG15PL-S	FG15PY-S	FG15PF-S	FG15PR-S
		Incoming light indicator OFF	FG25PK-S	FG25PT-S	FG25PL-S	FG25PY-S	FG25PF-S	FG25PR-S
Compliant with CE-marking directive			EMC directive, RoHS directive
Sensing Distance			6mm fixed
Minimum Detection Object			0.8mm×1.2mm opaque objects
Hysteresis			<0.05mm
Repeatability Accuracy			<0.01mm
Operating Voltage			5V DC-24V DC±10%, Ripple P-P <10%
Current Consumption			<15mA
Output (NPN open-circuit collector transistor)			External voltage: Below 30V DC (between output and 0V)
Output (PNP open-circuit collector transistor)			External voltage: Below 30V DC (between output and +V)
Max. Input Current			50mA
Voltage Drop			<2V
Output Action			Light-on ON / Light-shade ON 2 output functions
Short-circuit Protection			Yes
Response Time			Light-on: <20μs, Light-shade: <80μs (Max. Frequency is 3000Hz)
LED Indicator			Red LED (Light up when entering light)
Ingress Protection			IP66
Ambient Temperature			Operating: -25℃-+55℃ (no dew formation and frozen ice), Storage: -30℃-+80℃
Ambient Humidity			5%RH..85%RH, storage: 5%RH..95%RH
Light Immunity			Fluorescent lighting: illumination of the light receiving surface is <1000 lux
Withstanding Voltage			AC1000V 1 minute between all power connection terminal and the housing
Insulation Resistance			>20MΩ between all power connection terminals and the housing based on DC250V high-resistance-meter
Vibration			Frequency 10Hz..55Hz, Amplitude 1mm, X, Y, Z 30 minutes in each direction
Impact			Acceleration 300m/s² (30G), X, Y, Z six times in each direction
Light Source			Infrared LED (peak wavelength: 940nm, non-modulated)
Material			Housing: PC + PBT, Display mask: ABS
Standard Cable			1m PVC cable, 0.09mm² 4-core with rubber insulation
Extension Cable			Cable diameter >0.3mm, The length can be extended to 100M
Weight			N.W:about 10g G.W:about 15g

Product Applications

The Bedook Fork Photoelectric Sensor FG15-S 6mm DC4 Wire is well-suited for the automotive manufacturing industry. In the engine assembly process, it can be used to detect the precise position of small components like valves and gaskets. Its accurate detection ensures that these components are installed correctly, which is vital for the proper functioning of the engine. Additionally, in the automotive painting process, the sensor can detect the movement of car bodies on the conveyor line, ensuring that the painting is applied evenly and without any miss-hits. The sensor’s ability to operate in a harsh environment, thanks to its IP66 rating, is also beneficial in the automotive factory setting where there may be dust, oil, and other contaminants.

In the food and beverage packaging industry, the sensor plays a significant role. It can detect the presence of bottles, cans, or cartons on the packaging line, ensuring that each unit is filled, sealed, and labeled correctly. The dual output functions can be used to create different detection logics for different stages of the packaging process. For example, the Light – on ON function can be used to detect the start of a new product entering the packaging area, while the Light – shade ON function can be used to confirm that a product has passed through a specific inspection point. The low current consumption is also an advantage in this industry, where energy – efficiency is often a key consideration to reduce operational costs.

The Bedook Fork Photoelectric Sensor FG15-S 6mm DC4 Wire is a top-tier small through-beam sensor. Its 6mm detection distance and ability to sense tiny 0.8mm×1.2mm opaque objects make it a standout in the market. With a wide operating voltage range and low current consumption, it offers great adaptability and energy – efficiency. The dual output functions provide flexibility for diverse applications, and the high IP66 ingress protection ensures reliable operation in harsh environments. Its excellent repeatability and fast response time make it a reliable choice for industries that demand precision and speed, such as automotive and food packaging.
