Bedook Fork Photoelectric Sensor FG15-X 5mm DC4 Wire

The Bedook Fork Photoelectric Sensor FG15-X 5mm DC4 Wire is a cutting-edge solution in the field of photoelectric sensing. Its unique fork-shaped design, also known as slot-shaped, makes it easy to integrate into various industrial and automation systems. As a product of Bedook, a trusted brand, this sensor is engineered to meet the highest standards of quality and reliability. The 4-wire DC connection ensures stable power supply and signal transmission, enabling accurate and consistent detection in different scenarios.

Product Features (Bedook Fork Photoelectric Sensor FG15-X 5mm DC4 Wire)

Introducing the Fork Photoelectric Sensor FG15-X 5mm DC4 Wire from Bedook. This small through-beam photoelectric sensor is a result of advanced technology and meticulous design. It is suitable for a wide range of applications where precise object detection is required. Whether it’s in a high – speed production line or a delicate assembly process, the FG15-X 5mm DC4 Wire sensor can deliver excellent performance. Its robust construction and reliable parameters make it a preferred choice for professionals in the industry.

Precise Detection: With a 5mm fixed detection distance, the Fork Photoelectric Sensor FG1 -X 5mm DC4 Wire can accurately identify opaque objects with dimensions as small as 0.8mm×1.2mm. This level of precision is crucial in applications such as micro-component assembly in the electronics industry, where even the slightest deviation can lead to product defects. Compared to some similar products with larger minimum detection object sizes, this sensor offers a significant advantage in handling small parts.

Wide Operating Voltage Range: Operating between 5V DC and 24V DC ±10%, it can adapt to different power supply systems in various industrial setups. This flexibility means that it can be used in both small – scale DIY projects and large – scale industrial automation systems without the need for complex voltage conversion. Many competing sensors have a more limited voltage range, making the Bedook FG15 – X 5mm DC4 Wire a more versatile option.

Low Current Consumption: Consuming less than 15mA, this sensor is highly energy – efficient. In large – scale industrial applications, where multiple sensors are often used, the low power consumption can lead to significant cost savings in electricity bills over time. Additionally, it generates less heat, which helps in maintaining the stability of the overall system and prolonging the lifespan of the sensor and related components.

Dual Output Functions: The sensor provides two output functions: Light-on ON and Light-shade ON. This allows users to choose the most suitable operation mode according to their specific application requirements. For example, in a packaging line, the Lightshade ON function can be used to detect when a product passes through the sensor, while the Light-on ON function can be used for other types of detection tasks. This flexibility is not always available in all competing products, giving the Bedook sensor an edge.

High Repeatability Accuracy: Boasting a repeatability accuracy of less than 0.01mm, the Fork Photoelectric Sensor FG15-X 5mm DC4 Wire ensures consistent and reliable detection results. In applications that require repetitive and precise operations, such as in the manufacturing of precision machinery parts, this high level of accuracy is essential. It reduces the chances of false – positives or false – negatives, improving the overall quality and efficiency of the production process.

Decent Ingress Protection and Temperature Tolerance: With an IP40 ingress protection rating, the sensor is protected against solid objects such as dust. It can operate in an ambient temperature range of – 25℃ to + 55℃ and be stored in a range of – 30℃ to + 80℃. This makes it suitable for use in various environments, including those with moderate levels of dust and temperature fluctuations. Some competing sensors may have lower protection ratings or more limited temperature ranges, making the Bedook sensor more adaptable.

Product Parameters

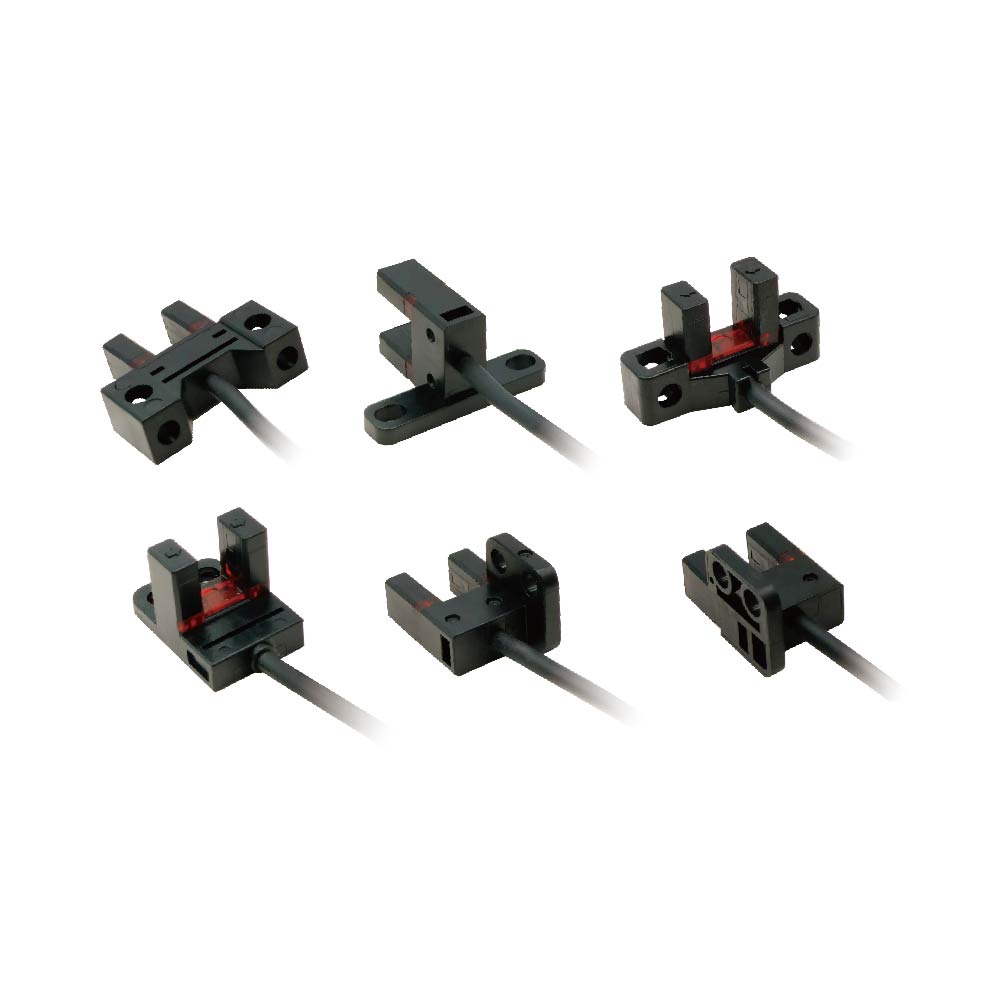

Appearance
Model No	NPN	Incoming light indicator ON	FG15NK-X	FG15NT-X	FG15NL-X	FG15NY-X	FG15NF-X	FG15NR-X
		Incoming light indicator OFF	FG25NK-X	FG25NT-X	FG25NL-X	FG25NY-X	FG25NF-X	FG25NR-X
	PNP	Incoming light indicator ON	FG15PK-X	FG15PT-X	FG15PL-X	FG15PY-X	FG15PF-X	FG15PR-X
		Incoming light indicator OFF	FG25PK-X	FG25PT-X	FG25PL-X	FG25PY-X	FG25PF-X	FG25PR-X
Compliant with CE – marking directive			EMC directive, RoHS directive
Sensing Distance			5mm fixed
Minimum Detection Object			0.8mm×1.2mm opaque objects
Hysteresis			<0.05mm
Repeatability Accuracy			<0.01mm
Operating Voltage			5V DC – 24V DC±10%, Ripple P – P <10%
Current Consumption			<15mA
Output (NPN open – circuit collector transistor)			External voltage: Below 30V DC (between output and 0V)
Output (PNP open – circuit collector transistor)			External voltage: Below 30V DC (between output and +V)
Max. Input Current			50mA
Voltage Drop			<2V
Output Action			Light – on ON / Light – shade ON 2 output functions
Short – circuit Protection			Yes
Response Time			Light – on: <20μs, Light – shade: <80μs (Max. Frequency is 3000Hz)
LED Indicator			Red LED (Light up when entering light)
Ingress Protection			IP40
Ambient Temperature			Operating: -25℃ – +55℃ (no dew formation and frozen ice), Storage: -30℃ – +80℃
Ambient Humidity			5%RH..85%RH, storage: 5%RH..95%RH
Light Immunity			Fluorescent lighting: illumination of the light receiving surface is <1000 lux
Withstanding Voltage			AC1000V 1 minute between all power connection terminal and the housing
Insulation Resistance			>20MΩ between all power connection terminals and the housing based on DC250V high – resistance – meter
Vibration			Frequency 10Hz..55Hz, Amplitude 1mm, X, Y, Z 30 minutes in each direction
Impact			Acceleration 300m/s² (30G) X, Y, Z 6 times in each direction
Light Source			Infrared LED (peak wavelength: 940nm, non – modulated)
Material			Housing: PBT, Display mask: PC
Standard Cable			1m PVC cable, 0.09mm² 4 – core with rubber insulation
Extension Cable			Cable diameter is >0.3mm², The length can be extended to 100M
Weight			N.W.: about 10g, G.W.: about 15g

Product Applications

The Fork Photoelectric Sensor FG15-X 5mm DC4 Wire by Bedook is particularly well-suited for the automotive manufacturing industry. In the production of engines, it can be used to detect the presence and position of small components during the assembly process. Its high precision ensures that each part is placed correctly, reducing the risk of engine malfunctions. In the automotive painting process, the sensor can be used to detect the movement of car bodies on the conveyor line, ensuring that the painting process is carried out accurately.

In the food and beverage packaging industry, this sensor can play a vital role. It can detect the presence of bottles or cans on the packaging line, ensuring that each container is filled and sealed properly. The dual output functions allow for different detection logics, such as detecting when a bottle blocks the light beam (Light-shade ON) or when the light beam is unobstructed (Light-on ON). The low current consumption is also an advantage in this industry, where energy – efficiency is often a key consideration.

This Fork Photoelectric Sensor FG15-X 5mm DC4 Wire from Bedook is a high-performance product designed for precise object detection. Its 4-wire DC connection ensures stable operation. Whether it’s for use in the automotive manufacturing industry or the food and beverage packaging industry, this sensor has the features to meet the demands. The combination of its advanced technical parameters, such as the low current consumption and high repeatability accuracy, gives it a competitive edge over similar products. It is a reliable and efficient solution for a wide range of industrial automation needs.
