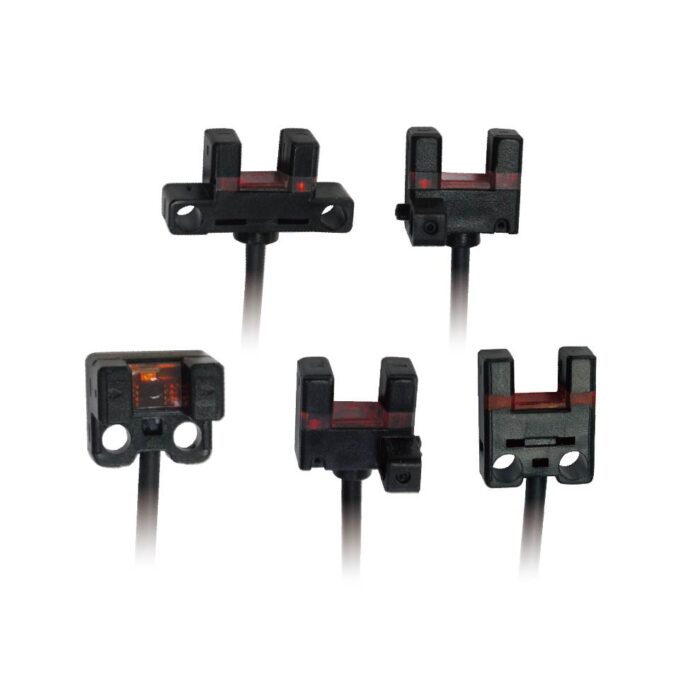

Bedook Fork Photoelectric Sensor FG35 6mm DC4 Wire

The Bedook Fork Photoelectric Sensor FG35 6mm DC4 Wire is a state – of – the – art sensing solution designed for a variety of industrial and automation applications. This sensor stands out with its unique fork-shaped design, which allows for easy integration into existing systems. As a through-beam photoelectric sensor, it provides accurate and reliable detection of objects passing through its sensing area. The 6mm fixed sensing distance ensures consistent performance, making it suitable for applications where precision is key. Whether it’s in a manufacturing line, a packaging system, or a quality control process, the Bedook Fork Photoelectric Sensor FG35 6mm DC4 Wire can play a crucial role in enhancing productivity and efficiency.

Product Features (Bedook Fork Photoelectric Sensor FG35 6mm DC4 Wire)

Bedook Fork Photoelectric Sensor FG35 6mm DC4 Wire is engineered to meet the high standards of modern industrial sensing requirements. Its compact size and DC4 wire configuration make it highly versatile and easy to install. The sensor’s ability to detect small opaque objects with a size of 0.8mm×1.2mm is a testament to its advanced sensing technology. With its compliance with EMC and RoHS directives, it not only ensures reliable operation but also meets environmental and safety standards. The Bedook brand is well-known for its quality and innovation, and this sensor is no exception, providing users with a reliable and long-lasting sensing solution.

• Precise Sensing Distance
  The Bedook Fork Photoelectric Sensor FG35 6mm DC4 Wire has a fixed sensing distance of 6mm. This precise distance allows for accurate detection of objects, reducing the chances of false positives or negatives. Compared to some other sensors with variable or less precise sensing distances, this feature ensures consistent and reliable performance in various applications.
• Wide Operating Voltage Range
  With an operating voltage range of 5V DC to 24V DC±10%, this sensor can be easily integrated into a wide variety of power systems. This flexibility is a significant advantage over sensors with a more limited voltage range, as it reduces the need for additional voltage-conversion components.
• Low Current Consumption
  Consuming less than 15mA, the Bedook Fork Photoelectric Sensor FG35 6mm DC4 Wire is energy – efficient. In industrial settings where multiple sensors are often used, this low power consumption can lead to significant energy savings over time, making it a cost – effective choice for businesses.
• High-Speed Response
  The sensor has a fast response time, with light-on <20μs and light-shade <80μs at a maximum frequency of 3000Hz. This high-speed response allows it to detect fast-moving objects accurately, making it suitable for high-speed production lines and automation processes where split-second detection is required.
• Robust Ingress Protection
  With an IP66 ingress protection rating, the Bedook Fork Photoelectric Sensor FG35 6mm DC4 Wire is highly resistant to dust and water jets. This makes it suitable for use in harsh industrial environments, such as those with high levels of dust or exposure to water, where other sensors may fail.
• High Repeatability Accuracy
  The sensor offers a repeatability accuracy of <0.01mm. This high level of accuracy ensures that the sensor can consistently detect objects in the same position, which is crucial for applications that require precise positioning and measurement.

Product Parameters

Product Applications

Bedook Fork Photoelectric Sensor FG35 6mm DC4 Wire is highly applicable in the manufacturing of electronic components. In the assembly line of circuit boards, its precise sensing distance and high-speed response can accurately detect the presence and position of small components, ensuring smooth assembly processes.

In the food and beverage industry, its IP66 ingress protection and compliance with environmental directives make it suitable for use in packaging lines. It can detect the presence of bottles, caps, or labels accurately, even in wet or dusty environments.

In the automotive industry, for quality control processes, its high repeatability accuracy can be used to measure the dimensions of parts accurately, ensuring that only high-quality products reach the market.

This Bedook Fork Photoelectric Sensor FG35 6mm DC4 Wire is designed for precision and reliability. It can detect small 0.8mm×1.2mm opaque objects with ease, thanks to its advanced sensing technology. The high repeatability accuracy of <0.01mm and the fast response times make it suitable for high-precision and high-speed applications. Whether it’s in a manufacturing plant or a quality control process, this sensor from Bedook can enhance the overall performance and efficiency of the system.
