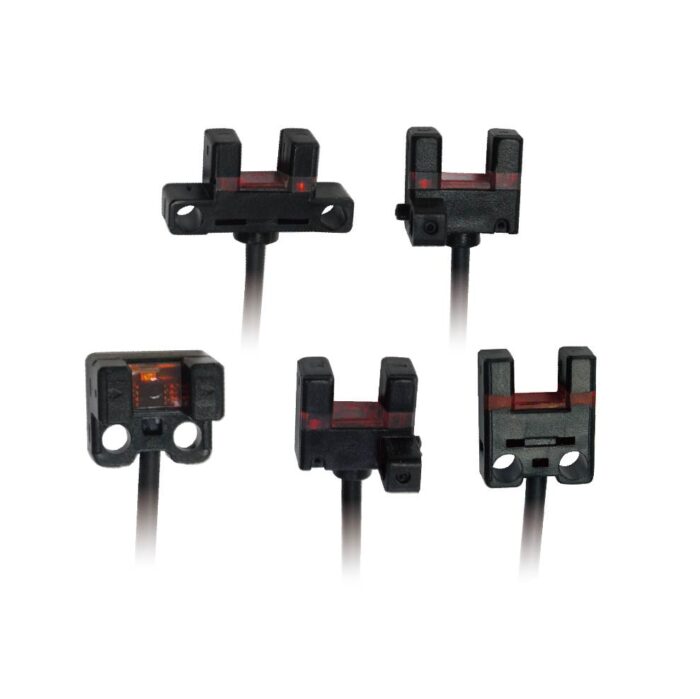

Bedook Fork Photoelectric Sensor FG35-S 6mm DC4 Wire

Bedook Fork Photoelectric Sensor FG35-S 6mm DC4 Wire is a cutting-edge solution in photoelectric sensing. Engineered by Bedook, a brand synonymous with quality and innovation, this small through-beam sensor is designed to meet the rigorous demands of modern industrial applications. Its distinctive fork-shaped (or slot-shaped) form factor not only makes it visually unique but also simplifies integration into diverse mechanical systems. The 4-wire DC interface ensures stable power delivery and signal transmission, laying the groundwork for accurate and consistent object detection across various industries.

Product Features (Bedook Fork Photoelectric Sensor FG35-S 6mm DC4 Wire)

Introducing the Bedook Fork Photoelectric Sensor FG35-S 6mm DC4 Wire, a high-performance sensor that combines advanced technology with a user-friendly design. With a fixed 6mm sensing distance, it offers a balanced approach to detecting small objects while being adaptable to different installation setups. The sensor’s ability to operate within a wide voltage range and consume minimal current makes it an ideal choice for applications where energy efficiency and power flexibility are crucial. Bedook’s commitment to quality is evident in every aspect of this product, from its robust construction materials to its compliance with international directives.

1. Precise Sensing Distance: The Bedook Fork Photoelectric Sensor FG35-S 6mm DC4 Wire features a fixed 6mm sensing distance. This precise measurement allows for accurate detection of objects as small as 0.8mm×1.2mm. Compared to some competing sensors with variable or less-defined sensing distances, this fixed value ensures consistent and reliable performance, making it ideal for applications that demand high precision, such as micro-component assembly in the electronics industry.
2. Wide Operating Voltage Range: Operating from 5V DC to 24V DC ±10%, it can adapt to a variety of power sources. This wide range gives it an edge over many similar sensors that are limited to a narrower voltage band. Whether in a small – scale automation project with a 5V power supply or a large – scale industrial plant using 24V, this sensor can function without the need for complex voltage – conversion mechanisms, saving both time and resources during installation and operation.
3. Low Current Consumption: Consuming less than 15mA, the sensor is highly energy-efficient. In large-scale industrial deployments where multiple sensors are in use, this low power draw can result in significant energy savings over time. Additionally, reduced current consumption means less heat generation, which helps maintain the stability of the sensor and the overall system, minimizing the risk of overheating-related failures and extending the equipment’s lifespan.
4. Dual Output Functions: Offering Light-on ON and Light-shade ON output functions, the sensor provides users with the flexibility to customize its operation according to specific application requirements. In a packaging line, for example, the Light-shade ON function can be used to detect when a product passes through the sensor’s beam, while the Light-on ON function can be utilized for other detection tasks like ensuring the proper alignment of components. This dual functionality is not always available in competing products, enhancing the adaptability of the Bedook sensor.
5. High-Grade Ingress Protection: With an IP66 ingress protection rating, the sensor is dust-tight and can withstand powerful water jets. This makes it suitable for use in harsh environments, such as outdoor manufacturing facilities, factories with high dust levels, or areas prone to water splashes. Many competing sensors have lower protection ratings, limiting their usability in such demanding conditions. The Bedook sensor’s robust protection ensures reliable operation even in adverse environmental conditions, reducing the need for frequent maintenance or replacement.
6. Fast Response and High Repeatability: The sensor boasts a quick response time, with light-on <20μs and light-shade <80μs, and a maximum frequency of 3000Hz. Coupled with a repeatability accuracy of <0.01mm, it provides consistent and rapid detection results. In high-speed production lines or applications that require repetitive and precise operations, such as in the automotive manufacturing industry, these features are essential for real-time monitoring and control, improving overall productivity and product quality.

Product Parameters

NPN	Incoming light indicator ON	FG35NK – S	FG35NF – S	FG35NL – S	FG35NR – S	FG35NU – S
	Incoming light indicator OFF	FG35PK – S	FG35PF – S	FG35PL – S	FG35PR – S	FG35PU – S
PNP	Incoming light indicator ON	FG35PK – S	FG35PF – S	FG35PL – S	FG35PR – S	FG35PU – S
	Incoming light indicator OFF	FG35NK – S	FG35NF – S	FG35NL – S	FG35NR – S	FG35NU – S
Compliance with CE – marking directive		EMC directive, RoHS directive
Sensing distance		6mm fixed
Minimum detection object		0.8mm×1.2mm Opaque objects
Hysteresis		<0.05mm
Repeatability accuracy		<0.01mm
Operating voltage		5V DC..24V DC±10% Ripple P.P.<10%
Current consumption		<15mA
Output	NPN open – circuit collector transistor	External voltage: Below 30V DC (between output and 0V)
	PNP open – circuit collector transistor	External voltage: Below 30V DC (between output and +V)
Output action		Light – on ON / Light – shade ON 2 output functions
Short circuit protection		Yes
Response time		light – on:<20μs,Light – shade:<80μs(Max. Frequency is 3000Hz)
LED indicator		Red LED (Light up when entering light)
Ingress protection		IP66
Ambient temperature		‘-25℃~+55℃(no dew formation and frozen ice) storage: – 30℃~+80℃
Ambient humidity		5%RH..85%RH, storage: 5%RH..95%RH
Light immunity		Fluorescent lighting: illumination of the light receiving surface is <1000 lux
Withstanding voltage		AC1000V 1 minute between all power connection terminal and the housing
Insulation resistance		>20MΩ between all power connection terminals and the housing,based on DC250V high – resistance – meter
Vibration		Frequency 10Hz..55Hz, Amplitude 1mm, X, Y, Z 30 minutes in each direction
Impact		Acceleration 300m/s² (30G) X, Y, Z six times in each direction
Light source		Infrared LED (peak wavelength: 940nm, non – modulated)
Material		Housing: PC + PBT, Display mask: ABS
Standard cable		1m PVC cable, 0.09mm² 4 core with rubber insulation
Extension cable		Cable diameter is >0.3mm², The length can be extended to 100M
Weight		N.W: about 10g, G.W: about 15g

Product Applications

The Bedook Fork Photoelectric Sensor FG35-S 6mm DC4 Wire is well-suited for the automotive industry. In engine manufacturing, it can be used to detect the position of small components during assembly, ensuring precise placement and reducing the risk of errors that could lead to engine malfunctions. In the automotive painting process, it can detect the movement of car bodies on the conveyor line, ensuring even paint application. The sensor’s IP66 rating is particularly beneficial in automotive factories, where there may be exposure to dust, oil, and other contaminants.

In the food and beverage packaging sector, the sensor plays a crucial role. It can detect the presence and movement of bottles, cans, or cartons on the packaging line, ensuring that each unit is filled, sealed, and labeled correctly. The dual output functions can be configured to create different detection logics for various stages of the packaging process. The low current consumption is also an advantage in this industry, where energy efficiency is a key consideration to control operational costs.

Product Summary

This Bedook Fork Photoelectric Sensor FG35-S 6mm DC4 Wire is a high-performance product designed for accurate object detection. The 4-wire DC connection ensures stable operation. Whether in electronics manufacturing for component placement or in the packaging industry for product monitoring, this sensor meets the requirements with its advanced features. Its compliance with EMC and RoHS directives, along with its quality construction materials, reflects Bedook’s dedication to quality and environmental responsibility. It is a competitive and reliable solution for a wide range of industrial automation needs.
