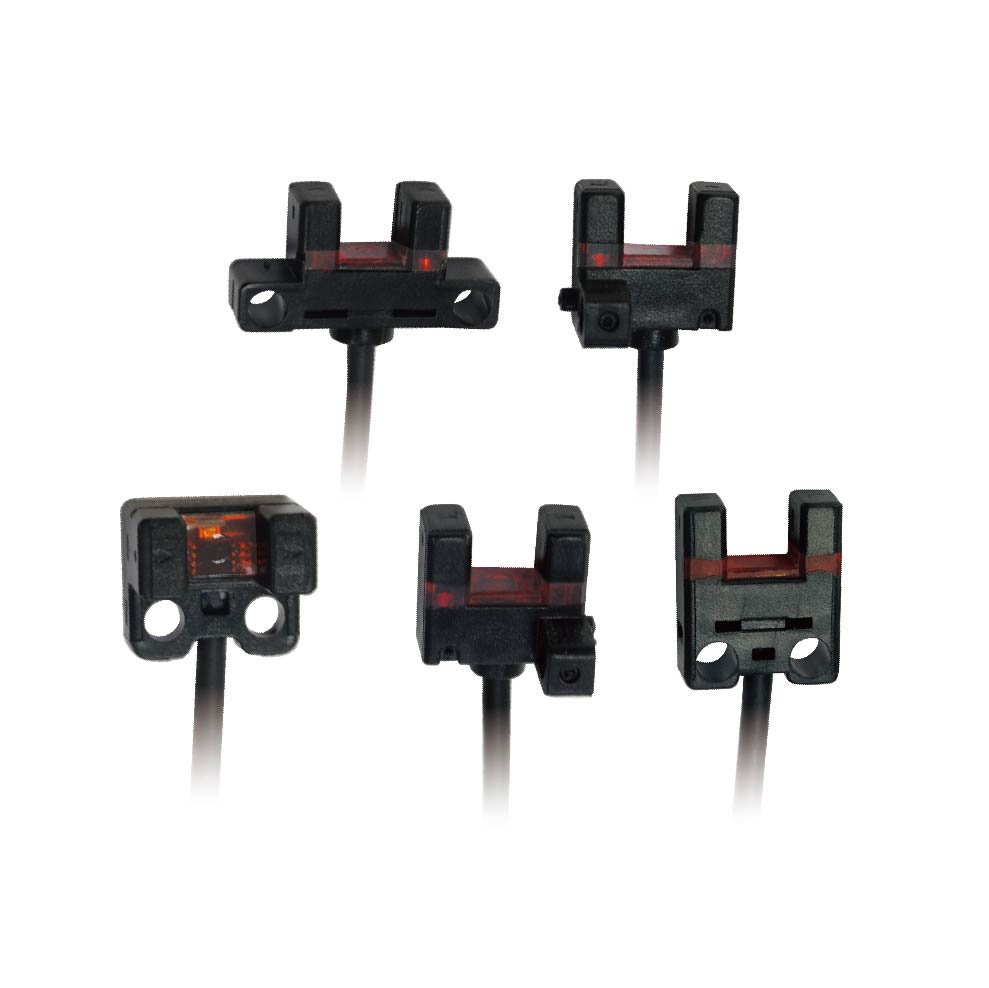

Bedook Fork Photoelectric Sensor FG35-X 5mm DC4 Wire

The Bedook Fork Photoelectric Sensor FG35 – X 5mm DC4 Wire is a remarkable innovation in the field of photoelectric sensing. Developed by Bedook, a brand known for its commitment to quality and technological excellence, this sensor is designed to meet the diverse needs of modern industrial automation. Its unique fork-shaped (or slot-shaped) appearance not only makes it visually distinct but also facilitates easy integration into various mechanical structures. The 4-wire DC configuration ensures a stable power supply and signal transmission, which is crucial for accurate and reliable object detection. Whether you are in the electronics manufacturing industry, the automotive sector, or any other precision-demanding field, the Bedook Fork Photoelectric Sensor FG35 – X 5mm DC4 Wire can be an invaluable asset.

Product Features (Bedook Fork Photoelectric Sensor FG35-X 5mm DC4 Wire)

Introducing the Bedook Fork Photoelectric Sensor FG35-X 5mm DC4 Wire, a state – of – the – art solution for precise object detection. This small through-beam sensor combines advanced technology with a user-friendly design. The 5mm fixed sensing distance strikes a perfect balance between sensitivity and practicality, allowing it to detect small objects with great accuracy while being suitable for a wide range of installation distances. The sensor’s wide operating voltage range and low current consumption make it an ideal choice for both energy-conscious and power-diverse applications. Bedook’s attention to detail is evident in every aspect of this product, from its compliance with EMC and RoHS directives to its high-quality materials and construction, ensuring long-term reliability and safety.

1. Precise Sensing Capability: With a 5mm fixed sensing distance and the ability to detect minimum 0.8mm×1.2mm opaque objects, the Bedook Fork Photoelectric Sensor FG35-X 5mm DC4 Wire offers high-precision detection. In comparison to some competing products, it provides more accurate and consistent results. For example, in the production of micro-electronic components, where the size of parts is extremely small, its precise sensing can significantly reduce errors and improve the overall quality of the final product.
2. Wide Operating Voltage Range: Operating within the range of 5V DC to 24V DC ±10%, it can adapt to different power sources in various industrial environments. This flexibility is a significant advantage over many similar sensors that have a more limited voltage range. Whether it’s a small-scale production line powered by a 5V battery or a large-scale industrial plant with a 24V power system, the Bedook sensor can operate smoothly without the need for complex voltage conversion setups, saving both time and cost in installation and maintenance.
3. Low Current Consumption: Consuming less than 15mA, the sensor is highly energy-efficient. In large-scale industrial applications where multiple sensors are deployed, this low power consumption can lead to substantial energy savings over time. Moreover, lower power consumption also means less heat generation, which helps in maintaining the stability of the sensor and the overall system, reducing the risk of overheating-related failures and extending the lifespan of the equipment.
4. Dual Output Functions: The availability of Light-on ON and Light-shade ON output functions provides users with the flexibility to customize the sensor’s operation according to their specific requirements. For instance, in a packaging line, the Light-shade ON function can be used to detect when a product passes through the sensor’s beam, while the Light-on ON function can be used to detect the absence of an object. This dual-function feature is not commonly found in all competing products, giving the Bedook Fork Photoelectric Sensor FG35-X 5mm DC4 Wire an edge in adaptability.
5. Good Repeatability and Response Time: The sensor has a repeatability accuracy of <0.01mm and a fast response time, with light-on <20μs and light-shade <80μs, along with a maximum frequency of 3000Hz. In applications that require high-speed and repetitive operations, such as in the production of consumer goods on a high-volume assembly line, these features are crucial. They enable real-time monitoring and control, improving the overall productivity and quality of the production process.
6. Decent Ingress Protection and Environmental Tolerance: With an IP40 ingress protection rating, the sensor is protected against solid objects such as dust. It can operate in an ambient temperature range of – 25℃ to + 55℃ and be stored in a range of – 30℃ to + 80℃, and can handle an ambient humidity range of 5%RH to 85%RH (storage: 5%RH to 95%RH). This makes it suitable for use in a variety of environments, including those with moderate levels of dust and temperature fluctuations. Some competing sensors may have lower protection ratings or more limited environmental tolerance, making the Bedook sensor a more reliable choice in such conditions.

Product Parameters

NPN	Incoming light indicator ON	FG35NK – X	FG35NF – X	FG35NL – X	FG35NR – X	FG35NU – X
	Incoming light indicator OFF	FG35PK – X	FG35PF – X	FG35PL – X	FG35PR – X	FG35PU – X
PNP	Incoming light indicator ON	FG35PK – X	FG35PF – X	FG35PL – X	FG35PR – X	FG35PU – X
	Incoming light indicator OFF	FG35NK – X	FG35NF – X	FG35NL – X	FG35NR – X	FG35NU – X
Compliance with CE – marking directive		EMC directive, RoHS directive
Sensing distance		5mm fixed
Minimum detection object		0.8mm×1.2mm Opaque objects
Hysteresis		<0.05mm
Repeatability accuracy		<0.01mm
Operating voltage		5V DC…24V DC±10%, Ripple P.P <10%
Current consumption		<15mA
Output	NPN open – circuit collector transistor	External voltage: Below 30V DC (between output and 0V)
	PNP open – circuit collector transistor	External voltage: Below 30V DC (between output and +V)
Max. Input current		50mA
Voltage drop		<2V
Output action		Light – on ON / Light – shade ON 2 output functions
Short circuit protection		Yes
Response time		light – on:<20μs, Light – shade:<80μs, Max. Frequency is 3000Hz
LED indicator		Red LED (Light up when entering light)
Ingress protection		IP40
Ambient temperature		‘-25℃… +55℃ (no dew formation and frozen ice), storage: -30℃… +80℃
Ambient humidity		5%RH..85%RH, storage: 5%RH..95%RH
Light immunity		Fluorescent lighting: illumination of the light receiving surface is <1000 lux
Withstanding voltage		AC1000V 1 minute between all power connection terminal and the housing
Insulation resistance		>20MΩ between all power connection terminals and the housing, based on DC250V high – resistance – meter
Vibration		Frequency 10Hz..55Hz, Amplitude 1mm, X, Y, Z 30 minutes in each direction
Impact		Acceleration 300m/s² (30G) X, Y, Z six times in each direction
Light source		Infrared LED (peak wavelength: 940nm, non – modulated)
Material		Housing: PC + PBT, Display mask: ABS
Standard cable		1m PVC cable, 0.09mm² 4 core with rubber insulation
Extension cable		Cable diameter is >0.3mm², The length can be extended to 100M
Weight		N.W: about 10g, G.W: about 15g

Product Applications

The Bedook Fork Photoelectric Sensor FG35-X 5mm DC4 Wire is well-suited for the food and beverage industry. In the production of bottled beverages, it can be used to detect the presence and position of bottles on the conveyor line. Its accurate sensing ensures that each bottle is filled, capped, and labeled correctly. The dual output functions can be used to create different detection logics for different stages of the production process. For example, the Light-on ON function can be used to detect when a new bottle enters the filling area, while the Light-shade ON function can be used to confirm that a bottle has passed through the capping station. The sensor’s low current consumption is also an advantage in this industry, where energy efficiency is often a key consideration to reduce operational costs.

In the electronics manufacturing industry, the sensor can play a vital role. It can be used to detect the presence and alignment of small electronic components during the assembly process. For example, in the production of printed circuit boards (PCBs), it can ensure that each component is placed in the correct position. Its high repeatability accuracy and fast response time are essential in this high – precision environment, where even the slightest error can lead to costly rework or product failure.

This Bedook Fork Photoelectric Sensor FG35-X 5mm DC4 Wire is a reliable and efficient product for object detection. The 4-wire DC connection ensures stable power and signal transmission. Whether it’s used in the fast-paced production lines of consumer goods or the high-precision assembly of electronic components, this sensor has the features to meet the demands. Its compliance with EMC and RoHS directives, along with its quality construction materials, reflects Bedook’s commitment to quality and environmental friendliness. The combination of its advanced technical parameters and user-friendly design makes it a competitive option in the market, providing users with a trustworthy and efficient sensing solution.
