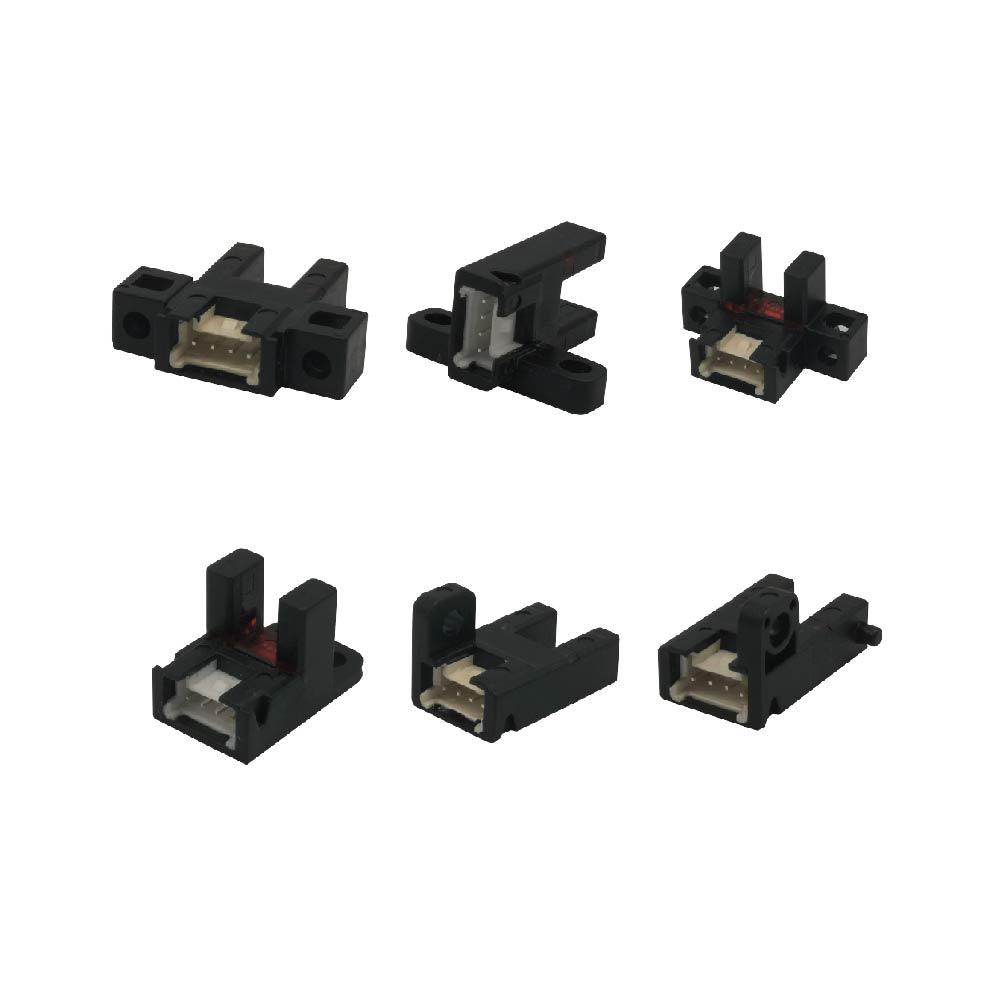

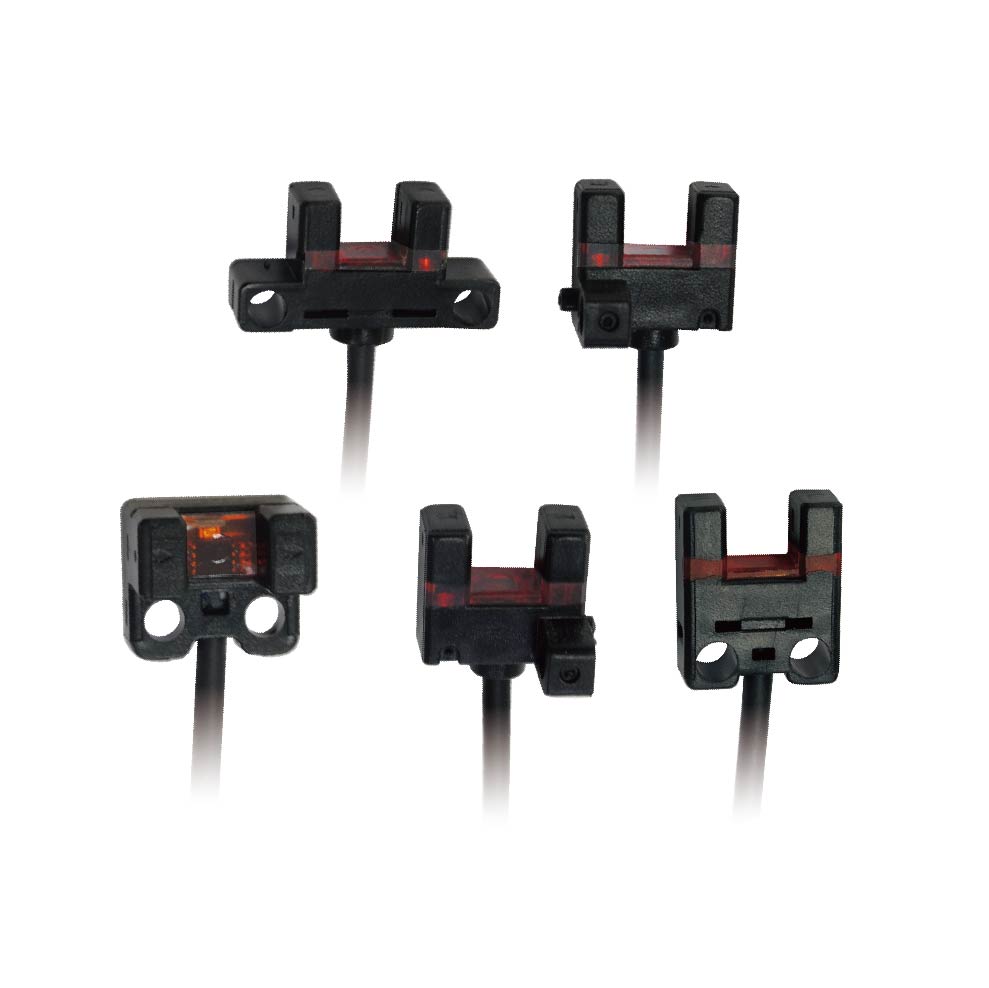

Bedook Fork Photoelectric Sensor FG55 6mm DC4 Wire

Bedook Fork Photoelectric Sensor FG55 6mm DC4 Wire is a remarkable innovation in the realm of photoelectric sensing. Developed by Bedook, a brand recognized for its commitment to quality and advanced technology, this small through-beam sensor is tailored to meet the diverse needs of modern industrial applications. Its distinctive fork-shaped (or slot-shaped) design not only gives it a unique appearance but also simplifies integration into various mechanical setups. The 4-wire DC configuration ensures a stable power supply and signal transmission, which is fundamental for accurate and consistent object detection in a wide range of industries.

Product Features (Bedook Fork Photoelectric Sensor FG55 6mm DC4 Wire)

The Bedook Fork Photoelectric Sensor FG55 6mm DC4 Wire is a small through-beam sensor. Key specs: 6mm fixed sensing distance for 0.8mm×1.2mm opaque objects. Operates on 5 – 24V DC ±10% with <15mA current. Dual output (Light-on / Light-shade), IP66 ingress, response time light-on <20μs, light-shade <80μs (max. 3000Hz).

1. Precise Sensing Distance: The Bedook Fork Photoelectric Sensor FG55 6mm DC4 Wire features a fixed 6mm sensing distance. This precise parameter allows it to accurately detect opaque objects as small as 0.8mm×1.2mm. In contrast to some competing sensors that may have inconsistent or less-defined sensing distances, this fixed value ensures reliable and repeatable performance. In applications such as the assembly of micro-electronic components, where precision is critical, this sensor’s accurate detection can significantly reduce errors and enhance production efficiency.
2. Wide Operating Voltage Range: Operating from 5V DC to 24V DC ±10%, it can seamlessly adapt to different power sources in various industrial environments. This wide voltage range provides a distinct advantage over many similar sensors that are restricted to a narrower voltage band. Whether it’s a small-scale production line powered by a 5V battery or a large-scale industrial plant with a 24V power system, the Bedook sensor can operate without the need for complex voltage-conversion setups, saving both time and cost during installation and maintenance.
3. Low Current Consumption: Consuming less than 15mA, the sensor is highly energy-efficient. In large-scale industrial operations where numerous sensors are deployed, this low power consumption can lead to substantial energy savings over time. Moreover, reduced current consumption results in less heat generation, which helps maintain the stability of the sensor and the overall system. This, in turn, reduces the risk of overheating-related failures and extends the lifespan of the equipment.
4. Dual Output Functions: The sensor offers two output functions: Light-on ON and Light-shade ON. This dual functionality provides users with the flexibility to customize the sensor’s operation according to their specific application requirements. For example, in a packaging line, the Light-shade ON function can be used to detect when a product passes through the sensor’s beam, while the Light-on ON function can be utilized for other detection tasks, such as ensuring the proper alignment of components. This feature is not always available in competing products, giving the Bedook Fork Photoelectric Sensor FG55 6mm DC4 Wire an edge in terms of adaptability.
5. High – Quality Ingress Protection: With an IP66 ingress protection rating, the sensor is dust – tight and can withstand powerful water jets. This makes it suitable for use in harsh environments, such as outdoor manufacturing facilities, factories with high dust levels, or areas prone to water splashes. Many competing sensors have lower protection ratings, limiting their usability in such demanding conditions. The Bedook sensor’s robust protection ensures reliable performance even in adverse environmental conditions, reducing the need for frequent maintenance or replacement.
6. Fast Response and High Repeatability: The sensor has a quick response time, with light-on <20μs and light-shade <80μs, and a maximum frequency of 3000Hz. Additionally, it offers a repeatability accuracy of <0.01mm. In applications that require high-speed and repetitive operations, such as in the automotive manufacturing industry or high-volume consumer goods production, these features are essential for real-time monitoring and control. They enable efficient production processes and help maintain high product quality.

Product Parameters

NPN	Incoming light indicator ON	FG55NK	FG55NT	FG55NL	FG55NY	FG55NF	FG55NR
	Incoming light indicator OFF	FG65NK	FG65NT	FG65NL	FG65NY	FG65NF	FG65NR
PNP	Incoming light indicator ON	FG55PK	FG55PT	FG55PL	FG55PY	FG55PF	FG55PR
	Incoming light indicator OFF	FG65PK	FG65PT	FG65PL	FG65PY	FG65PF	FG65PR
Compliance with CE – marking directive		EMC directive, RoHS directive
Sensing distance		6mm fixed
Minimum detection object		0.8mm×1.2mm Opaque objects
Hysteresis		<0.05mm
Repeatability accuracy		<0.01mm
Operating voltage		5V DC..24V DC±10% Ripple P.P.<10%
Current consumption		<15mA
Output	NPN open – circuit collector transistor	External voltage: Below 30V DC (between output and 0V)
	PNP open – circuit collector transistor	External voltage: Below 30V DC (between output and +V)
Max. Input current		50mA
Voltage drop		<2V
Output action		Light – on ON / Light – shade ON 2 output functions
Short circuit protection		NPN(protected), PNP(not protected)
Response time		light – on:<20μs, Light – shade:<80μs(Max. Frequency is 3000Hz)
LED indicator		Red LED
Ingress protection		IP66
Ambient temperature		-25℃…+55℃(no dew formation and frozen ice) storage: -30℃…+80℃
Ambient humidity		5%RH..85%RH, storage: 5%RH..95%RH
Light immunity		Fluorescent lighting: illumination of the light receiving surface is <1000 lux
Withstanding voltage		AC1000V 1 minute between all power connection terminal and the housing
Insulation resistance		>20MΩ between all power connection terminals and the housing,based on DC250V high – resistance – meter
Vibration		Frequency 10Hz..55Hz, Amplitude 1mm, X, Y, Z 30 minutes in each direction
Impact		Acceleration 300m/s² (30G) X, Y, Z six times in each direction
Light source		Infrared LED (peak wavelength: 940nm, non – modulated)
Material		Housing: PC + PBT, Display mask: ABS
Standard cable		1m PVC cable, 0.09mm² 4 core with rubber insulation
Extension cable		Cable diameter is >0.3mm², The length can be extended to 100M
Weight		N.W: about 10g, G.W: about 15g

Product Applications

The Bedook Fork Photoelectric Sensor FG55 6mm DC4 Wire is well-suited for the automotive industry. In the production of automotive engines, it can be used to detect the precise position of small components during assembly, ensuring that each part is installed correctly. This helps prevent engine malfunctions and improves overall product quality. In the automotive painting process, the sensor can detect the movement of car bodies on the conveyor line, ensuring even paint application. The sensor’s IP66 rating is particularly beneficial in automotive factories, where there may be exposure to dust, oil, and other contaminants.

In the food and beverage packaging industry, the sensor plays a crucial role. It can detect the presence and movement of bottles, cans, or cartons on the packaging line, ensuring that each unit is filled, sealed, and labeled correctly. The dual output functions can be configured to create different detection logics for various stages of the packaging process. The low current consumption is also an advantage in this industry, where energy efficiency is a key consideration to control operational costs.

Product Summary

This Bedook Fork Photoelectric Sensor FG55 6mm DC4 Wire is a high-performance product designed for accurate object detection. The 4-wire DC connection ensures stable operation. Whether in electronics manufacturing for component placement or in the packaging industry for product monitoring, this sensor meets the requirements with its advanced features. Its compliance with EMC and RoHS directives, along with its quality construction materials, reflects Bedook’s commitment to quality and environmental responsibility. It is a competitive and reliable solution for a wide range of industrial automation needs.
