Bedook FQ45 Color Sensor 500mm

The FQ45 Color Sensor 500mm by BEDOOK is a cutting-edge solution for color detection in industrial applications. Engineered with precision and reliability in mind, this color sensor offers a remarkable 500mm detection range, making it suitable for a wide variety of web-handling and manufacturing processes.

BEDOOK’s commitment to quality is evident in the sensor’s advanced technology, which includes high-speed response capabilities and accurate color measurement with an accuracy of ±10%. Whether you’re in the printing, packaging, or textile industry, the FQ45 Color Sensor 500mm provides the performance and versatility you need to enhance your production efficiency and product quality.

Product Features (Bedook FQ45 Color Sensor 500mm)

The FQ45 Color Sensor 500mm stands out as a top-tier color detection device in BEDOOK’s product portfolio. Its robust aluminum alloy housing and IP65 protection rating ensure durability and reliable operation even in harsh industrial environments. With multiple output options of 4 – 20mA and 0 – 10V, it can be easily integrated into existing control systems.

The sensor’s fast response time of ≤1ms and high-frequency response of 100Hz enable it to keep up with high-speed production lines, making it an ideal choice for manufacturers looking to optimize their color-related processes.

• Extended Detection Range: With a 500mm detection range, the FQ45 Color Sensor 500mm outperforms many competing sensors that typically have shorter ranges. This extended range allows for earlier detection of color changes or misalignments in web-based materials, giving operators more time to make adjustments. In large-scale printing presses, for example, the longer detection range can help in identifying color variations in long-length paper rolls before they lead to significant waste.
• High Color Accuracy: The sensor’s ±10% color accuracy is a key advantage. In industries where color consistency is crucial, such as the production of branded packaging or high-end textiles, this level of accuracy ensures that products meet strict color standards. Competitors may offer lower accuracy, resulting in inconsistent color reproduction and potential product rejections.
• Fast Response Time: The ≤1ms response time of the FQ45 Color Sensor 500mm is essential for high-speed production lines. In packaging lines that are operating at rapid speeds, the sensor can quickly detect color changes and trigger appropriate actions in real-time. This is in contrast to slower responding sensors that may cause delays and result in defective products.
• Multiple Output Options: The availability of both 4 – 20mA and 0 – 10V output signals provides flexibility in integrating the sensor with different control systems. Whether it’s a PLC-based system or a more advanced automation setup, the FQ45 can be easily connected, reducing the need for additional converters or adapters. This is a significant advantage over sensors with limited output choices.
• Robust Construction and Protection: The aluminum alloy housing and IP65 protection rating make the FQ45 Color Sensor 500mm highly resistant to dust, water splashes, and mechanical impacts. In industrial environments like printing factories or textile mills, where there may be a lot of dust or moisture, the sensor can maintain its performance over time, unlike some competitors with less durable designs.
• High-Frequency Response: The 100Hz frequency response of the sensor enables it to accurately detect rapid color changes. In applications such as digital printing, where colors are changing frequently during the printing process, the FQ45 can keep up and provide reliable color-detection data, ensuring smooth and consistent printing results.

Product Parameters

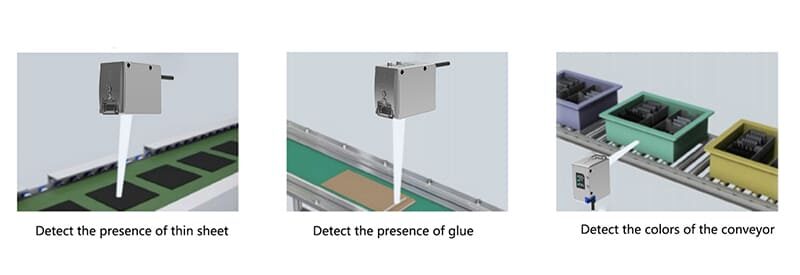

Product Applications

• Printing Industry: In offset, digital, and flexographic printing, the FQ45 Color Sensor 500mm can be used to monitor and control color registration. It ensures that the colors on the printed materials are consistent and accurate, reducing the occurrence of color-misaligned prints and improving overall print quality.
• Packaging Industry: For packaging materials like labels, cartons, and plastic films, the sensor helps in maintaining color consistency across large production runs. It can detect color variations during the printing and laminating processes, ensuring that the final packaged products meet the brand’s color requirements.
• Textile Industry: In textile manufacturing, the FQ45 can be used to monitor the color of yarns during spinning and the color of fabrics during dyeing and printing processes. This helps in producing textiles with uniform color, reducing the occurrence of color-defective products.
• Plastic Processing Industry: When manufacturing plastic products such as injection-molded parts or extruded plastic sheets, the color sensor can be used to ensure that the plastic has the correct color throughout the production process. It can detect color variations caused by factors such as temperature changes or material-mixing issues.
• Food and Beverage Packaging: In the food and beverage industry, packaging often has specific color requirements for brand recognition. The FQ45 Color Sensor 500mm can be used to verify the color of labels, caps, and packaging materials, ensuring that the products have an appealing and consistent appearance on the shelves.

Product Summary

The FQ45 Color Sensor 500mm offers a 500mm detection range, ±10% color accuracy, and a fast ≤1ms response time. With multiple output options and high-frequency response, it is a versatile choice for industries like printing, packaging, and textiles, enhancing color-related production processes.

Featuring an aluminum alloy housing and IP65 protection, the FQ45 is built to withstand harsh industrial environments. Its ability to integrate easily with different control systems and its performance in high-speed applications make it a reliable and adaptable color-detection solution for various manufacturing needs.
