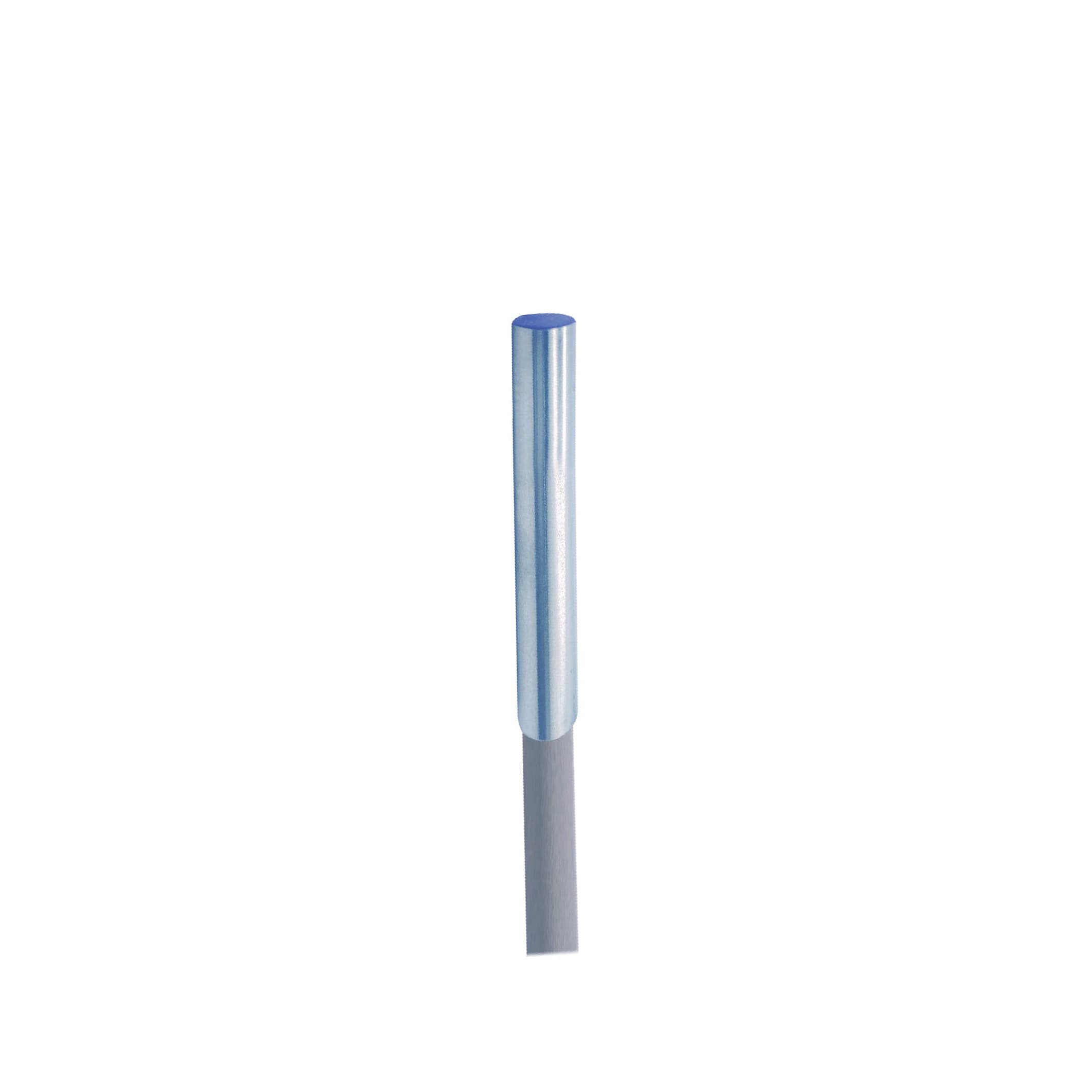

Bedook Inductive Proximity Sensor φ3 DC 3 Wire
The Bedook Inductive Proximity Sensor φ3 DC 3 Wire is a compact, high-precision sensor designed for automation tasks.
It features a φ3mm cylindrical shape, DC 3-wire output, and a 0.6mm sensing distance with a switching frequency of 2000Hz.
Operating within a voltage range of 10 to 30V DC, it includes LED indication and is available in NPN/ PNP and NO/ NC configurations.
With an IP67 ingress protection rating, it operates reliably in environments ranging from -25 to 70°C, ensuring robust performance in industrial settings.
Description
The Bedook Inductive Proximity Sensor φ3 DC 3 Wire is a high-performance sensor designed for use in a variety of industrial settings.
This sensor offers precise detection capabilities, making it suitable for automation and control systems where accuracy is paramount.
Its robust design ensures durability and longevity, even in harsh environments.
Inductive Switch Product Features:
- High Sensitivity: The sensor is designed to detect even the smallest metallic objects with high precision.
- Robust Construction: Built to withstand tough industrial conditions, the sensor is durable and reliable.
- Easy Installation: The 3-wire configuration simplifies installation and integration into control systems.
- Versatile Application: Suitable for a wide range of applications, including automation, robotics, and material handling.
- Long Service Life: The sensor is engineered for consistent performance over an extended period.
Technical Parameters:
| Appearance |
|
 |
|
| Model | NPN N.O | BB-H30.6N-V11P2 | BB-H30.6N-V11Z8 |
| NPN N.C | BB-H30.6N-V21P2 | BB-H30.6N-V21Z8 | |
| PNP N.O | BB-H30.6P-V11P2 | BB-H30.6P-V11Z8 | |
| PNP N.C | BB-H30.6P-V21P2 | BB-H30.6P-V21Z8 | |
| Exterior Structure | φ3mm | ||
| Sensing Distance | 0.6mm(flush mounting） | ||
| Switching Frequency | 2000Hz(0.6mm) | ||
| Operating voltage | 10…30VDC(±10%) | ||
| Voltage drop | ≤2.0V | ||
| Load current | 100mA | ||
| Leakage current | ≤0.01mA | ||
| No load current | ≤10mA(24V) | ||
| Hysteresis | ＜15%(Sr) | ||
| Repeatability | ＜1.0%(Sr) | ||
| Switch protection | Short Circuit Protection, Polarity reversal Protection, Power-On Protection | ||
| Indication LED | With (Action: LED Indicator Lights Up) | ||
| Ambient temperature | -25…70℃ | ||
| Ingress protection | IP67 | ||
| Housing Material | Stainless Steel | ||
| Face material | POM | ||

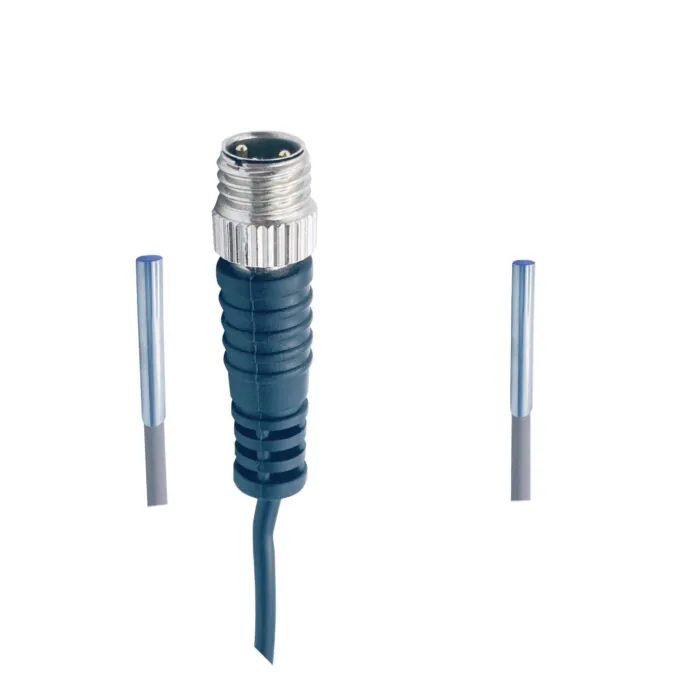

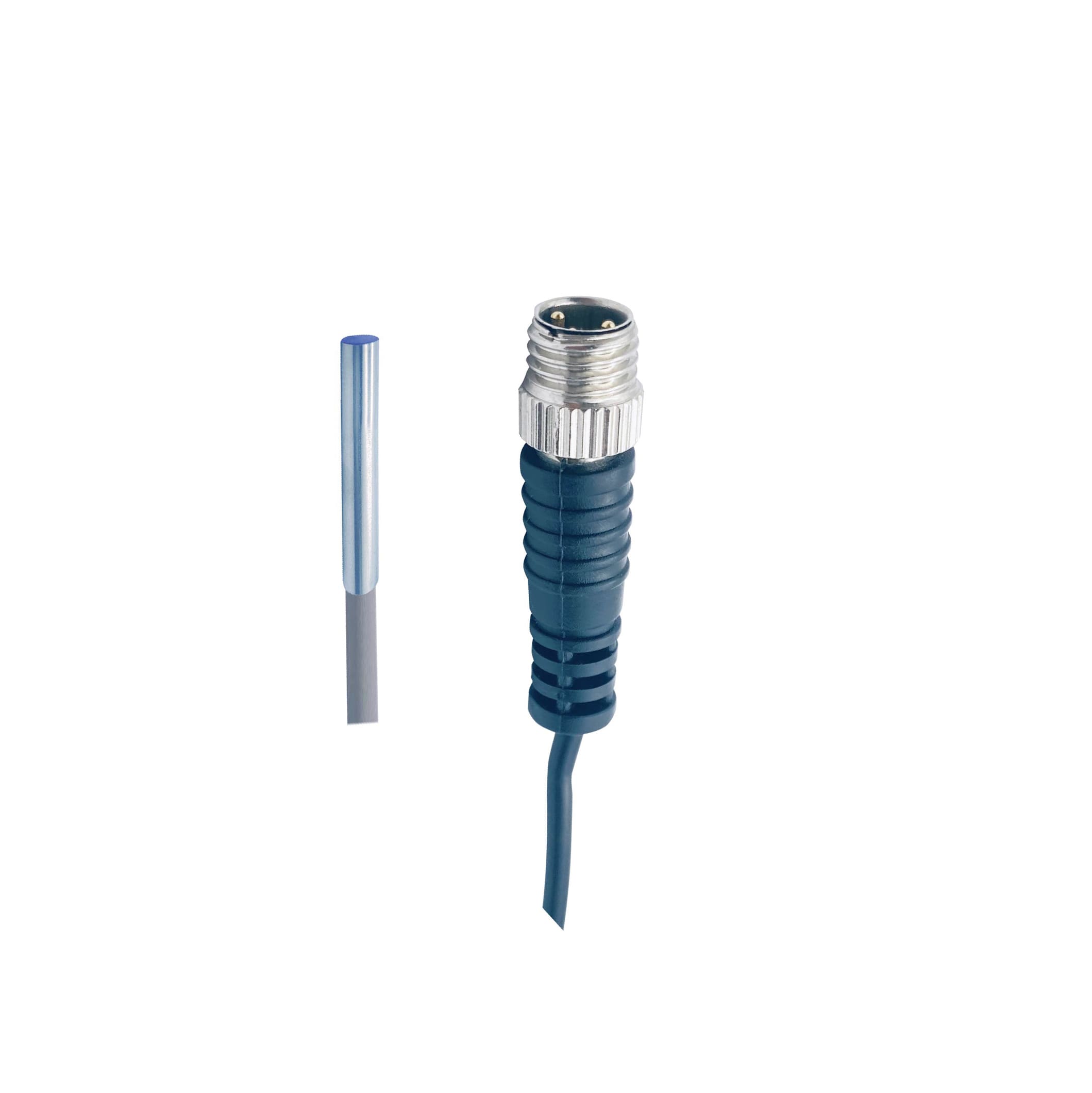

| Connectors | 2m PVC Cable, 3*0.15mm² | M8, 0.3m connector with wires | |
| Accessories | None | B8-3GV2/B8-3WV2 | |
Notes:
*1 The sequence number of the size chart corresponds to the sequence number of the appearance in the technical parameters.
*2 The cable length of the terminal block connector is 25 cm.
Inductive Switch Size Chart:
Bedook Inductive Proximity Sensor φ3 3 Wire-Size Chart
