Description

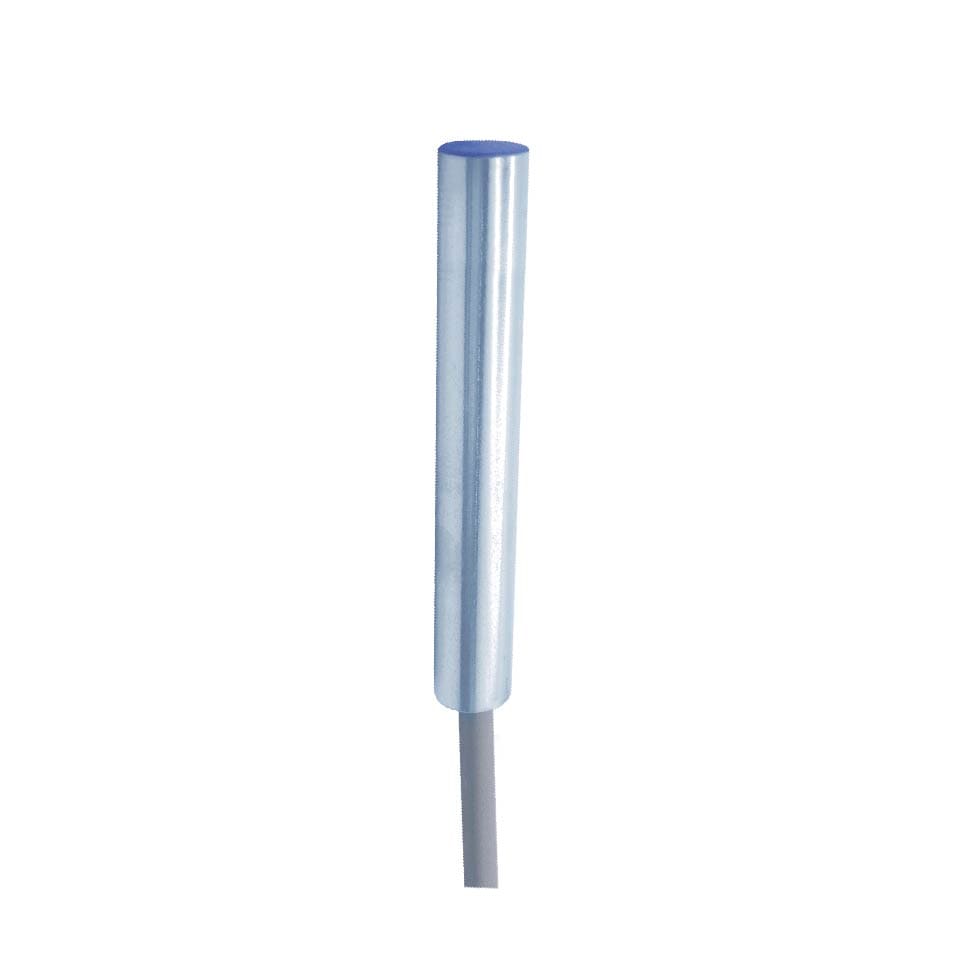

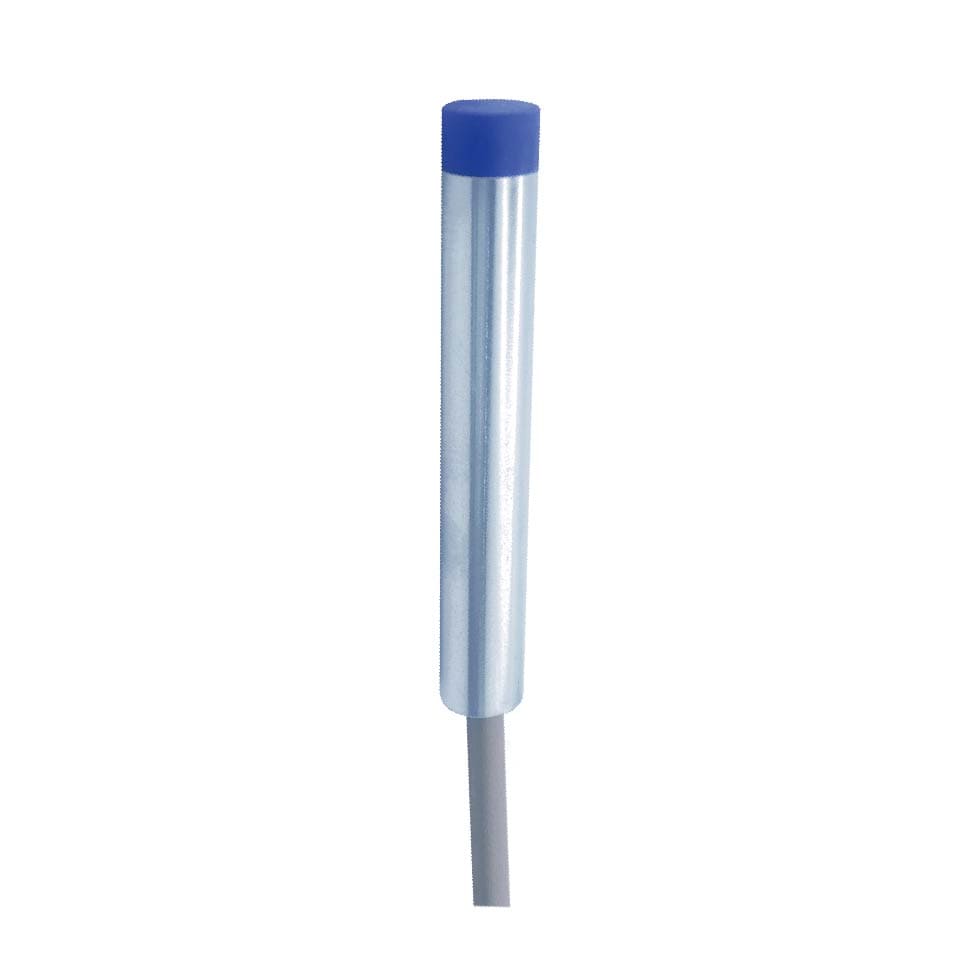

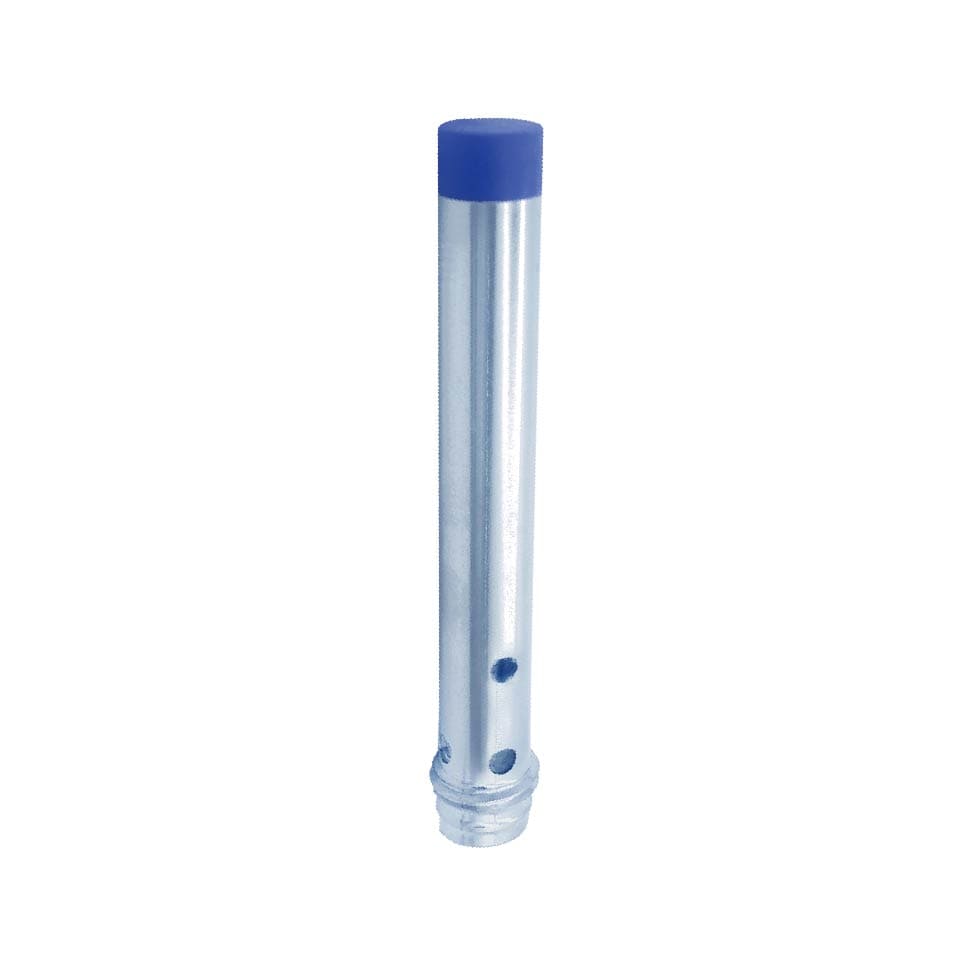

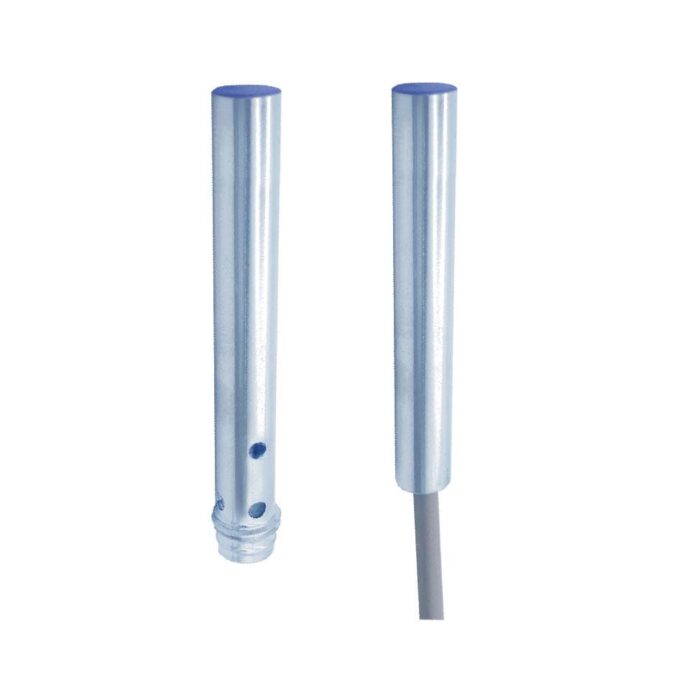

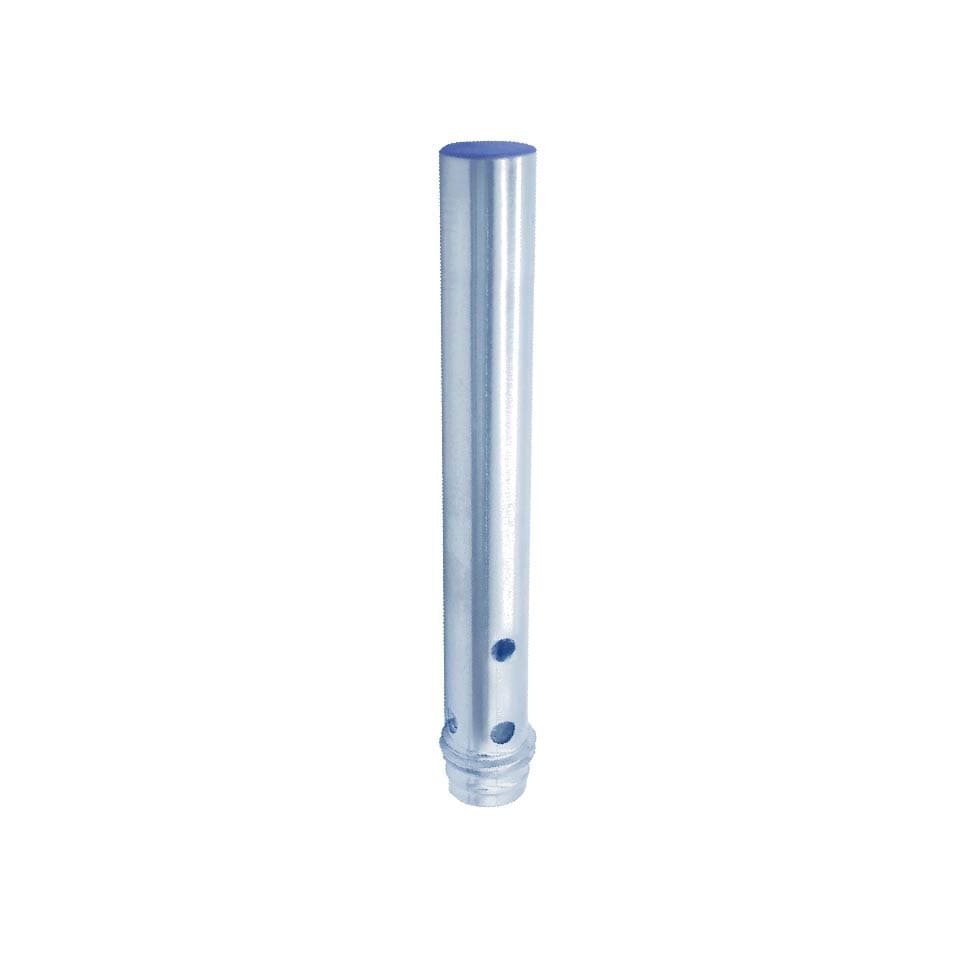

Bedook Inductive Proximity Sensor φ6.5 DC 2 Wire is a versatile, compact device with a 6.5mm diameter.
Offering 2mm or 4mm sensing distances and a wide voltage range of 10-60VDC.
It features an IP67 rating, a stainless steel housing, and POM sensing face, suitable for various high-precision applications.
Inductive Switch Product Features:
This sensor excels in industrial settings with its robust design, multiple sensing distances, and high precision. Ideal for complex environments, it ensures reliable detection.
- Compact Design: With a φ6.5mm cylindrical body, it’s perfect for tight spaces.
- Simplified Wiring: The DC 2 wire configuration ensures hassle-free installation.
- Versatile Outputs: Offers both NO or NC outputs, catering to various application needs.
- Robust Construction: Stainless Steel housing and POM sensing face material withstand tough conditions.
- High Protection Level: IP67 rating ensures operation in harsh environments.
- Flexible Connectivity: Choose between 2m PVC Cable or 2*0.25mm²/M8 Connector for seamless integration.
Inductive Switch Technical Parameters:
| Appearance |  |
 |
|
| Model | NO | BB-H6.502C-V13P2 | BB-H6.502C-V13S8 |
| NC | BB-H6.502C-V23P2 | BB-H6.502C-V23S8 | |
| Appearance Structure | φ6.5mm | ||
| Sensing Distance | 2mm(flush mounting) | ||
| Switching Frequency | 1000Hz | ||
| Operating voltage | 10…60VDC(±10%) | ||
| Voltage drop | ≤4.5V | ||
| Load current | 100mA | ||
| Leakge current | ≤0.5mA | ||
| Hysteresis | ＜15%(Sr) | ||
| Repeatability | ＜1.0%(Sr) | ||
| Switch protection | Short Circuit Protection, Polarity reversal Protection, Power-On Protection | ||
| Indication LED | With (Action: LED Indicator Lights Up) | ||
| Ambient temperature | -25…70℃ | ||
| Ingress protection | IP67 | ||
| Housing Material | Stainless Steel | ||
| Face material | POM | ||
| Connectors | 2m PVC Cable, 2*0.25mm²/M8 connector | ||
| Accessories | B8-3GV2/B8-3WV2 | ||
| Appearance |  |
 |
|
| Model | NO | BN-H6.504C-V13P2 | BN-H6.504C-V13S8 |
| NC | BN-H6.504C-V23P2 | BN-H6.504C-V23S8 | |
| Appearance Structure | φ6.5mm | ||
| Sensing Distance | 4mm(Non-flush mounting) | ||
| Switching Frequency | 500Hz | ||
| Operating voltage | 10…60VDC(±10%) | ||
| Voltage drop | ≤4.5V | ||
| Load current | 100mA | ||
| Leakge current | ≤0.5mA | ||
| Hysteresis | ＜15%(Sr) | ||
| Repeatability | ＜1.0%(Sr) | ||
| Switch protection | Short Circuit Protection, Polarity reversal Protection, Power-On Protection | ||
| Indication LED | With (Action: LED Indicator Lights Up) | ||
| Ambient temperature | -25…70℃ | ||
| Ingress protection | IP67 | ||
| Housing Material | Stainless Steel | ||
| Face material | POM | ||
| Connectors | 2m PVC Cable, 2*0.25mm²/M8 connector | ||
| Accessories | B8-3GV2/B8-3WV2 | ||
Inductive Switch Size Chart:

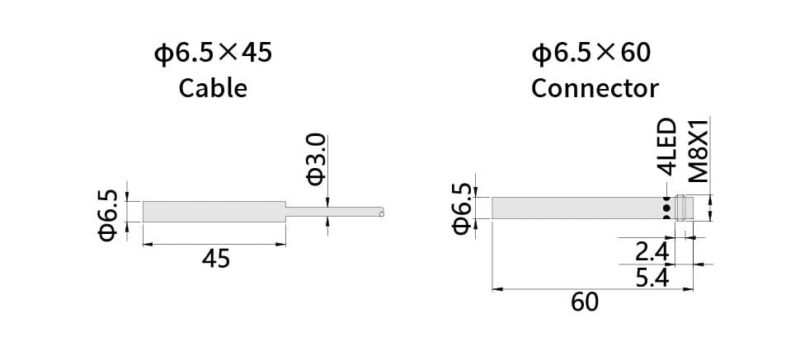

Bedook Inductive Proximity Sensor φ6.5 DC 2 Wire-Size-01

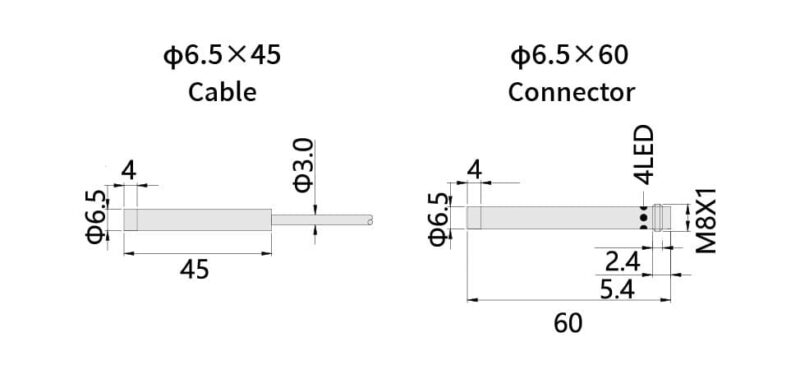

Bedook Inductive Proximity Sensor φ6.5 DC 2 Wire-Size-02
