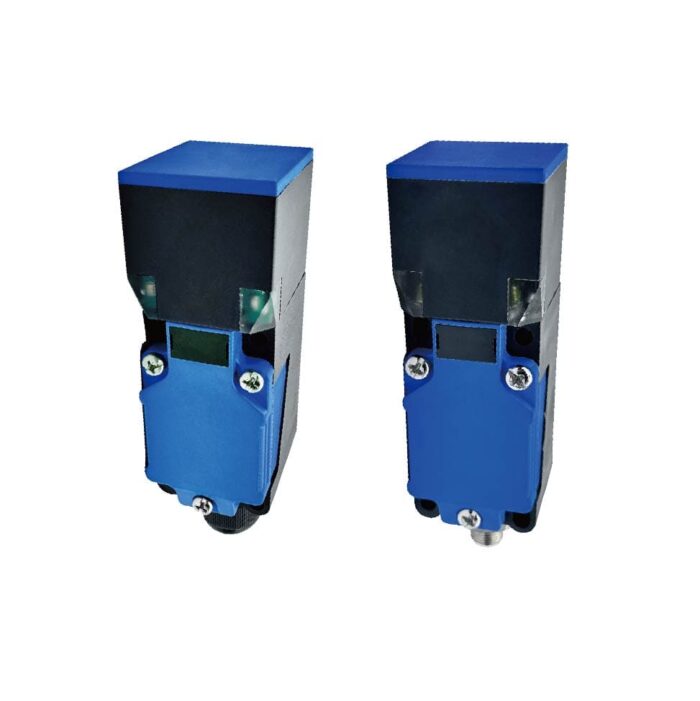

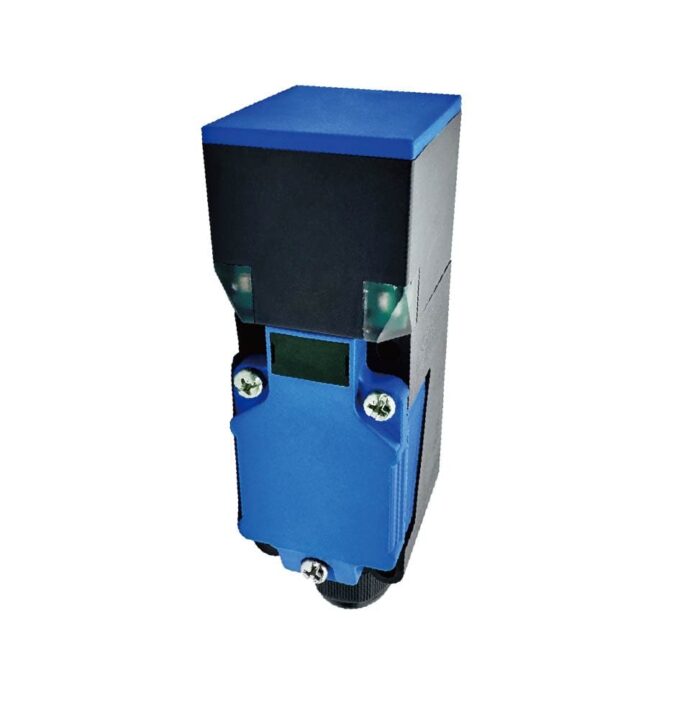

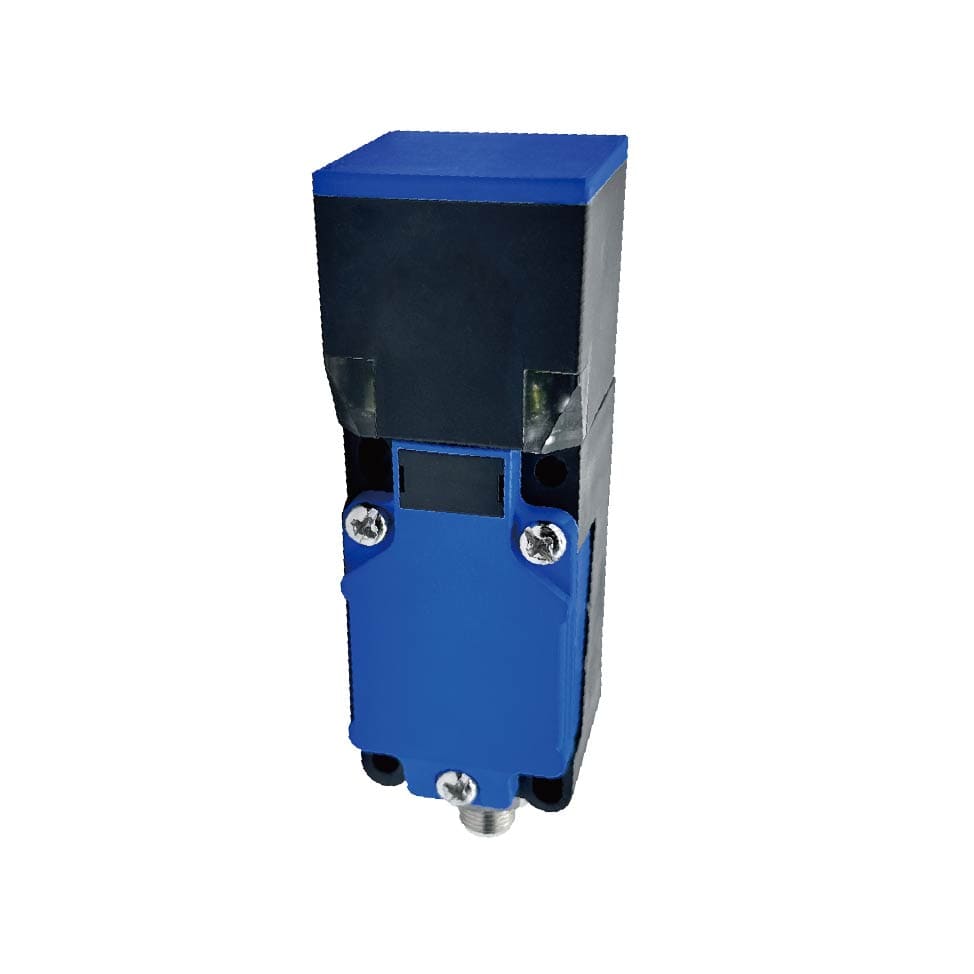

Introducing the Bedook Inductive Proximity Sensor Cube 40×40 AC/DC 2 Wire
Designed for both AC and DC 2-wire systems with dimensions of 40mm x 40mm x 115mm.
Engineered for simplicity and efficiency, this sensor ensures easy integration into various applications while providing high repeatability measurement precision.
Inductive Switch Product Features:
This sensor excels in industrial settings with its robust design, multiple sensing distances, and high precision. Ideal for complex environments, it ensures reliable detection.
- Flexible Power Compatibility: Adapts to 20-250V AC/DC for diverse operational needs.
- High-Fidelity Sensing: Outstanding repeatability under 1.0% ensures consistent performance.
- User-Friendly Design: Quick wiring with a 2-wire system boosts installation efficiency.
- Durable Construction: PBT housing with IP67 rating stands up to challenging environments.
- LED Indicator: Visual confirmation of sensor activity for ease of monitoring.
- Certified Quality: Meets international standards with CE, UKCA, and ROHS approvals.
Inductive Switch Technical Parameters:
Switching Frequency: 25Hz AC/ 40Hz DC(15mm(Flush mounting)/20/30mm(Non-flush mounting))
| Appearance |  |
 |
|||
| Model | NO | BB-Q4015A-P14T | BN-Q40□□A-P14T | BB-Q4015A-P14S12 | BN-Q40□□A-P14S12 |
| NC | BB-Q4015A-P24T | BN-Q40□□A-P24T | BB-Q4015A-P24S12 | BN-Q40□□A-P24S12 | |
| NO | BB-Q4015U-P15T | BN-Q40□□U-P15T | BB-Q4015U-P15S12 | BN-Q40□□U-P15S12 | |
| NC | BB-Q4015U-P25T | BN-Q40□□U-P25T | BB-Q4015U-P25S12 | BN-Q40□□U-P25S12 | |
| Appearance Structure | 40*40*115mm | 40*40*115mm | |||
| Sensing Distance | 15mm(Flush mounting)/20/30mm(Non-flush mounting) | 15mm(Flush mounting)/20/30mm(Non-flush mounting) | |||
| Switching Frequency | 25Hz/25Hz AC,40HzDC | ||||
| Operating voltage | 20…250AC/20…250V AC/DC | ||||
| Voltage drop | ≤8V AC/≤10V AC,8V DC | ||||
| Load current | Max.Load:400mA, Min Load:5mA | ||||
| Max.Load:200mA, Min Load:5mA | |||||
| Leakge current | ≤1.8mA/≤2.5mA | ||||
| Hysteresis | ＜15%(Sr) | ||||
| Repeatability | ＜1.0%(Sr) | ||||
| Switch protection | Polarity reversal Protection, Power-On Protection | ||||
| Indication LED | With (Action: LED Indicator Lights Up) | ||||
| Ambient temperature | -25…70℃ | ||||
| Ingress protection | IP67 | ||||
| Housing Material | PBT | ||||
| Face material | PBT | ||||
| Connectors | Terminal up to 2.5mm²/M12 connector | ||||
| Accessories | B12-4GV2/B12-4WV2 | ||||
Inductive Switch Size Chart:
Bedook Inductive Proximity Sensor Cube 40×40 ACDC 2 Wire-Size-01
Bedook Inductive Proximity Sensor Cube 40×40 AC/DC 2 Wire – Simplify your setup with our easy-to-install 40mm cube sensor, achieving precision in the toughest conditions.
