Description
Bedook Inductive Proximity Sensor Analog Cube is designed for precision and reliability in industrial applications.
High repeated measurement accuracy (<2%) significantly improves data reliability, excellent linearity (<5%) is very suitable for scenarios that require high-precision measurement.
Inductive Switch Product Features:
Ideal for high-precision measurement scenarios, the Bedook Inductive Proximity Sensor Analog Cube provides 0-20mA or 0-10V analog output, with easy DC3/4-wire installation. Robust design ensures operation in extreme conditions.
- Flexible Output Options: Offers analog output options of 0-20mA or 0-10V, compatible with a wide range of equipment.
- High Precision Measurement: With repeated measurement accuracy of <2%, it ensures reliable and consistent data.
- Excellent Linearity: Linearity of <5% makes it ideal for high-precision measurement scenarios.
- Versatile Sensing Distance: Available in 5 to 25mm sensing distances to cater to various needs.
- Simple Wiring: DC4-wire configuration for both current and voltage output, providing easy and quick installation.
- Durable Construction: Made with POM housing and ABS face material, the sensor is IP67 rated and suitable for harsh environments (-25 to 70℃).
Switching Frequency:30Hz

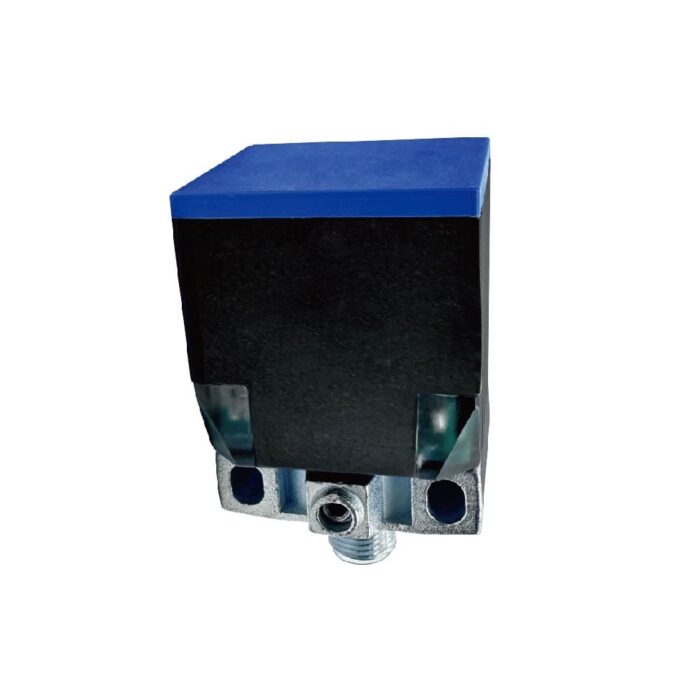

| Appearance |  |
|
| Model | 0…20mA/0…10V | BAN-Q4025-PM2S12-S |
| Dimensions | 40*40*54mm | |
| Sensing Distance | 5…25mm(Non-flush mounting） | |
| Operating voltage | 18…30VDC | |
| Switching Frequency | 30Hz | |
| Output function | 0…20mA;<400Ω/0…10VDC;>4700Ω | |
| No Load current | <8mA | |
| Temperature drift | ＜10%(Sr) | |
| Repeatability | ＜2%(Sr) | |
| Linearity | ＜5%(Sr) | |
| Switch protection | Short Circuit Protection, Polarity reversal Protection, Power-On Protection | |
| Ambient temperature | -25…70℃ | |
| Ingress protection | IP67 | |
| Housing Material | PBT | |
| Face material | PBT | |
| Connectors | M12 connector | |
| Accessories | B12-4GV2/B12-4WV2 | |
Inductive Switch Size Chart:
Bedook Inductive Proximity Sensor Analog Cube-02
