Description

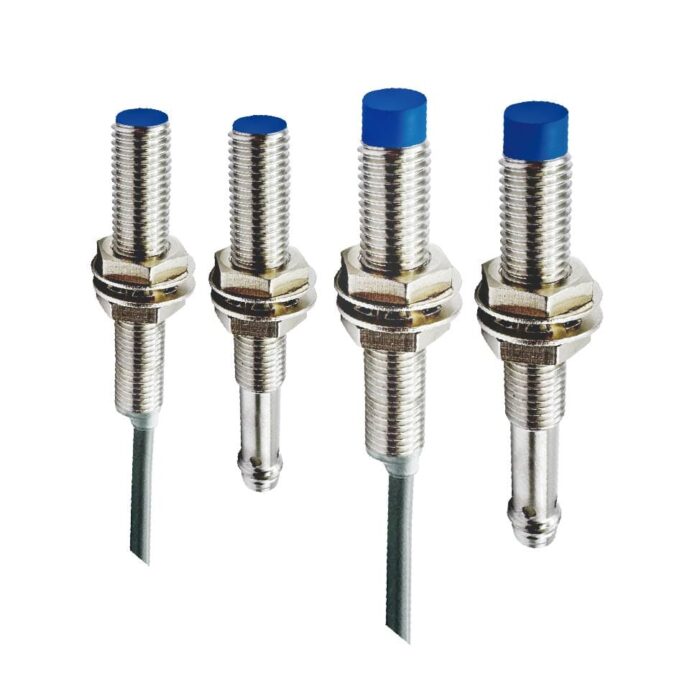

Bedook Inductive Proximity Sensor Analog M8 is designed for precision and reliability in industrial applications.
High repeated measurement accuracy (<2%) significantly improves data reliability, excellent linearity (<5%) is very suitable for scenarios that require high-precision measurement.
Inductive Switch Product Features:
Ideal for high-precision measurement scenarios, the Bedook Inductive Proximity Sensor Analog M8 provides 0-20mA or 0-10V analog output, with easy DC3/4-wire installation. Robust design ensures operation in extreme conditions.
- Flexible Output Options: Offers analog output options of 0-20mA or 0-10V, compatible with a wide range of equipment.
- High Precision Measurement: With repeated measurement accuracy of <2%, it ensures reliable and consistent data.
- Excellent Linearity: Linearity of <5% makes it ideal for high-precision measurement scenarios.
- Versatile Sensing Distance: Available in 0.1 to 1.5mm and 0.1 to 2.5mm sensing distances to cater to various needs.
- Simple Wiring: DC3-wire configuration for current or voltage output, and DC4-wire configuration for both current and voltage output, providing easy and quick installation.
- Durable Construction: Made with brass, nickel-plated housing and POM face material, the sensor is IP67 rated and suitable for harsh environments (-25 to 70℃).
Switching Frequency:100Hz

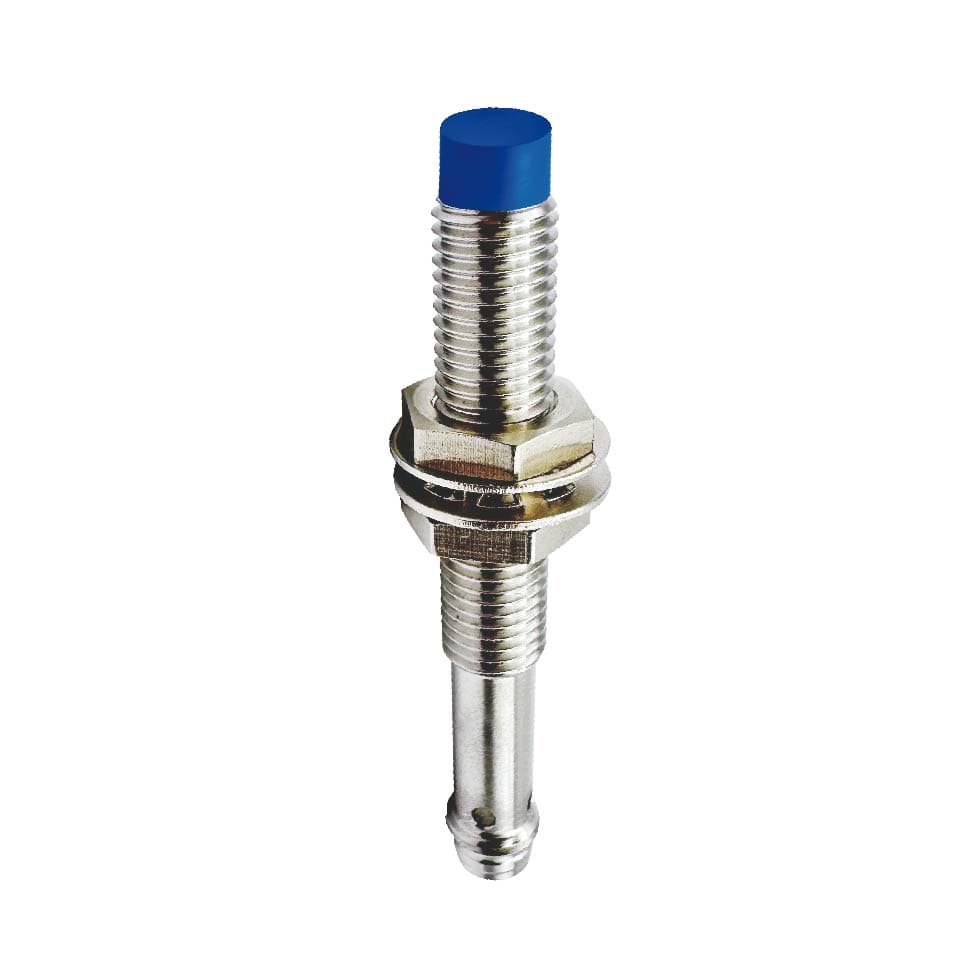

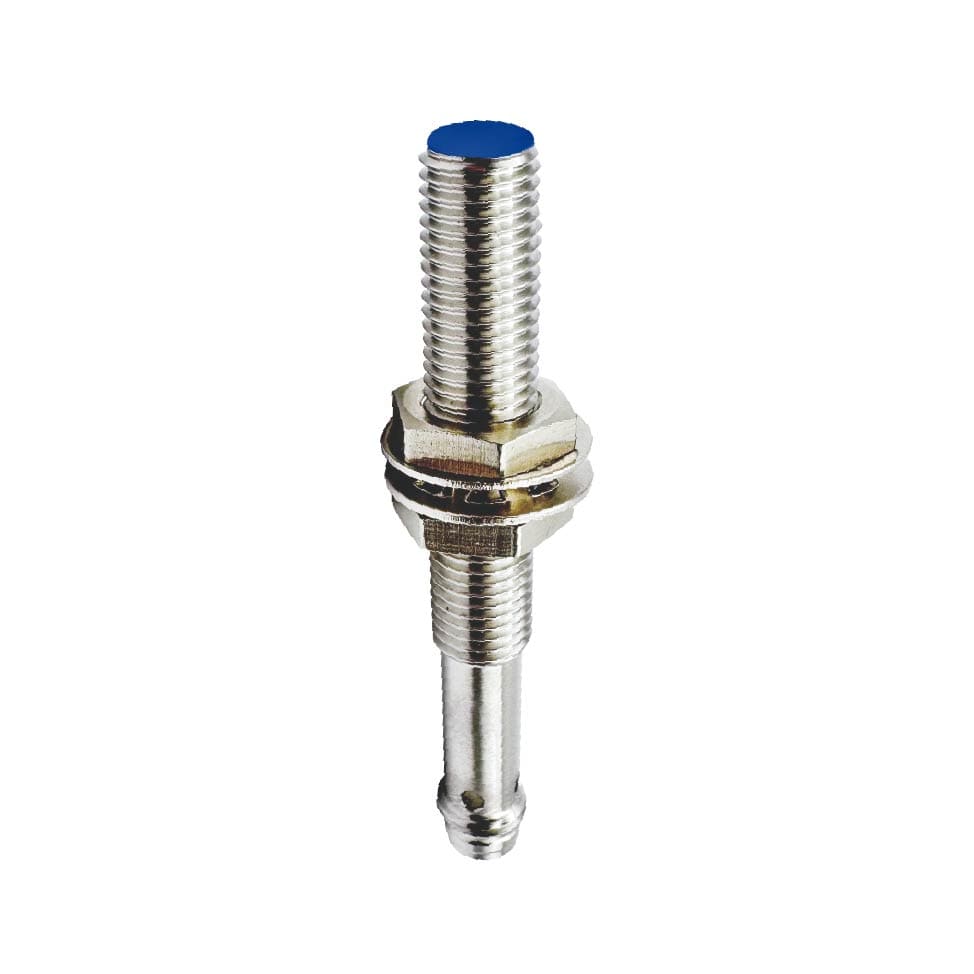

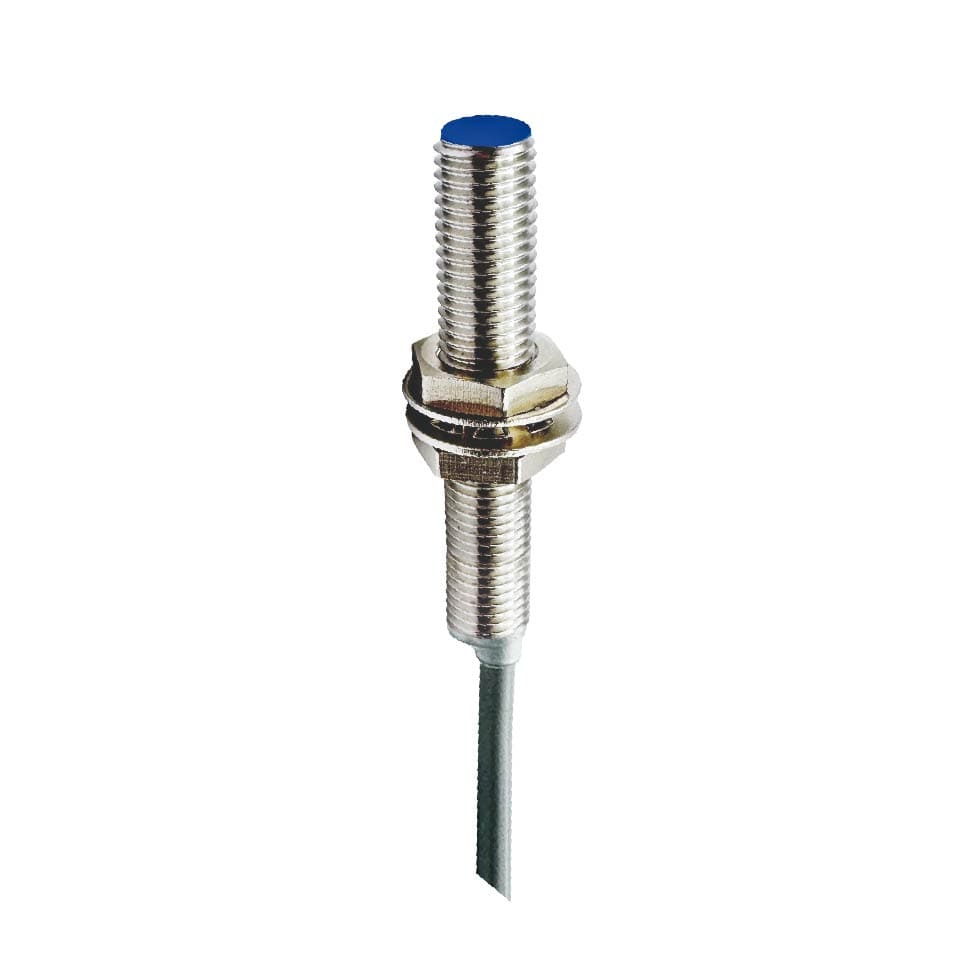

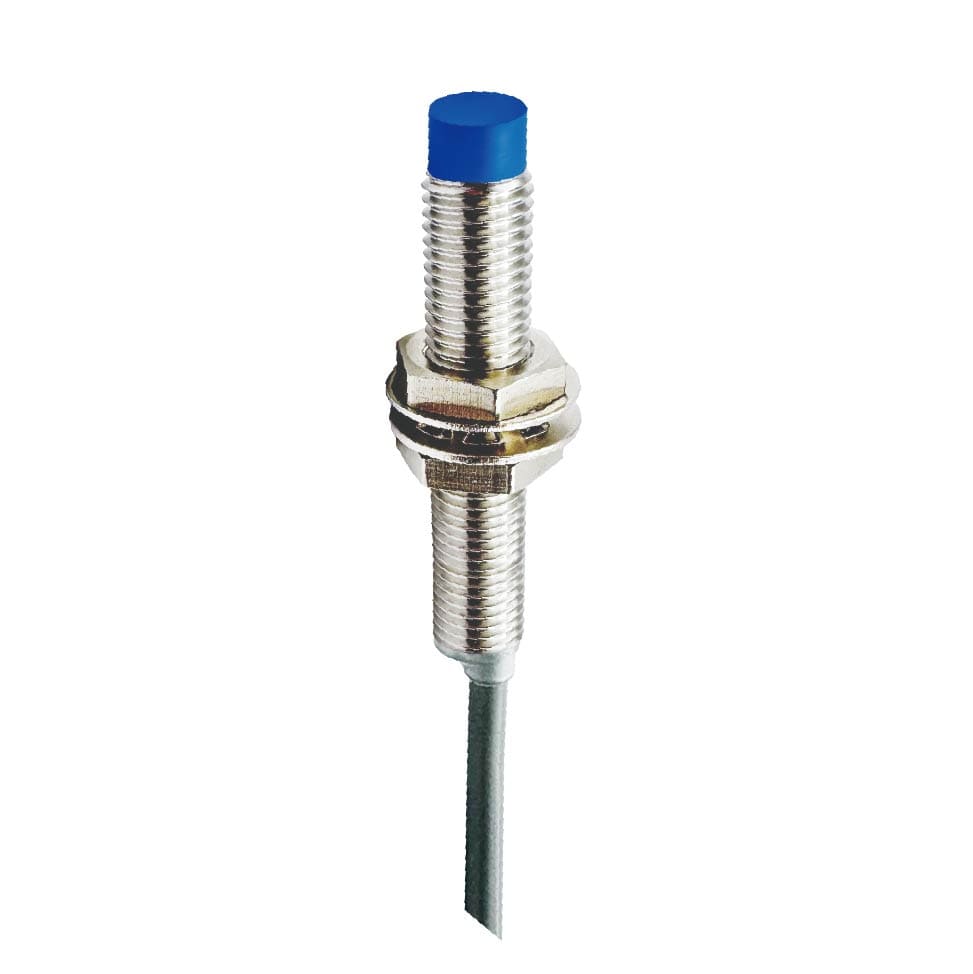

| Appearance |  |
 |
 |
 |
|
| Model | 0…20mA | BAB-M81.5-CI2P2 | BAB-M81.5-CI2S8 | BAN-M82.5-CI2P2 | BAN-M82.5-CI2S8 |
| 0…10V | BAB-M81.5-CV2P2 | BAB-M81.5-CV2S8 | BAN-M82.5-CV2P2 | BAN-M82.5-CV2S8 | |
| Appearance Structure | M8*1mm | M8*1mm | |||
| Sensing Distance | 0.1…1.5mm(flush mounting） | 0.1…2.5mm(Non-flush mounting） | |||
| Operating voltage | 18…30VDC | ||||
| Switching Frequency | 100Hz | ||||
| Output function | 0…20mA;<400Ω/0…10VDC;>2000Ω | ||||
| No Load current | <35mA | ||||
| Temperature drift | ＜10%(Sr) | ||||
| Repeatability | ＜2%(Sr) | ||||
| Linearity | ＜5%(Sr) | ||||
| Switch protection | Short Circuit Protection, Polarity reversal Protection, Power-On Protection | ||||
| Indication LED | No | ||||
| Ambient temperature | -25…70℃ | ||||
| Ingress protection | IP67 | ||||
| Housing Material | Brass,nickel-plated | ||||
| Face material | POM | ||||
| Connectors | 2m PVC cable, 3*0.18mm²/M8 connector | ||||
| Accessories | B8-3GV2/B8-3WV2 | ||||
Inductive Switch Size Chart:
Bedook Inductive Proximity Sensor Analog M8-Size-01

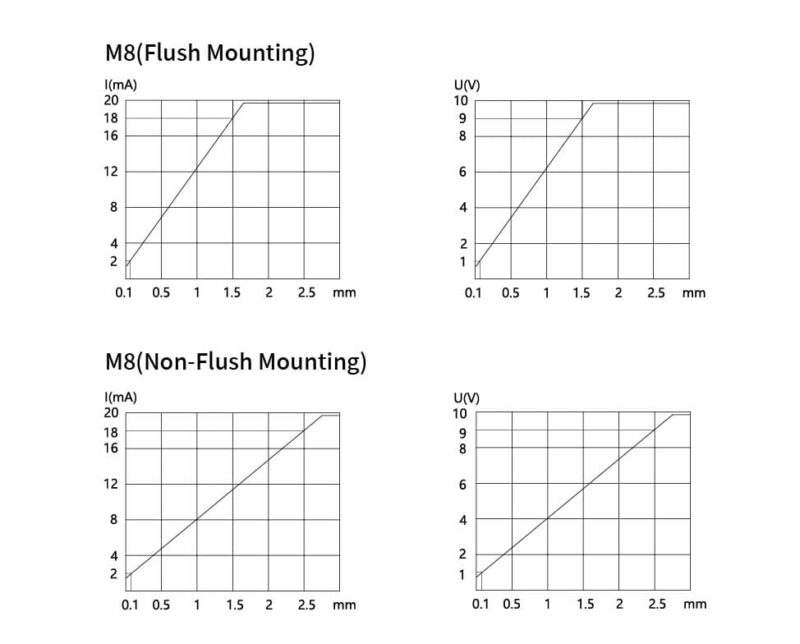

Bedook Inductive Proximity Sensor Analog M8-Characteristics Curve-01
