Description

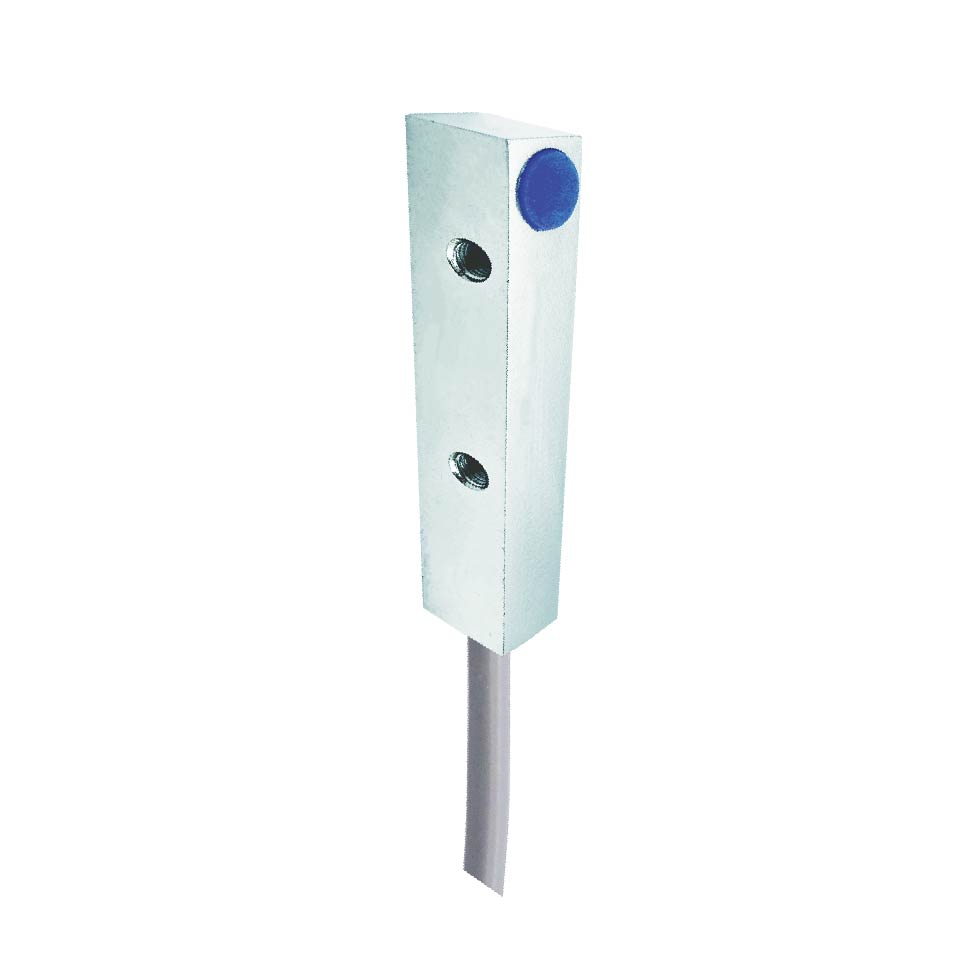

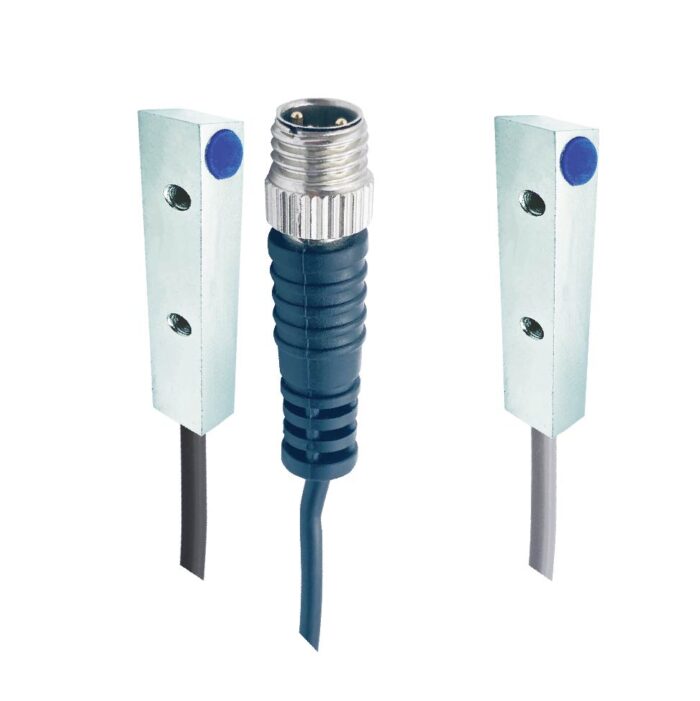

Meet our latest marvel, the Bedook Inductive Proximity Sensor Cubic 0.8/1.2mm DC 3 Wire.
Distinctly compact at just 5mm×5mm×26mm, it’s engineered for precision with a repeat accuracy of less than 1.0%, ensuring utmost reliability.
Inductive Switch Product Features:
This sensor excels in industrial settings with its robust design, multiple sensing distances, and high precision. Ideal for complex environments, it ensures reliable detection.
- Ultra-Compact Design: Space-saving 5mm×5mm×26mm cube shape perfect for space-sensitive applications.
- Versatile Outputs: Offers a choice between NO/NC outputs, and PNP/NPN types, catering to a wide range of operation mode requirements.
- Efficient Setup: Simplified DC 3-wire design allows an uncomplicated installation process.
- Highly Accurate: Superior repeatability accuracy of less than 1.0%, ensuring reliable, consistent precision in measurements.
- Robust Durability: Crafted with sturdy Brass, nickel-plating, and POM sensing face backed by IP67 rating, fit for demanding environmental conditions.
- Wide Temperature Range: Reliable performance in extreme conditions with an operational temperature span from -25 to 70℃.
Inductive Switch Technical Parameters:
| Appearance |  |
 |
|||
| Model | NPN N.O | BB-Q550.8N-C11P2 | BB-Q551.2N-C11P2 | BB-Q550.8N-C11Z8 | BB-Q551.2N-C11Z8 |
| NPN N.C | BB-Q550.8N-C21P2 | BB-Q551.2N-C21P2 | BB-Q550.8N-C21Z8 | BB-Q551.2N-C21Z8 | |
| PNP N.O | BB-Q550.8P-C11P2 | BB-Q551.2P-C11P2 | BB-Q550.8P-C11Z8 | BB-Q551.2P-C11Z8 | |
| PNP N.C | BB-Q550.8P-C21P2 | BB-Q551.2P-C21P2 | BB-Q550.8P-C21Z8 | BB-Q551.2P-C21Z8 | |
| Exterior Structure | 5*5*26mm | 5*5*26mm | 5*5*26mm | 5*5*26mm | |
| Sensing Distance | 0.8mm(flush） | 1.2mm(flush） | 0.8mm(flush） | 1.2mm(flush） | |
| Switching Frequency | 2000Hz | ||||
| Operating voltage | 10…30VDC(±10%) | ||||
| Voltage drop | ≤2.0V | ||||
| Load current | 100mA | ||||
| Leakge current | ≤0.01mA | ||||
| No load current | ≤10mA(24V) | ||||
| Hysteresis | ＜15%(Sr) | ||||
| Repeatability | ＜1.0%(Sr) | ||||
| Switch protection | Short Circuit Protection, Polarity reversal Protection, Power-On Protection | ||||
| Indication LED | With (Action: LED Indicator Lights Up) | ||||
| Ambient temperature | -25…70℃ | ||||
| Ingress protection | IP67 | ||||
| Housing Material | Brass, nickel-plated | ||||
| Face material | POM | ||||

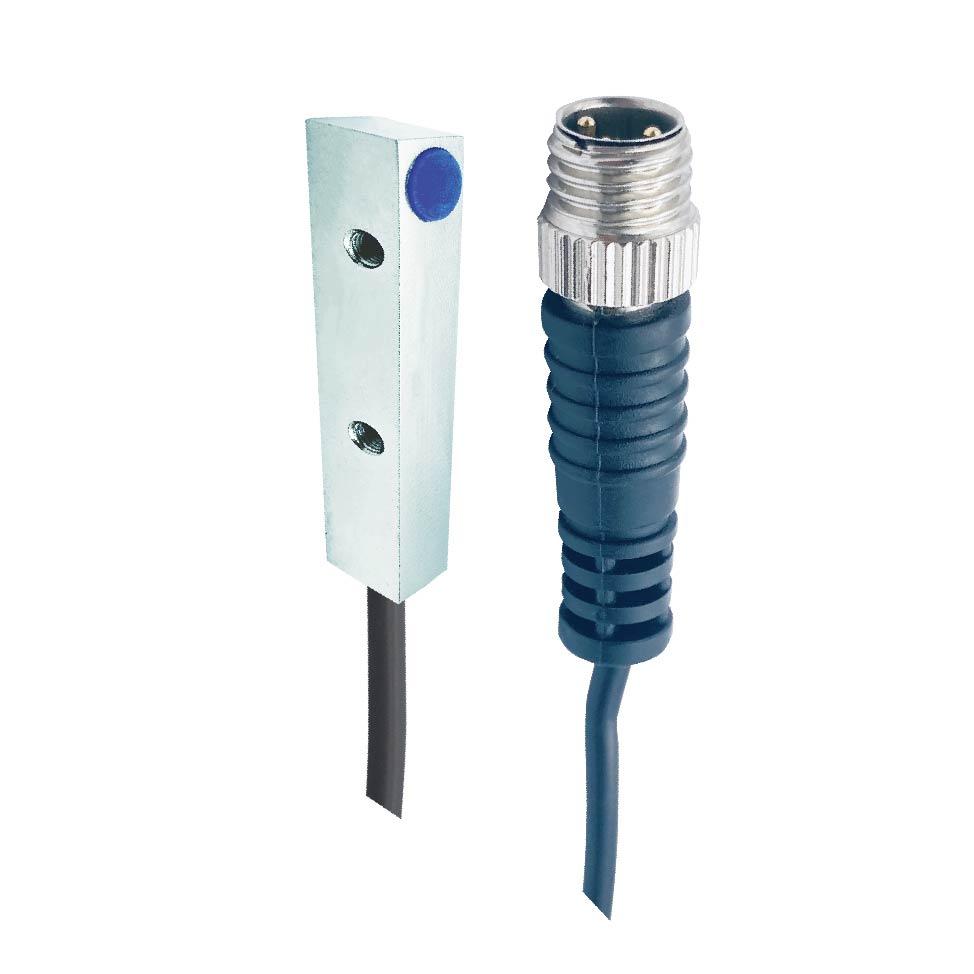

| Connectors | 2m PVC Cable, 3*0.15mm² | 0.3m, M8 cable with connector | |||
| Accessories | None | B8-3GV2/B8-3WV2 | |||

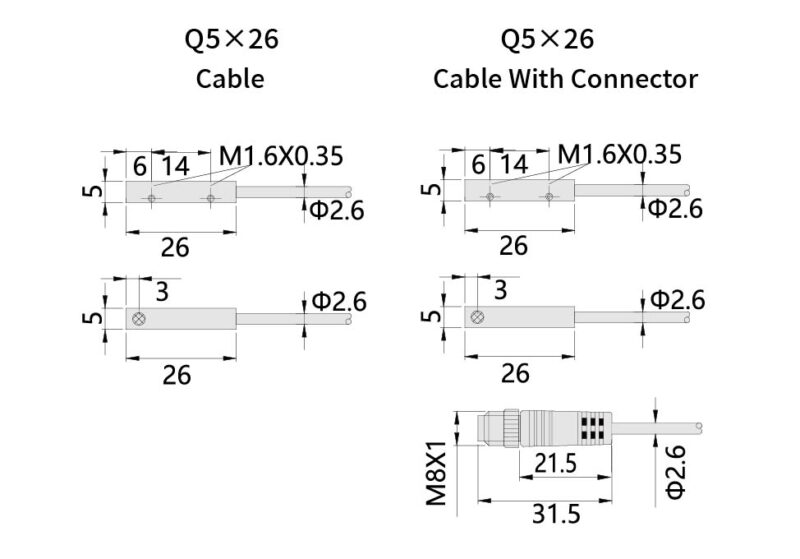

Inductive Switch Size Chart:
Bedook Inductive Proximity Sensor Cubic 0.81.2mm DC 3 Wire-Size-01
Our global recognition is reflected in international certifications – CE, UKCA, ROHS, and more.
Trust in Bedook – where innovation meets affordability and quality.
Streamline your industrial processes with Bedook Inductive Proximity Sensor Cube 0.8/1.2mm DC 3 Wire.
Solidify system accuracy with Bedook’s Inductive Sensor Cube.
Designed for adversity, built for industry – inquire now for advantageous pricing and proven quality.
