Description
Discover Bedook Inductive Proximity Sensor Cube 2/3/4/6mm DC 3 Wire for precise detection. Compact, accurate, and built to last.
Ideal for demanding settings, offering 2/3/4/6mm sensing and robust design.
Inductive Switch Product Features:

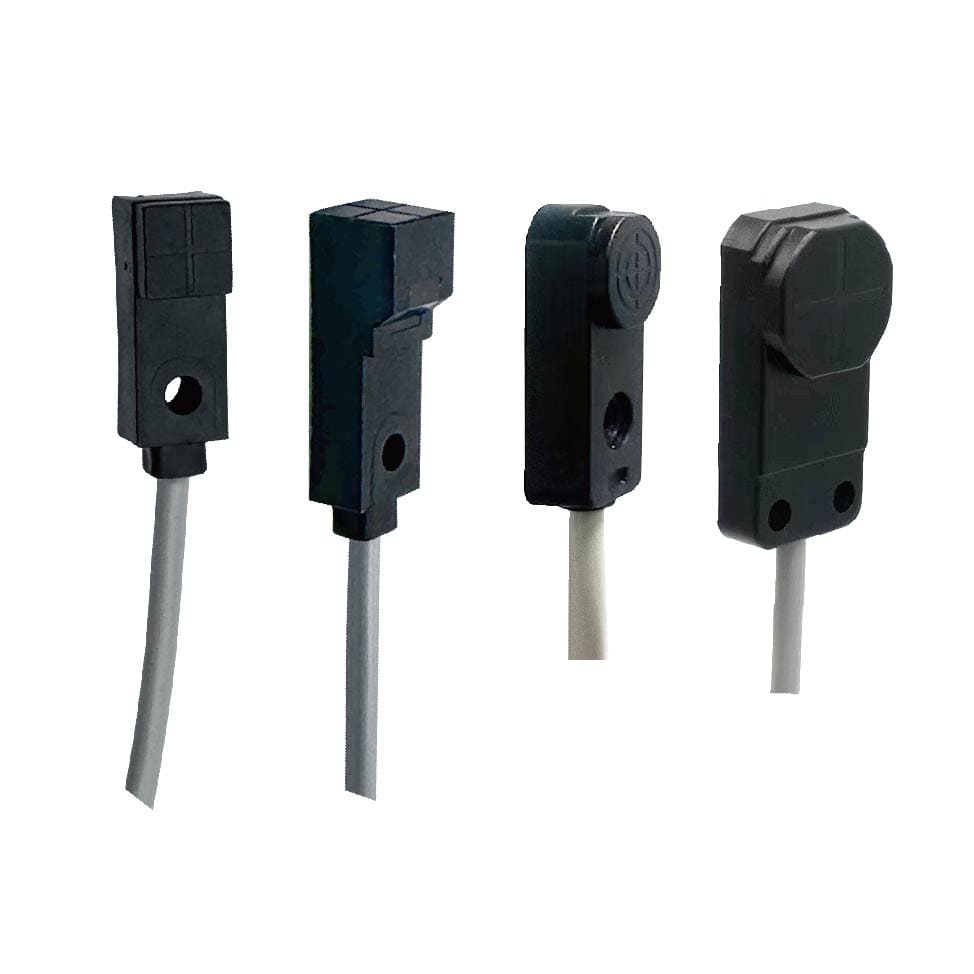

Introducing the Bedook Inductive Proximity Sensor Cube – a pinnacle of engineering designed for precision and reliability. This sensor stands out for its:
- Compact & Sleek Design: Available in two distinct sizes, 15.8×10.3×27.8mm and 18×10×30mm, tailored to fit in tight spaces.
- Choice in Sensing Distances: Catering to a wide range of applications with sensing distances of 2, 3, 4, and 6mm.
- Advanced Interference Resistance: The durable DC 3-wire design ensures the sensor’s robust performance against interference, enhancing measurement reliability.
- High Repeatability and Accuracy: Engineered for exceptional repeatability (<1.0%), guaranteeing consistent and precise measurements.
- Flexible Output Options: Supports both NO and NC outputs, and available in both PNP and NPN types, offering adaptability to various systems.
- Durable and Weather Resistant: Featuring PBT housing material with IP67 ingress protection, ensuring dependable performance in extreme conditions.
Inductive Switch Technical Parameters:
| Appearance |  |
 |
|||
| Model | NPN NO | BB-Q2802N-P11P2-T | BB-Q2803N-P11P2-T | BB-Q2802N-P11P2 | BB-Q2803N-P11P2 |
| NPN NC | BB-Q2802N-P21P2-T | BB-Q2803N-P21P2-T | BB-Q2802N-P21P2 | BB-Q2803N-P21P2 | |
| PNP NO | BB-Q2802P-P11P2-T | BB-Q2803P-P11P2-T | BB-Q2802P-P11P2 | BB-Q2803P-P11P2 | |
| PNP NC | BB-Q2802P-P21P2-T | BB-Q2803P-P21P2-T | BB-Q2802P-P21P2 | BB-Q2803P-P21P2 | |
| Exterior Structure | 15.8*10.3*27.8mm | 15.8*10.3*27.8mm | 15.8*10.3*27.8mm | 15.8*10.3*27.8mm | |
| Sensing Distance | 2mm(flush) | 3mm(Quasi-flush) | 2mm(flush) | 3mm(Quasi-flush) | |
| Switching Frequency | 1000Hz | ||||
| Operating voltage | 10…30VDC(±10%) | ||||
| Voltage drop | ≤2.0V | ||||
| Load current | 100mA | ||||
| Leakge current | ≤0.01mA | ||||
| No load current | ≤10mA(24V) | ||||
| Hysteresis | ＜15%(Sr) | ||||
| Repeatability | ＜1.0%(Sr) | ||||
| Switch protection | Short Circuit Protection, Polarity reversal Protection, Power-On Protection | ||||
| Indication LED | With (Action: LED Indicator Lights Up) | ||||
| Ambient temperature | -25…70℃ | ||||
| Ingress protection | IP67 | ||||
| Housing Material | PBT | ||||
| Face material | PBT | ||||
| Connectors | 2m PVC Cable, 3*0.18mm² | ||||
| Accessories | None | ||||
| Appearance | |
|
|||
| Model | NPN NO | BB-Q2804N-P11P2-T | BB-Q2806N-P11P2-T | BB-Q2804N-P11P2 | BB-Q2806N-P11P2 |
| NPN NC | BB-Q2804N-P21P2-T | BB-Q2806N-P21P2-T | BB-Q2804N-P21P2 | BB-Q2806N-P21P2 | |
| PNP NO | BB-Q2804P-P11P2-T | BB-Q2806P-P11P2-T | BB-Q2804P-P11P2 | BB-Q2806P-P11P2 | |
| PNP NC | BB-Q2804P-P21P2-T | BB-Q2806P-P21P2-T | BB-Q2804P-P21P2 | BB-Q2806P-P21P2 | |
| Exterior Structure | 15.8*10.3*27.8mm | 15.8*10.3*27.8mm | 15.8*10.3*27.8mm | 15.8*10.3*27.8mm | |
| Sensing Distance | 4mm(Non-flush) | 6mm(Non-flush) | 4mm(Non-flush) | 6mm(Non-flush) | |
| Switching Frequency | 1000Hz | 500Hz | 1000Hz | 500Hz | |
| Operating voltage | 10…30VDC(±10%) | ||||
| Voltage drop | ≤2.0V | ||||
| Load current | 100mA | ||||
| Leakge current | ≤0.01mA | ||||
| No load current | ≤10mA(24V) | ||||
| Hysteresis | ＜15%(Sr) | ||||
| Repeatability | ＜1.0%(Sr) | ||||
| Switch protection | Short Circuit Protection, Polarity reversal Protection, Power-On Protection | ||||
| Indication LED | With (Action: LED Indicator Lights Up) | ||||
| Ambient temperature | -25…70℃ | ||||
| Ingress protection | IP67 | ||||
| Housing Material | PBT | ||||
| Face material | PBT | ||||
| Connectors | 2m PVC Cable, 3*0.18mm² | ||||
| Accessories | None | ||||

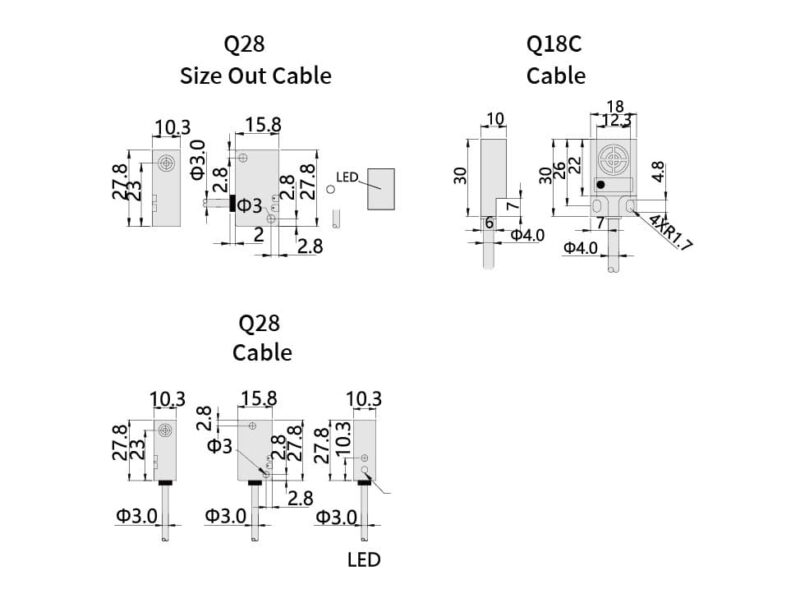

Inductive Switch Size Chart:
Bedook Inductive Proximity Sensor Cube 2-3-4-6mm DC 3 Wire-Size-01
Bedook Inductive Proximity Sensor Cube 2/3/4/6mm DC 3 Wire: precision in every millimeter. Tailored for high performance in challenging environments.
