Description

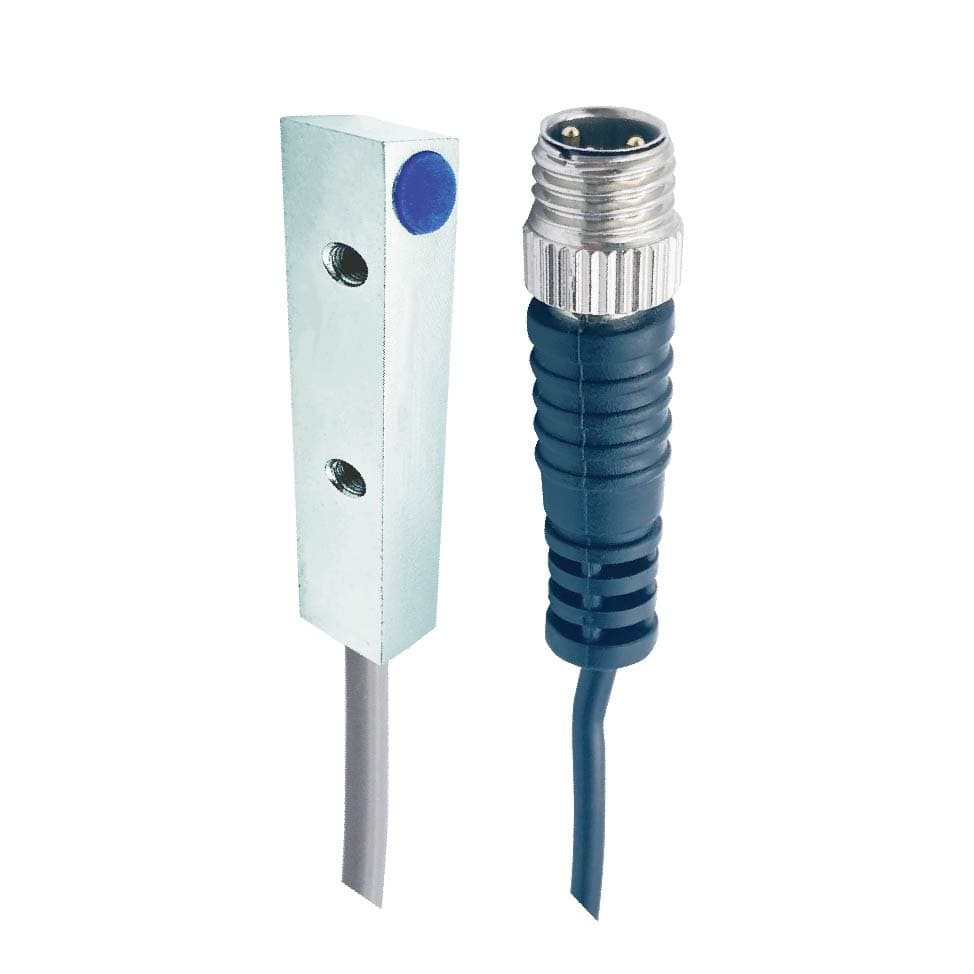

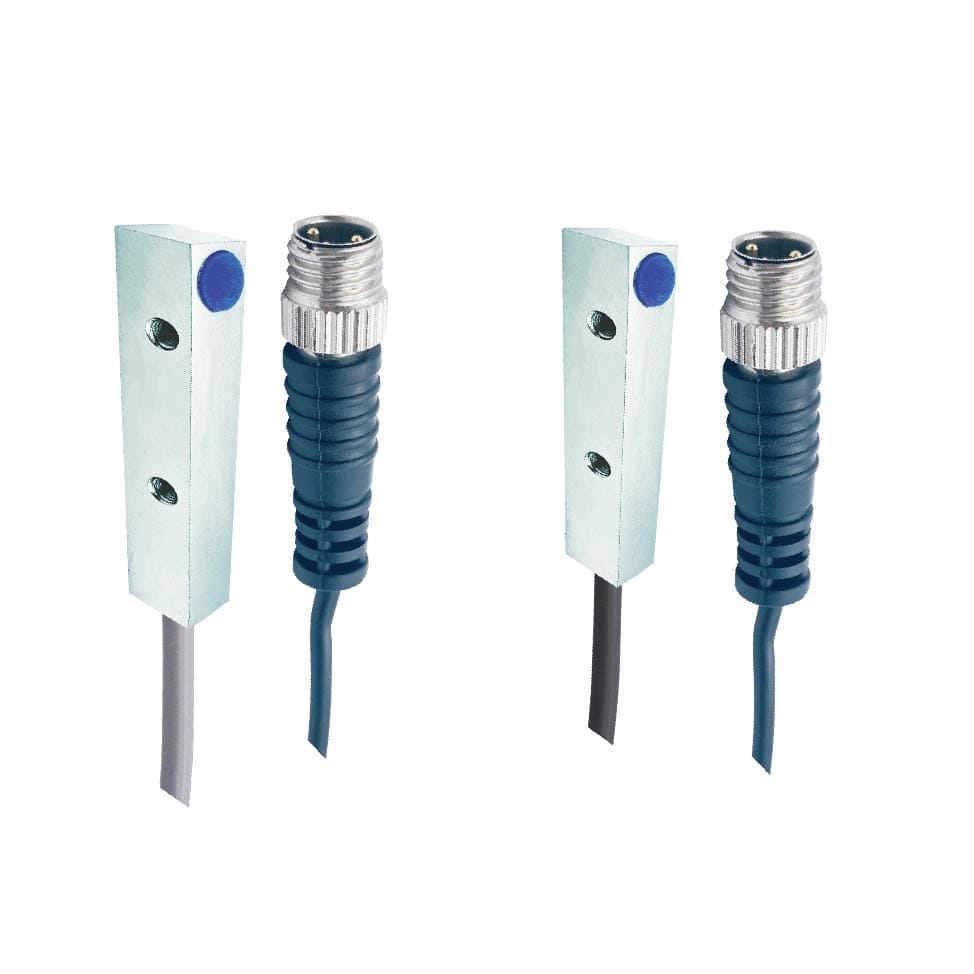

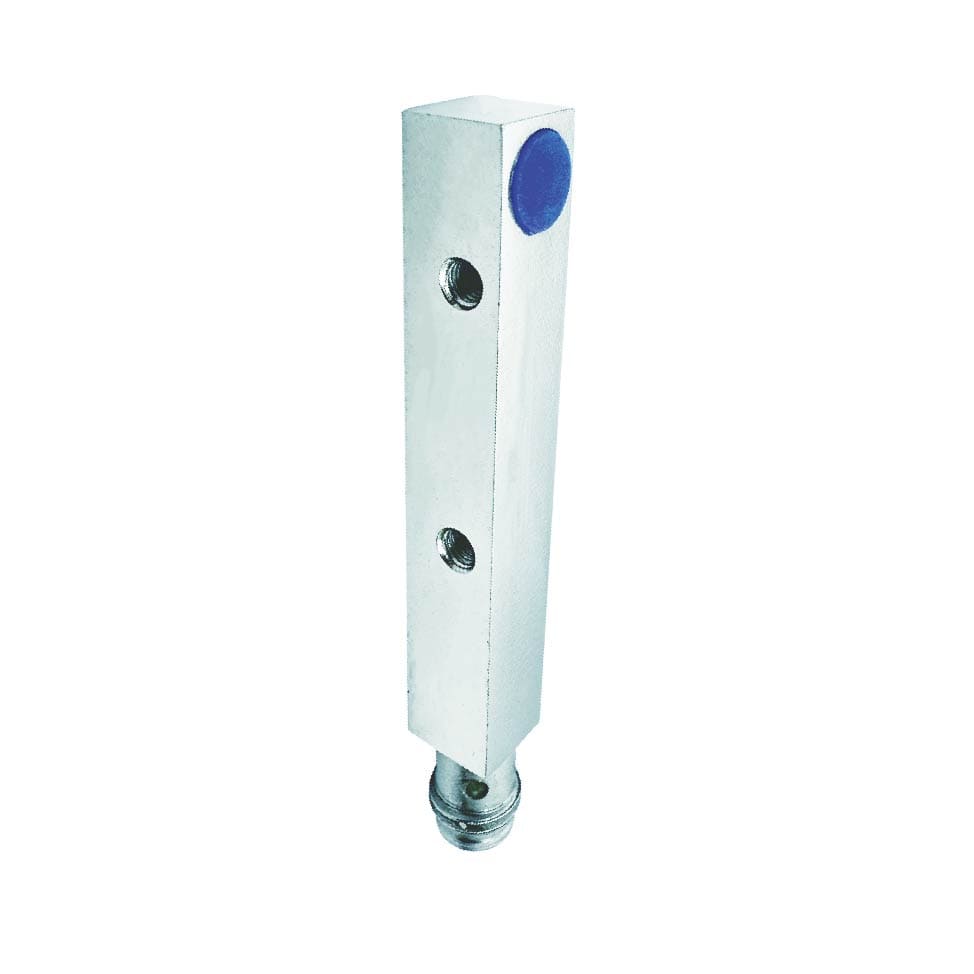

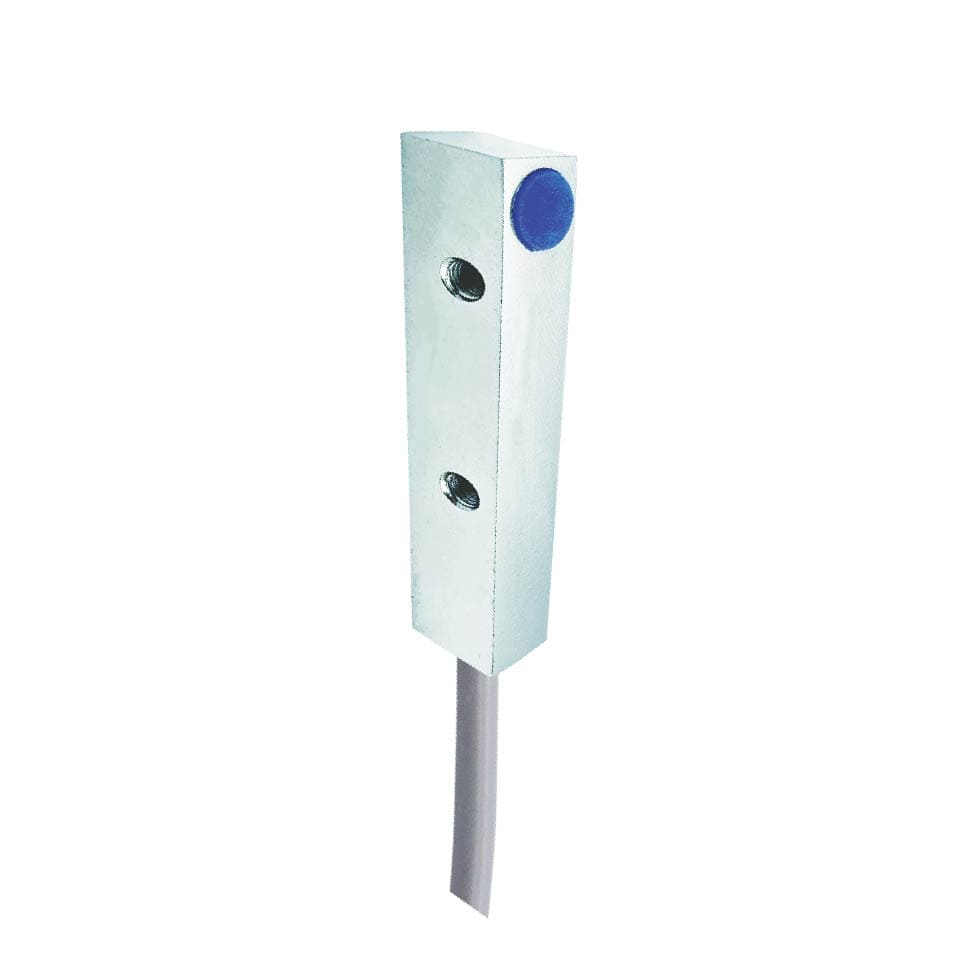

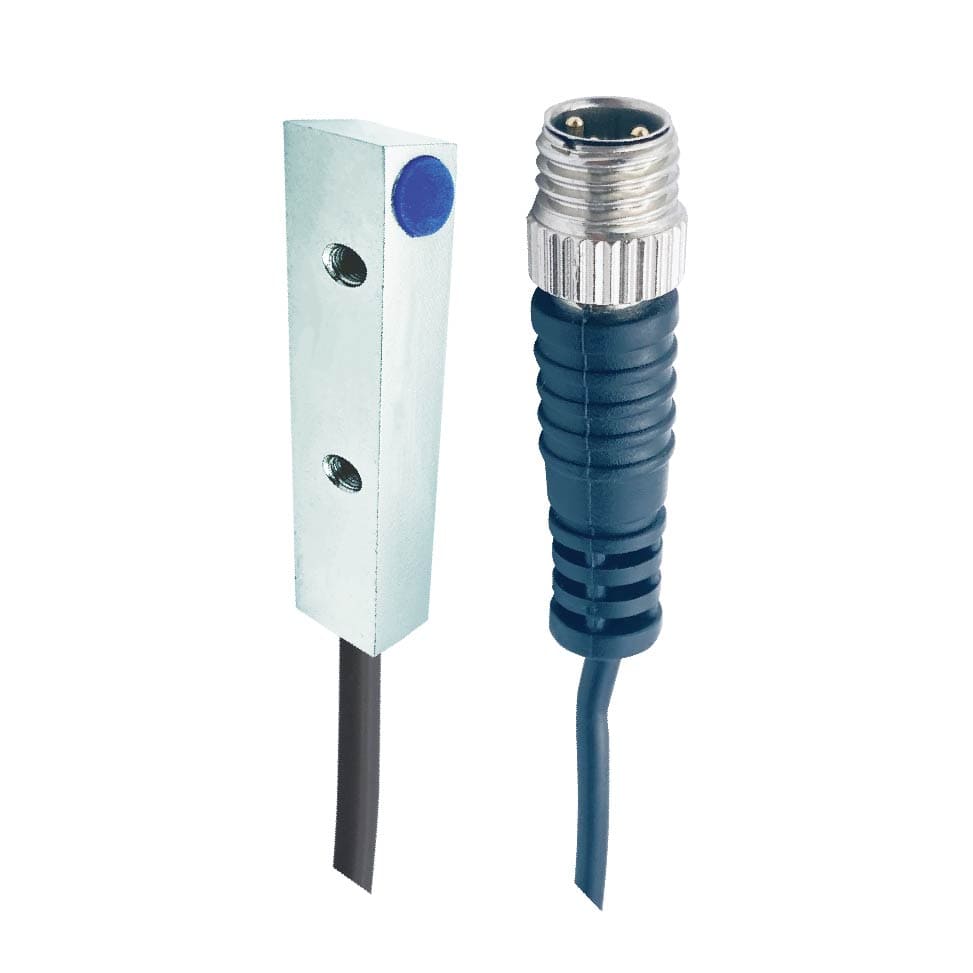

Achieve unmatched sensing precision with Bedook Inductive Proximity Sensor Cube 2/3mm DC 3 Wire.
Featuring NO/NC outputs, PNP/NPN types, and robust construction.featuring easy setup and exceptional durability.
Inductive Switch Product Features:
Explore the forefront of proximity sensing with the meticulously engineered Bedook Inductive Proximity Sensor Cube, a marvel of precision in a compact package:
- Sophisticated Size Options: Choose from 8mm×8mm×40mm or 8mm×8mm×30mm dimensions for seamless integration into various applications.
- Adaptable Output Configuration: Flexibility with NO/NC, PNP/NPN options, accommodating diverse electrical setups.
- Streamlined Connectivity: The DC 3-wire configuration promotes easy installation and stellar anti-interference performance.
- Precision Performance: With repeatability accuracy under 1%, depend on consistent and precise detections for crucial tasks.
- Built To Last: Encased in a rugged Brass, nickel-plated housing with POM sensing face, and designed with IP67 ingress protection for enduring performance in harsh conditions.
- Optimized for Extreme Conditions: Operating efficiently across a broad temperature range (-25 to 70℃), ensuring reliability in various environmental challenges.
Inductive Switch Technical Parameters:
| Appearance |  |
 |
 |
||||
| Model | NPN N.O | BB-Q8802N-C11P2 | BB-Q8803N-C11P2 | BB-Q8802N-C11P2-S | BB-Q8803N-C11P2-S | BB-Q8802N-C11S8 | BB-Q8803N-C11S8 |
| NPN N.C | BB-Q8802N-C21P2 | BB-Q8803N-C21P2 | BB-Q8802N-C21P2-S | BB-Q8803N-C21P2-S | BB-Q8802N-C21S8 | BB-Q8803N-C21S8 | |
| PNP N.O | BB-Q8802P-V11P2 | BB-Q8803P-V11P2 | BB-Q8802P-V11P2-S | BB-Q8803P-V11P2-S | BB-Q8802P-C11S8 | BB-Q8803P-C11S8 | |
| PNP N.C | BB-Q8802P-V21P2 | BB-Q8803P-V21P2 | BB-Q8802P-V21P2-S | BB-Q8803P-V21P2-S | BB-Q8802P-C21S8 | BB-Q8803P-C21S8 | |
| Appearance Structure | 8*8*40mm | 8*8*40mm | 8*8*30mm | 8*8*30mm | 8*8*60mm | 8*8*60mm | |
| Sensing Distance | 2mm(flush) | 3mm(Quasi-flush) | 2mm(flush) | 3mm(Quasi-flush) | 2mm(flush) | 3mm(Quasi-flush) | |
| Switching Frequency | 2000Hz | 1000Hz | 2000Hz | 1000Hz | 2000Hz | 1000Hz | |
| Operating voltage | 10…30VDC(±10%) | ||||||
| Voltage drop | ≤2.0V | ||||||
| Load current | 100mA | ||||||
| Leakge current | ≤0.01mA | ||||||
| No load current | ≤10mA(24V) | ||||||
| Hysteresis | ＜15%(Sr) | ||||||
| Repeatability | ＜1.0%(Sr) | ||||||
| Switch protection | Short Circuit Protection, Polarity reversal Protection, Power-On Protection | ||||||
| Indication LED | With (Action: LED Indicator Lights Up) | ||||||
| Ambient temperature | -25…70℃ | ||||||
| Ingress protection | IP67 | ||||||
| Housing Material | Brass, nickel-plated | ||||||
| Face material | POM | ||||||
| Connectors | 2m PVC Cable, 3*0.15mm² | 0.3m, M8 cable with connector | |||||
| Accessories | None | B8-3GV2/B8-3WV2 | |||||
| Appearance |  |
 |
|||
| Model | NPN N.O | BB-Q8802N-C11Z8 | BB-Q8803N-C11Z8 | BB-Q8802N-C11Z8-S | BB-Q8803N-C11Z8-S |
| NPN N.C | BB-Q8802N-C21Z8 | BB-Q8803N-C21Z8 | BB-Q8802N-C21Z8-S | BB-Q8803N-C21Z8-S | |
| PNP N.O | BB-Q8802P-C11Z8 | BB-Q8803P-C11Z8 | BB-Q8802P-C11Z8-S | BB-Q8803P-C11Z8-S | |
| PNP N.C | BB-Q8802P-C21Z8 | BB-Q8803P-C21Z8 | BB-Q8802P-C21Z8-S | BB-Q8803P-C21Z8-S | |
| Exterior Structure | 8*8*40mm | 8*8*40mm | 8*8*30mm | 8*8*30mm | |
| Sensing Distance | 2mm(flush) | 3mm(Quasi-flush) | 2mm(flush) | 3mm(Quasi-flush) | |
| Switching Frequency | 2000Hz | 1000Hz | 2000Hz | 1000Hz | |
| Operating voltage | 10…30VDC(±10%) | ||||
| Voltage drop | ≤2.0V | ||||
| Load current | 200mA | ||||
| Leakge current | ≤0.01mA | ||||
| No load current | ≤10mA(24V) | ||||
| Hysteresis | ＜15%(Sr) | ||||
| Repeatability | ＜1.0%(Sr) | ||||
| Switch protection | Short Circuit Protection, Polarity reversal Protection, Power-On Protection | ||||
| Indication LED | With (Action: LED Indicator Lights Up) | ||||
| Ambient temperature | -25…70℃ | ||||
| Ingress protection | IP67 | ||||
| Housing Material | Brass, nickel-plated | ||||
| Face material | POM | ||||
| Connectors | 0.3m, M8 cable with connector | ||||
| Accessories | B8-3GV2/B8-3WV2 | ||||
Inductive Switch Size Chart:

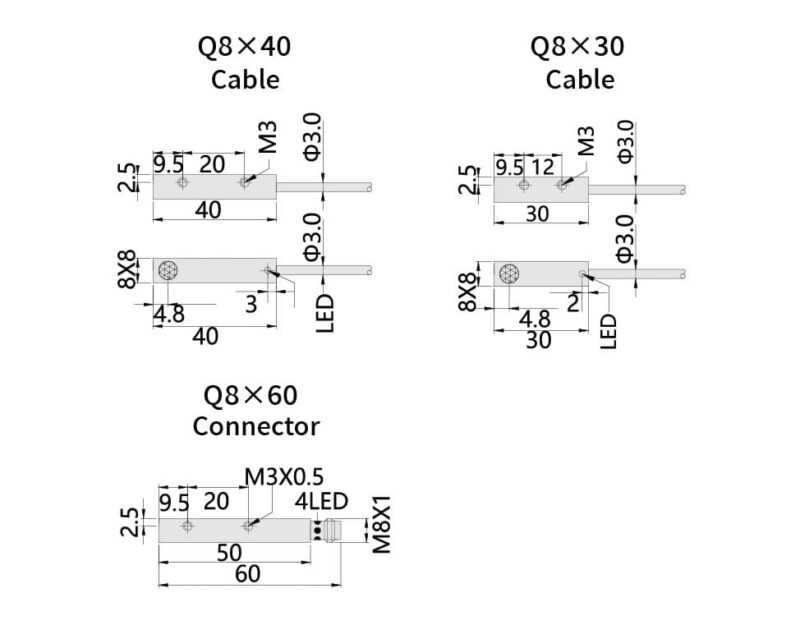

Bedook Inductive Proximity Sensor Cube 2-3mm DC 3 Wire-Size-01

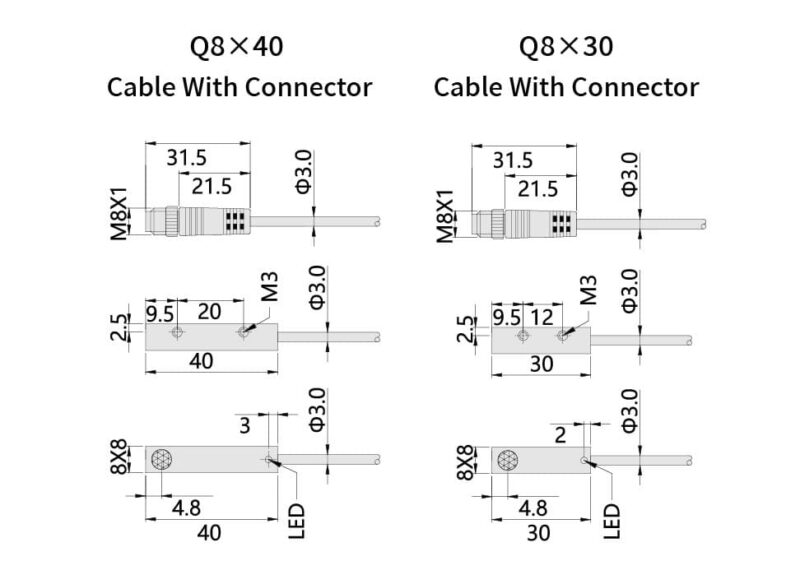

Bedook Inductive Proximity Sensor Cube 2-3mm DC 3 Wire-Size-02
