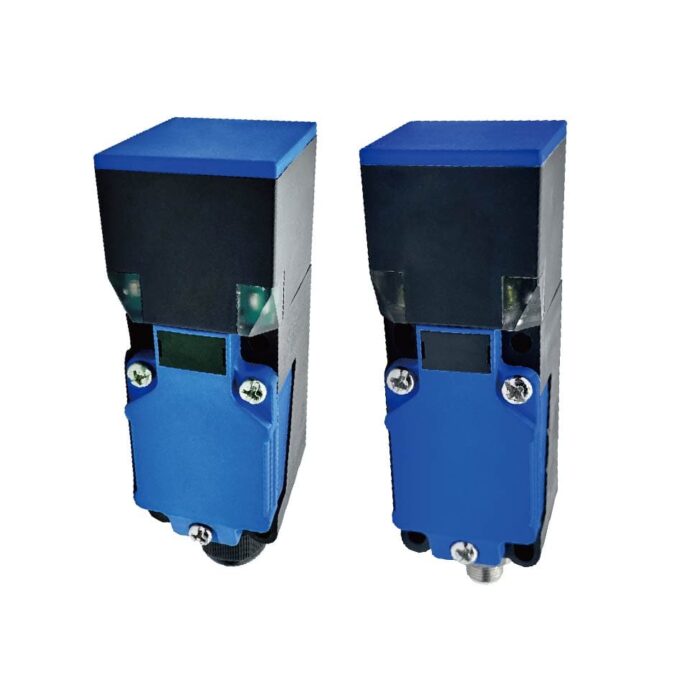

Master precision with Bedook Inductive Proximity Sensor Cube 20/30/40mm DC 3 Wire. Robust build, versatile output, & superior design for exacting applications.
Maximize proximity control with Bedook’s Sensor Cube. Offering multi-range accuracy in a durable, interference-resistant design.
Inductive Switch Product Features:
Choose Bedook’s Cube Sensor for precision proximity detection. Superior range options, industry-standard compliance, and robust build converge in one sensor.
- Broad Sensing Range: Adaptable to diverse applications, available in 15, 20, 30, and 40mm sensing distance models.
- Precision Engineering: High repeatability accuracy with less than 1.0% deviation ensures meticulous detection.
- Enhanced Interference Immunity: A DC 3-wire design significantly reduces electrical noise, enhancing operational stability.
- Durable Construction: Encased in ABS housing with IP67 protection, the sensor is built to withstand harsh conditions.
- Flexible Installation Options: Ease of setup with terminal blocks up to 2.5mm² or M12 connectors to suit various installation scenarios.
- Assured Quality and Compliance: Comes with globally recognized certifications including CE, UKCA, and ROHS, assuring international standards.

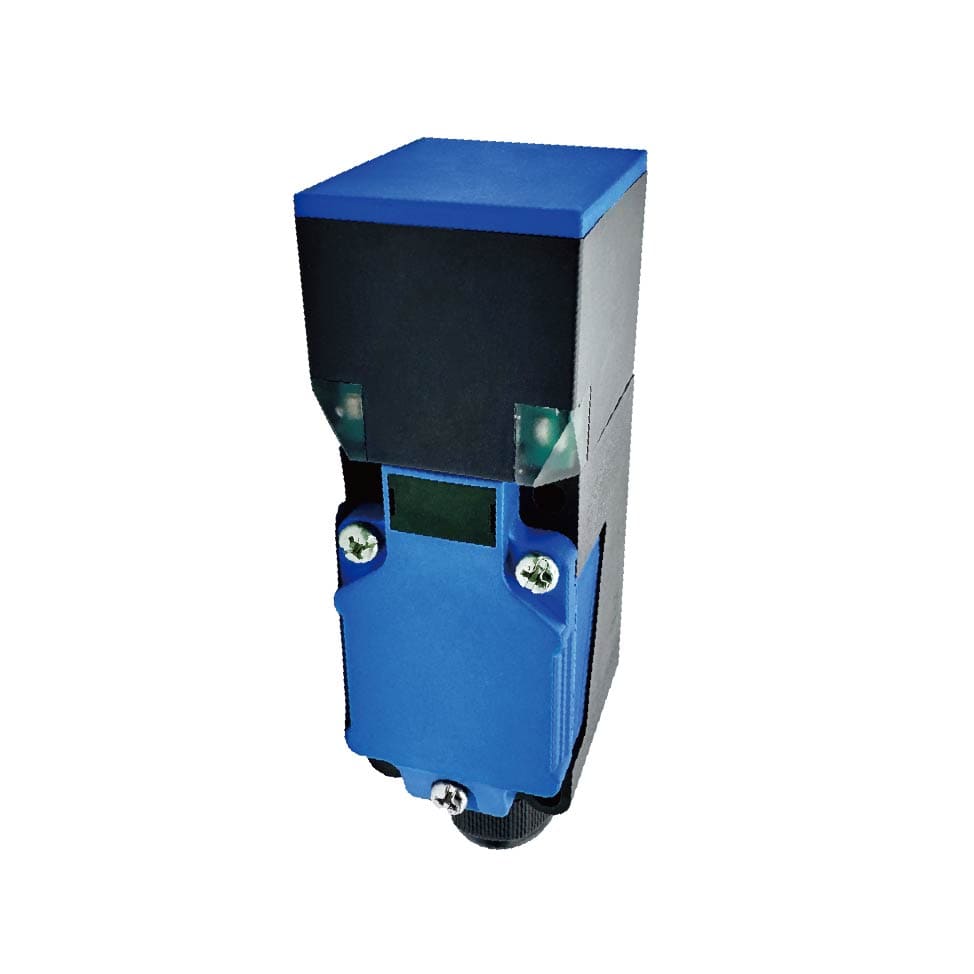

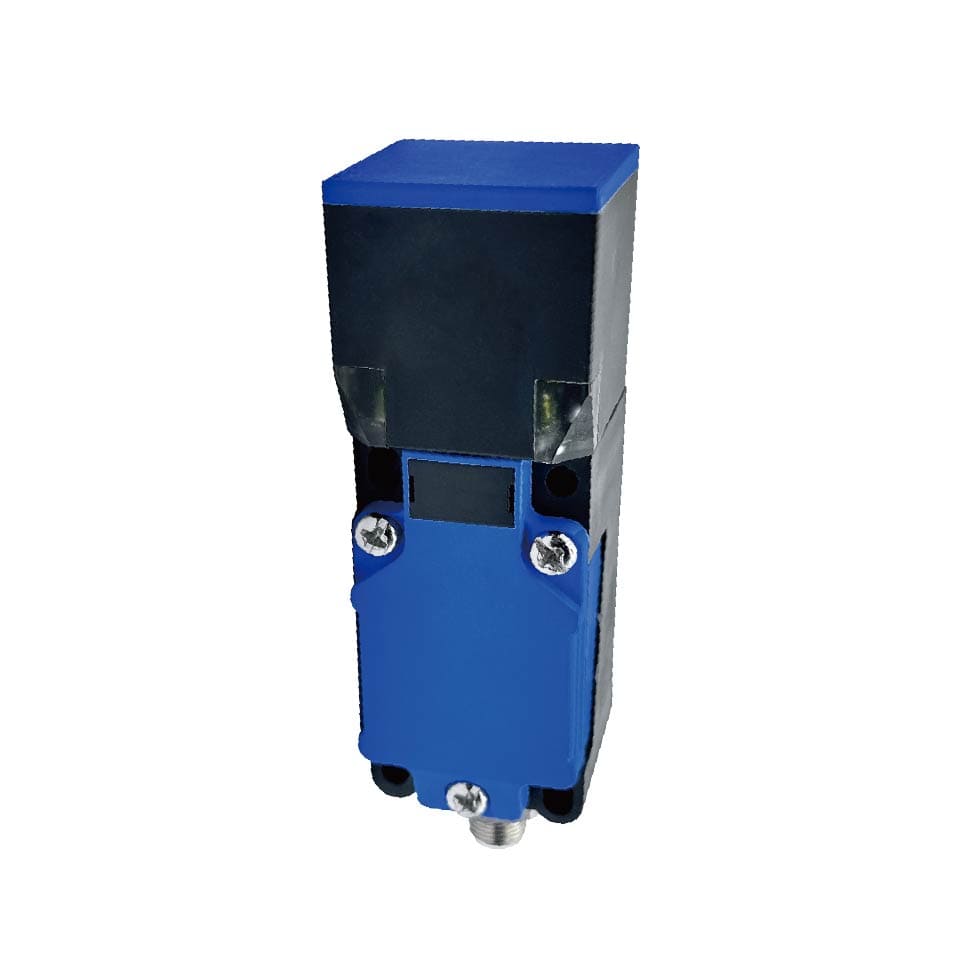

| Appearance |  |
||||||
| Model | NPN N.O | BB-Q4015N-P11T | BN-Q4020N-P11T | BB-Q4030N-P11T | BN-Q4020N-P11T | BB-Q4030N-P11T | BN-Q4040N-P11T |
| NPN N.C | BB-Q4015N-P21T | BN-Q4020N-P21T | BB-Q4030N-P21T | BN-Q4020N-P21T | BB-Q4030N-P21T | BN-Q4040N-P21T | |
| PNP N.O | BB-Q4015P-P11T | BN-Q4020P-P11T | BB-Q4030P-P11T | BN-Q4020P-P11T | BB-Q4030P-P11T | BN-Q4040P-P11T | |
| PNP N.C | BB-Q4015P-P21T | BN-Q4020P-P21T | BB-Q4030P-P21T | BN-Q4020P-P21T | BB-Q4030P-P21T | BN-Q4040P-P21T | |
| Exterior Structure | 40*40*115mm | 40*40*115mm | 40*40*115mm | 40*40*115mm | 40*40*115mm | 40*40*115mm | |
| Sensing Distance | 15mm(Flush） | 20mm(Flush） | 30mm(Quasi-flush) | 20mm(Non-flush) | 30mm(Non-flush) | 40mm(Non-flush) | |
| Switching Frequency | 300Hz | 300Hz | 100Hz | 300Hz | 300Hz | 100Hz | |
| Operating voltage | 10…30VDC(±10%) | ||||||
| Voltage drop | ≤2.0V | ||||||
| Load current | 200mA | ||||||
| Leakge current | ≤0.01mA | ||||||
| No load current | ≤10mA(24V) | ||||||
| Hysteresis | ＜15%(Sr) | ||||||
| Repeatability | ＜1.0%(Sr) | ||||||
| Switch protection | Short Circuit Protection, Polarity reversal Protection, Power-On Protection | ||||||
| Indication LED | With (Action: LED Indicator Lights Up) | ||||||
| Ambient temperature | -25…70℃ | ||||||
| Ingress protection | IP67 | ||||||
| Housing Material | PBT | ||||||
| Face material | PBT | ||||||
| Connectors | Triminal up to 2.5mm² | ||||||
| Accessories | None | ||||||
| Appearance |  |
||||||
| Model | NPN N.O | BB-Q4015N-P11S12 | BN-Q4020N-P11S12 | BB-Q4030N-P11S12 | BN-Q4020N-P11S12 | BB-Q4030N-P11S12 | BN-Q4040N-P11S12 |
| NPN N.C | BB-Q4015N-P21S12 | BN-Q4020N-P21S12 | BB-Q4030N-P21S12 | BN-Q4020N-P21S12 | BB-Q4030N-P21S12 | BN-Q4040N-P21S12 | |
| PNP N.O | BB-Q4015P-P11S12 | BN-Q4020P-P11S12 | BB-Q4030P-P11S12 | BN-Q4020P-P11S12 | BB-Q4030P-P11S12 | BN-Q4040P-P11S12 | |
| PNP N.C | BB-Q4015P-P21S12 | BN-Q4020P-P21S12 | BB-Q4030P-P21S12 | BN-Q4020P-P21S12 | BB-Q4030P-P21S12 | BN-Q4040P-P21S12 | |
| Exterior Structure | 40*40*115mm | 40*40*115mm | 40*40*115mm | 40*40*115mm | 40*40*115mm | 40*40*115mm | |
| Sensing Distance | 15mm(Flush） | 20mm(Flush） | 30mm(Quasi-flush) | 20mm(Non-flush) | 30mm(Non-flush) | 40mm(Non-flush) | |
| Switching Frequency | 300Hz | 300Hz | 100Hz | 300Hz | 300Hz | 100Hz | |
| Operating voltage | 10…30VDC(±10%) | ||||||
| Voltage drop | ≤2.0V | ||||||
| Load current | 200mA | ||||||
| Leakge current | ≤0.01mA | ||||||
| No load current | ≤10mA(24V) | ||||||
| Hysteresis | ＜15%(Sr) | ||||||
| Repeatability | ＜1.0%(Sr) | ||||||
| Switch protection | Short Circuit Protection, Polarity reversal Protection, Power-On Protection | ||||||
| Indication LED | With (Action: LED Indicator Lights Up) | ||||||
| Ambient temperature | -25…70℃ | ||||||
| Ingress protection | IP67 | ||||||
| Housing Material | PBT | ||||||
| Face material | PBT | ||||||
| Connectors | Triminal up to 2.5mm²/M12 connector | ||||||
| Accessories | B12-4GV2/B12-4WV2 | ||||||

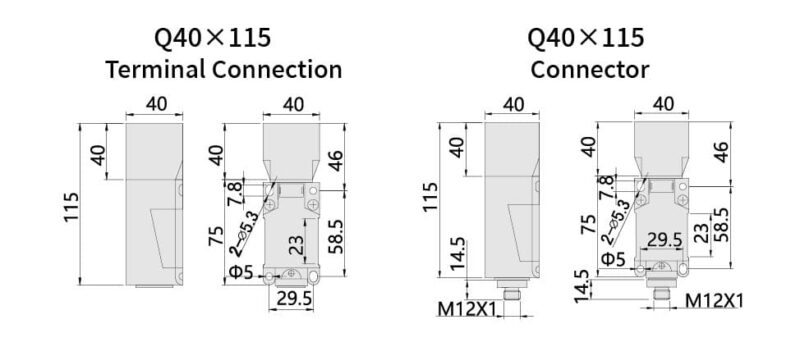

Inductive Switch Size Chart:
