Bedook Inductive Proximity Sensor Cube 20/30/50mm DC 4 Wire

Unlock unparalleled accuracy & durability with Bedook Inductive Proximity Sensor Cube 20/30/50mm DC 4 Wire. Ideal for complex industrial tasks.

Inductive Switch Product Features:

Enhance your industrial performance with the Bedook Inductive Proximity Sensor. Streamlining operations with its compact design and advanced technology, this sensor ensures reliability and precision across various applications.

• Compact and Robust Designs: Available in two different dimensions (40mm×40mm×115mm and 80mm×80mm×40mm), this sensor is built to fit seamlessly into any industrial environment, ensuring robust performance in even the most demanding conditions.
• Versatile Sensing Distances: With the flexibility of 15/20/30/50mm sensing distances, accompanied by adjusting switching frequencies (150Hz/100Hz), this sensor can be tailored to meet the specific requirements of diverse applications.
• Dual Output for Enhanced Flexibility: The DC 4-Wire design offers advanced functionality with two switch outputs (NO+NC), providing versatile signal options to cater to different operational needs.
• High Repeatability and Precision: The sensor’s repeatability accuracy of less than 1.0% guarantees outstanding precision, ensuring the reliability and efficiency of your system’s measurements.
• Durable Construction and Wide Operating Range: Crafted with PBT for housing and face material and boasting IP67 ingress protection, the sensor is designed to withstand extreme conditions. Its operating temperature range of -25 to 70°C meets the challenges of various industrial environments.
• Comprehensive Certifications and Connectivity Options: Meeting global standards with CE, UKCA, and ROHS certifications, this sensor is recognized for its quality worldwide. Choose between terminal (up to 2.5mm²) or M12 connector options for seamless integration.

Switching Frequency:150Hz/100Hz

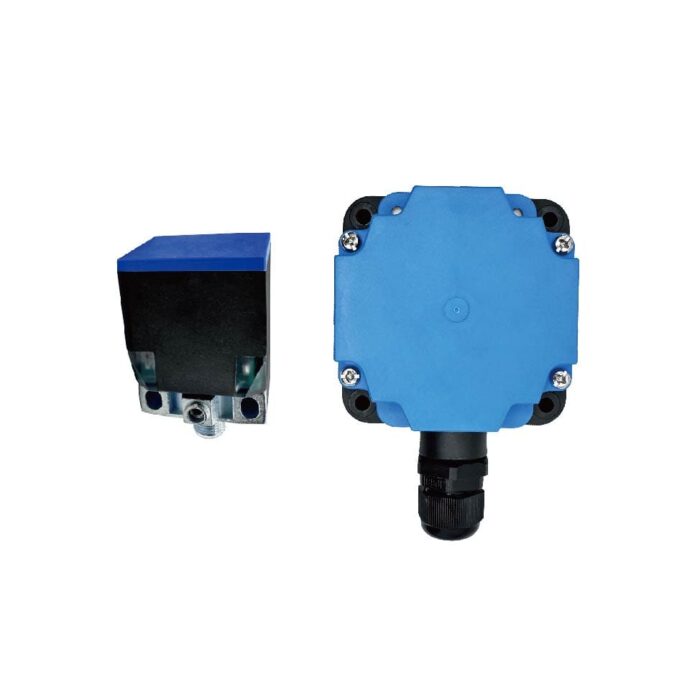

Appearance
Model	NPN NO+NC	BB-Q4015N-P31S12-S	BN-Q40□□N-P31S12-S	BN-Q8050N-P31T
	PNP NO+NC	BB-Q4015P-P31S12-S	BN-Q40□□P-P31S12-S	BN-Q8050P-P31T

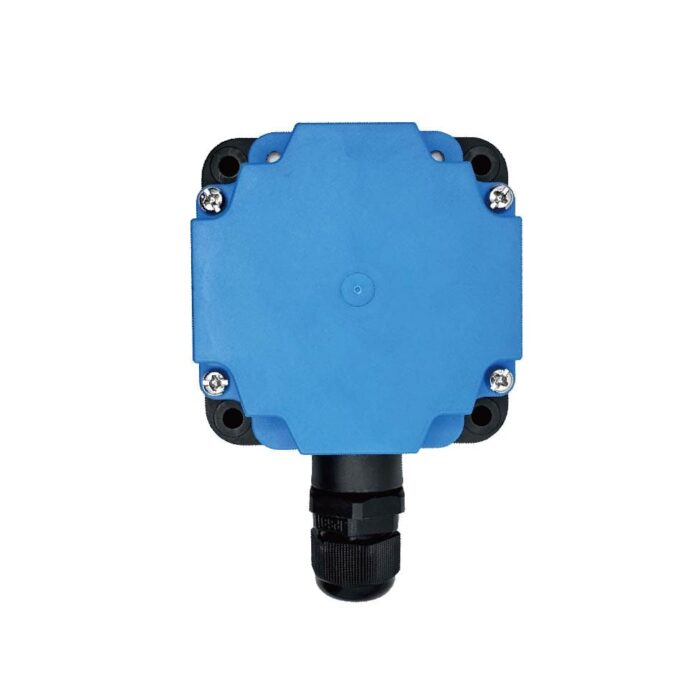

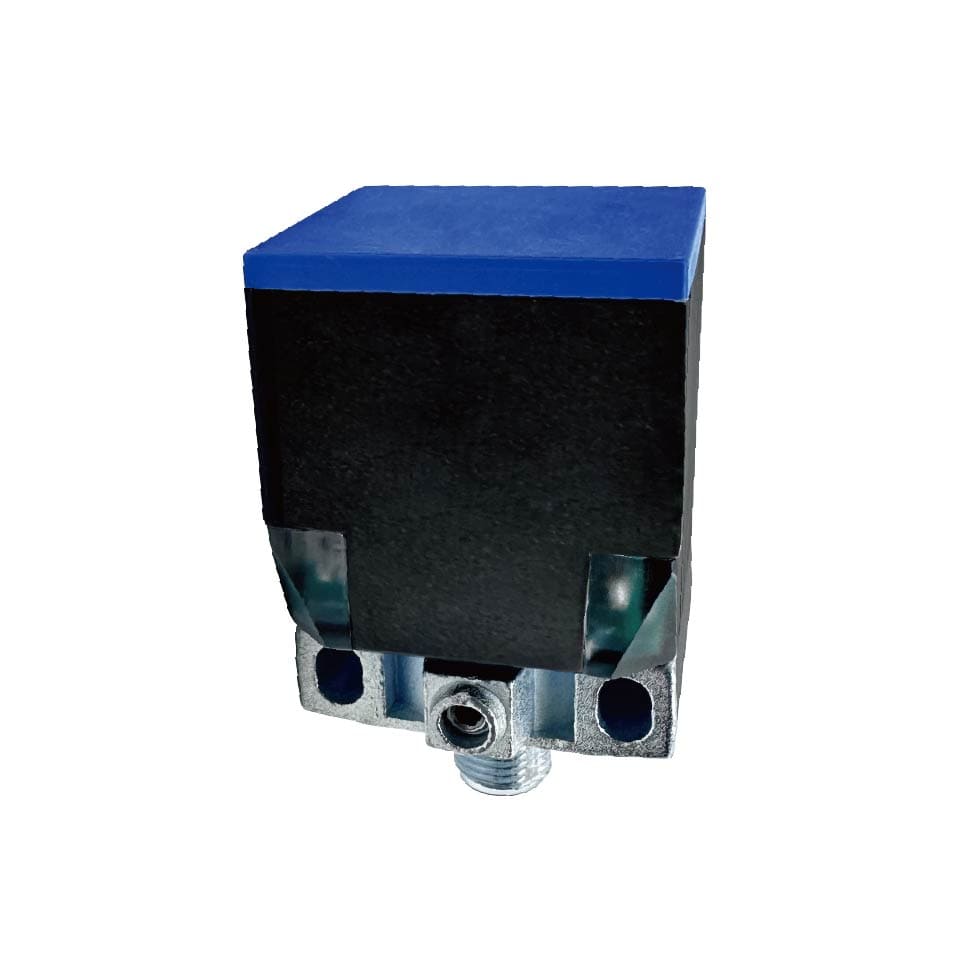

Appearance Structure		40*40*54mm		80*80*40mm
Sensing Distance		15mm(Flush mounting）/20/30mm(Non-flush mounting)		50mm(Non-flush mounting)
Switching Frequency		150Hz(15mm)/100Hz(20/30mm)		100Hz
Operating voltage		10…30VDC(±10%)
Voltage drop		≤2.0V
Load current		200mA
No load current		≤10mA(24V)
Hysteresis		＜15%(Sr)
Repeatability		＜1.0%(Sr)
Switch protection		Short Circuit Protection, Polarity reversal Protection, Power-On Protection
Indication LED		With (Action: LED Indicator Lights Up)
Ambient temperature		-25…70℃
Ingress protection		IP67
Housing Material		PBT
Face material		PBT
Connectors		Terminal up to 2.5mm²/M12 connector
Accessories		B12-4GV2/B12-4WV2

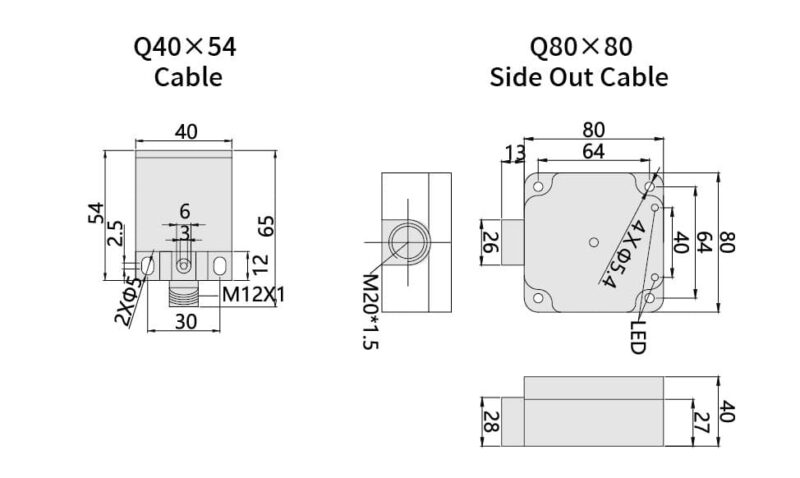

Inductive Switch Size Chart:

Bedook Inductive Proximity Sensor Cube 20-30-50mm DC 4 Wire-Size01

Elevate your precision sensing with Bedook Inductive Proximity Sensor Cube 20/30/50mm DC 4 Wire. Compact, robust, and intelligent design for unmatched performance.

At Bedook, we are dedicated to advancing sensor technology, offering custom solutions, competitive pricing, and quality assurance to meet your unique needs. Trust our innovation to elevate your industrial applications.
