Description

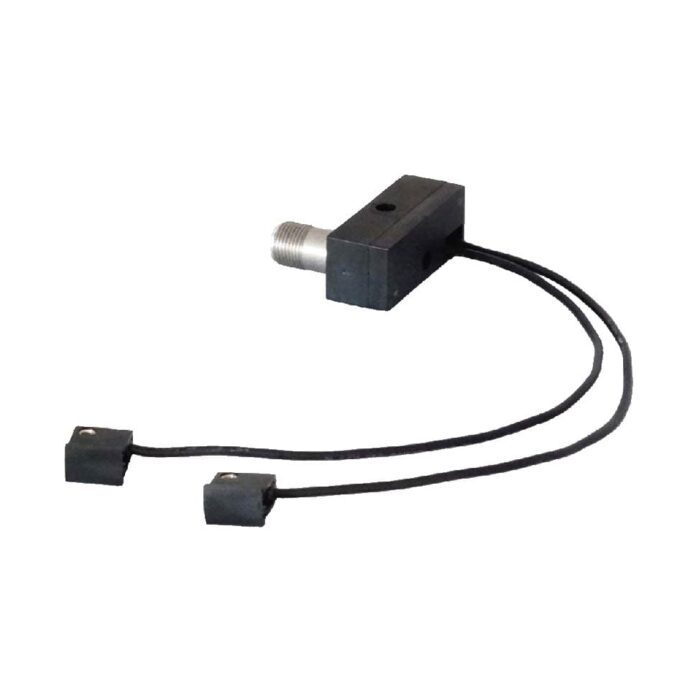

The Bedook Inductive Proximity Sensor Cube 2mm DC 4 Wire is robust, accurate and suited for diverse industrial tasks.
Inductive Switch Product Features:
Introducing the Bedook Sensor, a compact but powerful tool designed to revolutionize industrial sensing. Its superior engineering is complemented by a design that emphasizes precision, adaptability, and resilience.
- Unmatched Precision: Achieves less than 2.0% repeatability accuracy, ensuring consistent and reliable measurements.
- Compact Design: This Inductive Switch is small size enables easy integration into a wide range of machinery, saving space while offering optimal performance.
- Dual Output Options: Features two switch outputs (NO+NC) for increased functionality compared to standard DC 3-Wire sensors.
- Robust Materials: Constructed with PBT-GF30-V0 plastic and PP face material for durability. Rated IP67 for ingress protection.
- Adaptable Connectivity: Offers M12 connectors for a secure and versatile connection solution, fitting various industrial requirements.
- Certified Quality: Backed by international certifications such as CE, UKCA, and ROHS, ensuring compliance and safety across global markets.
Switching Frequency:150Hz/100Hz
| Appearance |  |
|
| Model | NPN NO+NC | BN-Q4502N-P41S12 |
| PNP NO+NC | BN-Q4502P-P41S12 | |
| Sensing Distance | 2mm(Non-flush mounting) | |
| Switching Frequency | 30Hz | |
| Operating voltage | 10…30VDC(±10%) | |
| Voltage drop | ≤2.0V | |
| Load current | 150mA/24VDC | |
| No load current | ≤20mA(24V) | |
| Hysteresis | ＜15%(Sr) | |
| Repeatability | ＜2.0%(Sr) | |
| Switch protection | Short Circuit Protection, Polarity reversal Protection, Power-On Protection | |
| Indication LED | With (Action: LED Indicator Lights Up) | |
| Ambient temperature | -25…70℃ | |
| Ingress protection | IP67 | |
| Housing Material | Plastic, PBT-GF30-V0 | |
| Face material | PP | |
| Indication LED | Yellow/Red:output, Green:power on | |
| Connectors | M12 connector | |
| Accessories | B12-4GV2/B12-4WV2 | |
Inductive Switch Size Chart:
Bedook Inductive Proximity Sensor Cube 2mm DC 4 Wire-size
Redefine sensing with Bedook Inductive Proximity Sensor Cube 2mm DC 4 Wire. Engineered for exceptional precision and robustness in challenging environments.
As a leading manufacturer of sensor technology, Bedook is committed to innovation and quality, providing competitively priced and customizable sensing solutions that guarantee performance and reliability.
Explore Bedook: Your Trusted Sensor Manufacturer
At Bedook, we specialize in designing, developing, and manufacturing a comprehensive range of proximity sensors and switches. Our extensive product lineup includes:
- Inductive Proximity Sensors
- Capacitive Proximity Sensors
- Photoelectric Sensors
- Ultrasonic Sensors
- Solid State Relays
- Various Accessories
With over 10,000 detailed product variations and a robust R&D team, we take pride in our ability to meet your unique requirements with tailored solutions and reliable performance.
Whether you’re seeking off-the-shelf products or customized designs, Bedook offers the expertise and production capacity to ensure your satisfaction.
Get in Touch Today!
We value your interest in our products and warmly encourage you to send us an inquiry. Let us help you find the perfect sensor solution for your application.
Thank you for considering Bedook—your trusted partner in innovation and quality manufacturing. We look forward to collaborating with you!
