Bedook Inductive Proximity Sensor Cube 4/2/4mm DC 3 Wire
The Inductive Proximity Sensor Cube 4/2/4mm DC 3 Wire features 2mm (flush) or 4mm (non-flush) sensing ranges, 1000Hz switching frequency, and advanced protection circuits. Its IP67-rated ABS housing ensures robust performance in harsh environments, while the LED indicator simplifies diagnostics. Operating at 10-30V DC with low leakage current (<0.01mA), this compact sensor is ideal for industrial automation.
Description

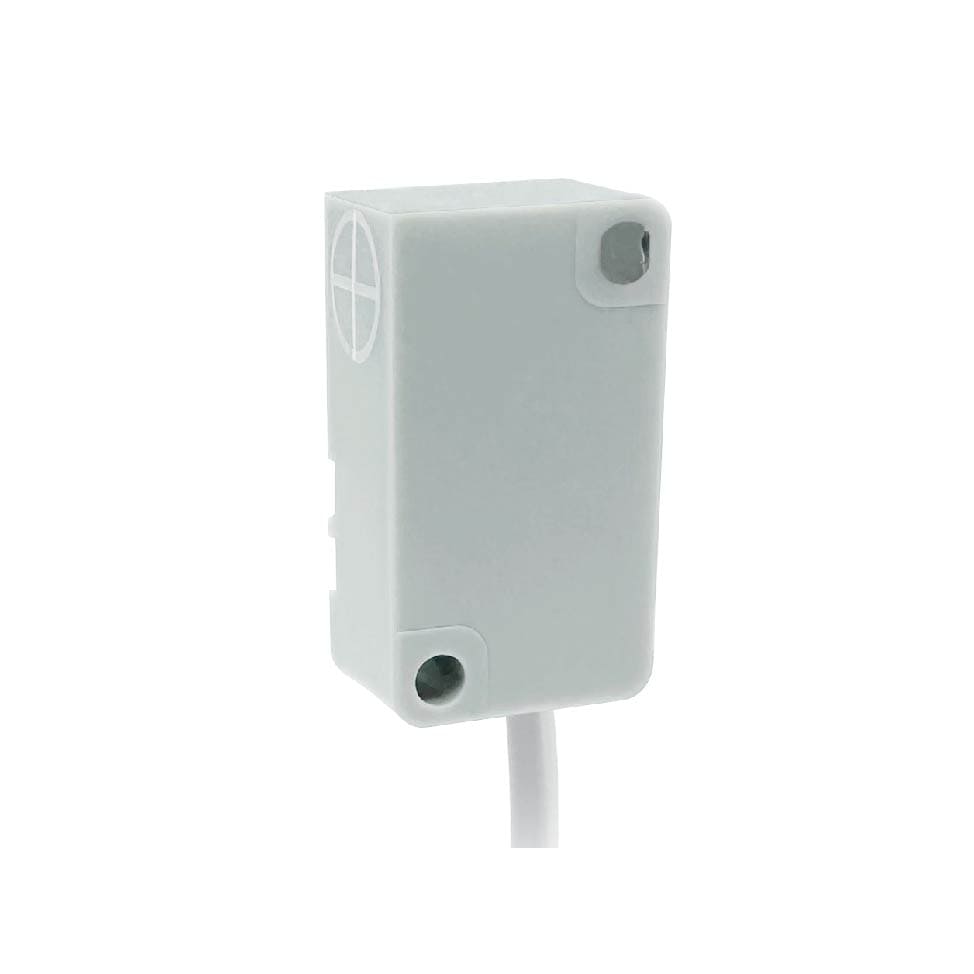

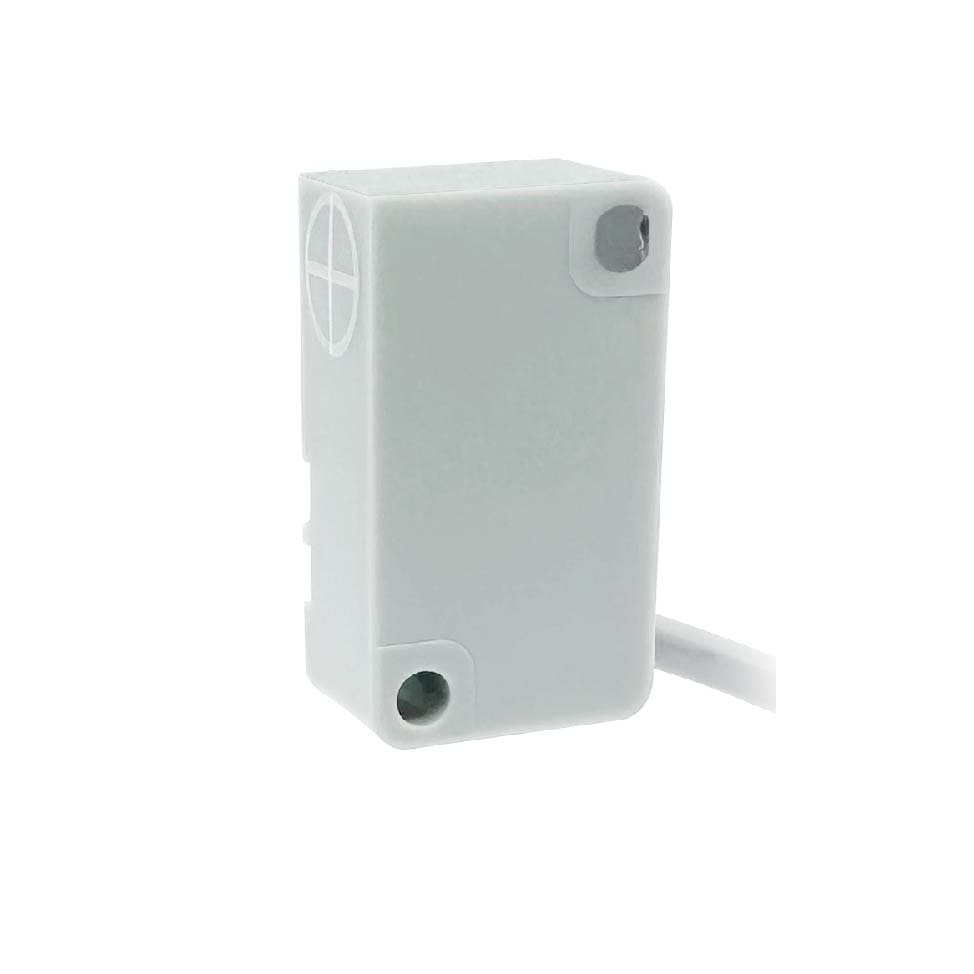

The BEDOOK Inductive Proximity Sensor Cube 4/2/4mm DC 3 Wire is a compact, high-performance sensor designed to detect metallic objects with precision and reliability.
Featuring a cube-shaped design for versatile mounting, this sensor offers flush and non-flush detection options with sensing distances of 2mm and 4mm. Its robust ABS housing, IP67 protection, and advanced circuit safeguards ensure consistent performance in industrial environments.
The sensor operates on a 10-30V DC power supply and delivers stable switching at 1000Hz, making it ideal for high-speed automation systems.
Inductive Switch Product Features:
- Compact Cube Design: The sensor’s 18×10×30mm or 40.5×12×26mm compact design simplifies integration into space-constrained installations while maintaining durability.
- Precise Sensing Range: Choose between flush (2mm) or non-flush (4mm) detection to suit varying operational needs and maximize installation flexibility.
- High Switching Frequency: With a 1000Hz switching frequency, the sensor is optimized for high-speed detection in dynamic industrial applications.
- Robust Build: An ABS housing with IP67 ingress protection ensures resistance to dust, water, and harsh environments, ensuring long-lasting durability.
- Advanced Circuit Protection: Built-in short-circuit, polarity reversal, and power-on protection enhance operational safety and reliability.
- Low Power Consumption: Features low leakage current (<0.01mA) and a minimal voltage drop (≤2.0V), ensuring efficient energy usage.
- User-Friendly Features: An LED action indicator provides clear operational status, enabling quick diagnostics and setup.
Inductive Switch Technical Parameters:

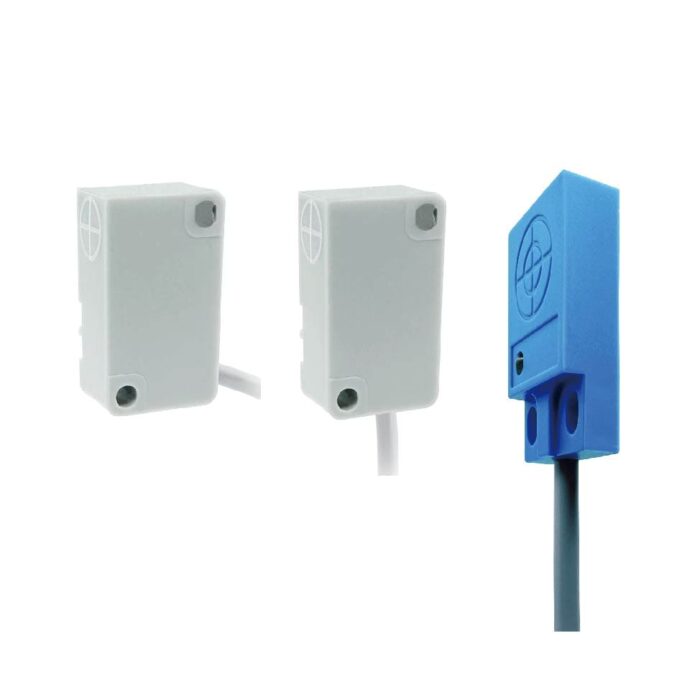

| Appearance | ||||
| Model | NPN N.O | BB-Q18C04N-P11P2 | BB-Q25T02N-P11P2 | BB-Q25T04N-P11P2 |
| NPN N.C | BB-Q18C04N-P21P2 | BB-Q25T02N-P21P2 | BB-Q25T04N-P21P2 | |
| PNP N.O | BB-Q18C04P-P11P2 | BB-Q25T02P-P11P2 | BB-Q25T04P-P11P2 | |
| PNP N.C | BB-Q18C04P-P21P2 | BB-Q25T02P-P21P2 | BB-Q25T04P-P21P2 | |

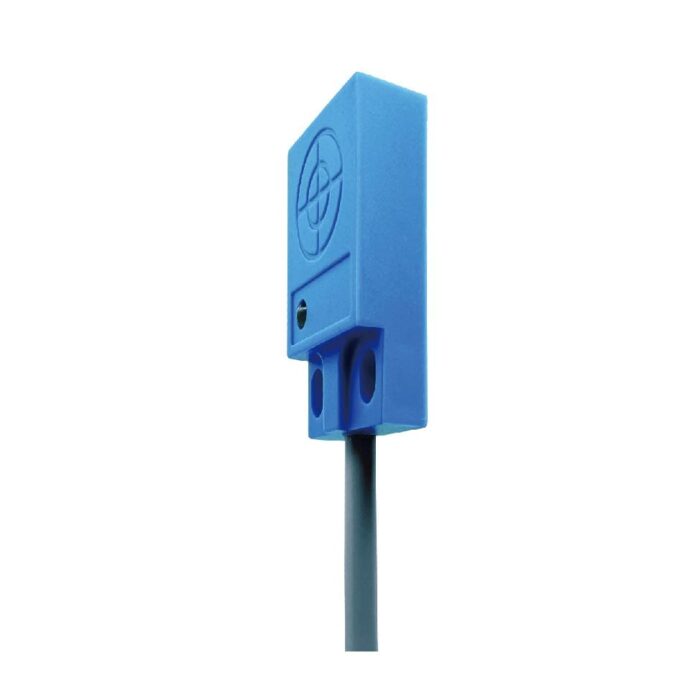

| Exterior Structure | 18*10*30mm | 40.5*12*26mm | 40.5*12*26mm | |
| Sensing Distance | 4mm(flush) | 2mm(flush) | 4mm(Non-flush) | |
| Switching Frequency | 1000Hz | |||
| Operating voltage | 10…30VDC(±10%) | |||
| Voltage drop | ≤2.0V | |||
| Load current | 200mA | |||
| Leakge current | ≤0.01mA | |||
| No load current | ≤10mA(24V) | |||
| Hysteresis | ＜15%(Sr) | |||
| Repeatability | ＜1.0%(Sr) | |||
| Switch protection | Short Circuit Protection, Polarity reversal Protection, Power-On Protection | |||
| Indication LED | With (Action: LED Indicator Lights Up) | |||
| Ambient temperature | -25…70℃ | |||
| Ingress protection | IP67 | |||
| Housing Material | ABS | |||
| Face material | ABS | |||
| Connectors | 2m PVC Cable, 3*0.25mm² | |||
| Accessories | None | |||
Applications
- Automated Assembly Lines: Ideal for detecting metallic parts in fast-moving production systems.
- Material Handling Systems: Enhances automation by providing accurate object detection in conveyor applications.
- Robotics: Facilitates precise positioning and object sensing in robotic operations.
- Packaging Machinery: Ensures correct placement and alignment during packaging processes.
- Safety Systems: Acts as a trigger or boundary sensor in industrial safety protocols.
- Metal Detection: Perfect for applications requiring non-contact sensing of ferrous and non-ferrous metals.
Bedook Inductive Proximity Sensor Cube 2/3/4/6mm DC 3 Wire: precision in every millimeter. Tailored for high performance in challenging environments.
