Description

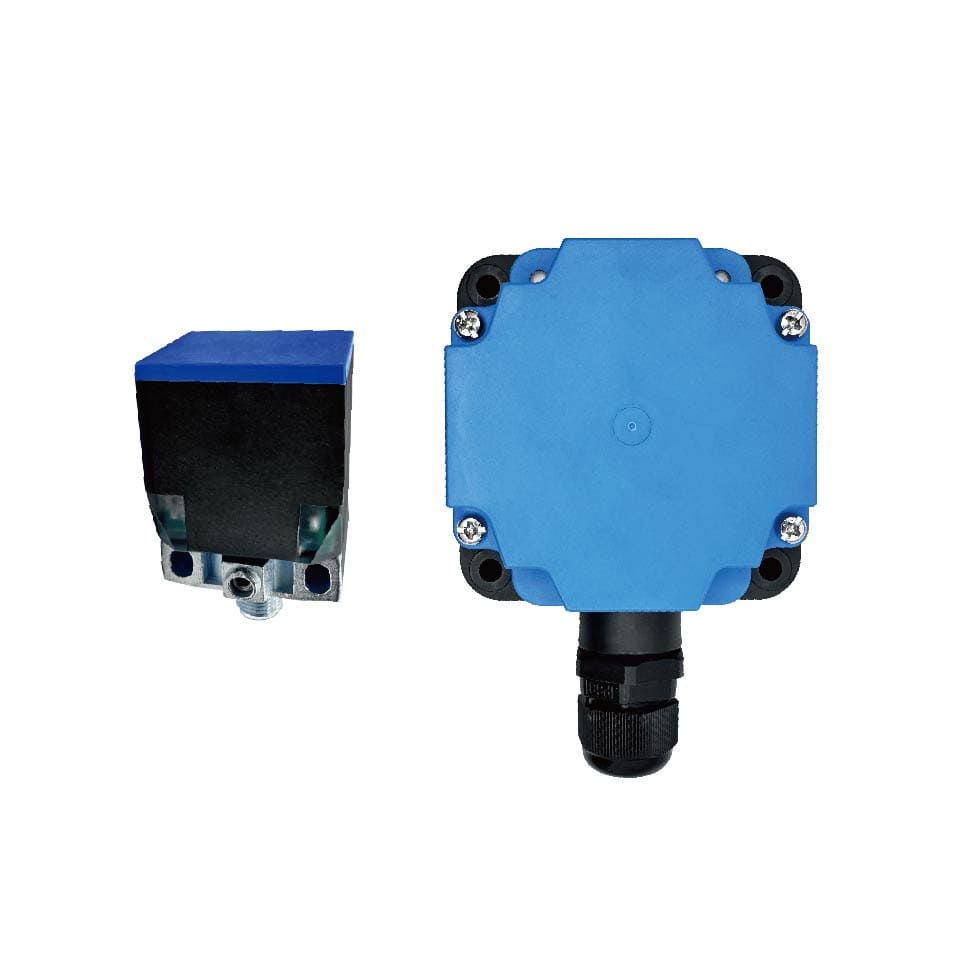

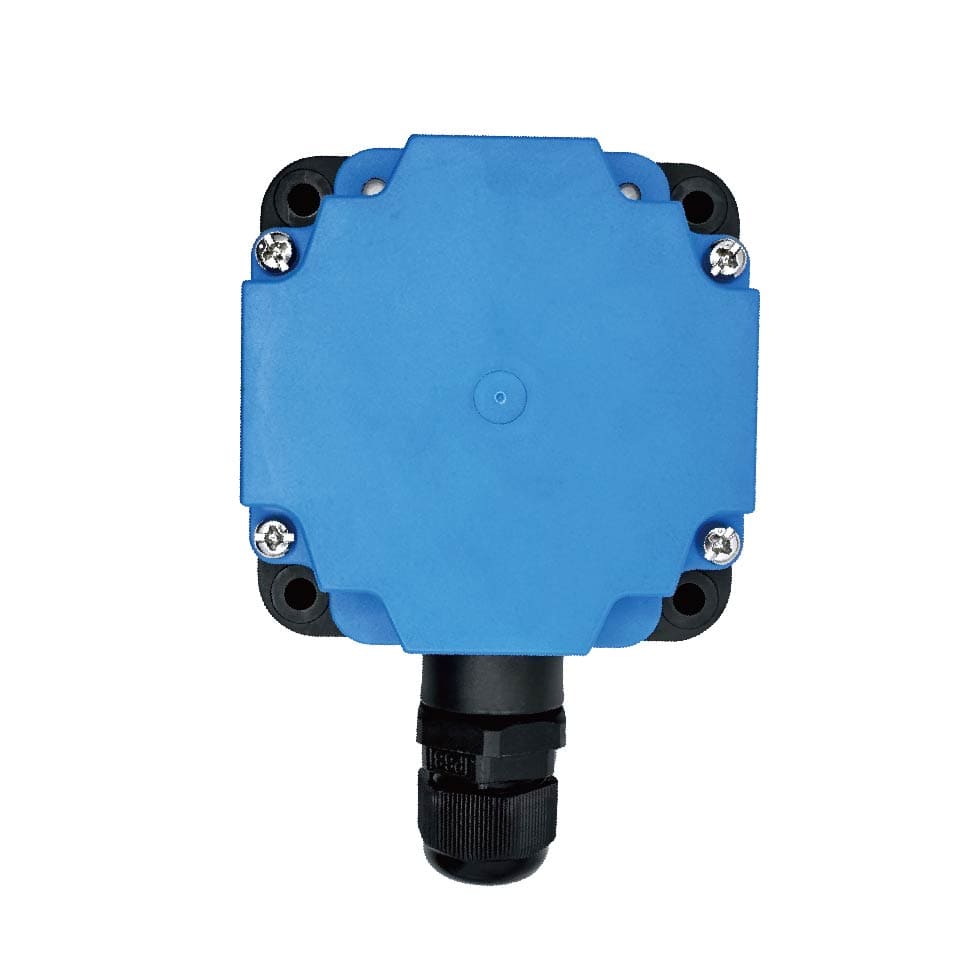

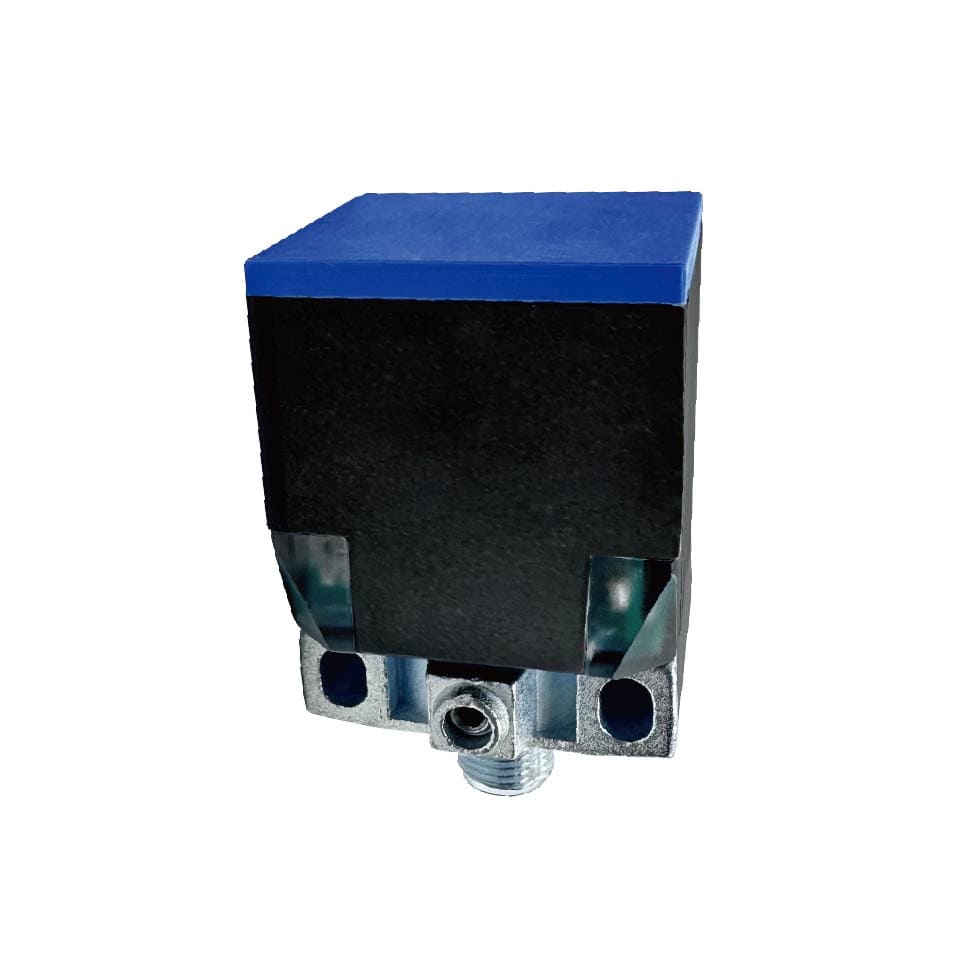

Explore the Bedook Inductive Proximity Sensor Cube 80×80 AC/DC 2 Wire, available in two variants: 40x40x54mm and 80x80x40mm, designed to cater to your specific industrial needs.
Each model is fortified with a simple 2-wire system and is adept at operating over conventional AC/DC power supplies, ranging from 20 to 250V.
Inductive Switch Product Features:
This sensor excels in industrial settings with its robust design, multiple sensing distances, and high precision. Ideal for complex environments, it ensures reliable detection.
- Variable Sizing: Choose between compact 40mm or robust 80mm cubes to fit your spatial requirements.
- Extended Sensing Range: Flexibility with 15/20/30mm flush and 50mm non-flush sensing distances.
- Consistent Accuracy: Repeatability of fewer than 1.0% maintains high precision levels.
- Adaptable Connectivity: Options for terminal or M12 connectors ensuring versatile installation.
- Robust Design: Crafted from PBT material enhanced with IP67 protection for harsh environments.
- Certified Assurance: Accredited with CE, UKCA, and ROHS certifications, validating international compliance.
Inductive Switch Technical Parameters:
Switching Frequency: 25Hz AC/ 40Hz DC(15mm(Flush mounting)/20/30mm(Non-flush mounting))
| Appearance |  |
 |
||
| Model | NO | BB-Q4015A-P14S12-S | BN-Q40□□A-P14S12-S | BN-Q8050A-P14T |
| NC | BB-Q4015A-P24S12-S | BN-Q40□□A-P24S12-S | BN-Q8050A-P24T | |
| NO | BB-Q4015U-P14S12-S | BN-Q40□□U-P14S12-S | BN-Q8050U-P14T | |
| NC | BB-Q4015U-P24S12-S | BN-Q40□□U-P24S12-S | BN-Q8050U-P24T | |
| Appearance Structure | 40*40*54mm | 80*80*40mm | ||
| Sensing Distance | 15mm(Flush mounting)/20/30mm(Non-flush mounting) | 50mm(Non-flush mounting) | ||
| Switching Frequency | 25Hz/25Hz AC,40HzDC | |||
| Operating voltage | 20…250AC/20…250V AC/DC | |||
| Voltage drop | ≤8V AC/≤10V AC,8V DC | |||
| Load current | Max.Load:400mA, Min Load:5mA | |||
| Max.Load:200mA, Min Load:5mA | ||||
| Leakge current | ≤1.8mA/≤2.5mA | |||
| Hysteresis | ＜15%(Sr) | |||
| Repeatability | ＜1.0%(Sr) | |||
| Switch protection | Polarity reversal Protection, Power-On Protection | |||
| Indication LED | With (Action: LED Indicator Lights Up) | |||
| Ambient temperature | -25…70℃ | |||
| Ingress protection | IP67 | |||
| Housing Material | PBT | |||
| Face material | PBT | |||
| Connectors | Terminal up to 2.5mm²/M12 connector | |||
| Accessories | B12-4GV2/B12-4WV2 | |||

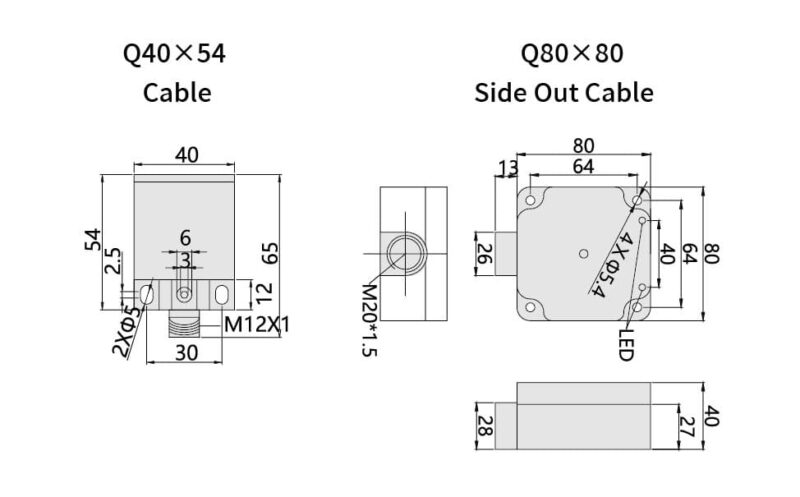

Inductive Switch Size Chart:
Bedook Inductive Proximity Sensor Cube 80×80 ACDC 2 Wire-size-01
Maximize detection with Bedook Inductive Proximity Sensor Cube 80×80 AC/DC 2 Wire. Easy 2-wire connection, NO/NC output, for accurate sensing with high repeatability.
Bedook‘s reputation as a professional sensor manufacturer shines through with each product, merging unparalleled quality with cost-efficiency.
Our sensors are engineered to meet diverse industrial challenges, prompting you to engage with us for a blend of quality, affordability, and unrivaled service.
