Description

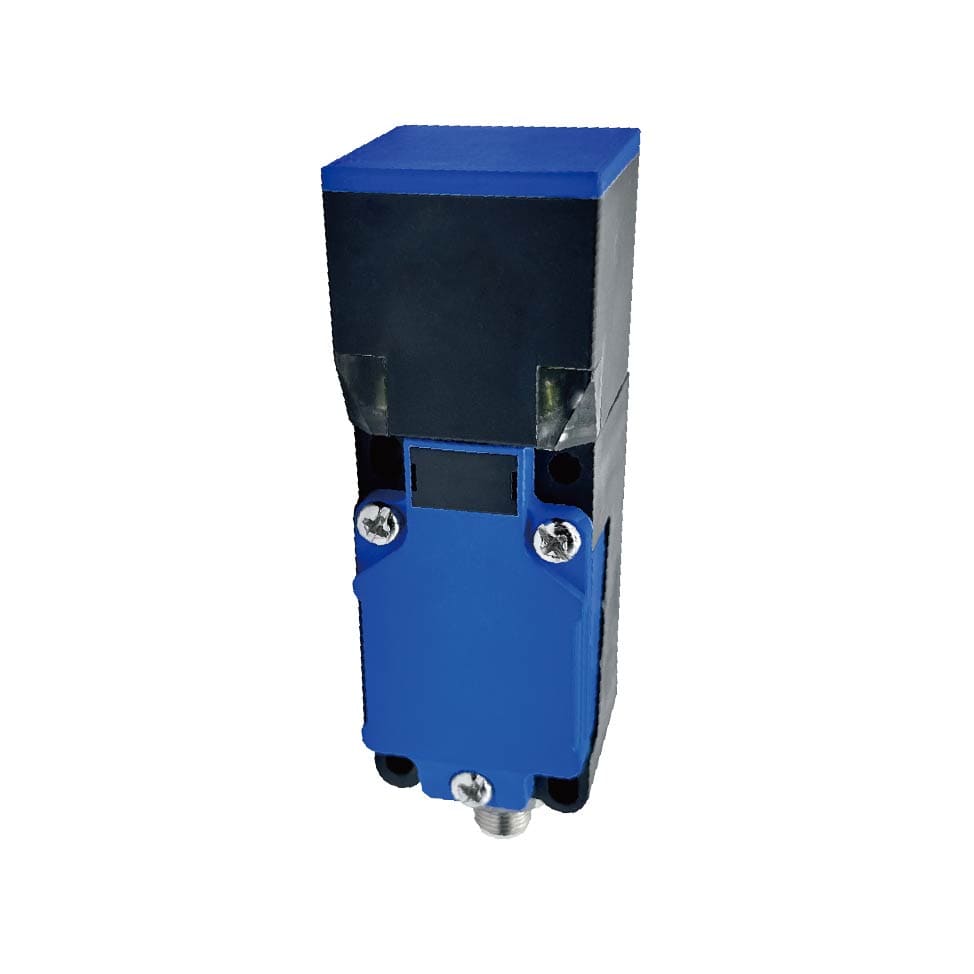

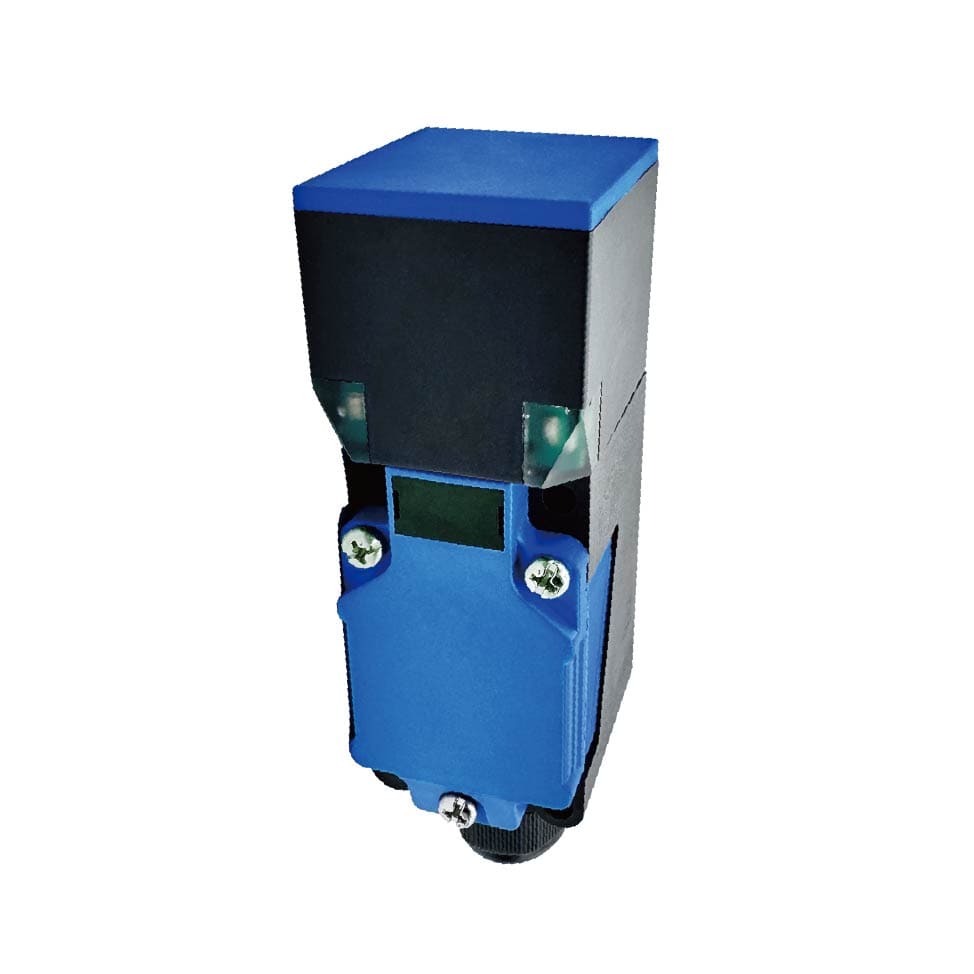

Introducing the Bedook Inductive Proximity Sensor Cubic 15/20/30mm DC 2 Wire – your reliable solution for proximity sensing needs with a streamlined installation process.
Due to its high repeatability, this product is very suitable for applications that require high measurement accuracy.
Inductive Switch Product Features:
Achieve unparalleled accuracy with Bedook’s Sensor Cube, offering easy integration, high precision, and industrial-grade durability.
- Versatile Sensing Ranges: Available in 15, 20, and 30mm, allowing for flexible application across different sensing needs.
- Simplified Wiring: The DC 2-wire model streamlines installation while maintaining measurement accuracy.
- High Repeatability Accuracy: Less than 1.0% repeatability, guaranteeing consistent and reliable performance.
- Robust Design: Encapsulated in a sturdy PBT housing with IP67 rating, ensuring durability in harsh environments.
- Wide Voltage Compatibility: Operates across a 10 to 60 VDC range, accommodating various power supplies.
- Global Certifications: Comes with CE, UKCA, and ROHS certifications, meeting international safety and quality standards.
Switching Frequency:150Hz/100Hz
| Appearance |  |
 |
|||
| Model | NO | BB-Q4015C-P13T | BN-Q40□□C-P13T | BB-Q4015C-P13S12 | BN-Q40□□C-P13S12 |
| NC | BB-Q4015C-P23T | BN-Q40□□C-P23T | BB-Q4015C-P23S12 | BN-Q40□□C-P23S12 | |
| Appearance Structure | 40*40*115mm | ||||
| Sensing Distance | 15mm(Flush mounting)/20/30mm(Non-flush mounting) | ||||
| Switching Frequency | 150Hz(15mm flush mounting)/100Hz(20/30mm Non-flush mounting) | ||||
| Operating voltage | 10…60VDC(±10%) | ||||
| Voltage drop | ≤4.5V | ||||
| Load current | 200mA | ||||
| Leakge current | ≤0.5mA | ||||
| Hysteresis | ＜15%(Sr) | ||||
| Repeatability | ＜1.0%(Sr) | ||||
| Switch protection | Short Circuit Protection, Polarity reversal Protection, Power-On Protection | ||||
| Indication LED | With (Action: LED Indicator Lights Up) | ||||
| Ambient temperature | -25…70℃ | ||||
| Ingress protection | IP67 | ||||
| Housing Material | PBT | ||||
| Face material | PBT | ||||
| Connectors | Terminal up to 2.5mm²/M12 connector | ||||
| Accessories | B12-4GV2/B12-4WV2 | ||||
Inductive Switch Size Chart:
Bedook Inductive Proximity Sensor Cubic 15-20-30mm DC 2 Wire-Size-01
Elevate your equipment’s sensing reliability with Bedook Inductive Proximity Sensor Cubic 15/20/30mm DC 2 Wire – precision, simplicity, and durability in every unit.
Bedook stands at the forefront of sensor technology, designing and manufacturing a comprehensive array of sensors with competitive pricing, robust customization capabilities, and assured quality.
Let our expertise empower your applications – inquire today to find a customized sensing solution that matches your precision needs.
