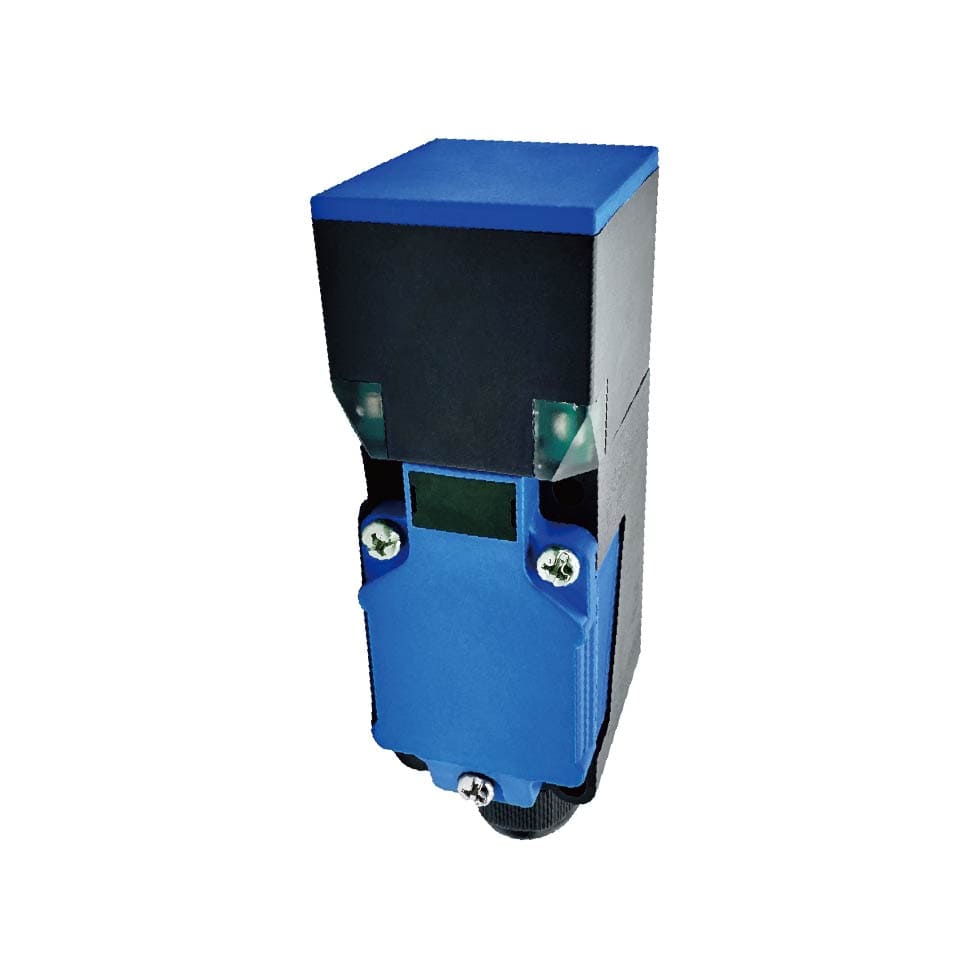

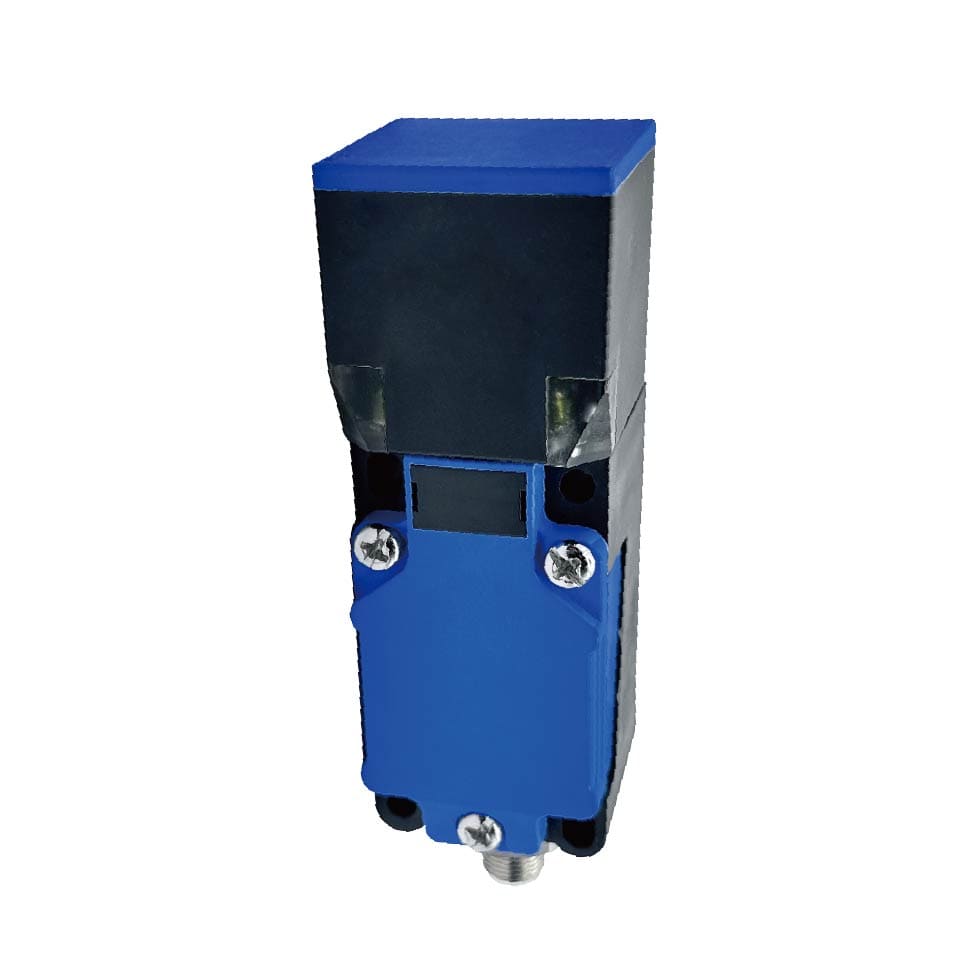

Introducing the Bedook Inductive Proximity Sensor Cubic 15/20/30mm DC 4 Wire: the pinnacle of sensor technology, combining compact design with unmatched precision and versatility.
Inductive Switch Product Features:
Bedook’s Sensor Cube revolutionizes precision sensing with dual-output (NO+NC) in a compact design, ready for harsh environments.
- Optimized Design: A cube dimension of 40mm×40mm×115mm ensures it fits seamlessly into any industrial setup.
- Dual-Output Convenience: DC 4-wire design includes two switch outputs (NO+NC), offering flexibility for a variety of applications.
- Unrivaled Accuracy: With repeatability less than 1.0%, it secures the reliability and accuracy of your systems.
- Multiple Sensing Ranges Available: Tailored to meet diverse needs with sensing distances of 15/20/30mm and switching frequencies of 150Hz/100Hz.
- Robust & Durable: Crafted with PBT for both housing and face material, it boasts IP67 ingress protection against environmental challenges.
- Certification & Compliance: Meets international standards with CE, UKCA, and ROHS certifications, ensuring a globally accepted quality.
Switching Frequency:150Hz/100Hz
| Appearance |  |
 |
|||
| Model | NPN NO+NC | BB-Q4015N-P31T | BN-Q40□□N-P31T | BB-Q4015N-P31S12 | BN-Q40□□N-P31S12 |
| PNP NO+NC | BB-Q4015P-P31T | BN-Q40□□P-P31T | BB-Q4015P-P31S12 | BN-Q40□□N-P31S12 | |
| Appearance Structure | 40*40*115mm | ||||
| Sensing Distance | 15mm(Flush mounting)/20/30mm(Non-flush mounting) | ||||
| Switching Frequency | 150Hz(15mm flush mounting)/100Hz(20/30mm Non-flush mounting) | ||||
| Operating voltage | 10…30VDC(±10%) | ||||
| Voltage drop | ≤2.0V | ||||
| Load current | 200mA | ||||
| No load current | ≤10mA(24V) | ||||
| Hysteresis | ＜15%(Sr) | ||||
| Repeatability | ＜1.0%(Sr) | ||||
| Switch protection | Short Circuit Protection, Polarity reversal Protection, Power-On Protection | ||||
| Indication LED | With (Action: LED Indicator Lights Up) | ||||
| Ambient temperature | -25…70℃ | ||||
| Ingress protection | IP67 | ||||
| Housing Material | PBT | ||||
| Face material | PBT | ||||
| Connectors | Terminal up to 2.5mm²/M12 connector | ||||
| Accessories | B12-4GV2/B12-4WV2 | ||||
Inductive Switch Size Chart:
Bedook Inductive Proximity Sensor Cubic 15-20-30mm DC 4 Wire-Size-01
Precise, durable, and designed to excel in demanding environments, Bedook Inductive Proximity Sensor Cubic 15/20/30mm DC 4 Wire is more than a product; it’s a promise of performance and reliability.
