Description

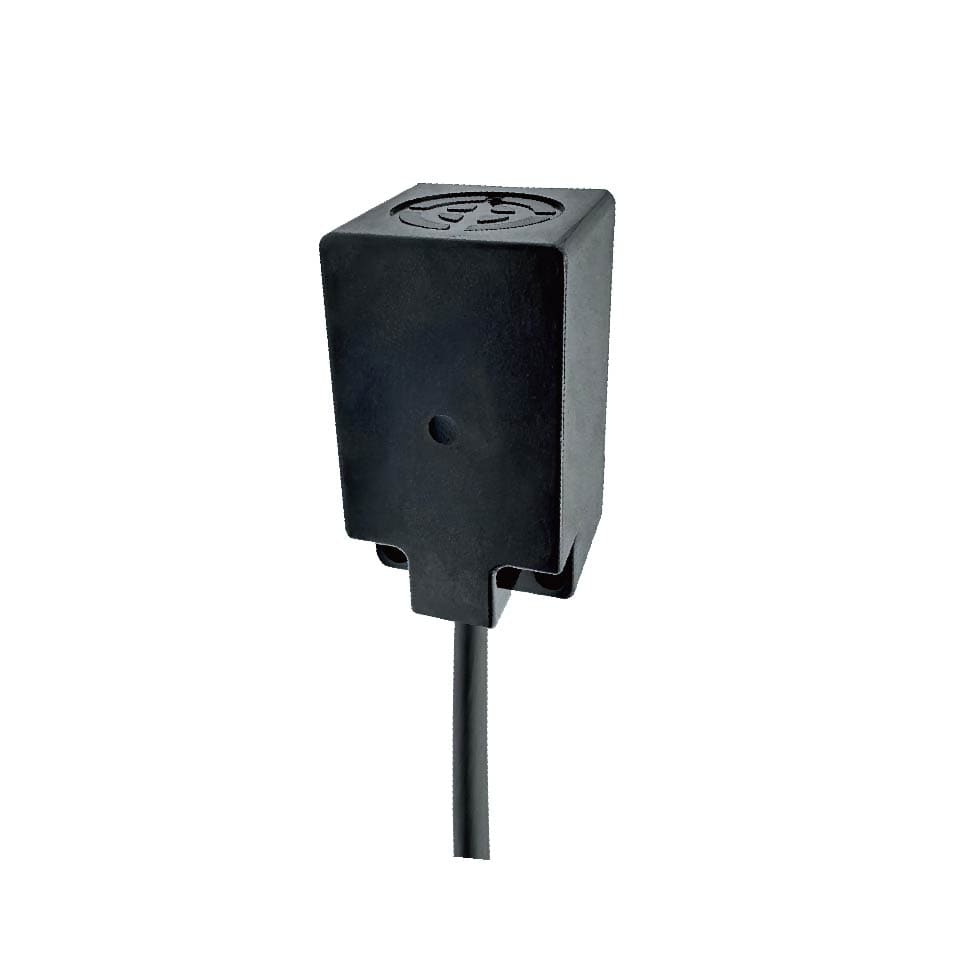

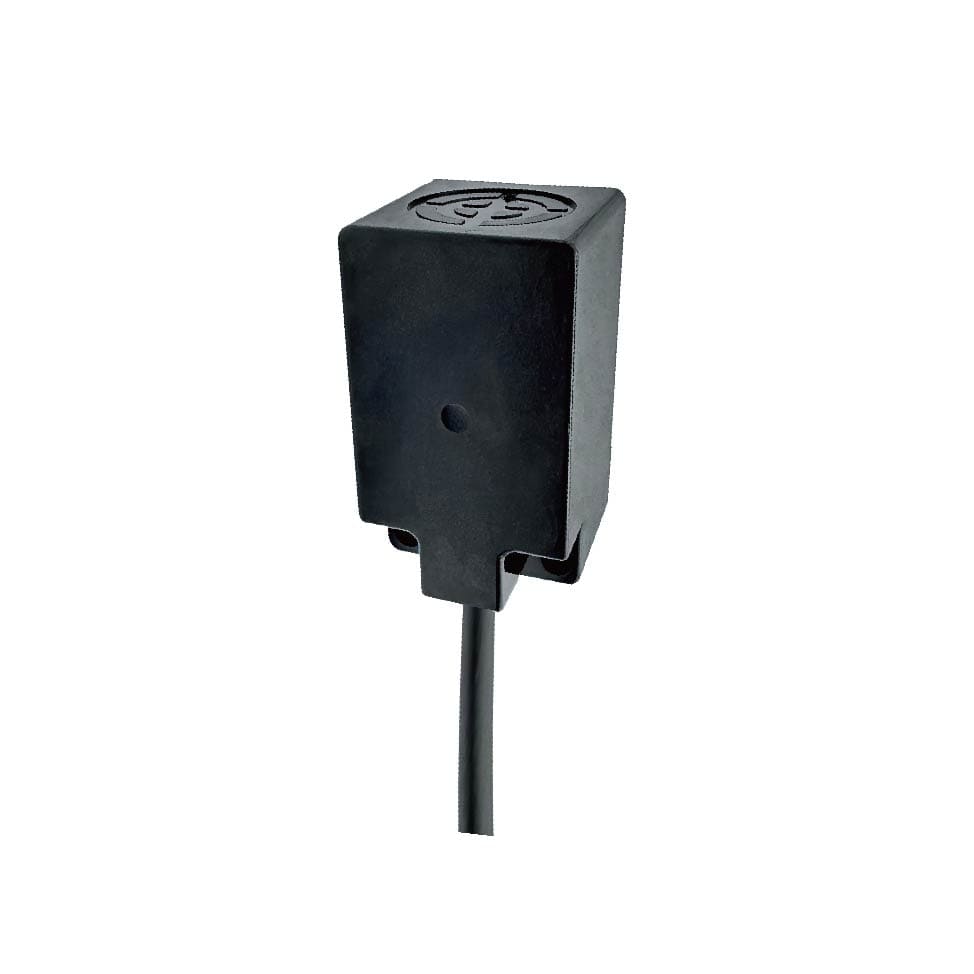

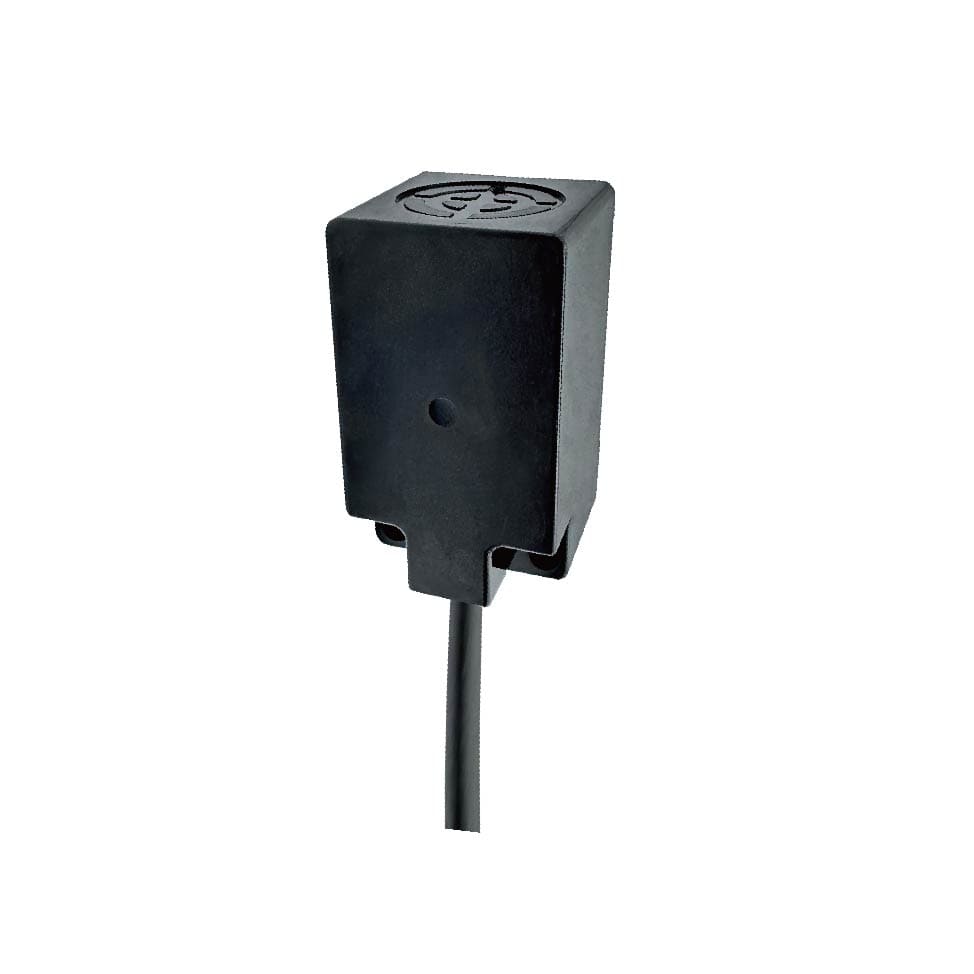

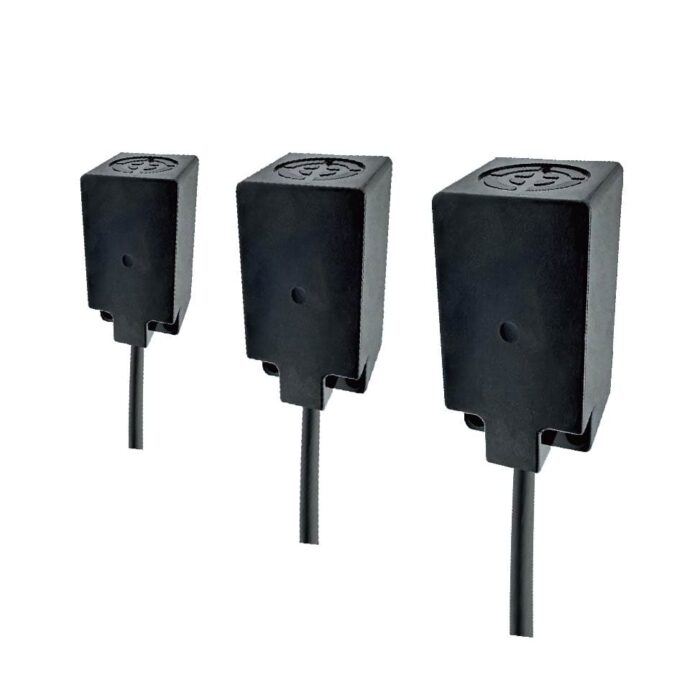

Explore high-precision Bedook Inductive Proximity Sensor Cubic 2/4/5/10/15mm DC 3 Wire. Durable, versatile, and designed for exact applications.
Precision engineered for critical applications, Bedook’s Cubic Sensor offers diverse ranges and dependable accuracy in a robust design.
Inductive Switch Product Features:
Embrace precise detection with the Bedook Inductive Proximity Sensor Cubic Series:
- Comprehensive Range Options: Opt from a variety of sensing distances at 2, 4, 5, 10, and 15mm to match your specific requirements.
- Tailored Output Configurations: Easily integrate with various systems through either NO or NC outputs, complemented by the choice of PNP or NPN types.
- Exceptional Repeatability: Ensure consistent results with remarkable repeatability of less than 1.0%, vital for accurate and reliable measurements.
- Anti-Interference DC Design: Confidently use in complex environments with its DC three-wire design known for minimizing electrical interference.
- Industrial-Grade Build: Constructed to excel in any setting, featuring ABS housing, IP67 protection, and operation across -25 to 70℃ temperatures.
- International Standard Compliance: Trust in a product that meets global standards with CE, UKCA, and ROHS certifications, reflecting its quality and safety.
Inductive Switch Technical Parameters:
| Appearance |  |
 |
 |
 |
|
| Model | NPN N.O | BB-Q1705N-P11P2 | BB-Q1805N-P11P2 | BN-Q2510N-P11P2 | BN-Q3015N-P11P2 |
| NPN N.C | BB-Q1705N-P21P2 | BB-Q1805N-P21P2 | BN-Q2510N-P21P2 | BN-Q3015N-P21P2 | |
| PNP N.O | BB-Q1705P-P11P2 | BB-Q1805P-P11P2 | BN-Q2510P-P11P2 | BN-Q3015P-P11P2 | |
| PNP N.C | BB-Q1705P-P21P2 | BB-Q1805P-P21P2 | BN-Q2510P-P21P2 | BN-Q3015P-P21P2 | |
| Exterior Structure | 17*17*28.5mm | 18*18*36mm | 25*25*39mm | 30*30*53mm | |
| Sensing Distance | 5mm(Flush mounting） | 5mm(Flush mounting） | 10mm(Non-flush mounting） | 15mm(Non-flush mounting） | |
| Switching Frequency | 500Hz | 1000Hz | 800Hz | 500Hz | |
| Operating voltage | 10…30VDC(±10%) | ||||
| Voltage drop | ≤2.0V | ||||
| Load current | 200mA | ||||
| Leakge current | ≤0.01mA | ||||
| No load current | ≤10mA(24V) | ||||
| Hysteresis | ＜15%(Sr) | ||||
| Repeatability | ＜1.0%(Sr) | ||||
| Switch protection | Short Circuit Protection, Polarity reversal Protection, Power-On Protection | ||||
| Indication LED | With (Action: LED Indicator Lights Up) | ||||
| Ambient temperature | -25…70℃ | ||||
| Ingress protection | IP67 | ||||
| Housing Material | ABS | ||||
| Face material | ABS | ||||
| Connectors | 2m PVC Cable, 3*0.25mm² | 2m PVC Cable, 3*0.35mm² | |||
| Accessories | None | None | |||
Tap into precision with Bedook Inductive Proximity Sensor Cubic 2/4/5/10/15mm DC 3 Wire, delivering accurate proximity sensing across a wide range of conditions.
As a leader in sensor design and manufacturing, Bedook brings affordability, strong customization options, and a commitment to quality. Elevate your projects with our expertise and stimulate inquiry with assurance in our sensor solutions.
