Description
Experience unparalleled precision with Bedook Inductive Proximity Sensor Cubic 20/30/50mm DC 2 Wire, boasting easy installation, high durability, & advanced sensing tech.
Inductive Switch Product Features:

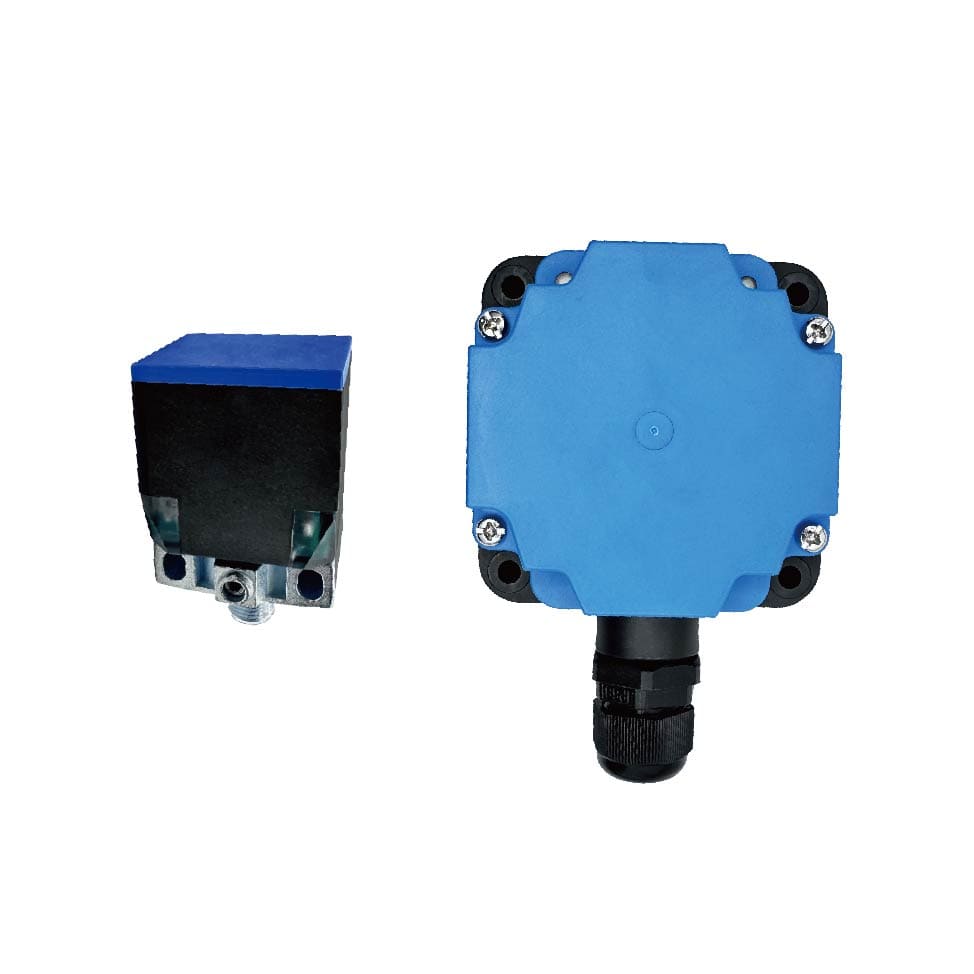

Introducing the latest in precision measurement – the Bedook Inductive Proximity Sensor Cubic Series. Engineered to perfection, this sensor series marks a significant leap in industrial sensing technology, designed to cater to the most demanding conditions with ease and reliability.
- Compact & Versatile Dimensions: Available in two sizes (40mm×40mm×115mm and 80mm×80mm×40mm) to fit seamlessly into a plethora of industrial setups.
- Simplified Installation: With its DC 2-Wire design, this sensor promises a hassle-free setup, making it an ideal choice for various applications.
- Exceptional Accuracy: Boasting a repeatability of less than 1.0%, it ensures high measurement precision, fostering system reliability and top-notch performance.
- 4 Sensing Ranges: Capable of detecting at distances of 15/20/30/50mm, and equipped with a switching frequency of 150Hz/100Hz, it adjusts to your specific sensing requirements.
- Robust & Durable: Crafted with a PBT housing and face material and featuring IP67 ingress protection, it stands tough against demanding environmental conditions.
- Indicative LED & Connectivity Options: Enhance operational ease with its indication LED and choose between Terminal (up to 2.5mm²) or M12 connector for greater flexibility.
Switching Frequency:150Hz/100Hz
| Appearance |  |
 |
||
| Model | NO | BB-Q4015C-P13S12-S | BN-Q40□□C-P13S12-S | BN-Q8050C-P13T |
| NC | BB-Q4015C-P23S12-S | BN-Q40□□C-P23S12-S | BN-Q8050C-P23T | |
| Appearance Structure | 40*40*54mm | 80*80*40mm | ||
| Sensing Distance | 15mm(Flush mounting)/20/30mm(Non-flush mounting) | 50mm(Non-flush mounting) | ||
| Switching Frequency | 150Hz(15mm)/100Hz(20/30mm) | 100Hz | ||
| Operating voltage | 10…60VDC(±10%) | |||
| Voltage drop | ≤4.5V | |||
| Load current | 200mA | |||
| Leakge current | ≤0.5mA | |||
| Hysteresis | ＜15%(Sr) | |||
| Repeatability | ＜1.0%(Sr) | |||
| Switch protection | Short Circuit Protection, Polarity reversal Protection, Power-On Protection | |||
| Indication LED | With (Action: LED Indicator Lights Up) | |||
| Ambient temperature | -25…70℃ | |||
| Ingress protection | IP67 | |||
| Housing Material | PBT | |||
| Face material | PBT | |||
| Connectors | Terminal up to 2.5mm²/M12 connector | |||
| Accessories | B12-4GV2/B12-4WV2 | |||
Inductive Switch Size Chart:
Bedook Inductive Proximity Sensor Cubic 20-30-50mm DC 2 Wire-Size-01
Every feature of Bedook Inductive Proximity Sensor Cubic 20/30/50mm DC 2 Wire is crafted with professionalism and the user’s ultimate convenience in mind, ensuring not just a product, but a comprehensive solution to your proximity sensing needs.
Bedook’s Sensor Cube underscores our commitment to quality and safety, reinforcing our position as a market leader in sensor technology. We specialize in designing and producing a vast range of sensor types, offering competitive pricing, strong customization capabilities, and guaranteed quality to spark customer interest and inquiries.
