Description

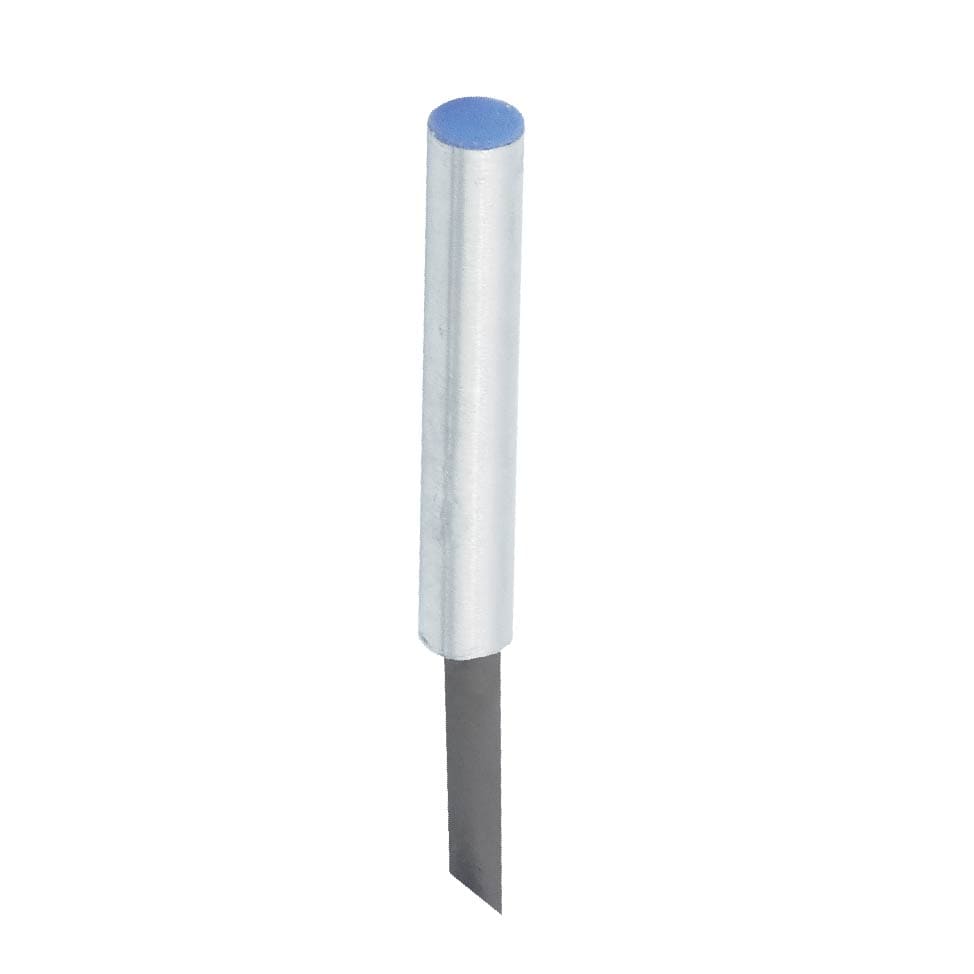

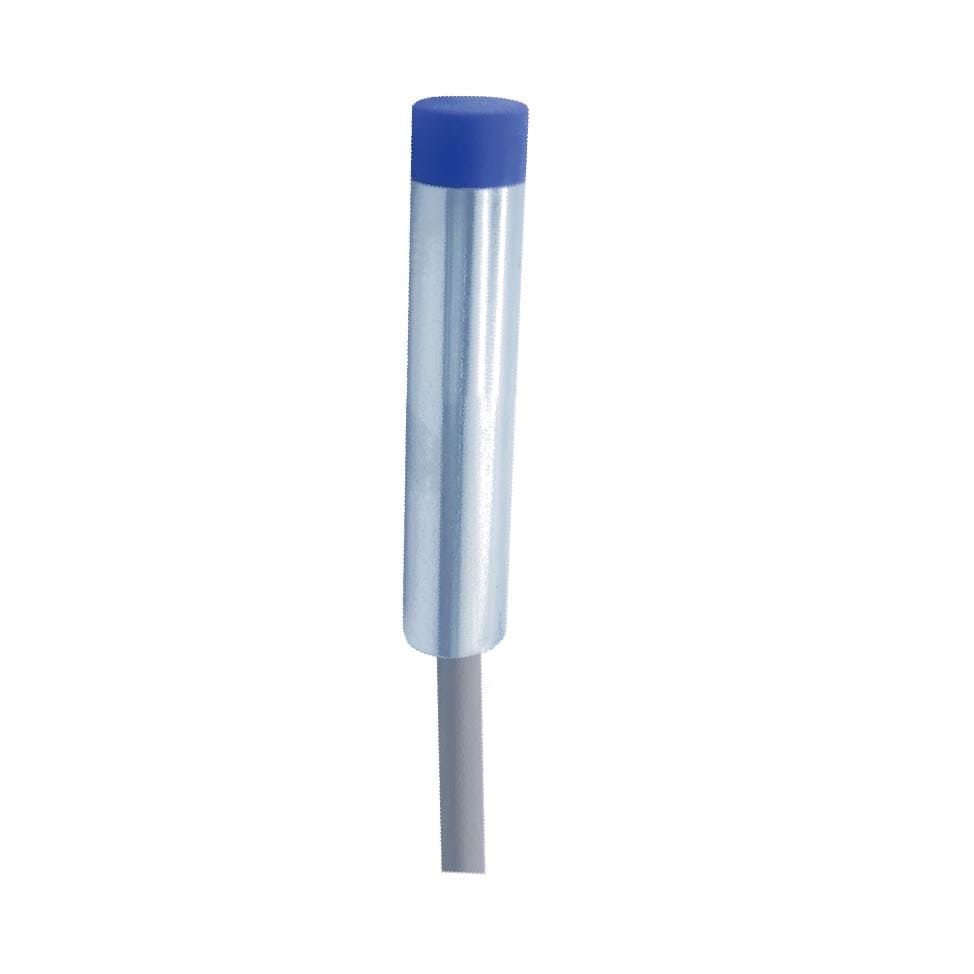

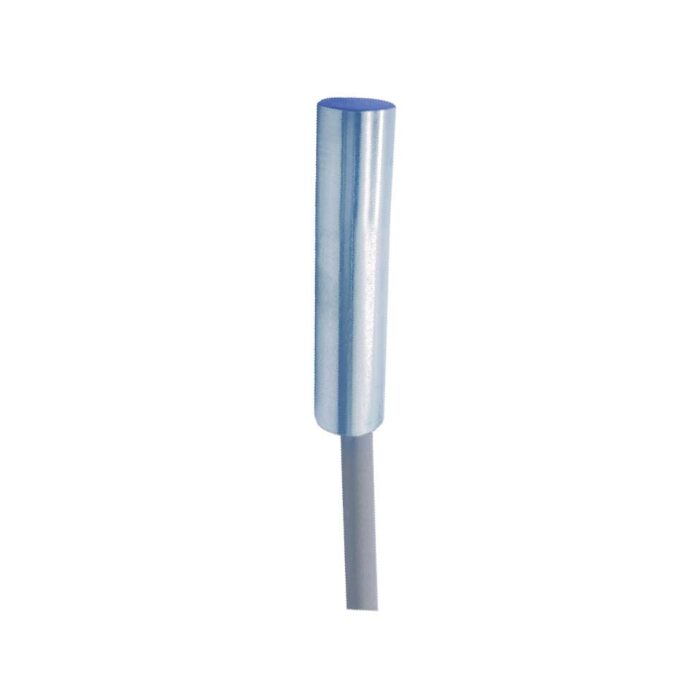

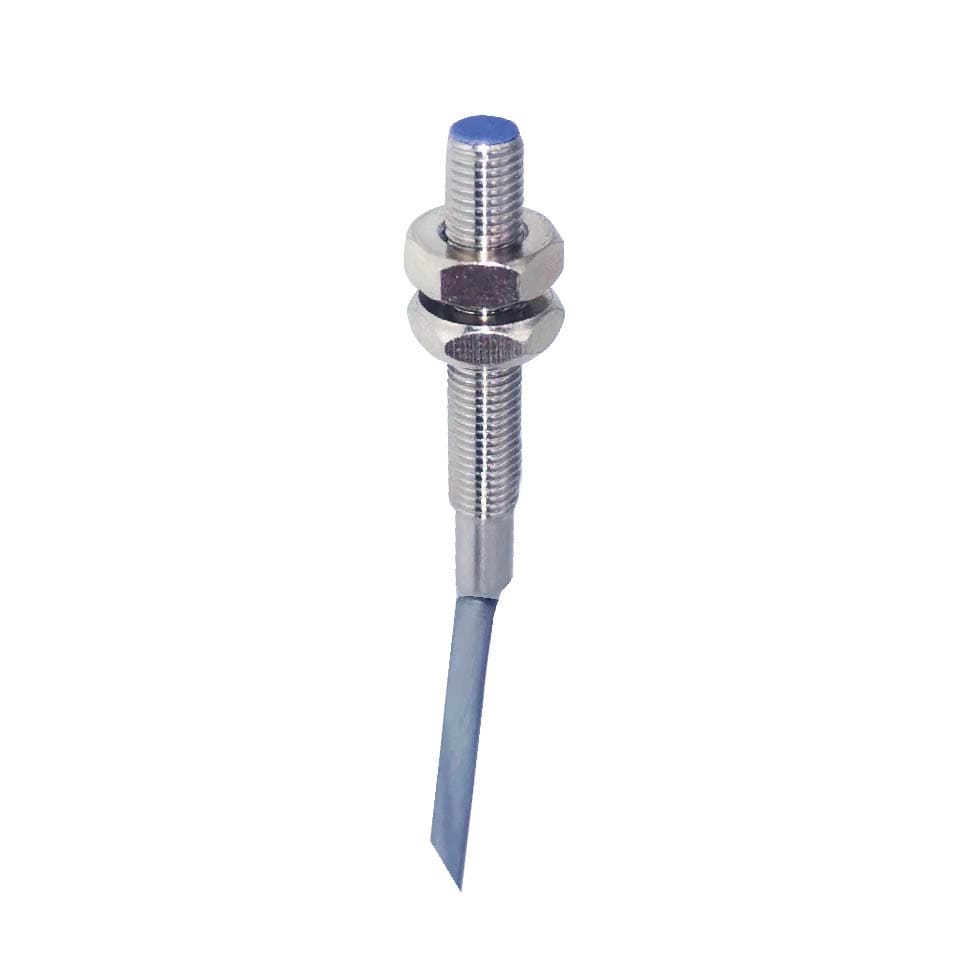

The Bedook Inductive Proximity Sensor Ex φ4 0.8/1/2mm DC 2 Wire is a robust and compact sensor designed for reliable operation in extreme environments.
This product adheres to stringent explosion-proof standards, making it exceptionally well-suited for use in high-risk environments.
Inductive Switch Product Features:
This Inductive Sensor offers a high precision DC 2-wire design, with φ4/6.5/M5 sizes. Featuring a high repeatability of less than 2%, this sensor is ideal for applications requiring extreme accuracy and reliability.
- Versatile Sizing: Available in φ4, φ6.5, and M5 dimensions, ensuring easy installation across various applications.
- High Precision: Offers a sensing distance of 0.8/1/2mm and a repeatability of less than 2%, ensuring system reliability.
- Simple Wiring: DC 2-wire design makes installation and connection straightforward and user-friendly.
- Safety Performance: Explosion proof design is more suitable for working conditions that require high safety and reliability.
- Rugged Build: Constructed with stainless steel housing and POM face material, rated IP67 for ingress protection.
- Wide Temperature Range: Operates efficiently in temperatures from -25°C to 70°C, ideal for harsh conditions.
Switching Frequency:1000/2000Hz
| Appearance |  |
 |
 |
 |
|
| Model | NO | BB-H40.8NA-V10P2 | BB-H50.8NA-V10P2 | BB-H6.501NA-V10P2 | BB-H6.502NA-V10P2 |
| Appearance Structure | ∅4mm | M5*1mm | ∅6.5mm | ∅6.5mm | |
| Sensing Distance | 0.8mm(flush mounting) | 0.8mm(flush mounting) | 1mm(flush mounting) | 2mm(non-flush mounting) | |
| Switching Frequency | 2000Hz | 1000Hz | |||
| Operating voltage | 6…12VDC(±10%) | ||||
| Load current | >2.2mA(OFF),<1.1mA(ON) | ||||
| Hysteresis | ＜15%(Sr) | ||||
| Repeatability | ＜2.0%(Sr) | ||||
| Power-up Delay | ≤10ms | ||||
| Switch protection | Short Circuit Protection, Polarity reversal Protection, Power-On Protection | ||||
| Indication LED | No | ||||
| Ambient temperature | -25…70℃ | ||||
| Ingress protection | IP67 | ||||
| Housing Material | Stainless steel | ||||
| Face material | POM | ||||
| Connectors | 2m PVC Cable, 2*0.18mm² | 2m PVC Cable, 2*0.25mm² | |||
| Accessories | no | ||||
Inductive Switch Size Chart:
Bedook Inductive Proximity Sensor Ex φ4 0.8-1-2mm DC 2 Wire-size-01
Designed for extreme working conditions, the Bedook Inductive Proximity Sensor adheres to NAMUR standards and has a sensing range of 0.8/1/2mm.
With its simple wiring, rugged construction, and wide temperature range, the Bedook sensor is perfect for demanding industrial environments.
As a professional manufacturer of various sensors, Bedook offers a comprehensive range, competitive prices, customization capabilities, and a quality guarantee. Our expertise and product diversity ensure that we can meet the specific needs of any client. Contact us to request a quote.
