Description

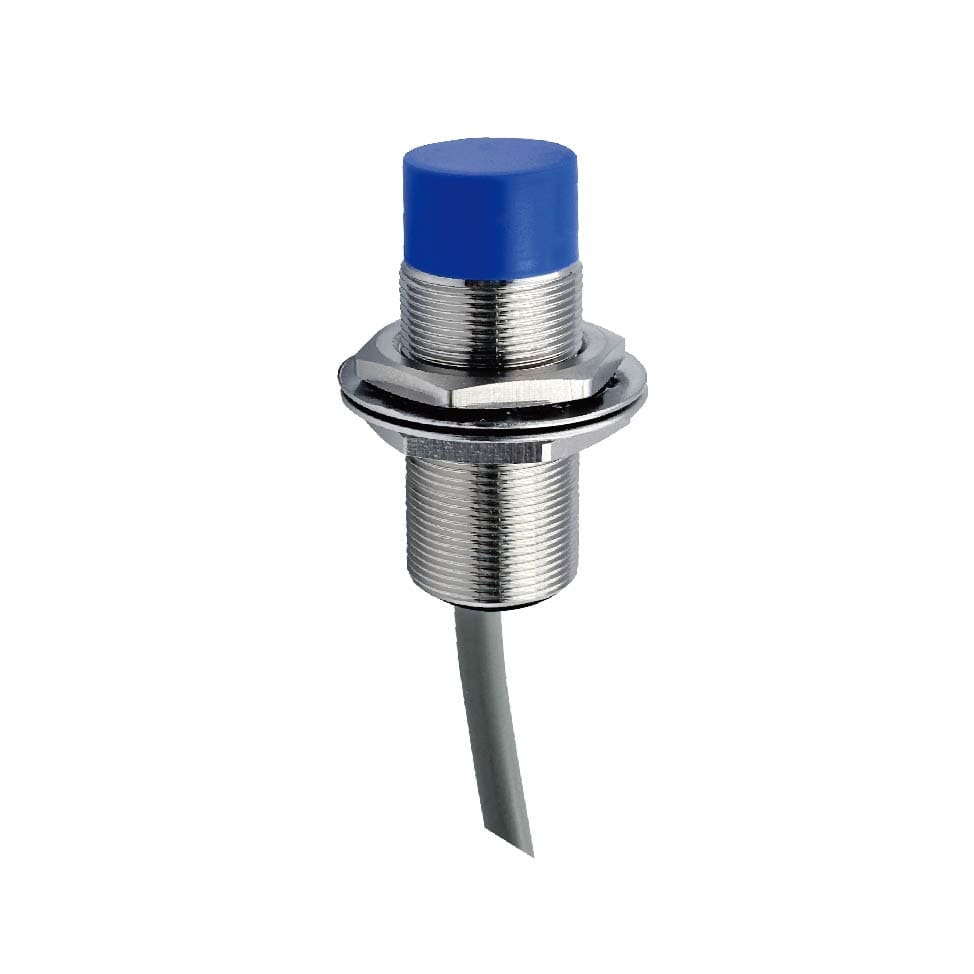

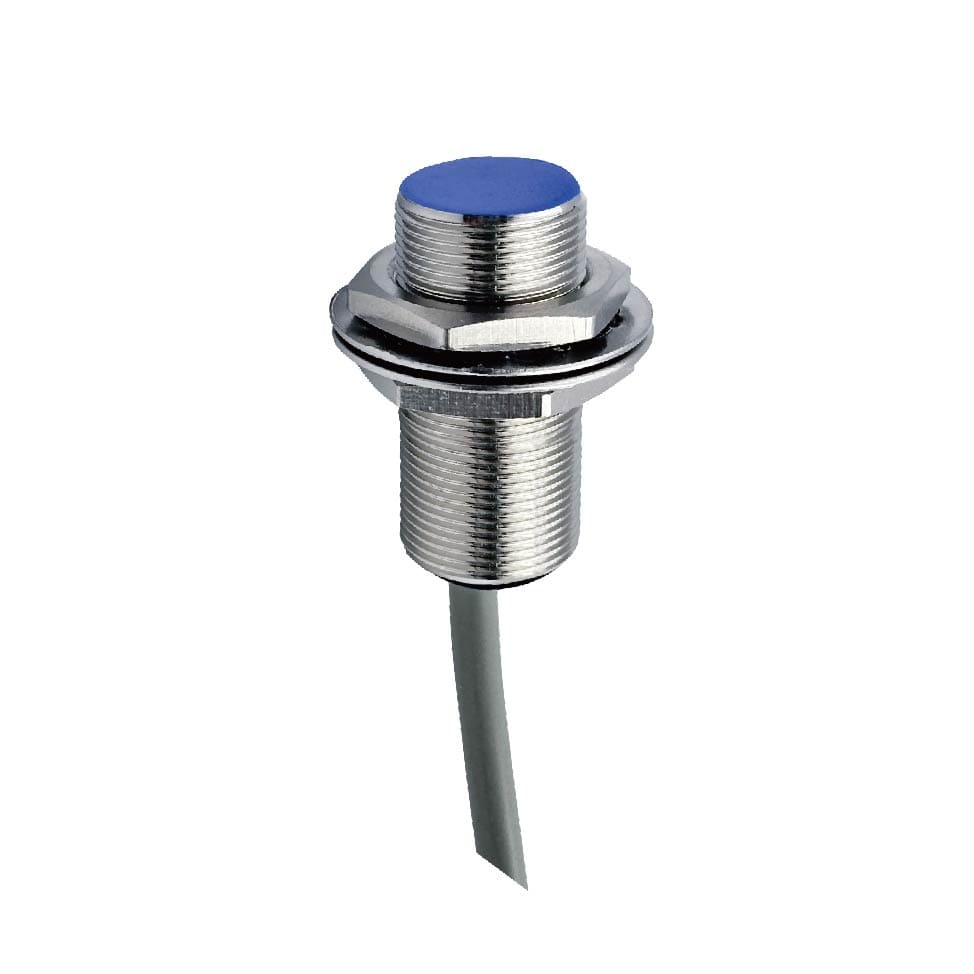

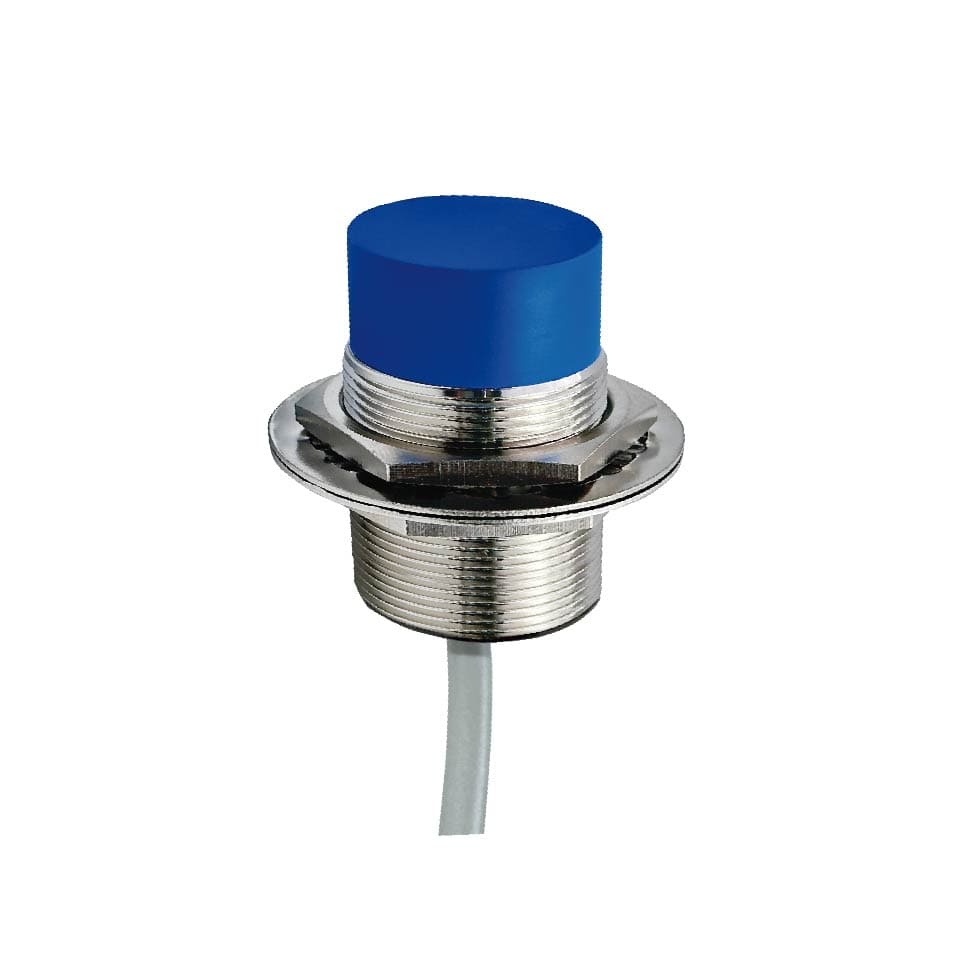

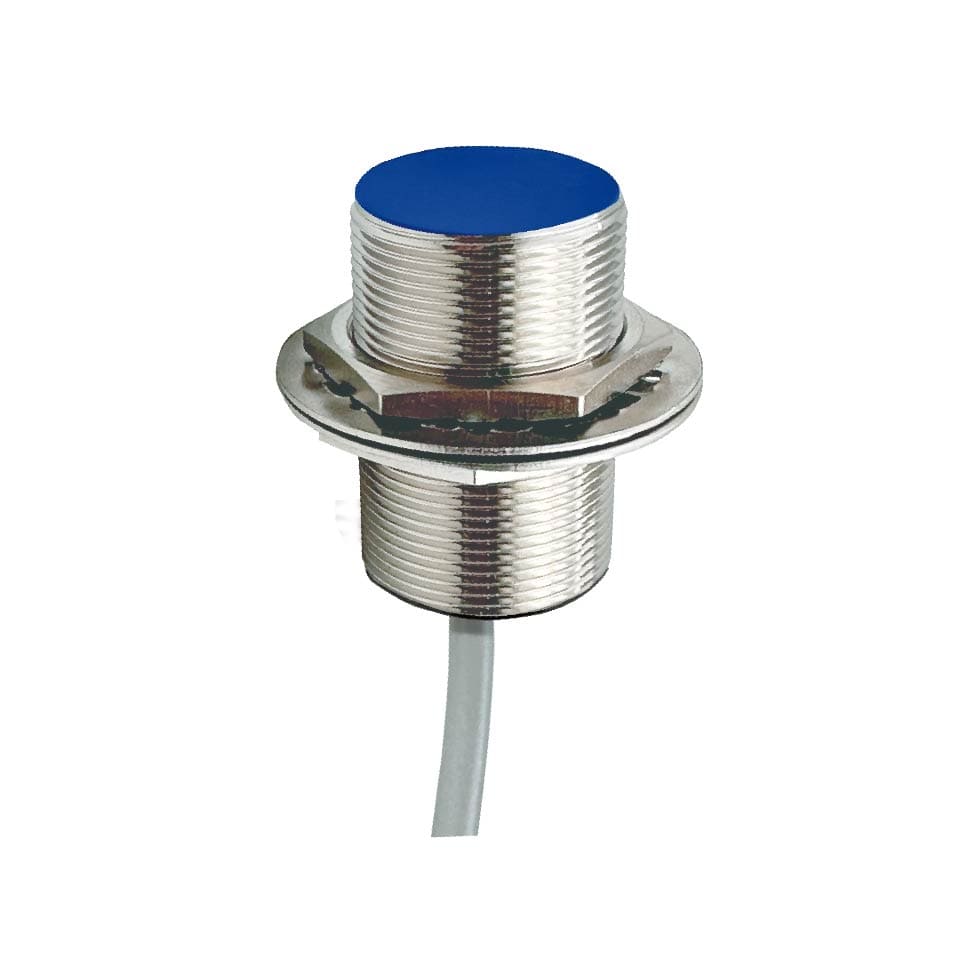

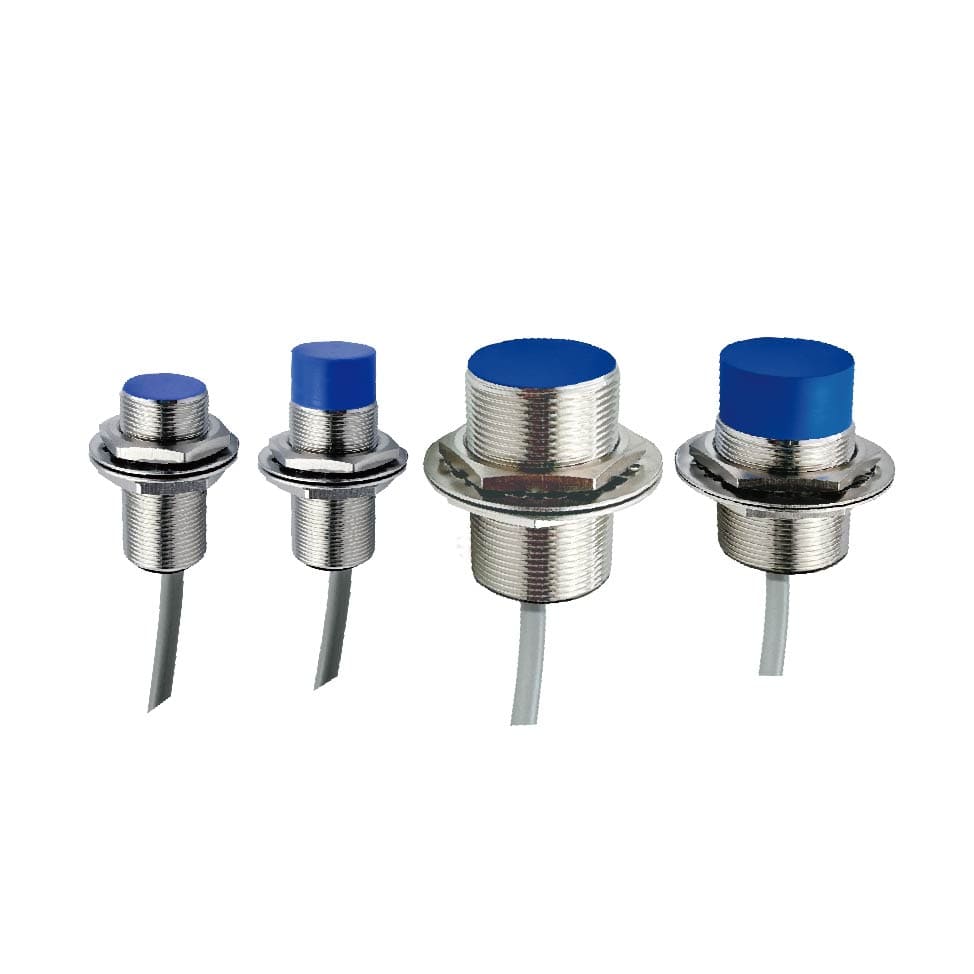

The Inductive Proximity Sensor Ex M18/M30 5/8/10/15mm DC 2 Wire is a robust and compact sensor designed for reliable operation in extreme environments.
This product adheres to stringent explosion-proof standards, making it exceptionally well-suited for use in high-risk environments.
Inductive Switch Product Features:
This Inductive Sensor offers a high precision DC 2-wire design, with M18/M30 sizes. Featuring a high repeatability of less than 2%, this sensor is ideal for applications requiring extreme accuracy and reliability.
- Versatile Sizing: Available in M18 and M30 dimensions, ensuring easy installation across various applications.
- High Precision: Offers a sensing distance of 5/8/10/15mm and a repeatability of less than 2%, ensuring system reliability.
- Simple Wiring: DC 2-wire design makes installation and connection straightforward and user-friendly.
- Safety Performance: Explosion proof design is more suitable for working conditions that require high safety and reliability.
- Rugged Build: Constructed with stainless steel housing and POM/PBT face material, rated IP67 for ingress protection.
- Wide Temperature Range: Operates efficiently in temperatures from -25°C to 70°C, ideal for harsh conditions.
Switching Frequency:100/300/500Hz
| Appearance |  |
 |
 |
 |
|
| Model | NO | BB-H1805NA-C10P2 | BB-H1808NA-C10P2 | BB-H3010NA-C10P2 | BB-H3015NA-C10P2 |
| Appearance Structure | M18*1mm | M18*1mm | M30*1.5mm | M30*1.5mm | |
| Sensing Distance | 5mm(flush mounting) | 8mm(Non-flush mounting) | 10mm(flush mounting) | 15mm(non-flush mounting) | |
| Switching Frequency | 500Hz | 300Hz | 300Hz | 100Hz | |
| Operating voltage | 6…12VDC(±10%) | ||||
| Load current | >2.2mA(OFF),<1.1mA(ON) | ||||
| Hysteresis | ＜15%(Sr) | ||||
| Repeatability | ＜2.0%(Sr) | ||||
| Power-up Delay | ≤10ms | ||||
| Switch protection | Short Circuit Protection, Polarity reversal Protection, Power-On Protection | ||||
| Indication LED | No | ||||
| Ambient temperature | -25…70℃ | ||||
| Ingress protection | IP67 | ||||
| Housing Material | Stainless steel | ||||
| Face material | POM/PBT | ||||
| Connectors | 2m PVC Cable, 2*0.5mm² | ||||
| Accessories | no | ||||

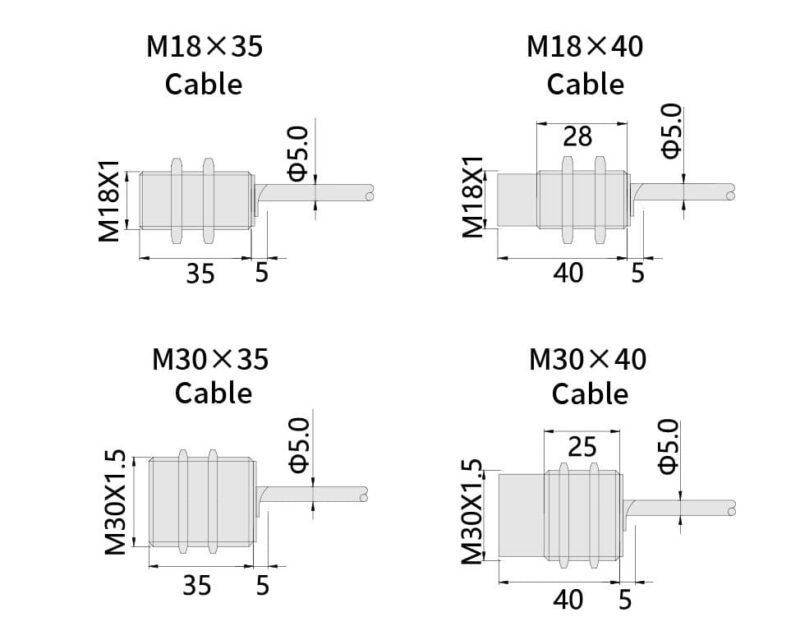

Inductive Switch Size Chart:
Bedook Inductive Proximity Sensor Ex M18-M30 5-8-10-15mm DC 2 Wire-Size-01
Designed for extreme working conditions, the Bedook Inductive Proximity Sensor adheres to NAMUR standards and has a sensing range of 5/8/10/15mm.
With its simple wiring, rugged construction, and wide temperature range, the Bedook sensor is perfect for demanding industrial environments.
