Description

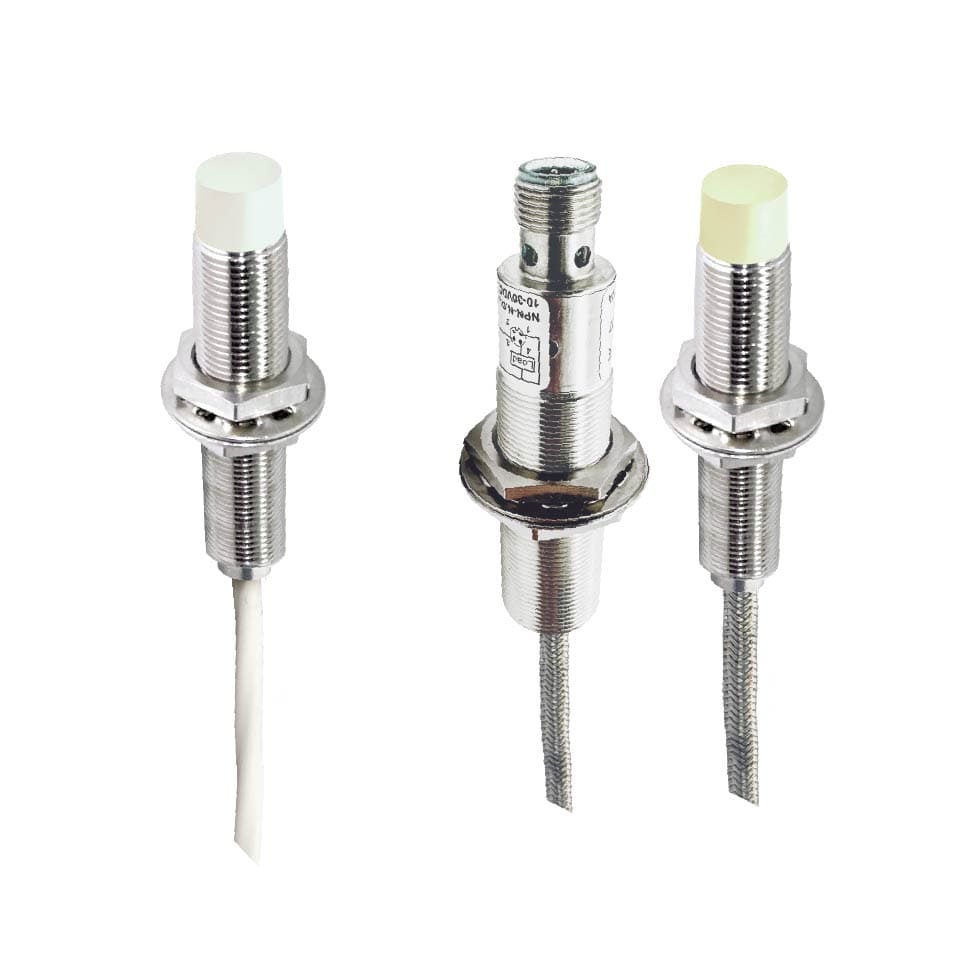

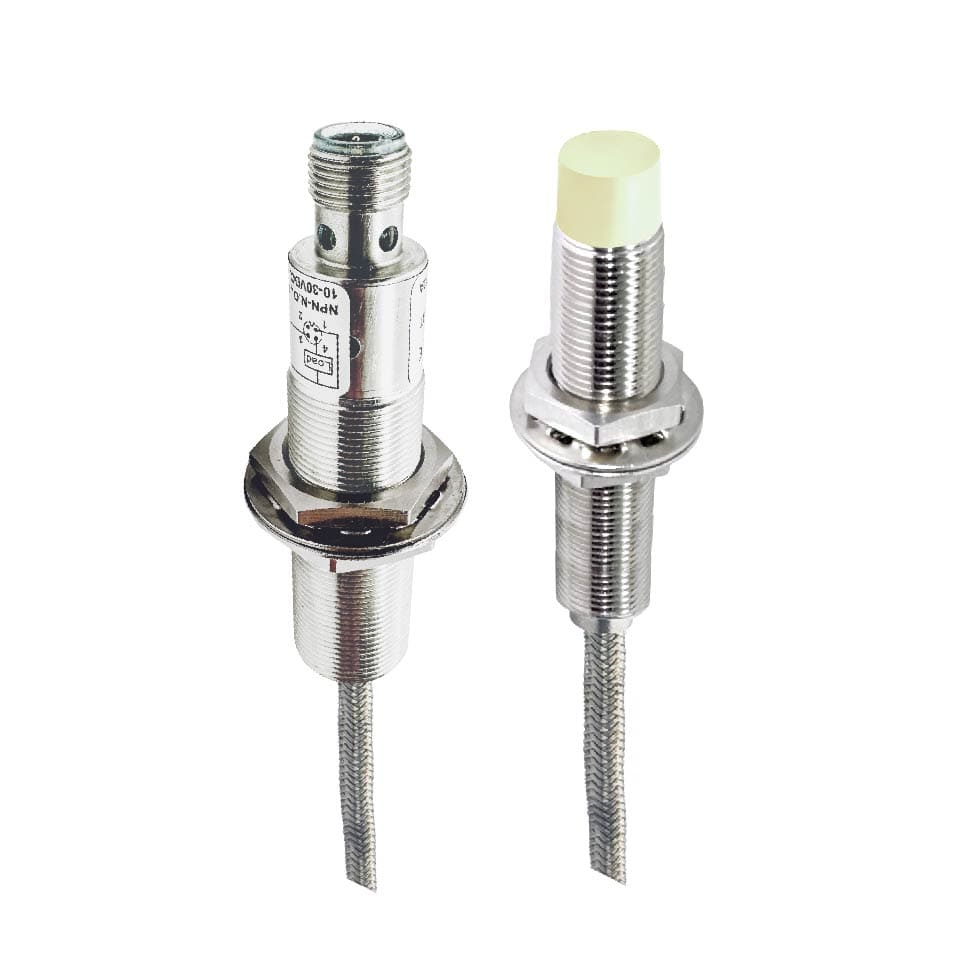

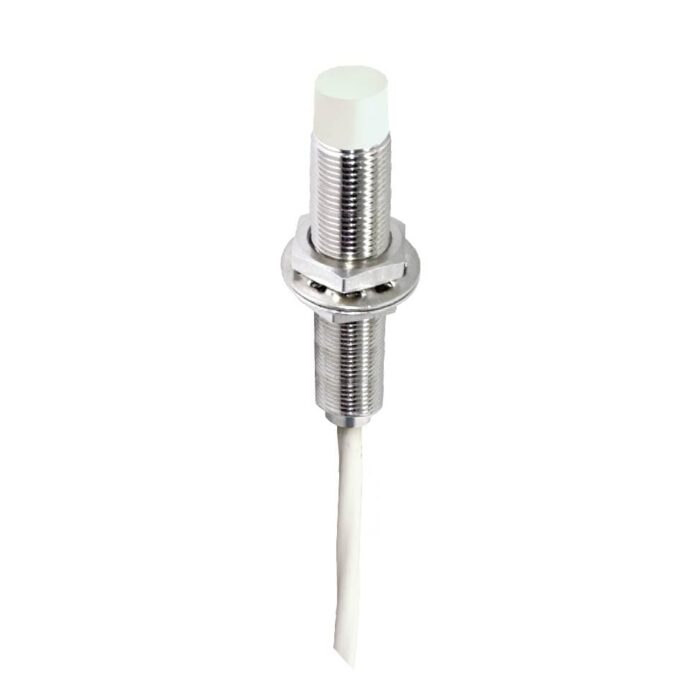

Bedook’s M12 4mm High Temperature Inductive Proximity Sensor operates at 120/130/180/230℃, ideal for harsh environments.
Features NO+NC outputs, high repeatability accuracy, and IP66 protection. Find yours today!
Inductive Switch Product Features:
This high-performance M12 inductive proximity sensor is designed for demanding applications in extreme temperatures.
Operating reliably at 120/130/180/230℃, it comes with NO+NC outputs, high repeatability accuracy, and IP66 protection.
- Exceptional Temperature Resistance: Operates reliably at 120/130/180/230℃, making it suitable for demanding applications.
- High Repeatability Accuracy: Offers repeatability accuracy of less than 3%, ensuring consistent and accurate measurements for critical processes.
- Versatile Output Options: Supports both normally open (NO) and normally closed (NC) outputs, providing flexibility for various applications.
- Robust Construction: Features a stainless steel housing and PTFE sensing face material, providing IP66 ingress protection and resistance to harsh conditions.
- Easy Installation: M12 external threads ensure easy installation and secure fixation.
- Wide Voltage Range: Operates on a wide voltage range from 10 to 30 VDC, offering compatibility with various power sources.
Switching Frequency:500Hz
| Appearance |  |
|
|
| Model | NPN/NPN NO+NC | BHN-M1204N-V11F2-120 | BHN-M1204N-V11A3-Z12-£££EXT |
| PNP/PNP NO+NC | BHN-M1204P-V11F2-120 | BHN-M1204P-V11A3-Z12-£££EXT | |
| Ambient temperature | -25…120℃ | -25…130℃/180℃/230℃ | |
| Appearance Structure | M12*1mm | M12*1mm | |
| Sensing Distance | 4mm(Non-Flush mounting) | 4mm(Non-Flush mounting) | |
| Switching Frequency | 500Hz | 500Hz | |
| Operating voltage | 10…30VDC(±10%) | 10…30VDC(±10%) | |
| Voltage drop | ≤2.0V | ≤2.0V | |
| Amplifier | NO | External | |
| Load current | 100mA/24V DC | 200mA | |
| No load current | ≤10mA(24V) | ≤25mA(24V) | |
| Hysteresis | ＜3…15%(Sr) | ＜3…15%(Sr) | |
| Repeatability | ＜3.0%(Sr) | ＜3.0%(Sr) | |
| Switch protection | Short Circuit Protection, Polarity reversal Protection, Power-On Protection | ||
| Indication LED | NO | With (Action: LED Indicator Lights Up) | |
| Ingress protection | IP66 | IP66 | |
| Housing Material | Stainless steel | Stainless steel | |
| Face material | PTFE | PEEK | |
| Connectors | 2M PTFE cable, 4*0.18mm² | 3M KFF46PH cable/M12 connector | |
| Accessories | No | B12-4GV2/B12-4WV2 | |

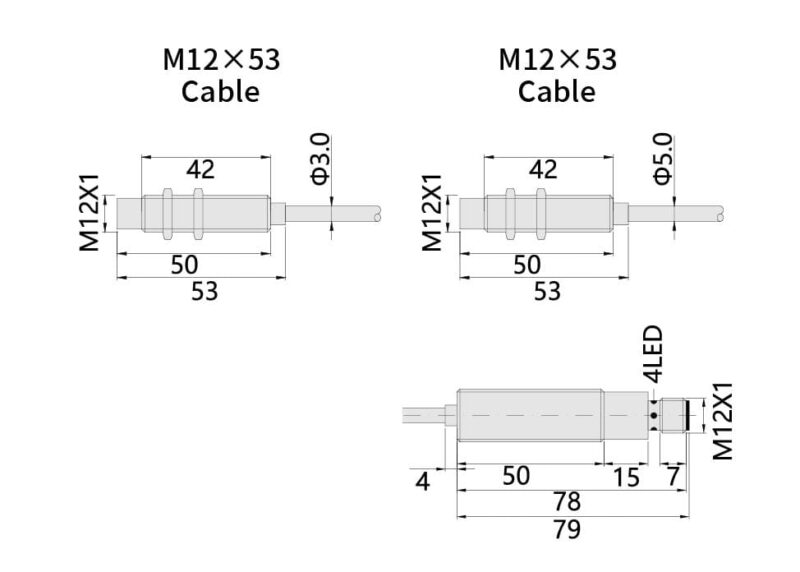

Inductive Switch Size Chart:
Bedook Inductive Proximity Sensor High temperature M12 4mm-Size-01
Bedook’s high-temperature inductive proximity sensor is built for extreme environments, operating reliably at temperatures up to 230℃. Featuring NO+NC outputs, high repeatability accuracy, and IP66 protection, it’s ideal for demanding applications in industries like steel, automotive, and power.
