Description

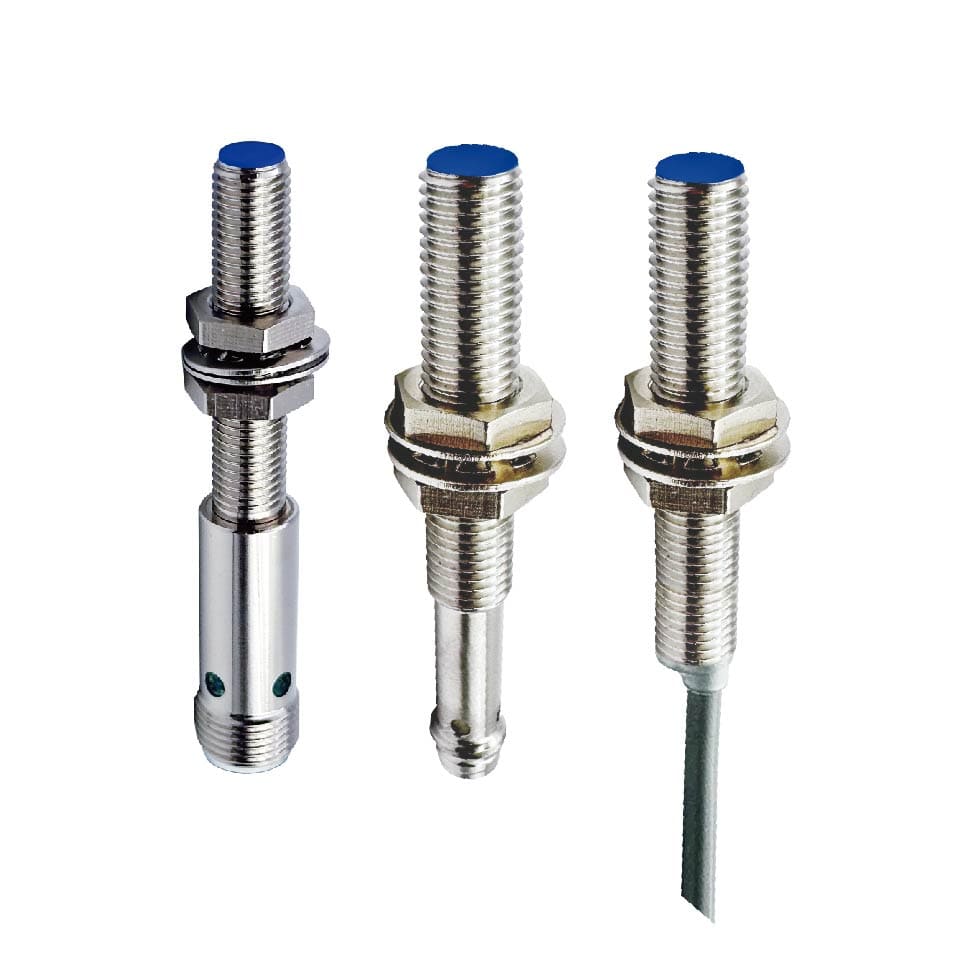

Introducing the Bedook Inductive Proximity Sensor M12 DC 2 Wire, a breakthrough in precision and efficiency.
This compact sensor, equipped with M8 external threading, Offering 4mm or 8mm sensing distances and a wide voltage range of 10-60VDC.
It features an IP67 rating, Brass, nickel-plated housing, and PBT sensing face
Due to its high repeatability, this product is very suitable for applications that require high measurement accuracy.
Inductive Switch Product Features:
This sensor excels in industrial settings with its robust design, multiple sensing distances, and high precision. Ideal for complex environments, it ensures reliable detection.
- Easy Installation: M12 external threading for straightforward implementation.
- Output Flexibility: Choice of NO or NC outputs, accommodating various control needs.
- Precision Measurements: High accuracy with repeatable performance.
- Durable Construction: Robust nickel-plated Brass build with PBT sensing face material.
- Environmental Resistance: IP67 protection against dust and water, suitable for harsh conditions.
- Certified Quality: Compliance with international standards, including CE, UKCA, and ROHS.
Inductive Switch Technical Parameters:

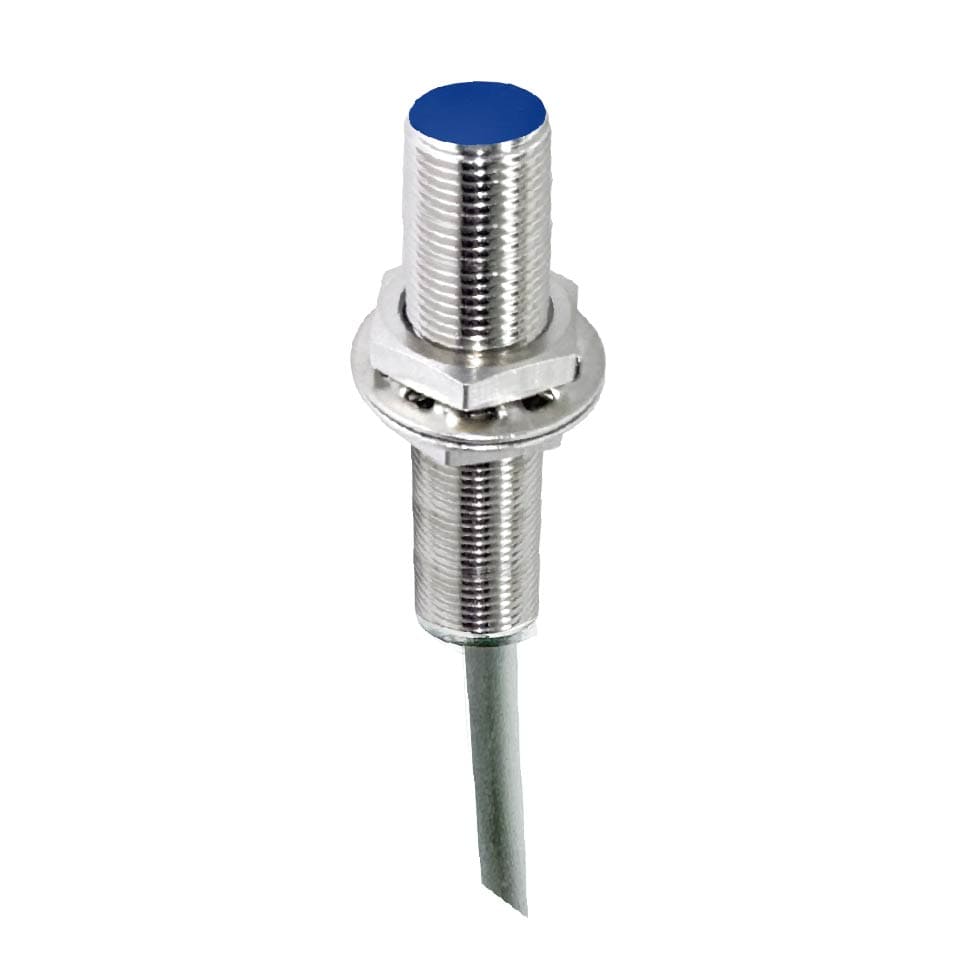

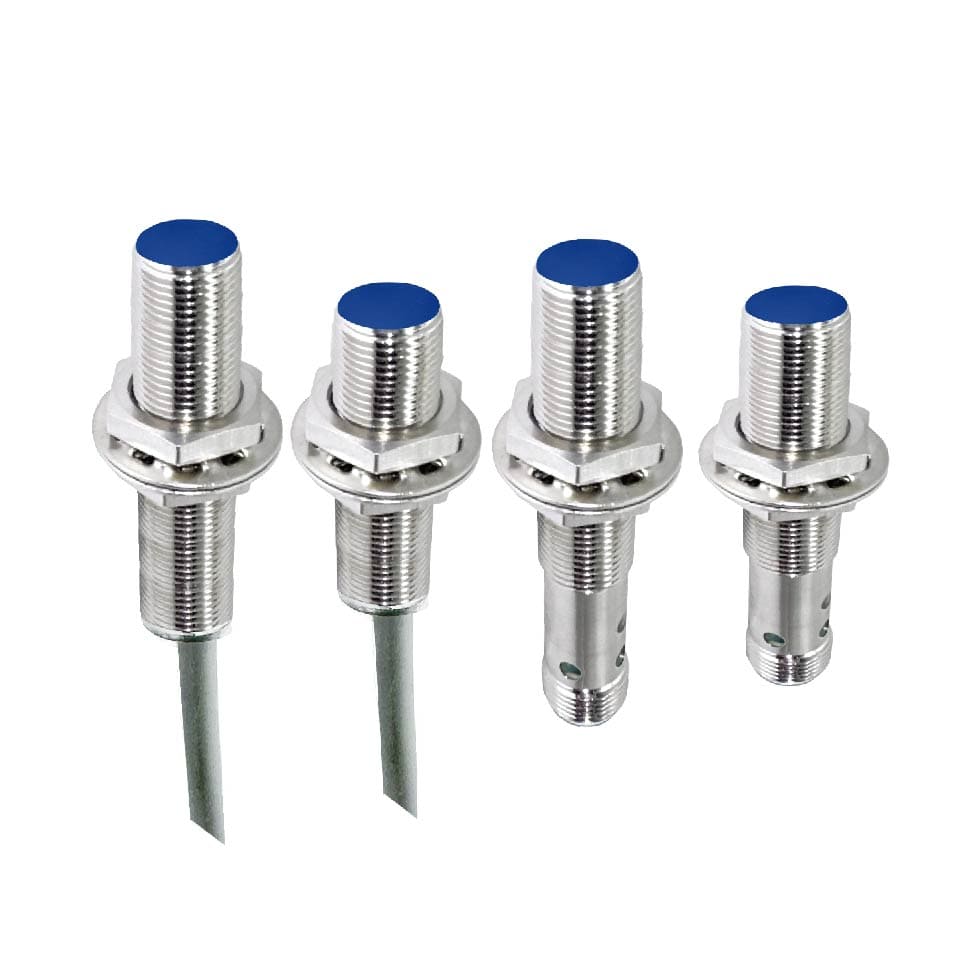

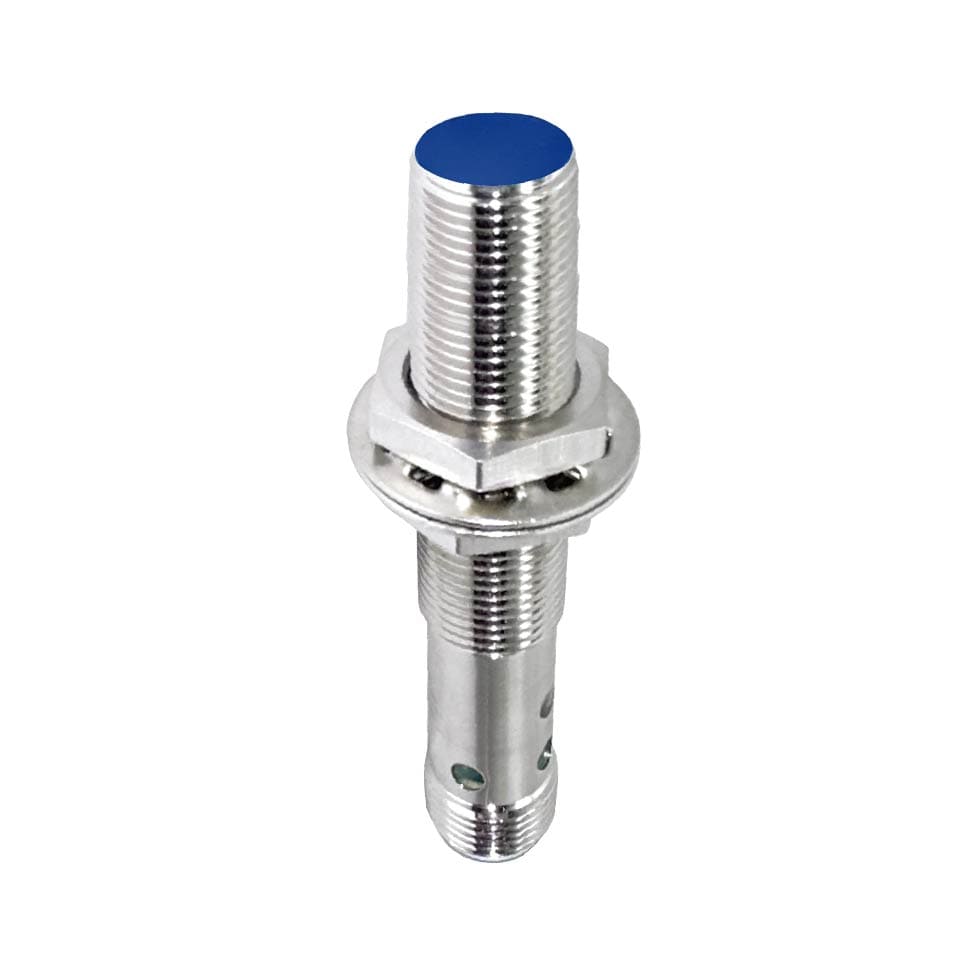

Switching Frequency: 1000Hz(4mm)
| Appearance |  |
 |
 |
 |
|
| Model | NO | BB-M1204C-C13P2 | BB-M1204C-C13P2-S | BB-M1204C-C13S12 | BB-M1204C-C13S12-S |
| NC | BB-M1204C-C23P2 | BB-M1204C-C23P2-S | BB-M1204C-C23S12 | BB-M1204C-C23S12-S | |
| Appearance Structure | M12*1mm | ||||
| Sensing Distance | 4mm(flush mounting) | ||||
| Switching Frequency | 1000Hz | ||||
| Operating voltage | 10…60VDC(±10%) | ||||
| Voltage drop | ≤4.5V | ||||
| Load current | 200mA | ||||
| Leakge current | ≤0.5mA | ||||
| Hysteresis | ＜15%(Sr) | ||||
| Repeatability | ＜1.0%(Sr) | ||||
| Switch protection | Short Circuit Protection, Polarity reversal Protection, Power-On Protection | ||||
| Indication LED | With (Action: LED Indicator Lights Up) | ||||
| Ambient temperature | -25…70℃ | ||||
| Ingress protection | IP67 | ||||
| Housing Material | Brass, nickel-plated | ||||
| Face material | PBT | ||||
| Connectors | 2m PVC Cable, 2*0.5mm²/M12 Connector | ||||
| Accessories | B12-4GV2/B12-4WV2 | ||||

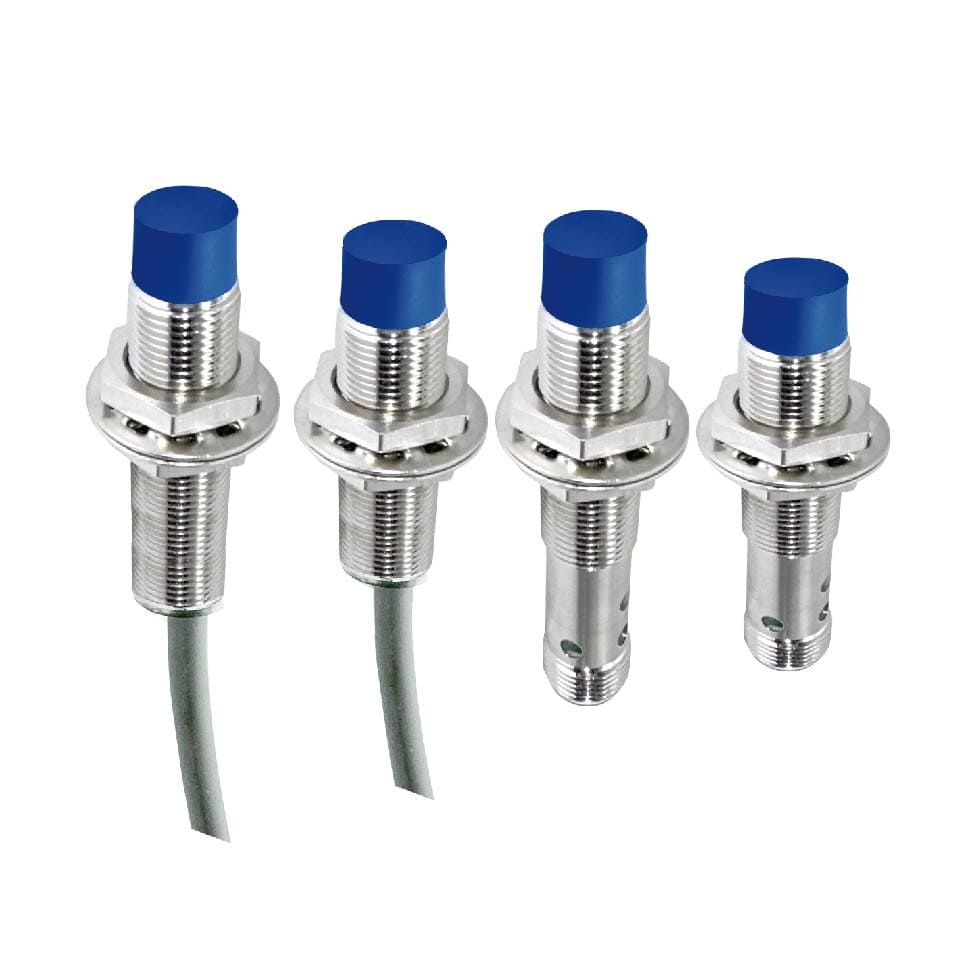

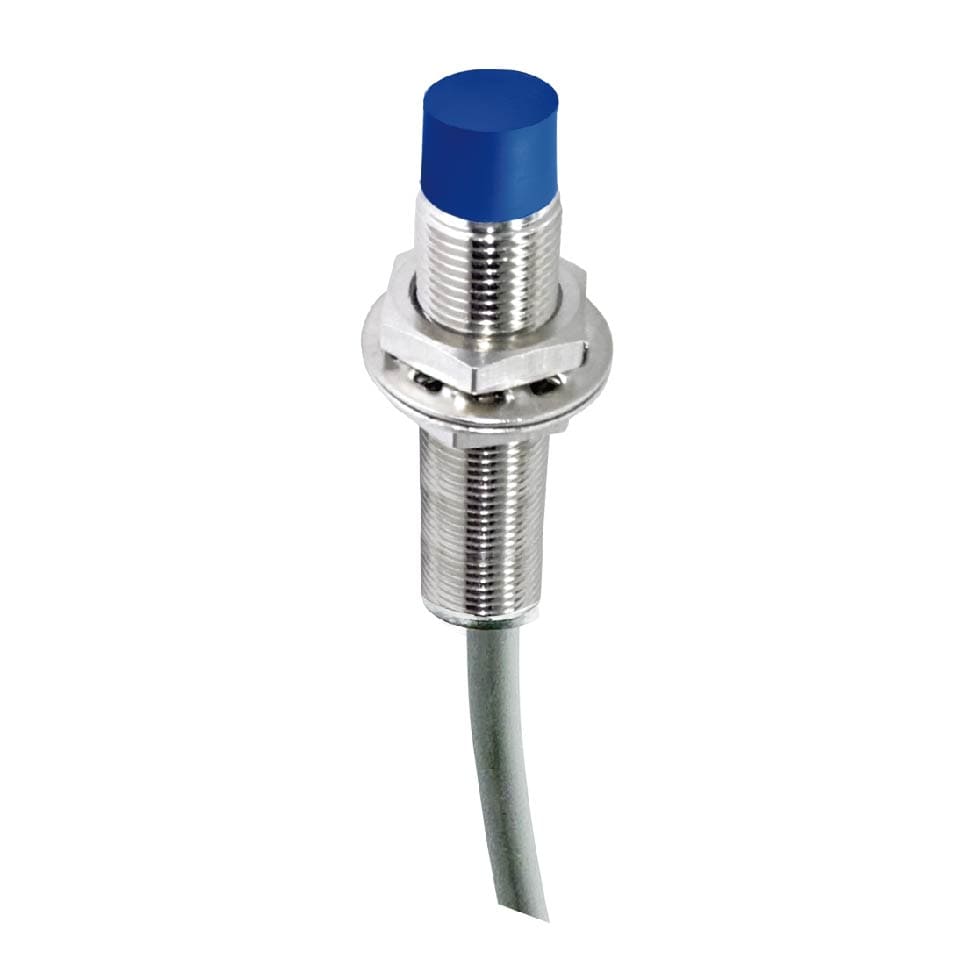

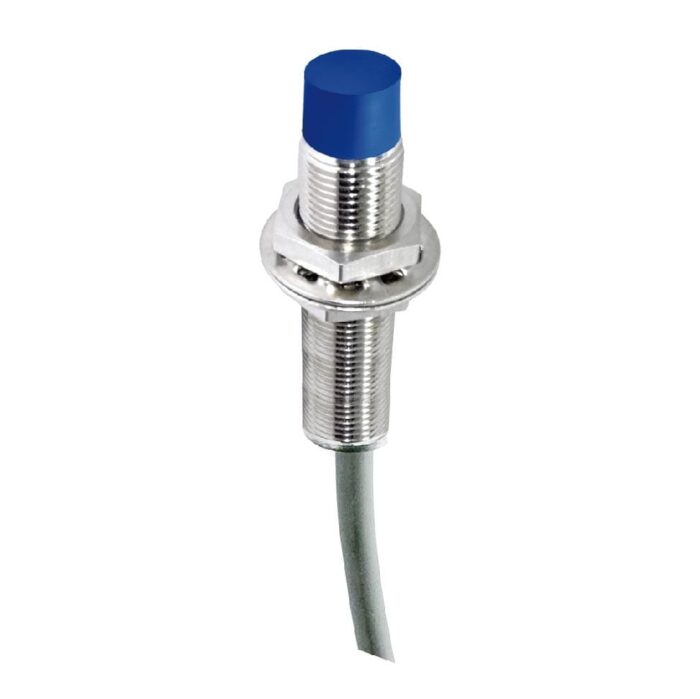

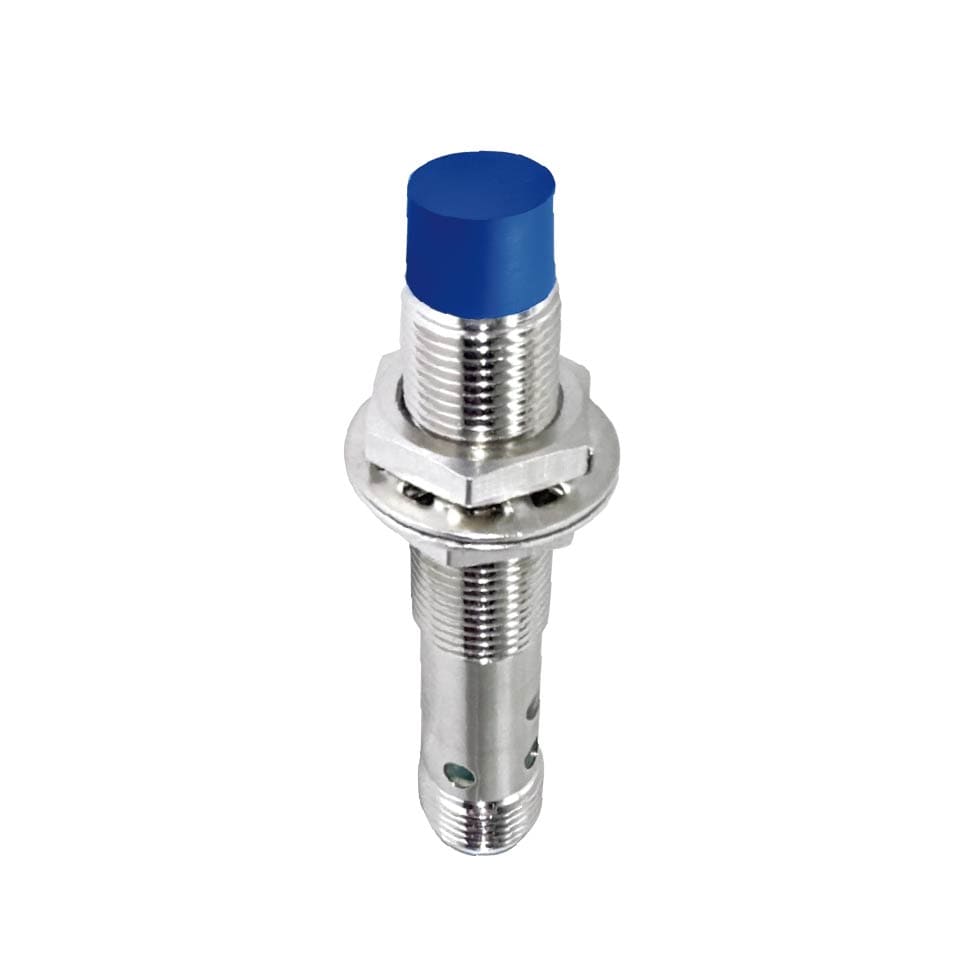

Switching Frequency: 500Hz(8mm)
| Appearance |  |
 |
 |
 |
|
| Model | NO | BN-M1208C-C13P2 | BN-M1208C-C13P2-S | BN-M1208C-C13S12 | BN-M1208C-C13S12-S |
| NC | BN-M1208C-C23P2 | BN-M1208C-C23P2-S | BN-M1208C-C23S12 | BN-M1208C-C23S12-S | |
| Appearance Structure | M12*1mm | ||||
| Sensing Distance | 8mm(Non-flush mounting) | ||||
| Switching Frequency | 500Hz | ||||
| Operating voltage | 10…60VDC(±10%) | ||||
| Voltage drop | ≤4.5V | ||||
| Load current | 200mA | ||||
| Leakge current | ≤0.5mA | ||||
| Hysteresis | ＜15%(Sr) | ||||
| Repeatability | ＜1.0%(Sr) | ||||
| Switch protection | Short Circuit Protection, Polarity reversal Protection, Power-On Protection | ||||
| Indication LED | With (Action: LED Indicator Lights Up) | ||||
| Ambient temperature | -25…70℃ | ||||
| Ingress protection | IP67 | ||||
| Housing Material | Brass, nickel-plated | ||||
| Face material | PBT | ||||
| Connectors | 2m PVC Cable, 2*0.5mm²/M12 Connector | ||||
| Accessories | B12-4GV2/B12-4WV2 | ||||

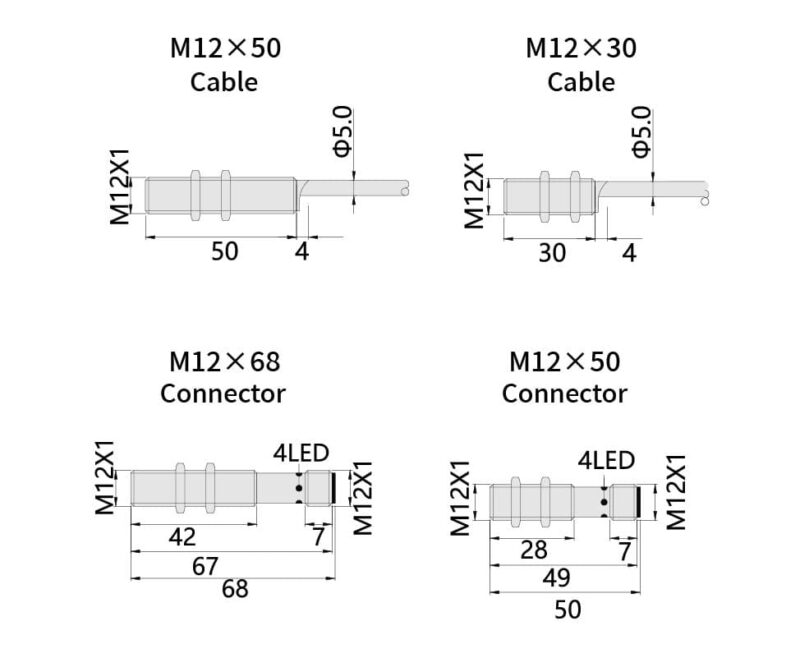

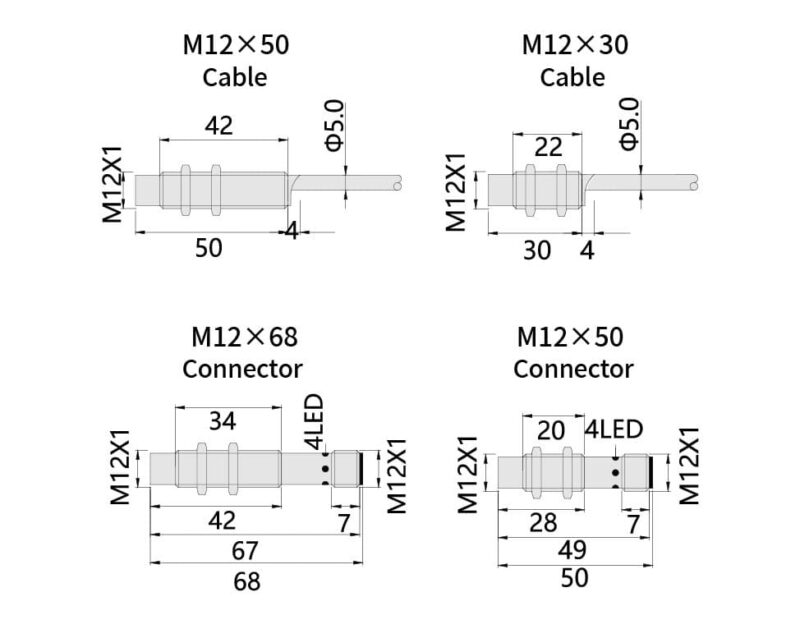

Inductive Switch Size Chart:
Bedook Inductive Proximity Sensor M12 DC 2 Wire-Size-01
Bedook Inductive Proximity Sensor M12 DC 2 Wire-Size-02
Bedook Inductive Proximity Sensor M12 DC 2 Wire merges precision, ease-of-use, and robust construction for optimal proximity detection in any setting.
