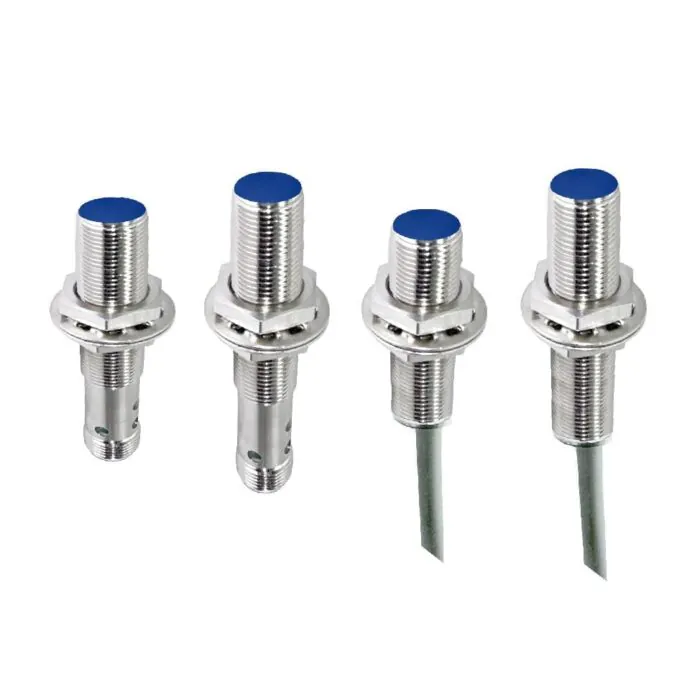

Bedook Inductive Proximity Sensor M12 DC 3 Wire

Bedook Inductive Proximity Sensor M12 DC 3 Wire stands out in the realm of industrial automation with its unmatched blend of compact design and exceptional capability.

Inductive Switch Product Features:

This sensor excels in industrial settings with its robust design, multiple sensing distances, and high precision. Ideal for complex environments, it ensures reliable detection.

• Extended Sensing Range: Equipped with sensing distances of 4/6/8/10 mm, it caters to a wide spectrum of detection needs.
• Superior Anti-Interference: The DC 3-wire configuration minimizes environmental interference, ensuring unwavering performance in complex work spaces.
• Robust Build: Featuring stainless steel or brass, nickel-plated housing, alongside POM sensing material for enduring durability under rigorous conditions.
• IP67 Rated Protection: Offers comprehensive protection against dust and water immersion, ideal for demanding industrial applications.
• Wide Voltage Adaptability: Operates within a 10 to 30 VDC range, accommodating various power supply scenarios.
• Versatile Compatibility: Available in multiple models, including NPN/PNP and NO/NC types, to suit diverse operational requirements.

Inductive Switch Technical Parameters:

Appearance
Model	NPN N.O	BB-M1204N-C11P2	BB-M1206N-C11P2	BB-M1204N-C11P2-S	BB-M1206N-C11P2-S
	NPN N.C	BB-M1204N-C21P2	BB-M1206N-C21P2	BB-M1204N-C21P2-S	BB-M1206N-C21P2-S
	PNP N.O	BB-M1204P-C11P2	BB-M1206P-C11P2	BB-M1204P-C11P2-S	BB-M1206P-C11P2-S
	PNP N.C	BB-M1204P-C21P2	BB-M1206P-C21P2	BB-M1204P-C21P2-S	BB-M1206P-C21P2-S
Exterior Structure		M12*1mm	M12*1mm	M12*1mm	M12*1mm
Sensing Distance		4mm(flush)	6mm(Quasi-flush)	4mm(flush)	6mm(Quasi-flush)
Switching Frequency		3000Hz	800Hz	3000Hz	800Hz
Operating voltage		10…30VDC(±10%)
Voltage drop		≤2.0V
Load current		200mA
Leakge current		≤0.01mA
No load current		≤10mA(24V)
Hysteresis		＜15%(Sr)
Repeatability		＜1.0%(Sr)
Switch protection		Short Circuit Protection, Polarity reversal Protection, Power-On Protection
Indication LED		With (Action: LED Indicator Lights Up)
Ambient temperature		-25…70℃
Ingress protection		IP67
Housing Material		Brass, nickel-plated
Face material		PBT
Connectors		2m PVC Cable, 3*0.35mm²
Accessories		None

Appearance
Model	NPN N.O	BB-M1204N-C11S12	BB-M1206N-C11S12	BB-M1204N-C11S12-S	BB-M1206N-C11S12-S
	NPN N.C	BB-M1204N-C21S12	BB-M1206N-C21S12	BB-M1204N-C21S12-S	BB-M1206N-C21S12-S
	PNP N.O	BB-M1204P-C11S12	BB-M1206P-C11S12	BB-M1204P-C11S12-S	BB-M1206P-C11S12-S
	PNP N.C	BB-M1204P-C21S12	BB-M1206P-C21S12	BB-M1204P-C21S12-S	BB-M1206P-C21S12-S
Exterior Structure		M12*1mm	M12*1mm	M12*1mm	M12*1mm
Sensing Distance		4mm(flush)	6mm(Quasi-flush)	4mm(flush)	6mm(Quasi-flush)
Switching Frequency		3000Hz	800Hz	3000Hz	800Hz
Operating voltage		10…30VDC(±10%)
Voltage drop		≤2.0V
Load current		200mA
Leakge current		≤0.01mA
No load current		≤10mA(24V)
Hysteresis		＜15%(Sr)
Repeatability		＜1.0%(Sr)
Switch protection		Short Circuit Protection, Polarity reversal Protection, Power-On Protection
Indication LED		With (Action: LED Indicator Lights Up)
Ambient temperature		-25…70℃
Ingress protection		IP67
Housing Material		Brass, nickel-plated
Face material		PBT
Connectors		M12 Connector
Accessories		B12-4GV2/B12-4WV2

Appearance
Model	NPN N.O	BN-M1208N-C11P2	BN-M1210N-C11P2	BN-M1208N-C11P2-S	BN-M1210N-C11P2-S
	NPN N.C	BN-M1208N-C21P2	BN-M1210N-C21P2	BN-M1208N-C21P2-S	BN-M1210N-C21P2-S
	PNP N.O	BN-M1208P-C11P2	BN-M1210P-C11P2	BN-M1208P-C11P2-S	BN-M1210P-C11P2-S
	PNP N.C	BN-M1208P-C21P2	BN-M1210P-C21P2	BN-M1208P-C21P2-S	BN-M1210P-C21P2-S
Exterior Structure		M12*1mm	M12*1mm	M12*1mm	M12*1mm
Sensing Distance		8mm(Non-flush)	10mm(Non-flush)	8mm(Non-flush)	10mm(Non-flush)
Switching Frequency		500Hz	400Hz	500Hz	400Hz
Operating voltage		10…30VDC(±10%)
Voltage drop		≤2.0V
Load current		200mA
Leakge current		≤0.01mA
No load current		≤10mA(24V)
Hysteresis		＜15%(Sr)
Repeatability		＜1.0%(Sr)
Switch protection		Short Circuit Protection, Polarity reversal Protection, Power-On Protection
Indication LED		With (Action: LED Indicator Lights Up)
Ambient temperature		-25…70℃
Ingress protection		IP67
Housing Material		Brass, nickel-plated
Face material		PBT
Connectors		2m PVC Cable, 3*0.35mm²
Accessories		None

Appearance
Model	NPN N.O	BN-M1208N-C11S12	BN-M1210N-C11S12	BN-M1208N-C11S12-S	BN-M1210N-C11S12-S
	NPN N.C	BN-M1208N-C21S12	BN-M1210N-C21S12	BN-M1208N-C21S12-S	BN-M1210N-C21S12-S
	PNP N.O	BN-M1208P-C11S12	BN-M1210P-C11S12	BN-M1208P-C11S12-S	BN-M1210P-C11S12-S
	PNP N.C	BN-M1208P-C21S12	BN-M1210P-C21S12	BN-M1208P-C21S12-S	BN-M1210P-C21S12-S
Exterior Structure		M12*1mm	M12*1mm	M12*1mm	M12*1mm
Sensing Distance		8mm(Non-flush)	10mm(Non-flush)	8mm(Non-flush)	10mm(Non-flush)
Switching Frequency		500Hz	400Hz	500Hz	400Hz
Operating voltage		10…30VDC(±10%)
Voltage drop		≤2.0V
Load current		200mA
Leakge current		≤0.01mA
No load current		≤10mA(24V)
Hysteresis		＜15%(Sr)
Repeatability		＜1.0%(Sr)
Switch protection		Short Circuit Protection, Polarity reversal Protection, Power-On Protection
Indication LED		With (Action: LED Indicator Lights Up)
Ambient temperature		-25…70℃
Ingress protection		IP67
Housing Material		Brass, nickel-plated
Face material		PBT
Connectors		M12 Connector
Accessories		B12-4GV2/B12-4WV2

Inductive Switch Size Chart:

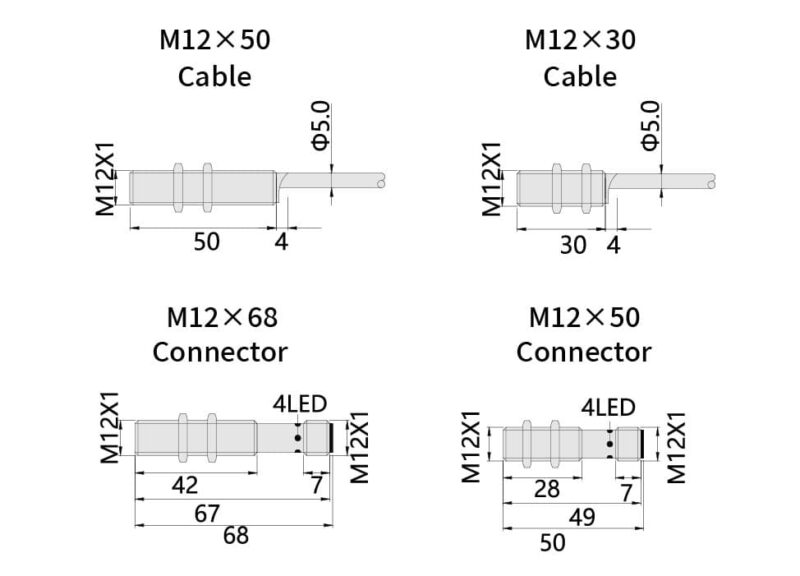

Bedook Inductive Proximity Sensor M12 DC 3 Wire-Size-01

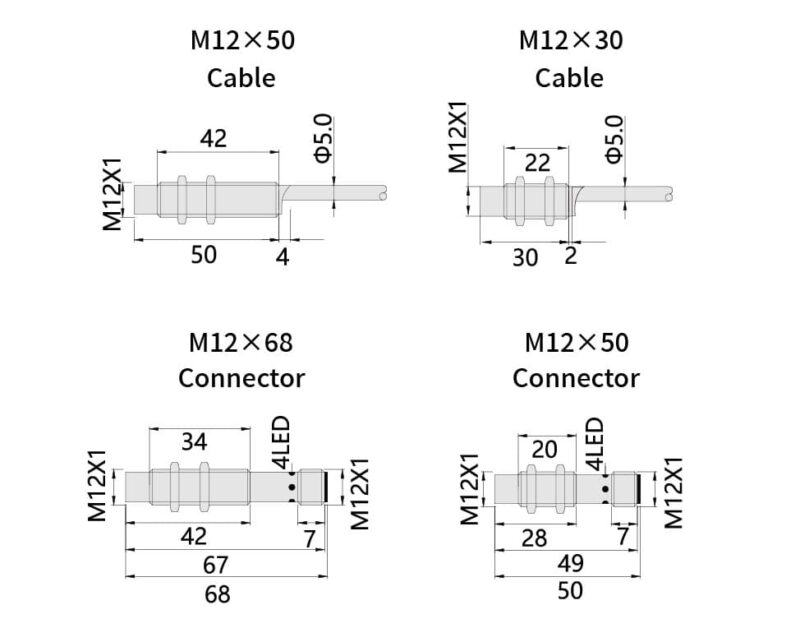

Bedook Inductive Proximity Sensor M12 DC 3 Wire-Size-02

Engineered for ease of integration into a wide array of setups, Bedook Inductive Proximity Sensor M12 DC 3 Wire brings forth the promise of precision and resourcefulness in operations demanding the utmost accuracy and reliability.

Bedook takes pride in delivering not only state-of-the-art technology but also in ensuring affordability and quality assurance across our product range.

Backed by international certifications like CE, UKCA, and ROHS, our M12 Inductive Proximity Sensor is poised to enhance operational efficiency while promising cost-effectiveness.

Enquire now to explore how our solutions can fit your budget and elevate your operations.
