Description

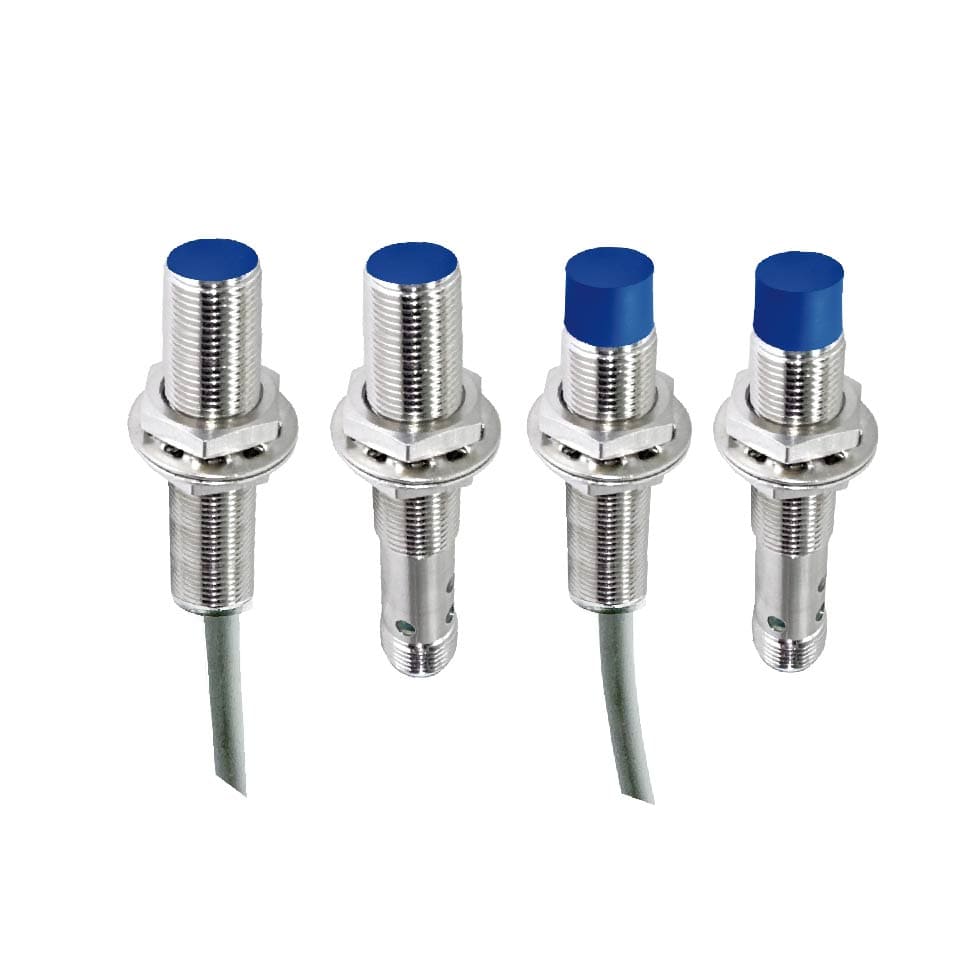

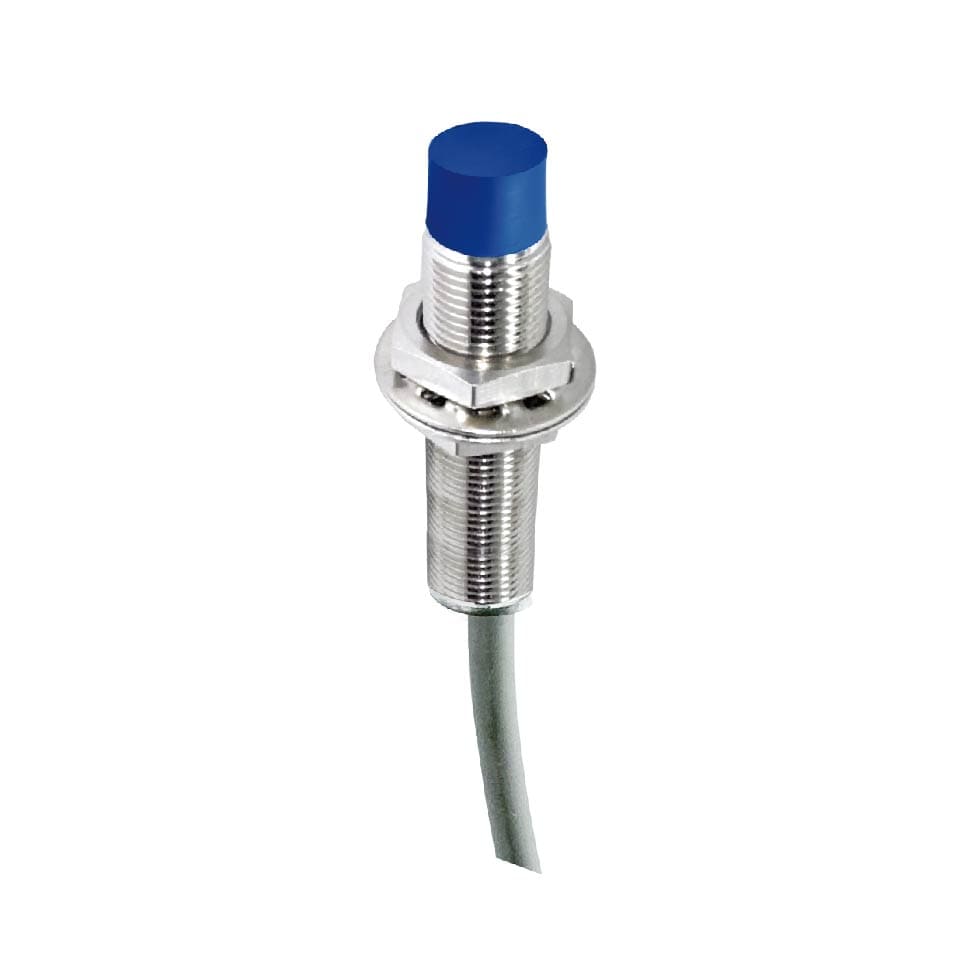

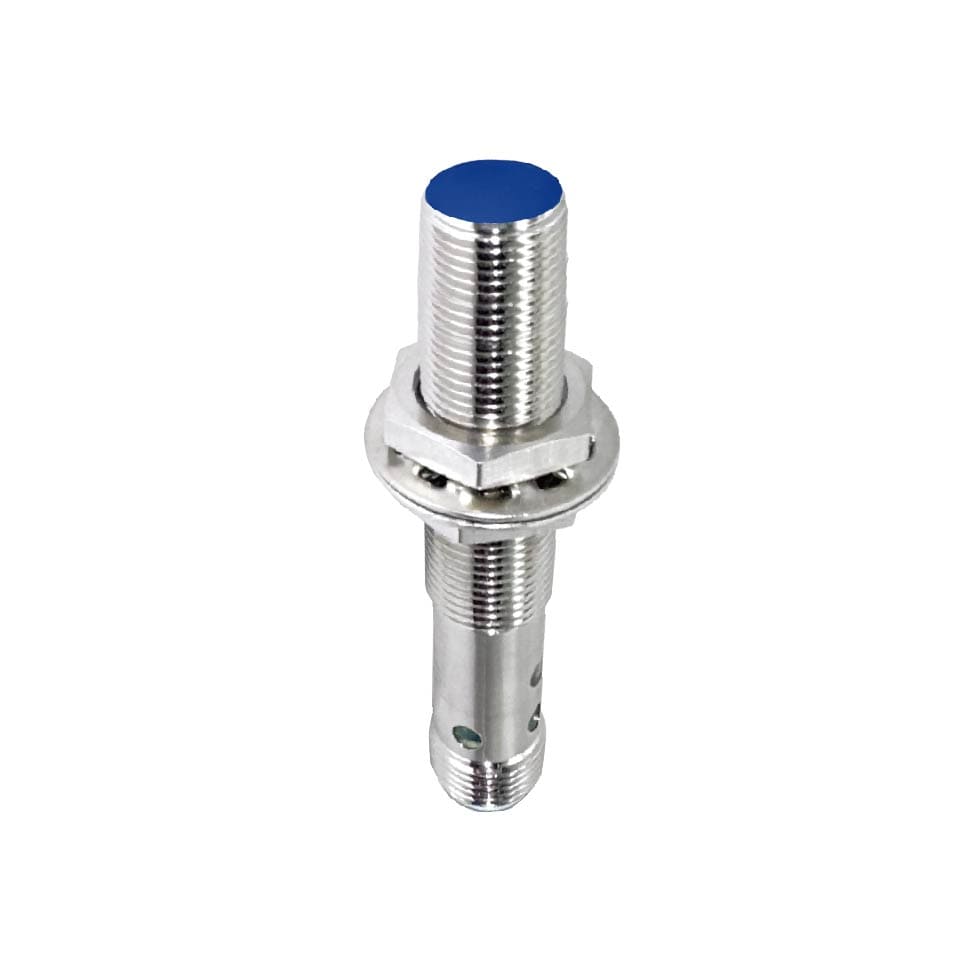

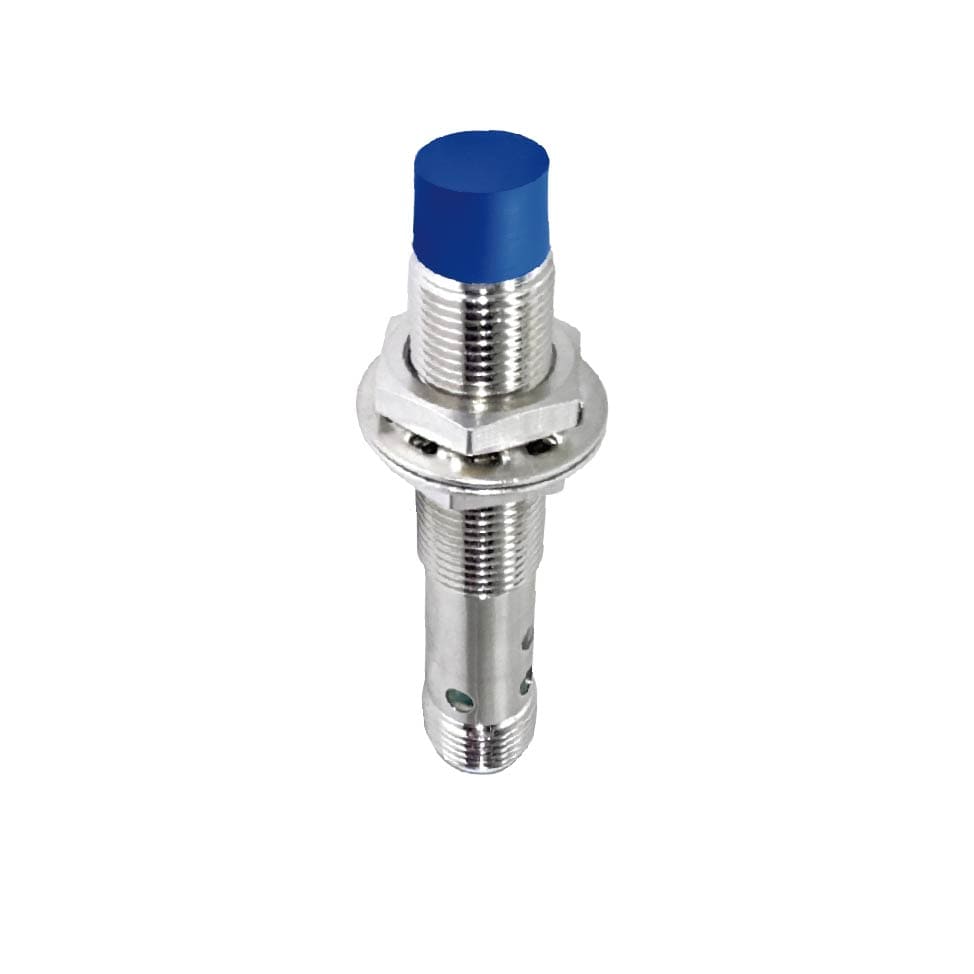

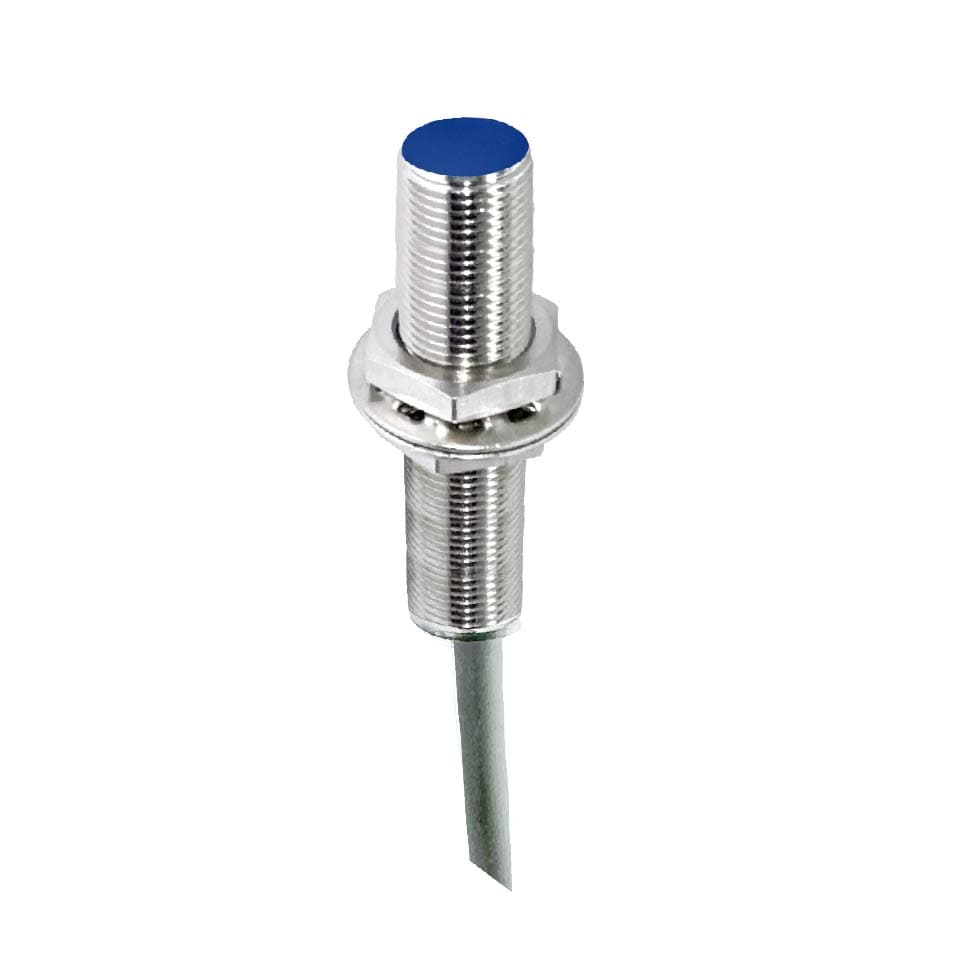

Leverage the precision and advanced capabilities of Bedook Inductive Proximity Sensor M12 DC 4 Wire.
Our sensor’s meticulous design is constructed to thrive in intricate applications where finesse and resilience are paramount.
Bedook, as a frontline sensor manufacturer, ensures competitive pricing and unwavering quality assurance.
Inductive Switch Product Features:
This sensor excels in industrial settings with its robust design, multiple sensing distances, and high precision. Ideal for complex environments, it ensures reliable detection.
- Dual Signal Output: Unique to 4-wire sensors, offering NO+NC outputs for versatile application requirements.
- Enhanced Anti-Interference: Superior to traditional 3-wire sensors, ensuring reliability in high-demand environments.
- Versatile Sensing Distances: Offering a 4mm flush mounting and 8mm non-flush mounting, paired with high switching frequencies for varied operations.
- Wide Voltage Operation: Rated for 10 to 30 VDC, facilitating compatibility with diverse power systems.
- Rugged and Durable: Nickel-plated brass housing with PBT sensing face, standardized with IP67 protection for long-term performance.
- Temperature Adaptability: Engineered to excel across all temperature conditions, ranging from -25 to 70℃, ensuring reliable performance in any operating environment.
Inductive Switch Technical Parameters:
| Appearance |  |
 |
 |
 |
|
| Model | NPN NO+NC | BB-M1204N-C31P2 | BN-M1208N-C31P2 | BB-M1204N-C31S12 | BN-M1208N-C31S12 |
| PNP NO+NC | BB-M1204P-C31P2 | BN-M1208P-C31P2 | BB-M1204P-C31S12 | BN-M1208P-C31S12 | |
| Appearance Structure | M12*1mm | M12*1mm | |||
| Sensing Distance | 4mm(flush mounting) | 8mm(Non-flush mounting) | |||
| Switching Frequency | 3000Hz | 500Hz | |||
| Operating voltage | 10…30VDC(±10%) | ||||
| Voltage drop | ≤2.0V | ||||
| Load current | 200mA | ||||
| No load current | ≤10mA(24V) | ||||
| Hysteresis | ＜15%(Sr) | ||||
| Repeatability | ＜1.0%(Sr) | ||||
| Switch protection | Short Circuit Protection, Polarity reversal Protection, Power-On Protection | ||||
| Indication LED | With (Action: LED Indicator Lights Up) | ||||
| Ambient temperature | -25…70℃ | ||||
| Ingress protection | IP67 | ||||
| Housing Material | Brass, nickel-plated | ||||
| Face material | PBT | ||||
| Connectors | 2m PVC Cable, 4*0.25mm²/M12 Connector | ||||
| Accessories | B12-4GV2/B12-4WV2 | ||||

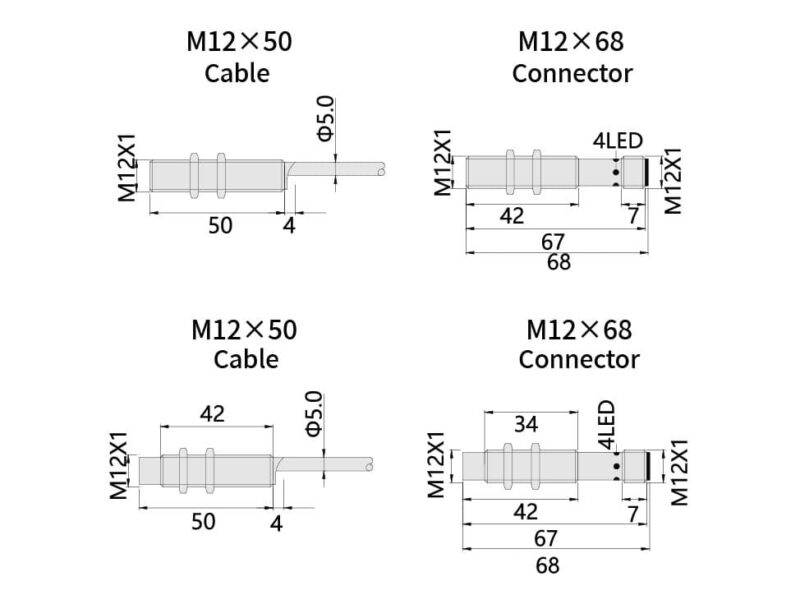

Inductive Switch Size Chart:
Bedook Inductive Proximity Sensor M12 DC 4 Wire-Size-01
Bedook Inductive Proximity Sensor M12 DC 4 Wire is engineered for precision and adaptability in various industrial settings.
Count on Bedook—the top-tier professional in designing and manufacturing a comprehensive range of sensors.
We stand by our commitment to deliver superior sensors, offering optimum quality alongside attractive pricing.
Propel your operations with our certified products and experience cost-effective precision by inquiring today.
