Description

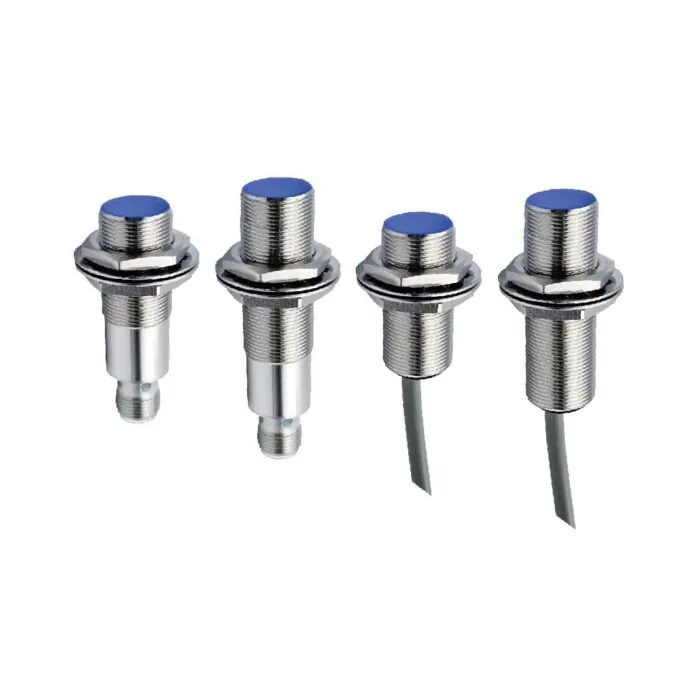

Elevate your industrial applications with Bedook Inductive Proximity Sensor M18 AC/DC 2 Wire.
Engineered for adaptability and precision, this compact sensor brings reliability and efficiency to the forefront of automation and control systems.
Inductive Switch Product Features:
This sensor excels in industrial settings with its robust design, multiple sensing distances, and high precision. Ideal for complex environments, it ensures reliable detection.
- Versatile Power Compatibility: Adapts seamlessly between 20 to 250V AC/DC, ensuring functionality across a broad voltage range.
- Exceptional Repeatability: With less than 1.0% deviation, it guarantees consistent performance for dependable system accuracy.
- Robust Design: Brass, nickel-plated housing paired with PBT sensing face material provides IP67 grade protection.
- Signal Clarity: Embedded indication LED and switch output (NO/NC) for clear, immediate system feedback.
- Flexible Installation: M18 external threads and multiple connector options facilitate easy integration into existing setups.
- Wide Operational Range: Efficiently operates in temperatures from -25 to 70℃, suitable for extreme environments.
Inductive Switch Technical Parameters:

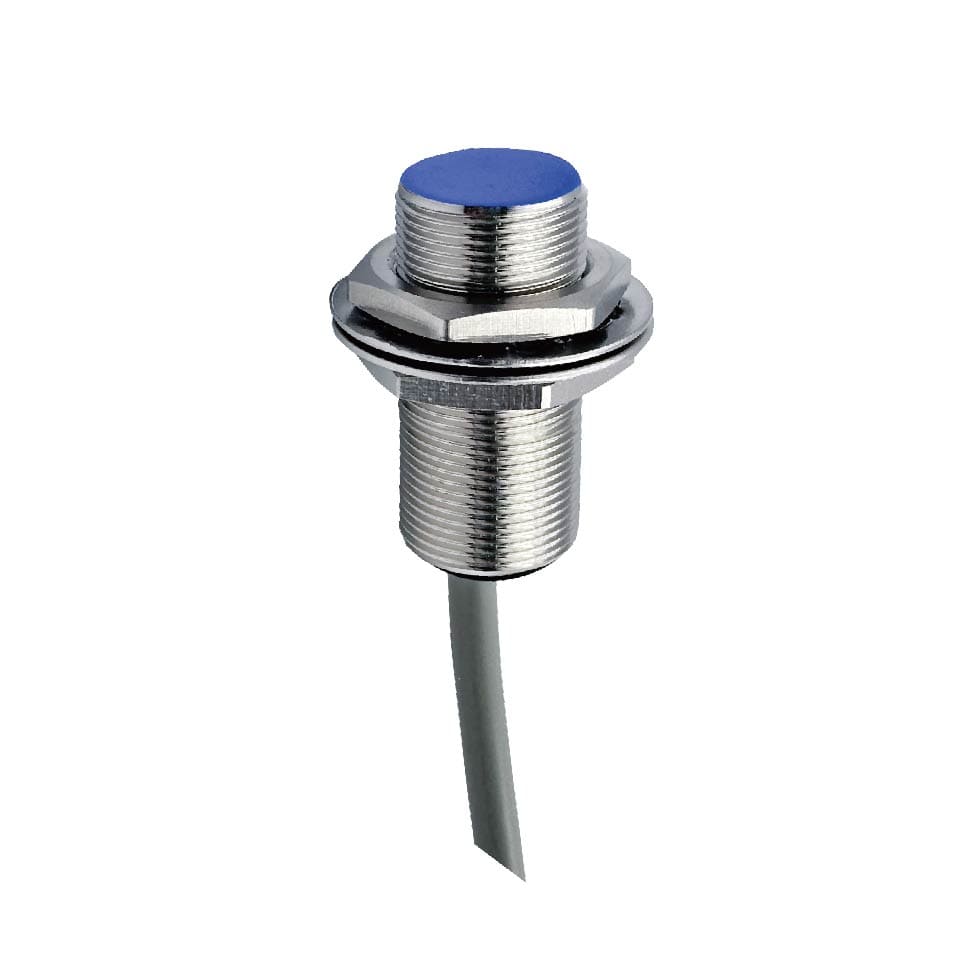

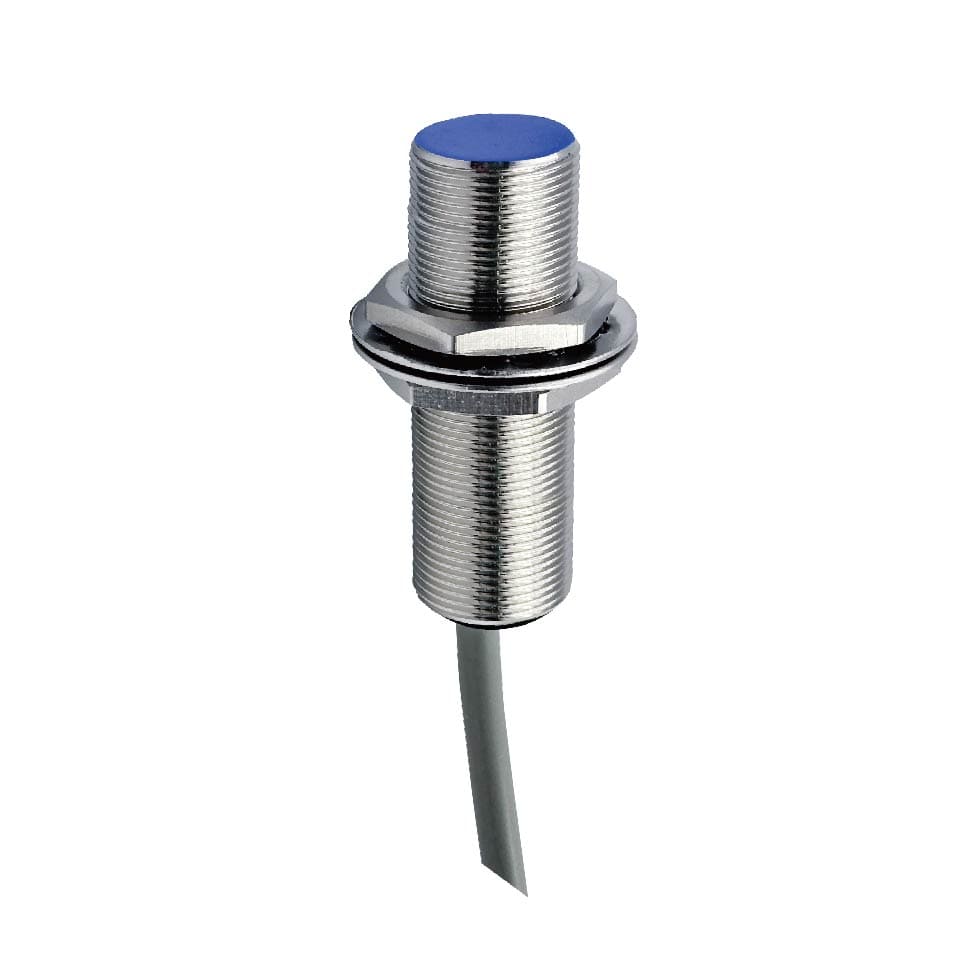

| Appearance |  |
 |
|||
| Model | NO | BB-M1805A-C14P2 | BB-M1808A-C14P2 | BB-M1805A-C14P2-S | BB-M1808A-C14P2-S |
| NC | BB-M1805A-C24P2 | BB-M1808A-C24P2 | BB-M1805A-C24P2-S | BB-M1808A-C24P2-S | |
| NO | BB-M1805U-C15P2 | BB-M1808U-C15P2 | BB-M1805U-C15P2-S | BB-M1808U-C15P2-S | |
| NC | BB-M1805U-C25P2 | BB-M1808U-C25P2 | BB-M1805U-C25P2-S | BB-M1808U-C25P2-S | |
| Exterior Structure | M18*1mm | M18*1mm | M18*1mm | M18*1mm | |
| Sensing Distance | 5mm(Flush) | 8mm(Flush) | 5mm(Flush) | 8mm(Flush) | |
| Switching Frequency | 25Hz/25Hz AC; 40Hz DC | ||||
| Operating voltage | 20…250V AC/20…250V AC/DC | ||||
| Voltage drop | ≤8V AC/≤10V AC,8V DC | ||||
| Load current | Max.load:400mA;min. Load:5mA | ||||
| Max.load:200mA;min. Load:5mA | |||||
| Leakage current | ≤1.8mA/≤2.5mA | ||||
| Hysteresis | ＜15%(Sr) | ||||
| Repeatability | ＜1.0%(Sr) | ||||
| Switch protection | Polarity Protection, Power-on Protection | ||||
| Indication LED | With (Action: LED Indicator Lights Up) | ||||
| Ambient temperature | -25…70℃ | ||||
| Ingress protection | IP67 | ||||
| Housing Material | Brass, nickel-plated | ||||
| Face material | POM | ||||
| Connectors | 2m PVC Cable, 3*0.35mm² | ||||
| Accessories | None | ||||

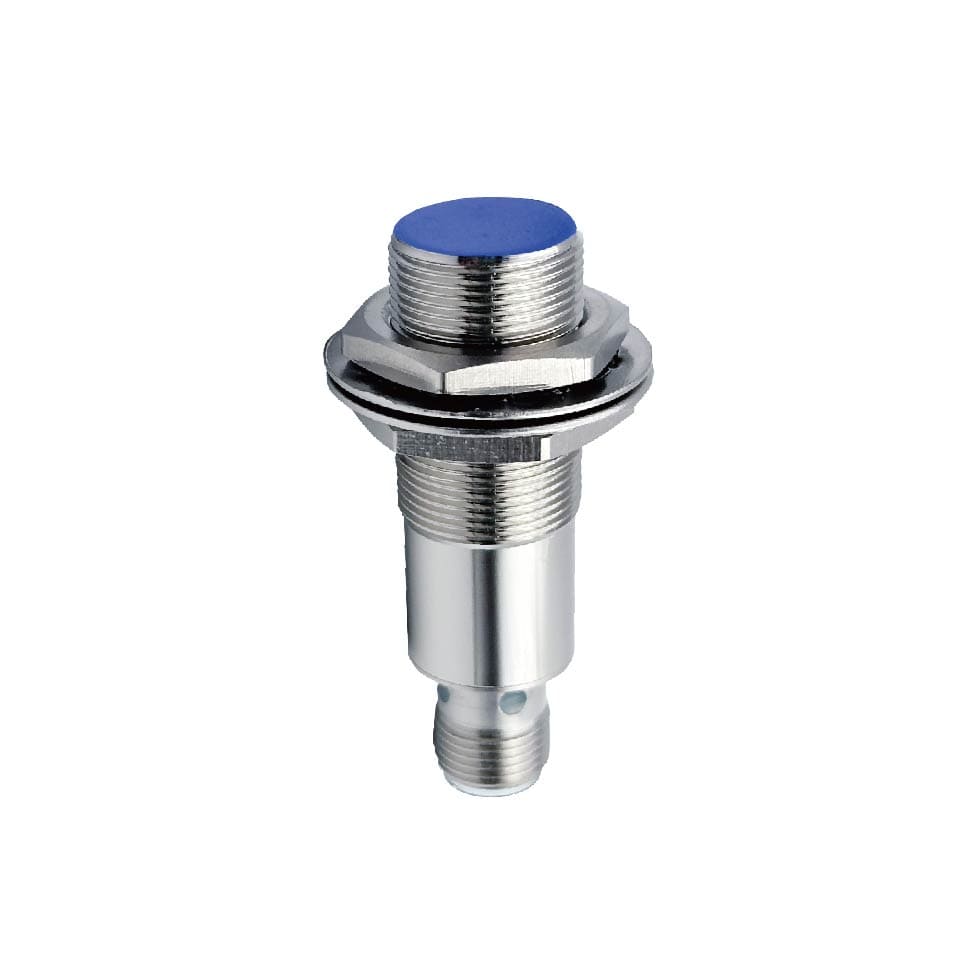

| Appearance |  |
 |
|||
| Model | NO | BB-M1805A-C14S12 | BB-M1808A-C14S12 | BB-M1805A-C14S12-S | BB-M1808A-C14S12-S |
| NC | BB-M1805A-C24S12 | BB-M1808A-C24S12 | BB-M1805A-C24S12-S | BB-M1808A-C24S12-S | |
| NO | BB-M1805U-C15S12 | BB-M1808U-C15S12 | BB-M1805U-C15S12-S | BB-M1808U-C15S12-S | |
| NC | BB-M1805U-C25S12 | BB-M1808U-C25S12 | BB-M1805U-C25S12-S | BB-M1808U-C25S12-S | |
| Exterior Structure | M18*1mm | M18*1mm | M18*1mm | M18*1mm | |
| Sensing Distance | 5mm(Flush) | 8mm(Flush) | 5mm(Flush) | 8mm(Flush) | |
| Switching Frequency | 25Hz/25Hz AC; 40Hz DC | ||||
| Operating voltage | 20…250V AC/20…250V AC/DC | ||||
| Voltage drop | ≤8V AC/≤10V AC,8V DC | ||||
| Load current | Max.load:400mA;min. Load:5mA | ||||
| Max.load:200mA;min. Load:5mA | |||||
| Leakage current | ≤1.8mA/≤2.5mA | ||||
| Hysteresis | ＜15%(Sr) | ||||
| Repeatability | ＜1.0%(Sr) | ||||
| Switch protection | Polarity Protection, Power-on Protection | ||||
| Indication LED | With (Action: LED Indicator Lights Up) | ||||
| Ambient temperature | -25…70℃ | ||||
| Ingress protection | IP67 | ||||
| Housing Material | Brass, nickel-plated | ||||
| Face material | POM | ||||
| Connectors | M12 Connector | ||||
| Accessories | B12-4GV2/B12-4WV2 | ||||

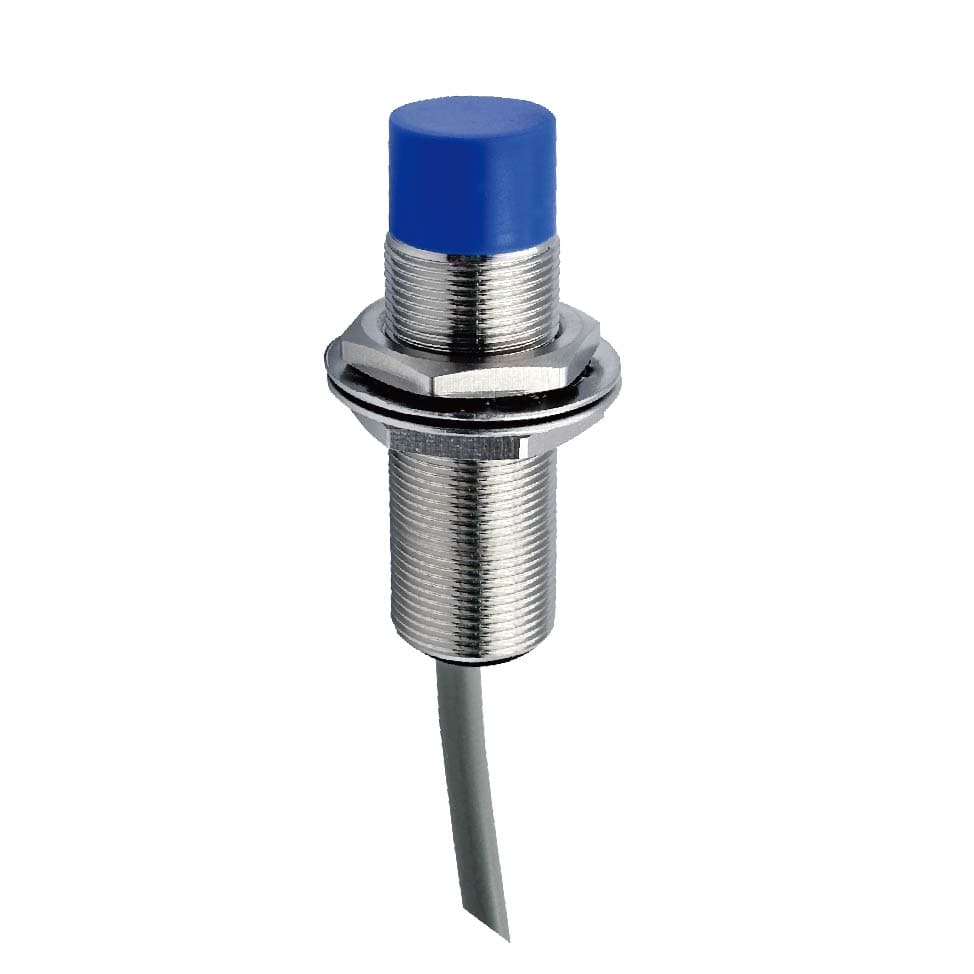

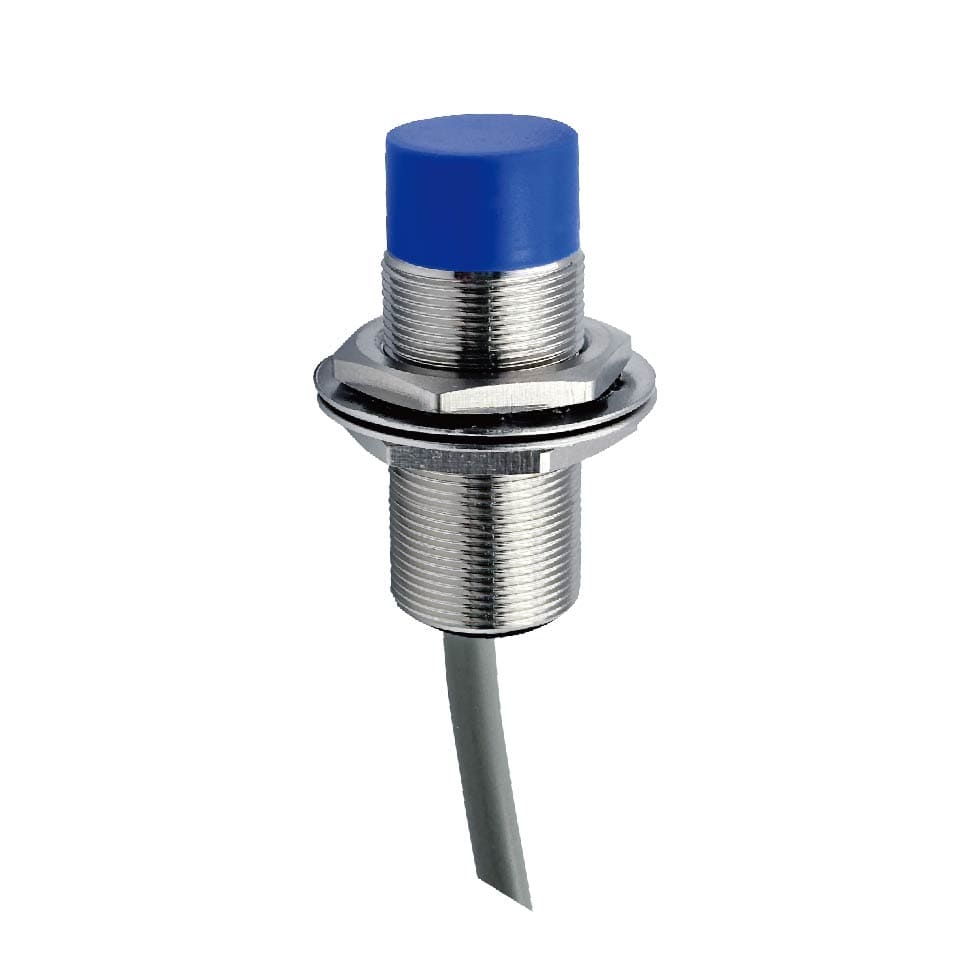

| Appearance |  |
 |
|||
| Model | NO | BN-M1808A-C14P2 | BN-M1816A-C14P2 | BN-M1808A-C14P2-S | BN-M1816A-C14P2-S |
| NC | BN-M1808A-C24P2 | BN-M1816A-C24P2 | BN-M1808A-C24P2-S | BN-M1816A-C24P2-S | |
| Model | NO | BN-M1808U-C15P2 | BN-M1816U-C15P2 | BN-M1808U-C15P2-S | BN-M1816U-C15P2-S |
| NC | BN-M1808U-C25P2 | BN-M1816U-C25P2 | BN-M1808U-C25P2-S | BN-M1816U-C25P2-S | |
| Exterior Structure | M18*1mm | M18*1mm | M18*1mm | M18*1mm | |
| Sensing Distance | 8mm(Non-flush) | 16mm(Non-flush) | 8mm(Non-flush) | 16mm(Non-flush) | |
| Switching Frequency | 25Hz/25Hz AC; 40Hz DC | ||||
| Operating voltage | 20…250V AC/20…250V AC/DC | ||||
| Voltage drop | ≤8V AC/≤10V AC,8V DC | ||||
| Load current | Max.load:400mA;min. Load:5mA | ||||
| Max.load:200mA;min. Load:5mA | |||||
| Leakage current | ≤1.8mA/≤2.5mA | ||||
| Hysteresis | ＜15%(Sr) | ||||
| Repeatability | ＜1.0%(Sr) | ||||
| Switch protection | Polarity Protection, Power-on Protection | ||||
| Indication LED | With (Action: LED Indicator Lights Up) | ||||
| Ambient temperature | -25…70℃ | ||||
| Ingress protection | IP67 | ||||
| Housing Material | Brass, nickel-plated | ||||
| Face material | POM | ||||
| Connectors | 2m PVC Cable, 3*0.35mm² | ||||
| Accessories | None | ||||

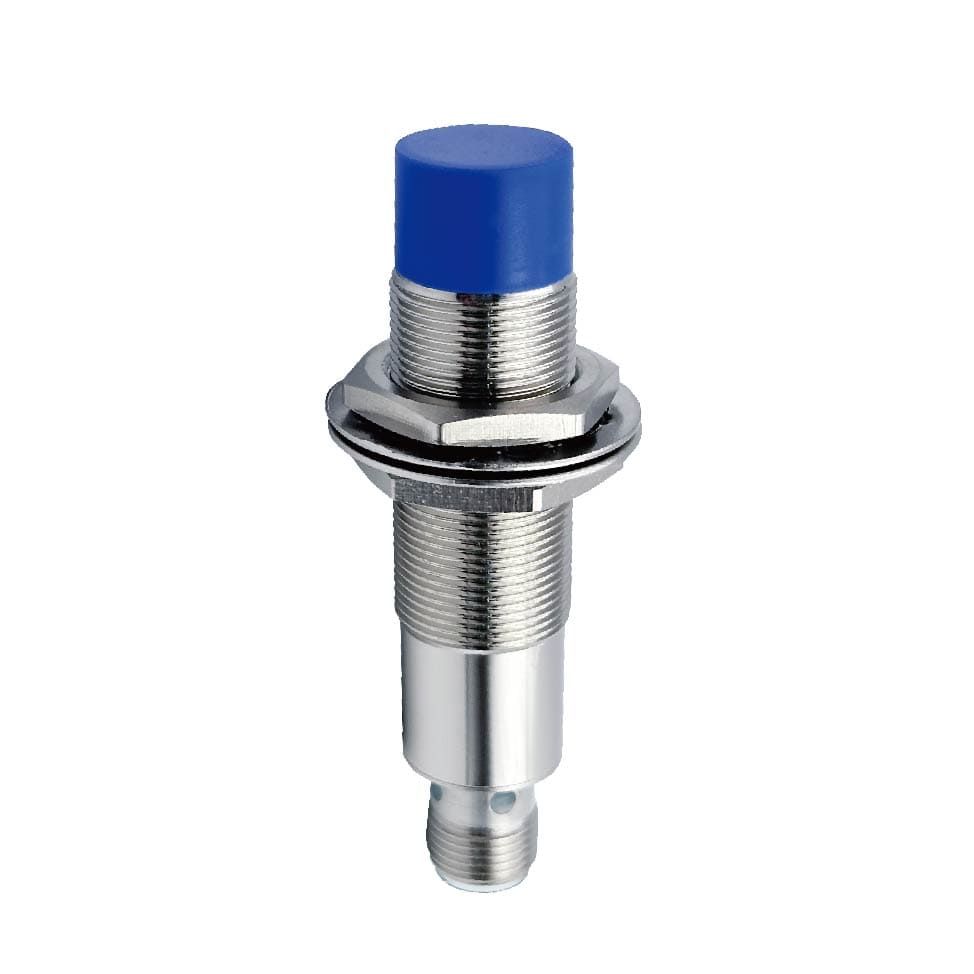

| Appearance | |
|
|||
| Model | NO | BN-M1808A-C14S12 | BN-M1816A-C14S12 | BN-M1808A-C14S12-S | BN-M1816A-C14S12-S |
| NC | BN-M1808A-C24S12 | BN-M1816A-C24S12 | BN-M1808A-C24S12-S | BN-M1816A-C24S12-S | |
| Model | NO | BN-M1808U-C15S12 | BN-M1816U-C15S12 | BN-M1808U-C15S12-S | BN-M1816U-C15S12-S |
| NC | BN-M1808U-C25S12 | BN-M1816U-C25S12 | BN-M1808U-C25S12-S | BN-M1816U-C25S12-S | |
| Exterior Structure | M18*1mm | M18*1mm | M18*1mm | M18*1mm | |
| Sensing Distance | 8mm(Non-flush) | 16mm(Non-flush) | 8mm(Non-flush) | 16mm(Non-flush) | |
| Switching Frequency | 25Hz/25Hz AC; 40Hz DC | ||||
| Operating voltage | 20…250V AC/20…250V AC/DC | ||||
| Voltage drop | ≤8V AC/≤10V AC,8V DC | ||||
| Load current | Max.load:400mA;min. Load:5mA | ||||
| Max.load:200mA;min. Load:5mA | |||||
| Leakage current | ≤1.8mA/≤2.5mA | ||||
| Hysteresis | ＜15%(Sr) | ||||
| Repeatability | ＜1.0%(Sr) | ||||
| Switch protection | Polarity Protection, Power-on Protection | ||||
| Indication LED | With (Action: LED Indicator Lights Up) | ||||
| Ambient temperature | -25…70℃ | ||||
| Ingress protection | IP67 | ||||
| Housing Material | Brass, nickel-plated | ||||
| Face material | POM | ||||
| Connectors | M12 Connector | ||||
| Accessories | B12-4GV2/B12-4WV2 | ||||

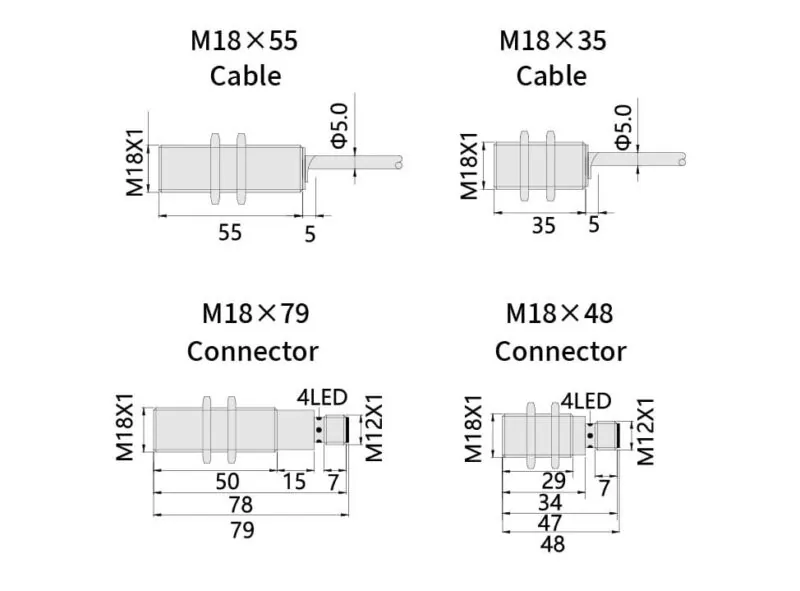

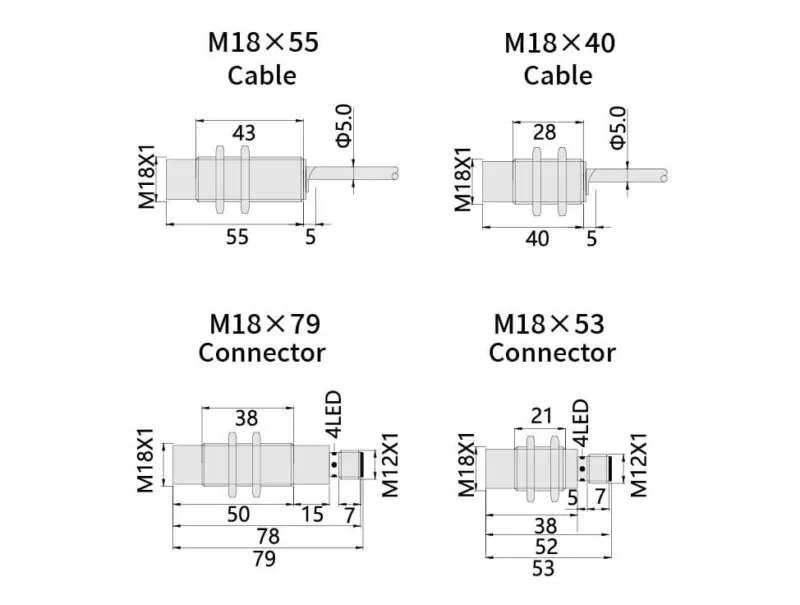

Inductive Switch Size Chart:
Bedook Inductive Proximity Sensor M18 ACDC 2 Wire-Size-01
Bedook Inductive Proximity Sensor M18 ACDC 2 Wire-Size-02
Upgrade to Bedook Inductive Proximity Sensor M18 AC/DC 2 Wire for seamless AC/DC integration and unmatched precision in your control systems.
As a leading sensor manufacturer, Bedook offers unparalleled quality and cost-effectiveness, inviting inquiries from customers seeking reliable sensor solutions.
Experience the Bedook difference in durability and performance.
