Description

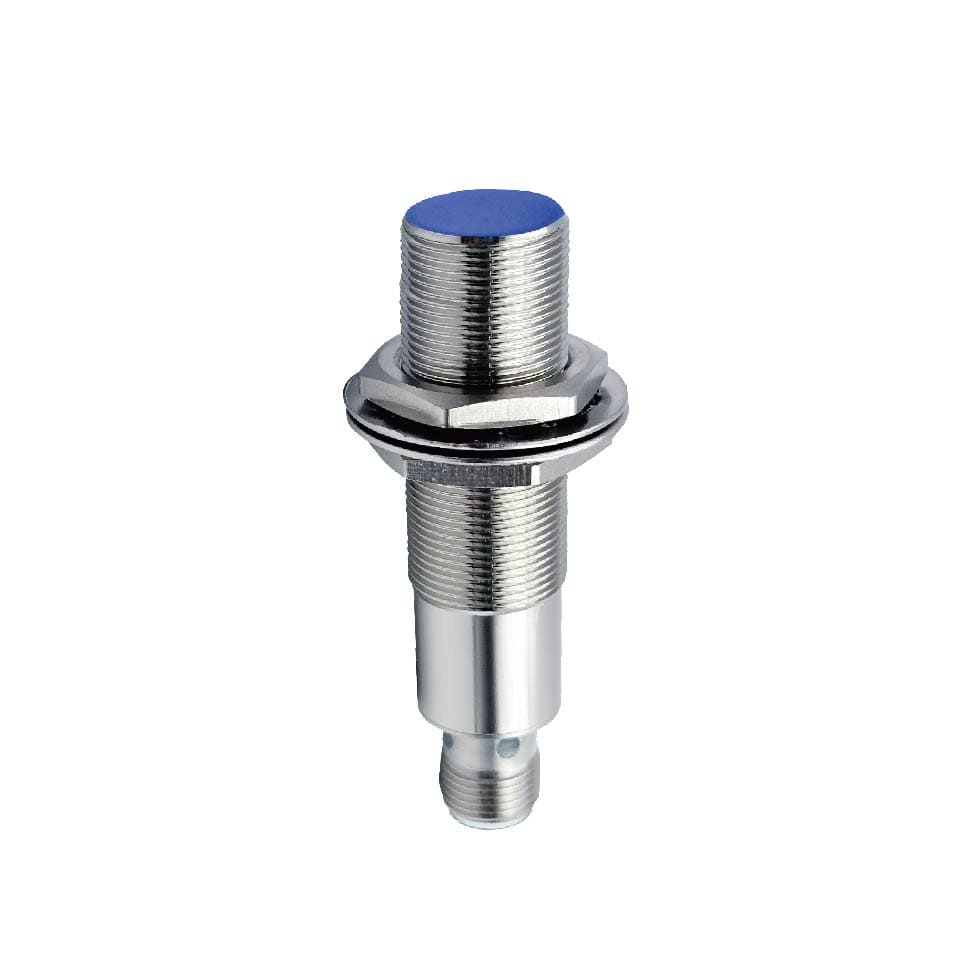

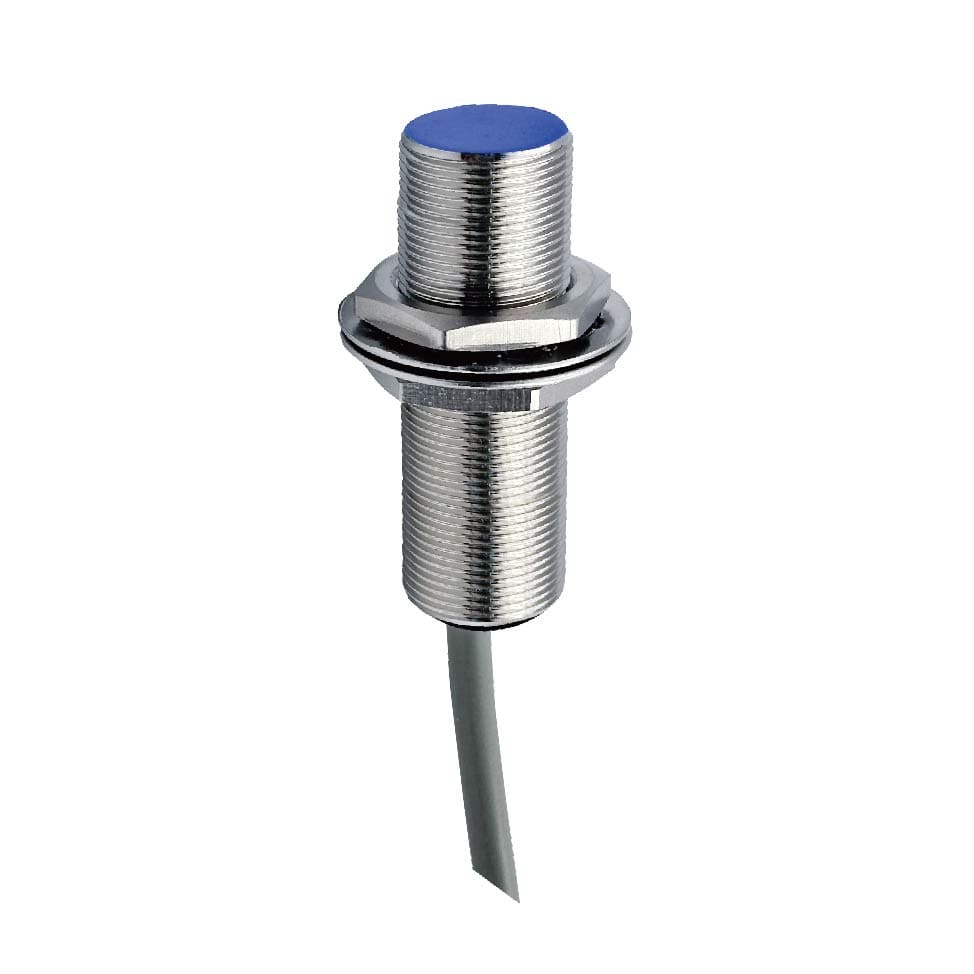

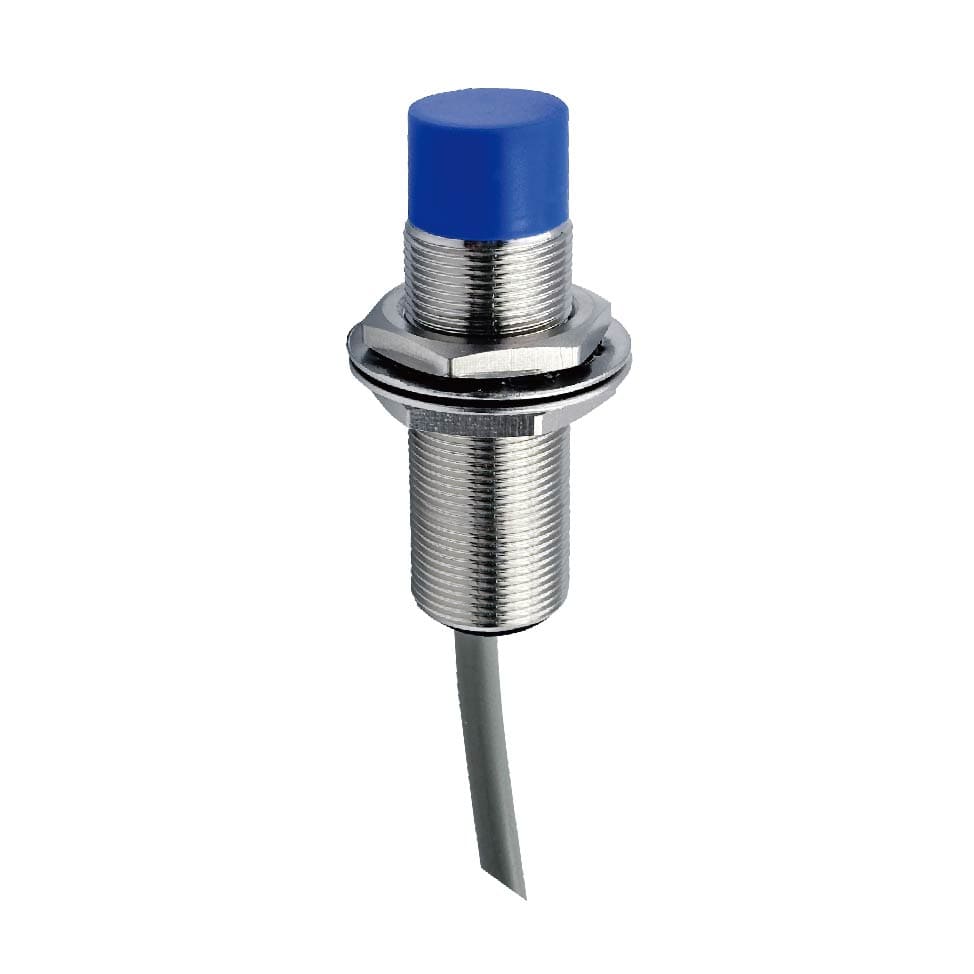

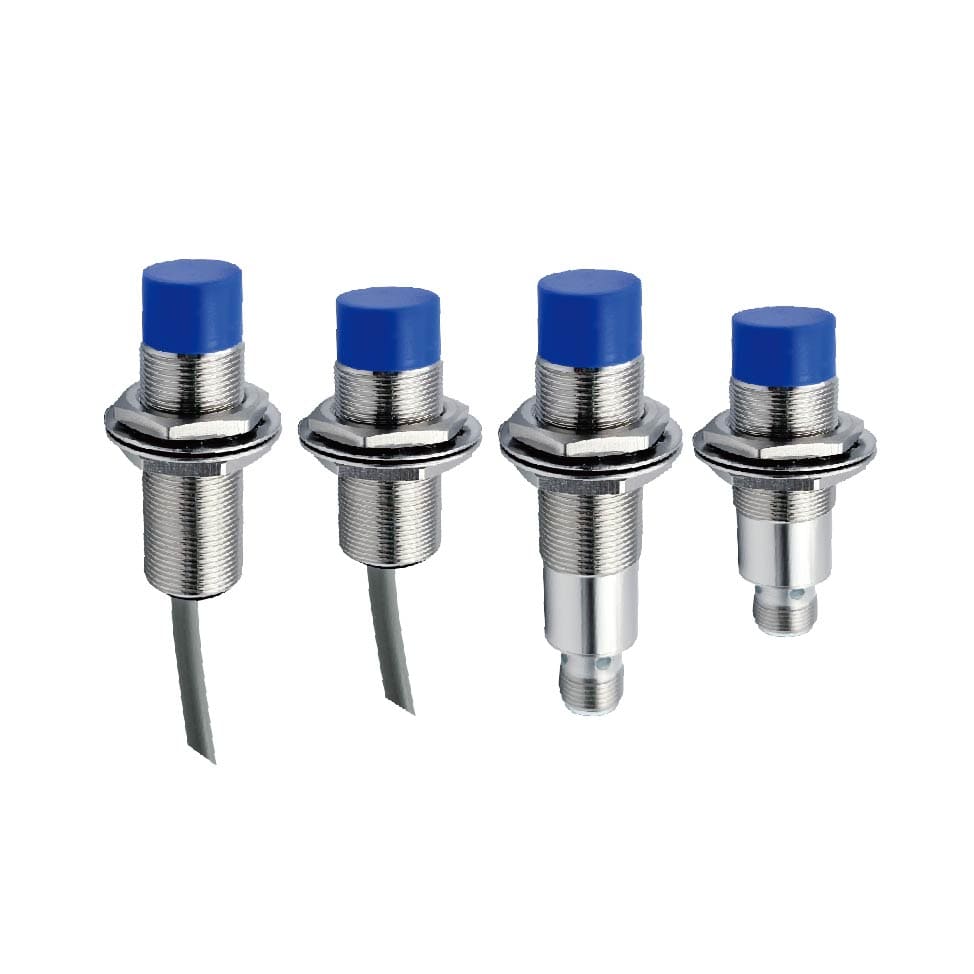

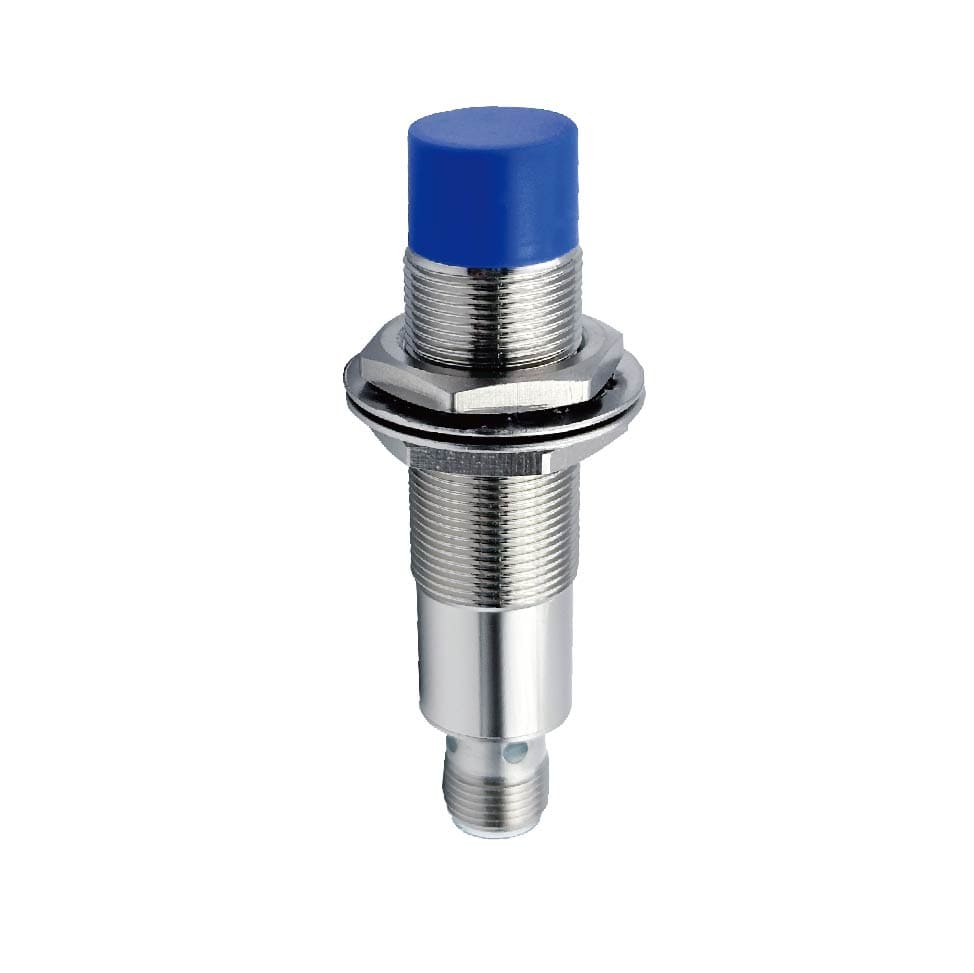

Introducing the Bedook Inductive Proximity Sensor M18 DC 2 Wire – your reliable solution for proximity sensing needs with a streamlined installation process.
This compact sensor, equipped with M18 external threading, Offering 8mm or 16mm sensing distances and a wide voltage range of 10-60VDC. It features an IP67 rating, Brass, nickel-plated housing, and PBT sensing face.
Due to its high repeatability, this product is very suitable for applications that require high measurement accuracy.
Inductive Switch Product Features:
This sensor excels in industrial settings with its robust design, multiple sensing distances, and high precision. Ideal for complex environments, it ensures reliable detection.
- Streamlined 2-Wire Design: Incorporates a user-friendly 2-wire connection system that simplifies electrical integration and setup.
- M18 Threaded Housing: Features a sturdy M18 threaded design providing a secure and reliable mechanical fit for various applications.
- High Measurement Precision: Ensures consistent, high-frequency operation with precise NO/NC output, crucial for repetitive detection tasks.
- IP67 Rated Durability: Constructed with a resilient, nickel-plated brass body and a PBT sensing face capable of withstanding harsh environmental conditions.
- Versatile Voltage Compatibility: Operates efficiently across a wide voltage range from 10 to 60 VDC, catering to diverse electrical setups.
Inductive Switch Technical Parameters:
Switching Frequency: 500Hz(8mm)
| Appearance |  |
 |
 |
 |
|
| Model | NO | BB-M1808C-C13P2 | BB-M1808C-C13P2-S | BB-M1808C-C13S12 | BB-M1808C-C13S12-S |
| NC | BB-M1808C-C23P2 | BB-M1808C-C23P2-S | BB-M1808C-C23S12 | BB-M1808C-C23S12-S | |
| Appearance Structure | M18*1mm | ||||
| Sensing Distance | 8mm(Flush mounting) | ||||
| Switching Frequency | 500Hz | ||||
| Operating voltage | 10…60VDC(±10%) | ||||
| Voltage drop | ≤4.5V | ||||
| Load current | 200mA | ||||
| Leakge current | ≤0.5mA | ||||
| Hysteresis | ＜15%(Sr) | ||||
| Repeatability | ＜1.0%(Sr) | ||||
| Switch protection | Short Circuit Protection, Polarity reversal Protection, Power-On Protection | ||||
| Indication LED | With (Action: LED Indicator Lights Up) | ||||
| Ambient temperature | -25…70℃ | ||||
| Ingress protection | IP67 | ||||
| Housing Material | Brass, nickel-plated | ||||
| Face material | PBT | ||||
| Connectors | 2m PVC Cable, 2*0.5mm²/M12 Connector | ||||
| Accessories | B12-4GV2/B12-4WV2 | ||||
Switching Frequency: 300Hz(16mm)
| Appearance |  |
 |
 |
 |
|
| Model | NO | BN-M1816C-C13P2 | BN-M1816C-C13P2-S | BN-M1816C-C13S12 | BN-M1816C-C13S12-S |
| NC | BN-M1816C-C23P2 | BN-M1816C-C23P2-S | BN-M1816C-C23S12 | BN-M1816C-C23S12-S | |
| Appearance Structure | M18*1mm | ||||
| Sensing Distance | 16mm(Non-flush mounting) | ||||
| Switching Frequency | 300Hz(16mm) | ||||
| Operating voltage | 10…60VDC(±10%) | ||||
| Voltage drop | ≤4.5V | ||||
| Load current | 200mA | ||||
| Leakge current | ≤0.5mA | ||||
| Hysteresis | ＜15%(Sr) | ||||
| Repeatability | ＜1.0%(Sr) | ||||
| Switch protection | Short Circuit Protection, Polarity reversal Protection, Power-On Protection | ||||
| Indication LED | With (Action: LED Indicator Lights Up) | ||||
| Ambient temperature | -25…70℃ | ||||
| Ingress protection | IP67 | ||||
| Housing Material | Brass, nickel-plated | ||||
| Face material | PBT | ||||
| Connectors | 2m PVC Cable, 2*0.5mm²/M12 Connector | ||||
| Accessories | B12-4GV2/B12-4WV2 | ||||
Inductive Switch Size Chart:

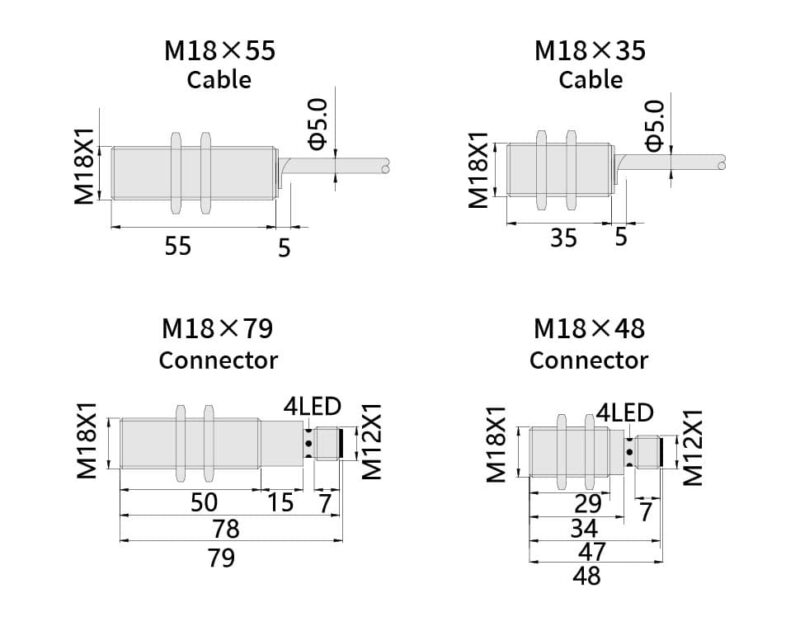

Bedook Inductive Proximity Sensor M18 DC 2 Wire-Size-01

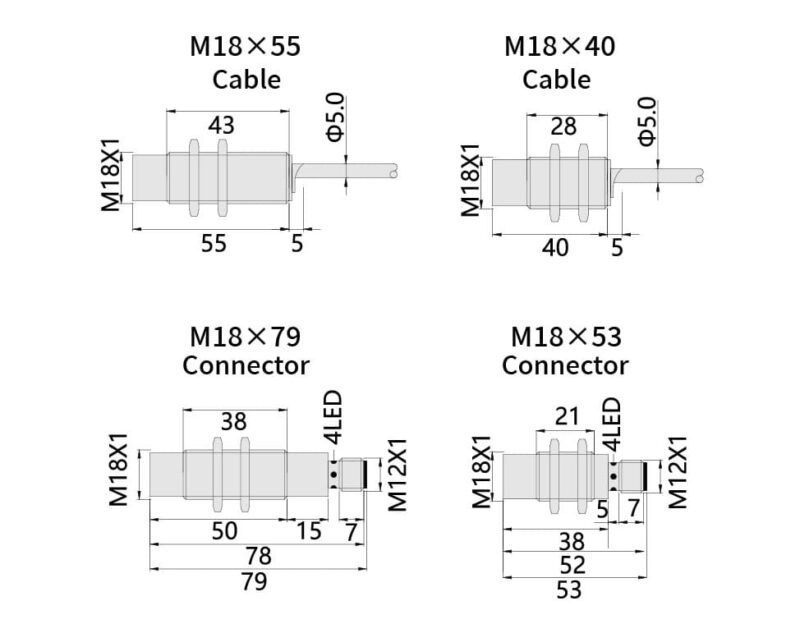

Bedook Inductive Proximity Sensor M18 DC 2 Wire-Size-02
Bedook Inductive Proximity Sensor M18 DC 2 Wire delivers top-tier performance. Achieve operational excellence with our precise, durable sensors.
